SAXSdb — 8gmt

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA polymerase V subunit UmuD

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 1	;DNA (5'-D(PTPTPTPTPTPT)-3') ; × 1 Protein RecA × 2 （A0A485JBB4） MAGNESIUM ION × 2 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C3TD82_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–139； UniProt 1–139 Author chain B； PDBConstruct 1–139； UniProt 1–139

Protein RecA

Escherichia coli

UniProt A0A485JBB4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 4 DNA 1	DNA polymerase V subunit UmuD × 2 （C3TD82） ;DNA (5'-D(PTPTPTPTPTPT)-3') ; × 1 MAGNESIUM ION × 2 PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER × 2	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A485JBB4_ECOLX
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain F； PDBConstruct 1–353； UniProt 1–353 Author chain G； PDBConstruct 1–353； UniProt 1–353

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8gmt
Deposition date deposition_date	2022-08-22
Structure title title	Structure of UmuD in complex with RecA filament
Keywords keywords	SOS response, RecA, UmuD, Filament, DNA repair, Helical Reconstruction, DNA BINDING PROTEIN-DNA COMPLEX; DNA BINDING PROTEIN/DNA
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8gmt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8gmt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

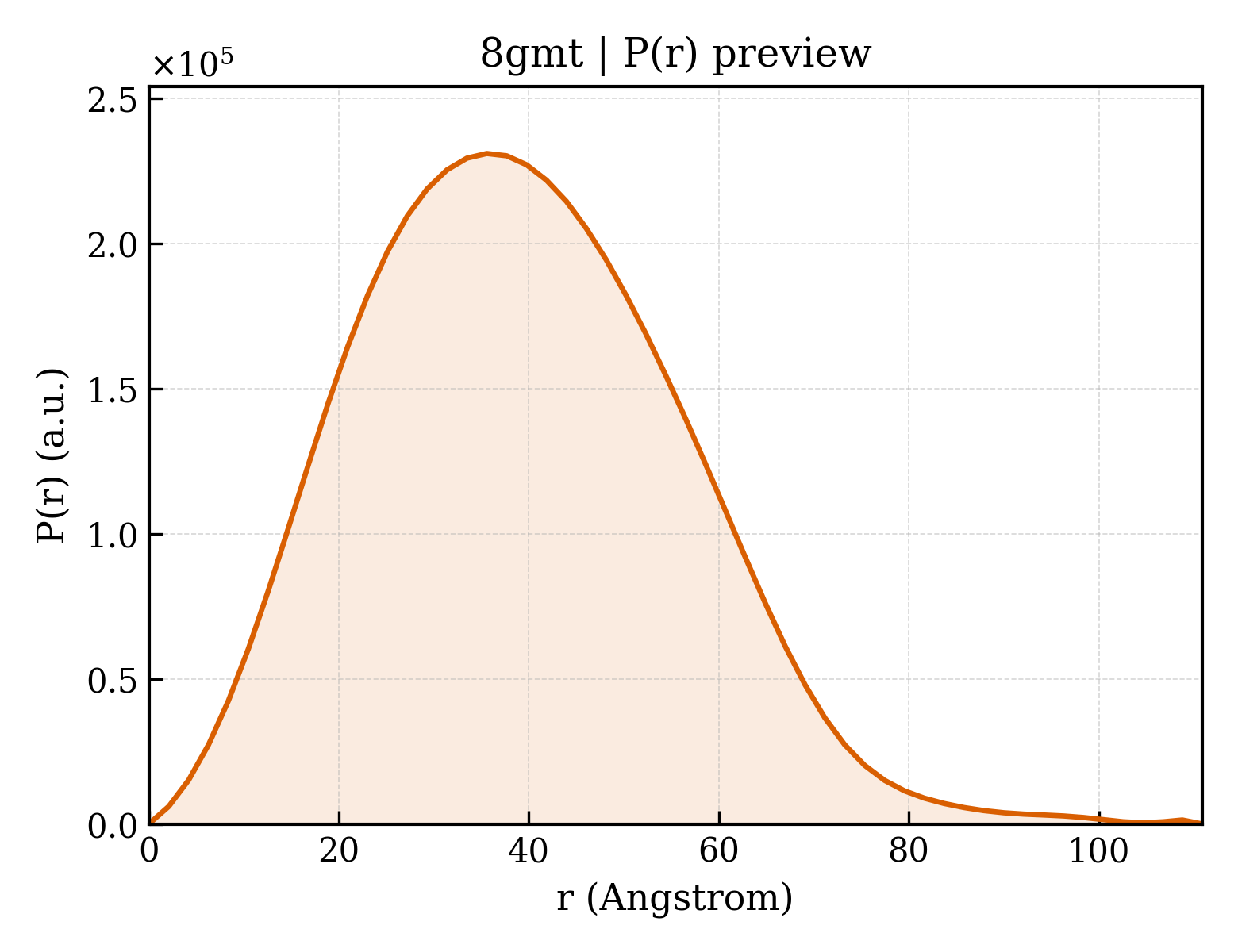

8gmt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.01 Å
Rg (electron density)	29.49 Å
Total Rg	30.02 Å
Atom count	6172
Residues	802
Excluded volume	110110 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8gmt__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	DNA polymerase V subunit UmuD
Molecular weight formula_weight	15017.2 kDa
EC 编号 ec_number	3.4.21.88,3.4.21.-,2.7.7.7
Mutation mutation	K97A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,A
Atom count atom_count	6172

MLFIKPADLREIVTFPLFSDLVQCGFPSPAADYVEQRIDLNQLLIQHPSATYFVKASGDSMIDGGISDGDLLIVDSAITASHGDIVIAAVDGEFTVAKLQLRPTVQLIPMNSAYSPITISSEDTLDVFGVVIHVVKAMR

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(PTPTPTPTPTPT)-3') ;
Molecular weight formula_weight	1780.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	S

TTTTTT

Entity 3 Entity 3 polymer

Description description	Protein RecA
Molecular weight formula_weight	38016.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F,G

MAIDENKQKALAAALGQIEKQFGKGSIMRLGEDRSMDVETISTGSLSLDIALGAGGLPMGRIVEIYGPESSGKTTLTLQVIAAAQREGKTCAFIDAEHALDPIYARKLGVDIDNLLCSQPDTGEQALEICDALARSGAVDVIVVDSVAALTPKAEIEGEIGDSHMGLAARMMSQAMRKLAGNLKQSNTLLIFINQIRMKIGVMFGNPETTTGGNALKFYASVRLDIRRIGAVKEGENVVGSETRVKVVKNKIAAPFKQAEFQILYGEGINFYGELVDLGVKEKLIEKAGAWYSYKGEKIGQGKANATAWLKDNPETAKEIEKKVRELLLSNPNSTPDFSVDDSEGVAETNEDF

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.31 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	137040
