SAXSdb — 8gtk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Probable E3 ubiquitin-protein ligase ipaH7.8

Shigella flexneri

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	GSDMB isoform-1 × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IPA7_SHIFL
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–241； UniProt 23–262

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8gtk
Deposition date deposition_date	2022-09-08
Structure title title	Crystal structure of IpaH7.8-LRR and GSDMB isoform-1 complex
Keywords keywords	Complex, Effector, Pyroptosis, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8gtk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8gtk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

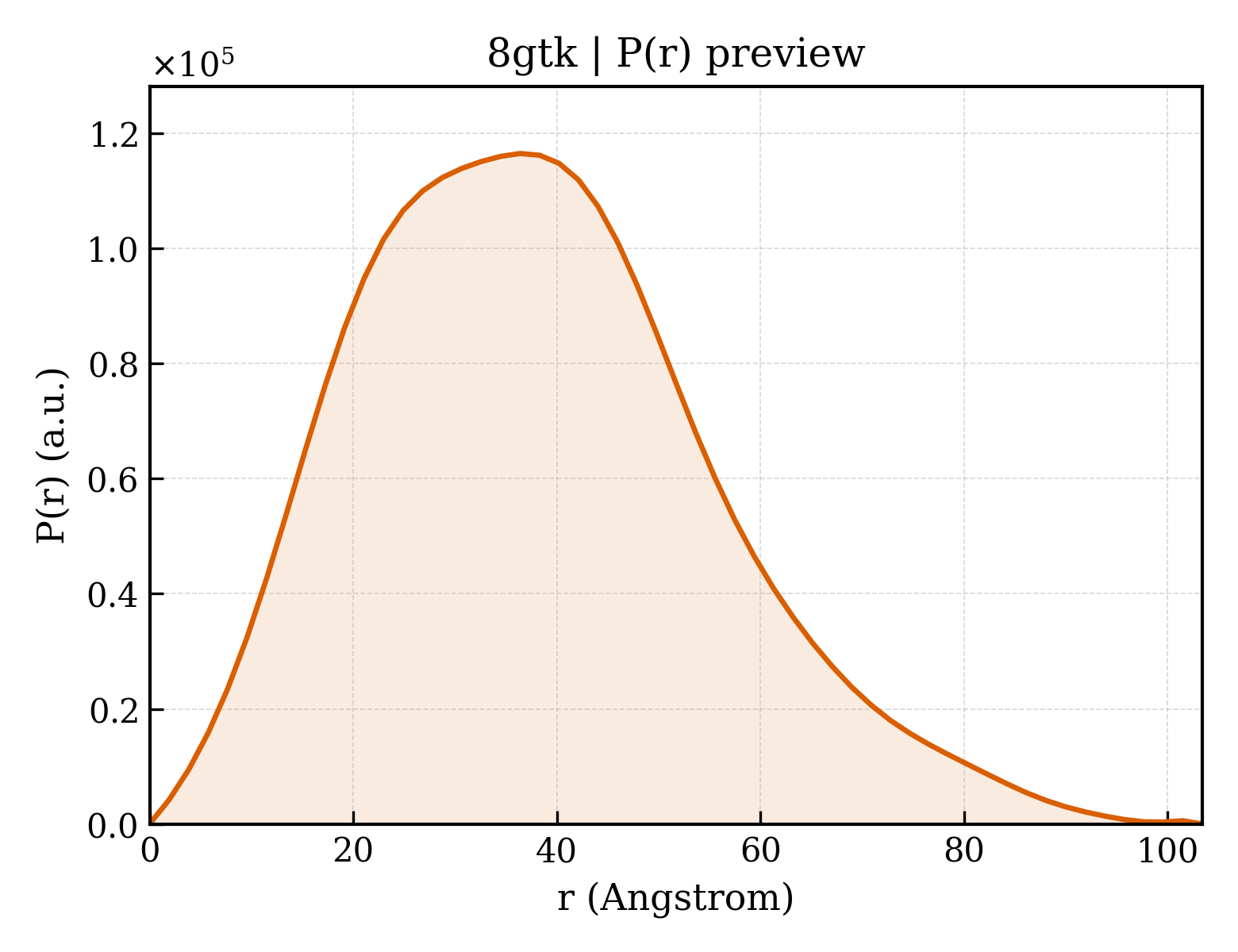

8gtk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.35 Å
Rg (electron density)	28.91 Å
Total Rg	29.53 Å
Atom count	4528
Residues	560
Excluded volume	80989 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8gtk__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	GSDMB isoform-1
Molecular weight formula_weight	45002.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4528

GPGSGRPMFSVFEEITRIVVKEMDAGGDMIAVRSLVDADRFRCFHLVGEKRTFFGCRHYTTGLTLMDILDTDGDKAEFQILDNVDSTGELIVRLPKEITISGSFQGFHHQKIKISENRISQQYLATLENRKLKRELPFSFRSINTRENLYLVTETLETVKEETLKSDRQYKFWSQISQGHLSYKHKGQREVTIPPNRVLSYRVKQLVFPNKETMKKDGASSCLGKSLGSEDSRNMKEKLEDMESVLKDLTEEKRKDVLNSLAKCLGKEDIRQDLEQRVSEVLISGELHMEDPDKPLLSSLFNAAGVLVEARAKAILDFLDALLELSEEQQFVAEALEKGTLPLLKDQVKSVMEQNWDELASSPPDMDYDPEARILCALYVVVSILLELAEGPTSVSS

Source Source

Source organism organism	Homo sapiens
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Probable E3 ubiquitin-protein ligase ipaH7.8
Molecular weight formula_weight	27840.5 kDa
EC 编号 ec_number	2.3.2.27
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSNEHYLRILTEWEKNSSPGEERGIAFNRLSQCFQNQEAVLNLSDLNLTSLPELPKHISALIVENNKLTSLPKLPAFLKELNADNNRLSVIPELPESLTTLSVRSNQLENLPVLPNHLTSLFVENNRLYNLPALPEKLKFLHVYYNRLTTLPDLPDKLEILCAQRNNLVTFPQFSDRNNIRQKEYYFHFNQITTLPESFSQLDSSYRINISGNPLSTRVLQSLQRLTSSPDYHGPQIYFSM

Source Source

Source organism organism	Shigella flexneri
NCBI taxonomy ID ncbi_taxonomy_id	623
Host organism host_organism	Escherichia coli BL21(DE3)

▶

Unit-cell length a length_a	102.732 Å
Unit-cell length b length_b	102.732 Å
Unit-cell length c length_c	121.316 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	trigonal

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	47.300 Å
R factor r_factor	0.2681
R_work r_work	0.2657
R_free r_free	0.2896

Crystal structure of IpaH7.8-LRR and GSDMB isoform-1 complex
