SAXSdb — 8h9y

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ion transport protein

Aliarcobacter butzleri

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	DODECYL-BETA-D-MALTOSIDE × 8 CHAPSO × 4 1,2-DIMYRISTOYL-SN-GLYCERO-3-PHOSPHOCHOLINE × 32 CALCIUM ION × 8 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A8EVM5_ALIB4
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–271； UniProt 1–267

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8h9y
Deposition date deposition_date	2022-10-25
Structure title title	Crystal structure of voltage-gated sodium channel NavAb N49K/L176Q mutant in calcium ion condition
Keywords keywords	ion channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8h9y__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8h9y__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

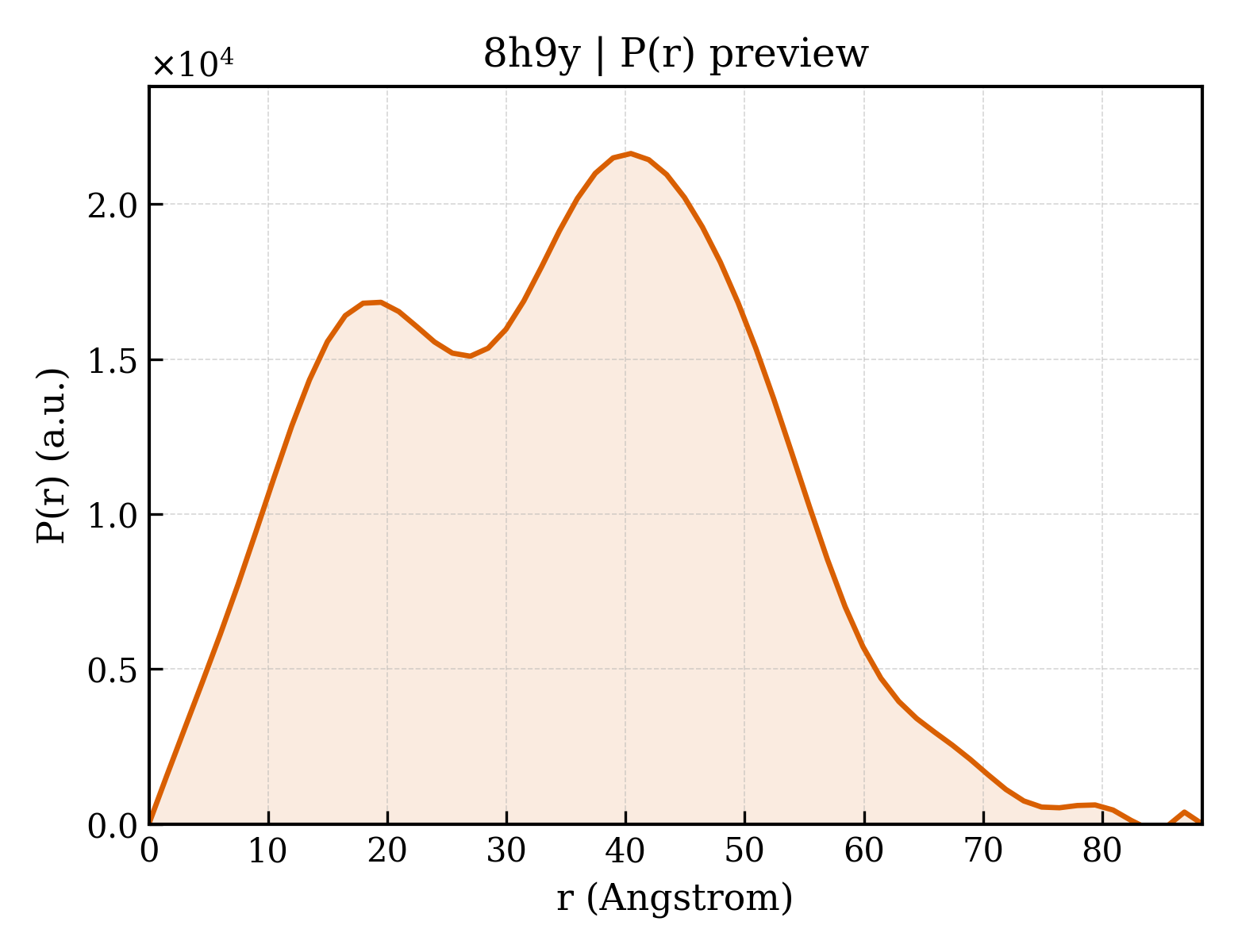

8h9y__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.27 Å
Rg (electron density)	32.63 Å
Total Rg	33.28 Å
Atom count	9285
Residues	908
Excluded volume	179930 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8h9y__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Ion transport protein
Molecular weight formula_weight	31412.3 kDa
Mutation mutation	N49K, L176Q
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2334

GSGSMYLRITNIVESSFFTKFIIYLIVLNGITMGLETSKTFMQSFGVYTTLFKQIVITIFTIEIILRIYVHRISFFKDPWSLFDFFVVAISLVPTSSGFEILRVLRVLRLFRLVTAVPQMRKIVSALISVIPGMLSVIALMTLFFYIFAIMATQLFGERFPEWFGTLGESFYTLFQVMTQESWSMGIVRPLMEVYPYAWVFFIPFIFVVTFVMINLVVAIIVDAMAILNQKEEQHIIDEVQSHEDNINNEIIKLREEIVELKELIKTSLKN

Source Source

Source organism organism	Aliarcobacter butzleri
NCBI taxonomy ID ncbi_taxonomy_id	28197
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	DODECYL-BETA-D-MALTOSIDE
Molecular weight formula_weight	510.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	CHAPSO
Molecular weight formula_weight	631.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	1,2-DIMYRISTOYL-SN-GLYCERO-3-PHOSPHOCHOLINE
Molecular weight formula_weight	678.9 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 5 Entity 5 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	12

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	8h9yA01
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	350 — Voltage-gated potassium channels. Chain C

Domain ID domain_id	8h9yA02
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	287 — Helix Hairpins
Homologous superfamily homologous superfamily	70 —

▶

Unit-cell length a length_a	127.940 Å
Unit-cell length b length_b	127.940 Å
Unit-cell length c length_c	201.920 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 4 2 2
Space-group number int_tables_number	97
Crystal system crystal_system	tetragonal

Resolution resolution	3.400 Å
Low-resolution limit resolution_low	29.780 Å
R factor r_factor	0.2545
R_work r_work	0.2541
R_free r_free	0.2636
