SAXSdb — 8hdk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glutamate receptor ionotropic, NMDA 1

Rattus norvegicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 4 其他Polymer 8	Glutamate receptor ionotropic, NMDA 2C × 2 （Q00961） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 5 alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NMDZ1_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–796； UniProt 1–796 Author chain C； PDBConstruct 1–796； UniProt 1–796

Glutamate receptor ionotropic, NMDA 2C

Rattus norvegicus

UniProt Q00961

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 4 其他Polymer 8	Glutamate receptor ionotropic, NMDA 1 × 2 （P35439） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 5 alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 12	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NMDE3_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–800； UniProt 1–800 Author chain D； PDBConstruct 1–800； UniProt 1–800

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8hdk
Deposition date deposition_date	2022-11-04
Structure title title	Structure of the Rat GluN1-GluN2C NMDA receptor in complex with glycine and glutamate (minor class in symmetry)
Keywords keywords	NMDA receptor, GluN2C, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8hdk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

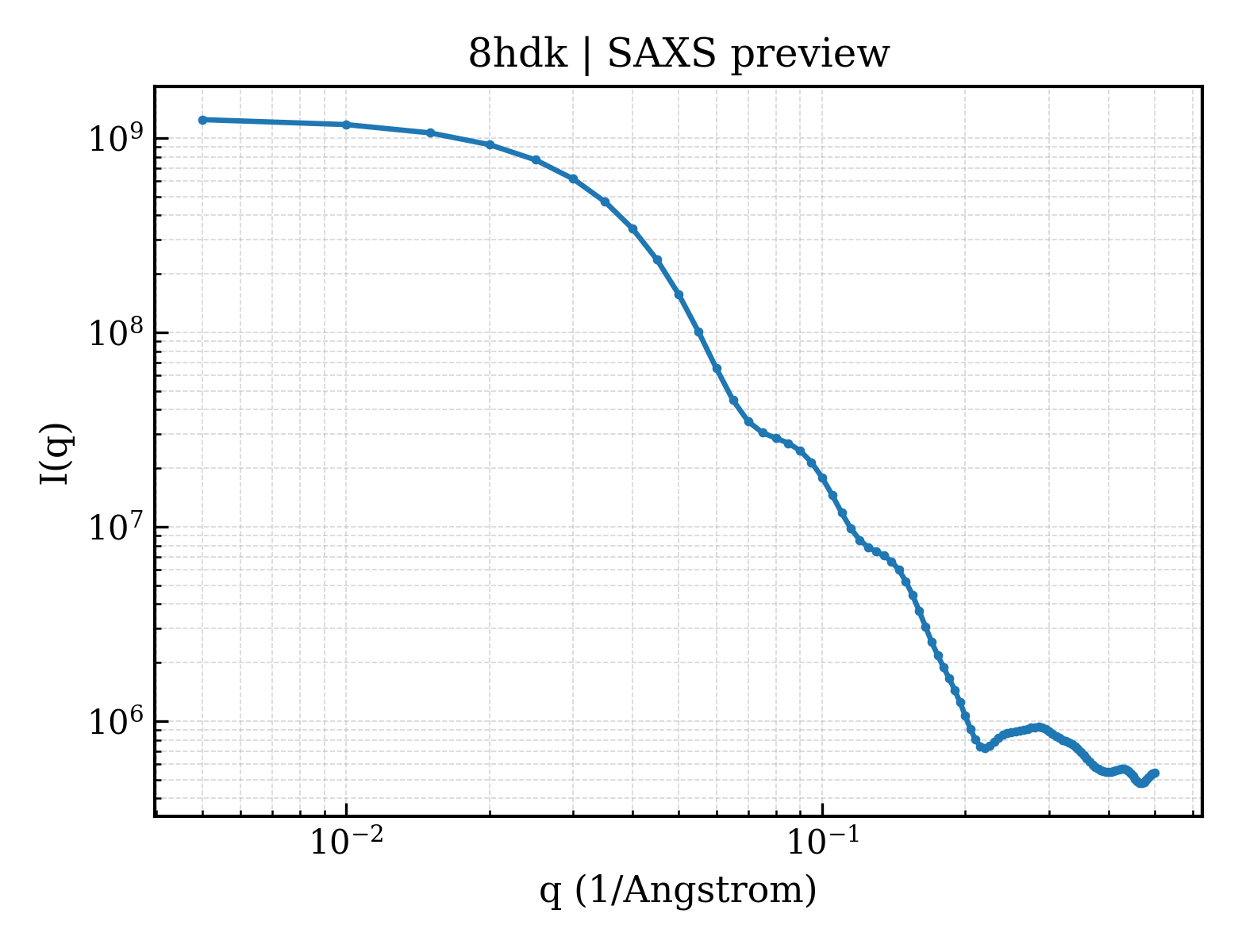

8hdk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8hdk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	48.59 Å
Rg (electron density)	47.72 Å
Total Rg	48.06 Å
Atom count	20884
Residues	2608
Excluded volume	372080 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8hdk__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Glutamate receptor ionotropic, NMDA 1
Molecular weight formula_weight	89724.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	20884

MSTMHLLTFALLFSCSFARAACDPKIVNIGAVLSTRKHEQMFREAVNQANKRHGSWKIQLNATSVTHKPNAIQMALSVCEDLISSQVYAILVSHPPTPNDHFTPTPVSYTAGFYRIPVLGLTTRMSIYSDKSIHLSFLRTVPPYSHQSSVWFEMMRVYNWNHIILLVSDDHEGRAAQKRLETLLEERESKAEKVLQFDPGTKNVTALLMEARELEARVIILSASEDDAATVYRAAAMLNMTGSGYVWLVGEREISGNALRYAPDGIIGLQLINGKNESAHISDAVGVVAQAVHELLEKENITDPPRGCVGNTNIWKTGPLFKRVLMSSKYADGVTGRVEFNEDGDRKFANYSIMNLQNRKLVQVGIYNGTHVIPNDRKIIWPGGETEKPRGYQMSTRLKIVTIHQEPFVYVKPTMSDGTCKEEFTVNGDPVKKVICTGPNDTSPGSPRHTVPQCCYGFCIDLLIKLARTMNFTYEVHLVADGKFGTQERVNNSNKKEWNGMMGELLSGQADMIVAPLTINNERAQYIEFSKPFKYQGLTILVKKEIPRSTLDSFMQPFQSTLWLLVGLSVHVVAVMLYLLDRFSPFGRFKVNSEEEEEDALTLSSAMWFSWGVLLNSGIGEGAPRSFSARILGMVWAGFAMIIVASYTANLAAFLVLDRPEERITGINDPRLRNPSDKFIYATVKQSSVDIYFRRQVELSTMYRHMEKHNYESAAEAIQAVRDNKLHAFIWDSAVLEFEASQKCDLVTTGELFFRSGFGIGMRKDSPWKQNVSLSILKSHENGFMEDLDKTWVRYQ

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Glutamate receptor ionotropic, NMDA 2C
Molecular weight formula_weight	87753.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MGGALGPALLLTSLLGAWARLGAGQGEQAVTVAVVFGSSGPLQTQARTRLTSQNFLDLPLEIQPLTVGVNNTNPSSILTQICGLLGAARVHGIVFEDNVDTEAVAQLLDFVSSQTHVPILSISGGSAVVLTPKEPGSAFLQLGVSLEQQLQVLFKVLEEYDWSAFAVITSLHPGHALFLEGVRAVADASYLSWRLLDVLTLELGPGGPRARTQRLLRQVDAPVLVAYCSREEAEVLFAEAAQAGLVGPGHVWLVPNLALGSTDAPPAAFPVGLISVVTESWRLSLRQKVRDGVAILALGAHSYRRQYGTLPAPAGDCRSHPGPVSPAREAFYRHLLNVTWEGRDFSFSPGGYLVRPTMVVIALNRHRLWEMVGRWDHGVLYMKYPVWPRYSTSLQPVVDSRHLTVATLEERPFVIVESPDPGTGGCVPNTVPCRRQSNHTFSSGDLTPYTKLCCKGFCIDILKKLAKVVKFSYDLYLVTNGKHGKRVRGVWNGMIGEVYYKRADMAIGSLTINEERSEIIDFSVPFVETGISVMVSRSNGTVSPSAFLEPYSPAVWVMMFVMCLTVVAITVFMFEYFSPVSYNQNLTKGKKPGGPSFTIGKSVWLLWALVFNNSVPIENPRGTTSKIMVLVWAFFAVIFLASYTANLAAFMIQEQYIDTVSGLSDKKFQRPQDQYPPFRFGTVPNGSTERNIRSNYRDMHTHMVKFNQRSVEDALTSLKMGKLDAFIYDAAVLNYMAGKDEGCKLVTIGSGKVFATTGYGIAMQKDSHWKRAIDLALLQLLGDGETQKLETVWLSGICQN

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	5

Entity 4 Entity 4 branched

Description description	alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	12

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Structure of the Rat GluN1-GluN2C NMDA receptor in complex with glycine and glutamate (minor class in symmetry)
