1. Protein Identity and Related Structures Protein Identity & Related Structures

Putative ribosome-binding factor A, mitochondrial

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	12S rRNA N4-methylcytidine (m4C) methyltransferase × 1 （A6NJ78） S-ADENOSYLMETHIONINE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RBFA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–34； UniProt 227–260

12S rRNA N4-methylcytidine (m4C) methyltransferase

Homo sapiens

UniProt A6NJ78

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Putative ribosome-binding factor A, mitochondrial × 1 （Q8N0V3） S-ADENOSYLMETHIONINE × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MET15_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–338； UniProt 70–407

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ipl
Deposition date deposition_date	2023-03-14
Structure title title	The structure of human mitochondrial methyltransferase METTL15 with RBFA and SAM
Keywords keywords	human mitochondrial methyltransferase METTL15, RIBOSOMAL PROTEIN; RIBOSOMAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ipl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

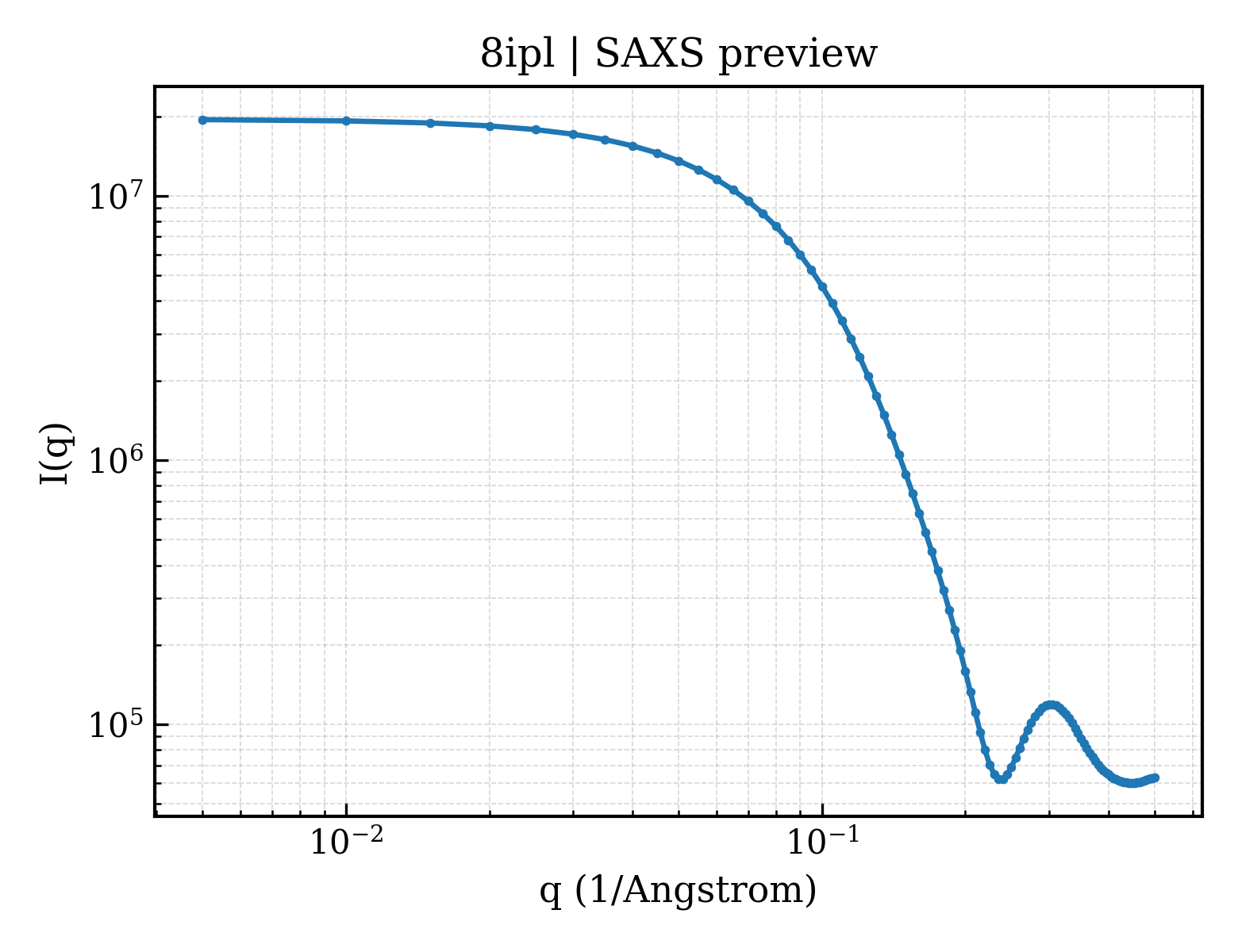

8ipl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8ipl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	20.86 Å
Rg (electron density)	20.07 Å
Total Rg	20.88 Å
Atom count	2369
Residues	307
Excluded volume	42377 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ipl__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Putative ribosome-binding factor A, mitochondrial
Molecular weight formula_weight	3815.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	2401

TTEPTTSSSLCGIDHEALNKQIMEYKRRKDKGLG

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	12S rRNA N4-methylcytidine (m4C) methyltransferase
Molecular weight formula_weight	37768.6 kDa
EC 编号 ec_number	2.1.1.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

KLHIPVMVDEVVHCLSPQKGQIFLDMTFGSGGHTKAILQKESDIVLYALDRDPTAYALAEHLSELYPKQIRAMLGQFSQAEALLMKAGVQPGTFDGVLMDLGCSSMQLDTPERGFSLRKDGPLDMRMDGGRYPDMPTAADVVNALDQQALASILRTYGEEKHAKKIASAIVQARSIYPITRTQQLASIVAGAFPPSAIYTRKDLLQRSTHIATKTFQALRIFVNNELNELYTGLKTAQKFLRPGGRLVALSFHSLEDRIVKRFLLGISMTERFNLSVRQQVMKTSQLGSDHENTEEVSMRRAPLMWELIHKKVLSPQDQDVQDNPRGRSAKLRAAIKL

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	S-ADENOSYLMETHIONINE
Molecular weight formula_weight	398.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	32

▶

Unit-cell length a length_a	63.167 Å
Unit-cell length b length_b	70.978 Å
Unit-cell length c length_c	75.930 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	33.477 Å
R factor r_factor	0.1825
R_work r_work	0.1799
R_free r_free	0.2346
