SAXSdb — 8j64

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MIC2-associated protein

Toxoplasma gondii

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Micronemal protein MIC2 × 1 （O00816） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q967S9_TOXGO
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–185； UniProt 47–228

Micronemal protein MIC2

Toxoplasma gondii

UniProt O00816

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	MIC2-associated protein × 1 （Q967S9） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	O00816_TOXGO
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 4–58； UniProt 597–651

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8j64
Deposition date deposition_date	2023-04-24
Structure title title	Crystal structure of Toxoplasma gondii MIC2-M2AP complex
Keywords keywords	Toxoplasma gondii, MIC2, M2AP, TSR6 domain, structural biology, CELL INVASION; CELL INVASION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8j64__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8j64__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

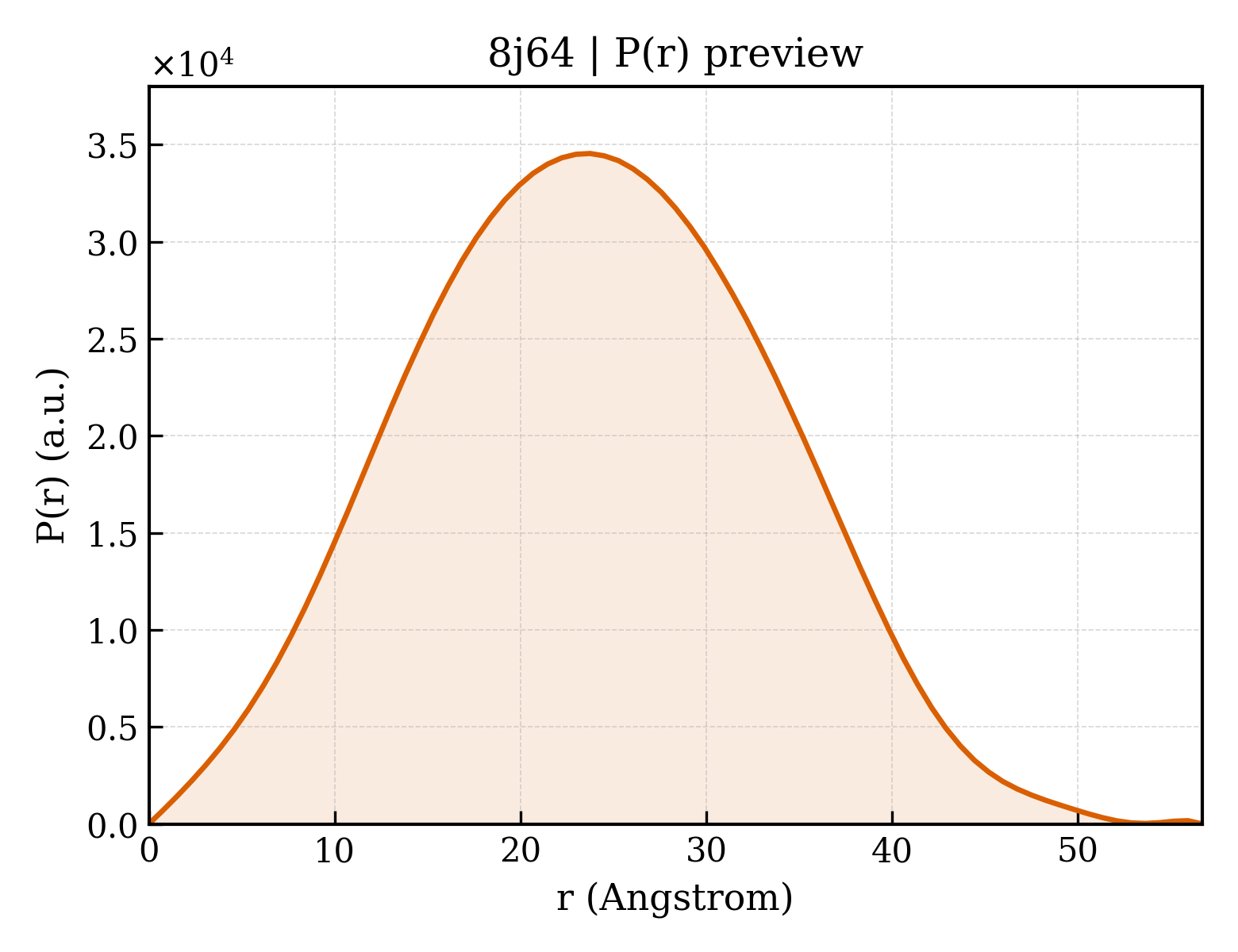

8j64__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.30 Å
Rg (electron density)	16.96 Å
Total Rg	17.98 Å
Atom count	1673
Residues	222
Excluded volume	29584 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8j64__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	MIC2-associated protein
Molecular weight formula_weight	19686.0 kDa
Mutation mutation	N127R, S177N
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1943

SNATFLELVEVPCNSVHVQGVMTPNQMVKVTGAGWDNGVLEFYVTRPTKTGGDTSRSHLASIMCYSKDIDGVPSDKAGKCFLKRFSGEDSSEIDEKEVSLPIKSHNDAFMFVCSSNDGSALQCDVFALDNTNSNDGWKVNTVDLGVSVSPDLAFGLTADGVKVKKLYASSGLTAINDDPSLGCKA

Source Source

Source organism organism	Toxoplasma gondii
NCBI taxonomy ID ncbi_taxonomy_id	5811
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Micronemal protein MIC2
Molecular weight formula_weight	6427.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SNAGASCTYVWSDWNKCVCPMGYQARHAAVKFDYRNKPCDLPTFETKACSCGETNPVP

Source Source

Source organism organism	Toxoplasma gondii
NCBI taxonomy ID ncbi_taxonomy_id	5811
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	270

▶

Unit-cell length a length_a	42.777 Å
Unit-cell length b length_b	53.176 Å
Unit-cell length c length_c	95.548 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	23.030 Å
R factor r_factor	0.1770
R_work r_work	0.1752
R_free r_free	0.2114

Crystal structure of Toxoplasma gondii MIC2-M2AP complex
