SAXSdb — 8jc5

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ADP-ribosylation factor-like protein 8B

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 18–186	Mutation：Q75L	Pleckstrin homology domain-containing family M member 1 × 1 （Q9Y4G2） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；298 K；0.2 M Lithium chloride, 0.1 M TRIS pH=7.6, 18% (w/v) PEG 8000	Resolution 2.01 Å R-free 0.201
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 18–186	Mutation：Q75L	Pleckstrin homology domain-containing family M member 1 × 1 （Q9Y4G2） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；298 K；0.2 M Lithium chloride, 0.1 M TRIS pH=7.6, 18% (w/v) PEG 8000	Resolution 2.01 Å R-free 0.201

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8JC5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2AL7 Structure Of Human ADP-Ribosylation Factor-Like 10C Deposited 2005-08-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 18–184（167 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；PEG 3350 25%, Ammonium Acetate 100mM, 100mM HEPES (7.5), VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.85 Å R-free 0.251
8JCA Cyrstal structure of SKIP RUN domain in complex with GTP-bound Arl8b(Q75L) Deposited 2023-05-10	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 18–186（169 aa）	Mutation：Q75L	GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；800mM Potassiam phosphate dibasic 1.2 M Sodium phosphate monobasic 0.1M CAPS/Sodium hydroxide 0.2M Lithium sulfate pH10.5	Resolution 1.65 Å R-free 0.206

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ARL8B_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–169； UniProt 18–186 Author chain B； PDBConstruct 1–169； UniProt 18–186

Pleckstrin homology domain-containing family M member 1

Homo sapiens

UniProt Q9Y4G2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 10–205	Not recorded	ADP-ribosylation factor-like protein 8B × 1 （Q9NVJ2） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；298 K；0.2 M Lithium chloride, 0.1 M TRIS pH=7.6, 18% (w/v) PEG 8000	Resolution 2.01 Å R-free 0.201
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 10–205	Not recorded	ADP-ribosylation factor-like protein 8B × 1 （Q9NVJ2） GTP GUANOSINE-5'-TRIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；298 K；0.2 M Lithium chloride, 0.1 M TRIS pH=7.6, 18% (w/v) PEG 8000	Resolution 2.01 Å R-free 0.201

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8JC5	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5DPR Crystal structure of PLEKHM1 LIR-fused human LC3A_2-121 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 627–638（12 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121,UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；278 K；0.2 M ammonium acetate, 0.1 M Bis Tris, pH 5.5, 25% w/v Polyethlene glycol 3,350	Resolution 2.50 Å R-free 0.261
5DPR Crystal structure of PLEKHM1 LIR-fused human LC3A_2-121 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 627–638（12 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121,UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；278 K；0.2 M ammonium acetate, 0.1 M Bis Tris, pH 5.5, 25% w/v Polyethlene glycol 3,350	Resolution 2.50 Å R-free 0.261
5DPR Crystal structure of PLEKHM1 LIR-fused human LC3A_2-121 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 627–638（12 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121,UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；278 K；0.2 M ammonium acetate, 0.1 M Bis Tris, pH 5.5, 25% w/v Polyethlene glycol 3,350	Resolution 2.50 Å R-free 0.261
5DPR Crystal structure of PLEKHM1 LIR-fused human LC3A_2-121 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain D 627–638（12 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121,UNP Q9Y4G2 residues 627-638, UNP Q9H492 residues 2-121	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；278 K；0.2 M ammonium acetate, 0.1 M Bis Tris, pH 5.5, 25% w/v Polyethlene glycol 3,350	Resolution 2.50 Å R-free 0.261
5DPS Crystal structure of PLEKHM1 LIR-fused human GABARAP_2-117 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 627–638（12 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP O95166 residues 2-117	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；278 K；4% v/v Tacsimate pH 8.0, 12% w/v Polyethylene glycol 3,350	Resolution 2.00 Å R-free 0.223
5DPS Crystal structure of PLEKHM1 LIR-fused human GABARAP_2-117 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 627–638（12 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP O95166 residues 2-117	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；278 K；4% v/v Tacsimate pH 8.0, 12% w/v Polyethylene glycol 3,350	Resolution 2.00 Å R-free 0.223
5DPS Crystal structure of PLEKHM1 LIR-fused human GABARAP_2-117 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 627–638（12 aa） Fragment：UNP Q9Y4G2 residues 627-638, UNP O95166 residues 2-117	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；278 K；4% v/v Tacsimate pH 8.0, 12% w/v Polyethylene glycol 3,350	Resolution 2.00 Å R-free 0.223
5DPT Crystal structure of PLEKHM1 LIR-fused human GABARAPL1_2-117 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 627–638（12 aa） Fragment：UNP Q9Y4G2 627-638, UNP Q9H0R8 2-117	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；278 K；20% w/v Polyethylene glycol 3,350, 0.2 M NaCl, 8% MPD pH 7.2	Resolution 2.90 Å R-free 0.260
5DPT Crystal structure of PLEKHM1 LIR-fused human GABARAPL1_2-117 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 627–638（12 aa） Fragment：UNP Q9Y4G2 627-638, UNP Q9H0R8 2-117	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；278 K；20% w/v Polyethylene glycol 3,350, 0.2 M NaCl, 8% MPD pH 7.2	Resolution 2.90 Å R-free 0.260
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 629–642（14 aa） Fragment：UNP residues 629-642	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 629–642（14 aa） Fragment：UNP residues 629-642	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 629–642（14 aa） Fragment：UNP residues 629-642	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 629–642（14 aa） Fragment：UNP residues 629-642	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain J 629–642（14 aa） Fragment：UNP residues 629-642	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain L 629–642（14 aa） Fragment：UNP residues 629-642	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain N 629–642（14 aa） Fragment：UNP residues 629-642	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain P 629–642（14 aa） Fragment：UNP residues 629-642	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246

4 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PKHM1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–196； UniProt 10–205 Author chain D； PDBConstruct 1–196； UniProt 10–205

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8jc5
Deposition date deposition_date	2023-05-10
最后修订 last_revision	2024-03-27
Structure title title	Crystal structure of PLEKHM1 RUN domain in complex with GTP-bound Arl8b(Q75L)
Keywords keywords	PLEKHM1, RUN, Arl8b, GTP-bound, GTPase, Arf, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.05 Å
Radius of gyration Rg (electron density) rg_electron	29.03 Å
Forward intensity I(0) i0	106313000.00
Molecular weight molecular_weight	81842.0 kDa
Excluded volume excluded_volume	102720 Å³
Envelope volume envelope_volume	127230 Å³
Hydration-shell volume shell_volume	36383 Å³
Envelope diameter envelope_diameter	104.7 Å
Shell Rg shell_rg	36.38 Å
Envelope Rg envelope_rg	29.06 Å
Shape Rg shape_rg	29.03 Å
Total Rg total_rg	29.69 Å
Total atoms total_atoms	5740
Residues n_residues	720
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	98.4 Å
Rg (real space) rg_real	29.98 Å
Rg uncertainty (real space) rg_real_error	0.65 Å
I(0) (real space) i0_real	1.0630e+08
I(0) uncertainty (real space) i0_real_error	1.6670e+06
Rg (reciprocal space) rg_reciprocal	30.02 Å
I(0) (reciprocal space) i0_reciprocal	106300000.0000
Solution quality estimate total_estimate	0.8942
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	33.4 Å
Skewness Skewness skewness	0.231
Kurtosis Kurtosis kurtosis	-0.500
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	45230000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.896; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.936

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	ADP-ribosylation factor-like protein 8B
Molecular weight formula_weight	19400.4 kDa
EC 编号 ec_number	3.6.5.2
Mutation mutation	Q75L
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6083

KEEMELTLVGLQYSGKTTFVNVIASGQFSEDMIPTVGFNMRKVTKGNVTIKIWDIGGLPRFRSMWERYCRGVNAIVYMIDAADREKIEASRNELHNLLDKPQLQGIPVLVLGNKRDLPNALDEKQLIEKMNLSAIQDREICCYSISCKEKDNIDITLQWLIQHSKSRRS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Pleckstrin homology domain-containing family M member 1
Molecular weight formula_weight	21899.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

DPQAAIPVIKKKLVGSVKALQKQYVSLDTVVTSEDGDANTMCSALEAVFIHGLHAKHIRAEAGGKRKKSAHQKPLPQPVFWPLLKAVTHKHIISELEHLTFVNTDVGRCRAWLRLALNDGLMECYLKLLLQEQARLHEYYQPTALLRDAEEGEFLLSFLQGLTSLSFELSYKSAILNEWTLTPLALSGLCPLSELD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	288

▶

8. Citations (1)

▶

Unit-cell length a length_a	80.976 Å
Unit-cell length b length_b	73.817 Å
Unit-cell length c length_c	91.959 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	114.18 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.010 Å
Low-resolution limit resolution_low	46.750 Å
R factor r_factor	0.1686
R_work r_work	0.1669
R_free r_free	0.2009

fit	/app/data/saxs_computation/jc/8jc5/8jc5.fit
pddf	/app/data/pr_computation/jc/8jc5/8jc5.pr.out
profile	/app/data/saxs_computation/jc/8jc5/8jc5.dat

Crystal structure of PLEKHM1 RUN domain in complex with GTP-bound Arl8b(Q75L)

1. Protein Identity and Related Structures Protein Identity & Related Structures

ADP-ribosylation factor-like protein 8B

State in the Current Structure

Other States of the Same Protein in the Database

Pleckstrin homology domain-containing family M member 1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

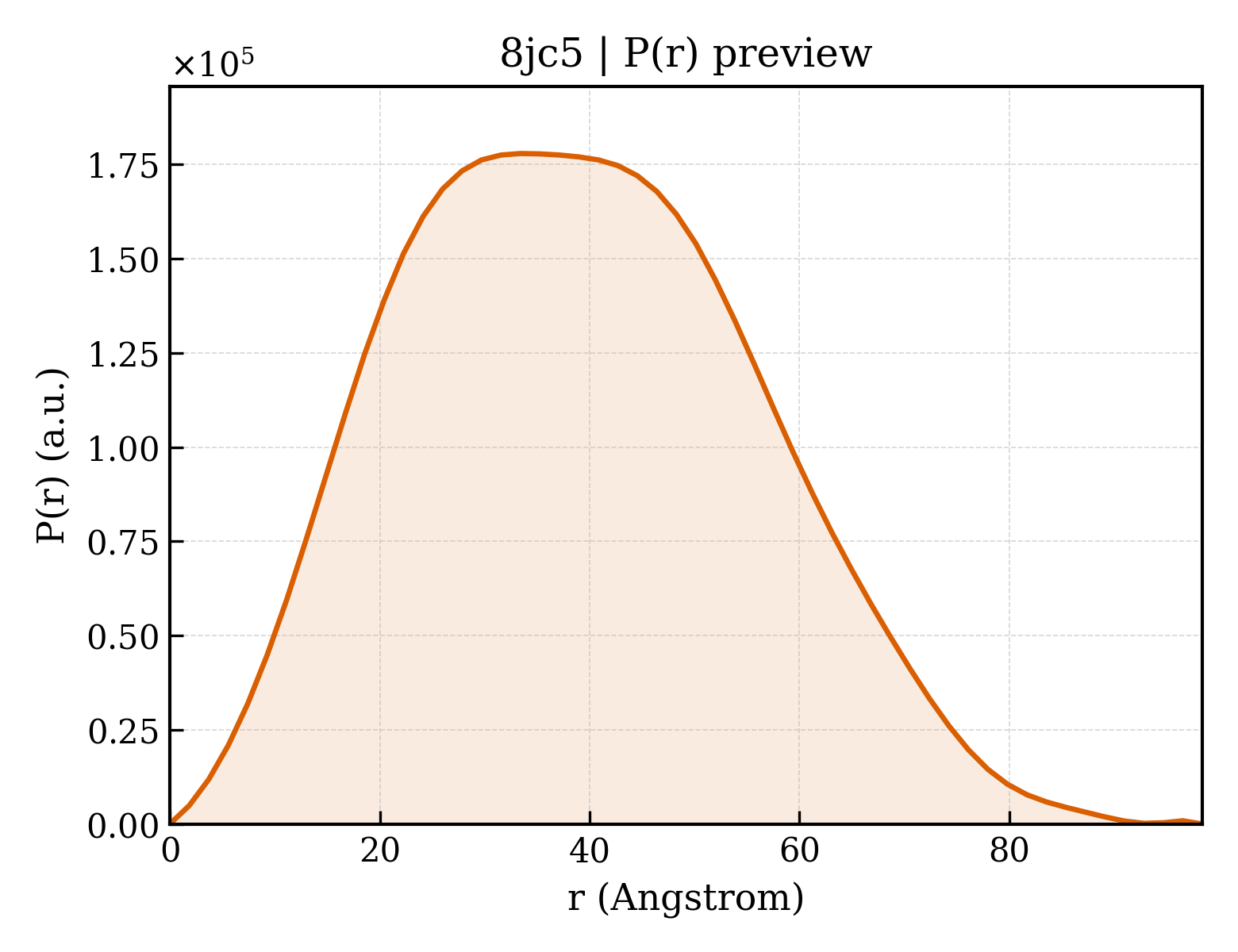

P(r) Distance Distribution P(r) Distribution
