1. Protein Identity and Related Structures Protein Identity & Related Structures

3-oxoacyl-[acyl-carrier-protein] reductase

Helicobacter pylori

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Acyl carrier protein × 2 （Q5EDC8） NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 ~{S}-[2-[3-[[(2~{S})-3,3-dimethyl-2-oxidanyl-4-phosphonooxy-butanoyl]amino]propanoylamino]ethyl] 3-oxidanylideneoctanethioate × 2 water × 6	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 6	Acyl carrier protein × 2 （Q5EDC8） NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	G2M827_HELPX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–248； UniProt 1–247 Author chain B； PDBConstruct 2–248； UniProt 1–247 Author chain C； PDBConstruct 2–248； UniProt 1–247 Author chain D； PDBConstruct 2–248； UniProt 1–247 Author chain E； PDBConstruct 2–248； UniProt 1–247 Author chain F； PDBConstruct 2–248； UniProt 1–247

Acyl carrier protein

Helicobacter pylori

UniProt Q5EDC8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	3-oxoacyl-[acyl-carrier-protein] reductase × 4 （G2M827） NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 ~{S}-[2-[3-[[(2~{S})-3,3-dimethyl-2-oxidanyl-4-phosphonooxy-butanoyl]amino]propanoylamino]ethyl] 3-oxidanylideneoctanethioate × 2 water × 6	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 6	3-oxoacyl-[acyl-carrier-protein] reductase × 4 （G2M827） NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE × 4 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q5EDC8_HELPX
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain G； PDBConstruct 1–75； UniProt 4–78 Author chain H； PDBConstruct 1–75； UniProt 4–78 Author chain I； PDBConstruct 1–75； UniProt 4–78

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8jfi
Deposition date deposition_date	2023-05-18
Structure title title	Crystal structure of 3-oxoacyl-ACP reductase FabG in complex with NADP+ and 3-keto-hexanoyl-ACP from Helicobacter pylori
Keywords keywords	3-oxoacyl-ACP reductase, FabG, NADP+, 3-keto-hexanoyl-ACP, Helicobacter pylori, BIOSYNTHETIC PROTEIN; BIOSYNTHETIC PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8jfi__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8jfi__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

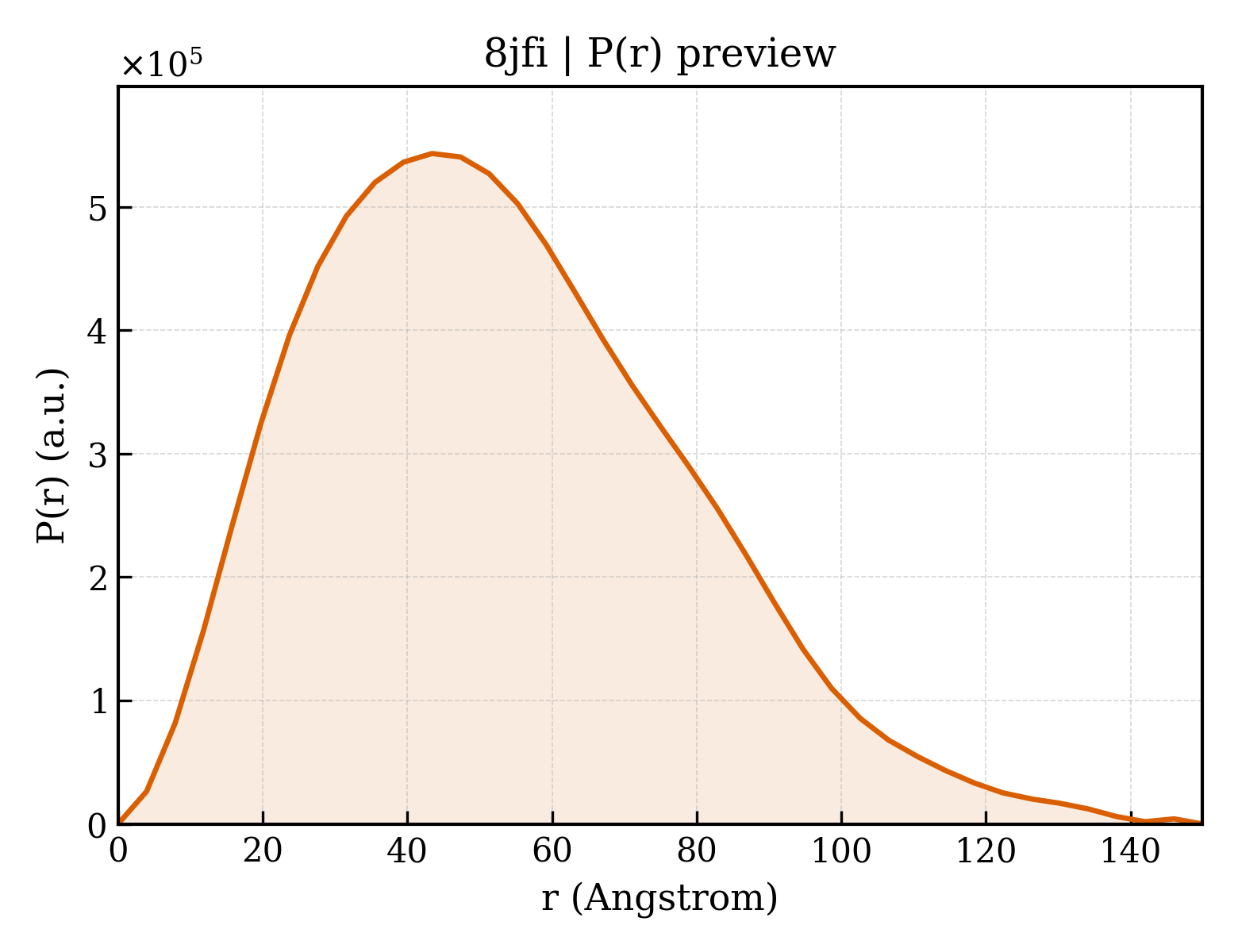

8jfi__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.00 Å
Rg (electron density)	30.09 Å
Total Rg	30.73 Å
Atom count	8710
Residues	1116
Excluded volume	154920 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8jfi__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8jfi__assembly_2__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	3-oxoacyl-[acyl-carrier-protein] reductase
Molecular weight formula_weight	26768.5 kDa
EC 编号 ec_number	1.1.1.100
Source method src_method	man
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	11923

SMQFTGKNVLITGASKGIGAEIARTLASMGLKVWINYRSNAEVADALKNELEEKGYKAAVIKFDAASESDFVEAIQAIVQSDGGLSYLVNNAGVVRDKLAIKMKTEDFHHVIDNNLTSAFIGCREALKVMSKSRFGSVVNIASIIGERGNMGQTNYSASKGGMIAMSKSFAYEGALRNIRFNSVTPGFIETDMNANLKDELKADYVKNIPLNRLGAAKEVAEAVAFLLSDHSSYITGETLKVNGGLYM

Source Source

Source organism organism	Helicobacter pylori
NCBI taxonomy ID ncbi_taxonomy_id	210
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Acyl carrier protein
Molecular weight formula_weight	8251.2 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,H,I

FEDIQAVIAEQLNVDAAQVTPEAEFVKDLGADSLDVVELIMALEEKFGIEIPDEQAEKIVNVGDVVKYIEDNKLA

Source Source

Source organism organism	Helicobacter pylori
NCBI taxonomy ID ncbi_taxonomy_id	210
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE
Molecular weight formula_weight	743.4 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	~{S}-[2-[3-[[(2~{S})-3,3-dimethyl-2-oxidanyl-4-phosphonooxy-butanoyl]amino]propanoylamino]ethyl] 3-oxidanylideneoctanethioate
Molecular weight formula_weight	498.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	84

▶

Unit-cell length a length_a	85.843 Å
Unit-cell length b length_b	252.650 Å
Unit-cell length c length_c	166.440 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.380 Å
Low-resolution limit resolution_low	63.160 Å
R factor r_factor	0.2073
R_work r_work	0.2064
R_free r_free	0.2252
