8jl1

membrane proteins

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Heparan-alpha-glucosaminide N-acetyltransferase

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 2 其他Polymer 4	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ACETYL COENZYME *A × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 DODECANE × 6 N-OCTANE × 32 TETRADECANE × 24 CHOLESTEROL × 2 DECANE × 2 HEXADECANE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HGNAT_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–663； UniProt 1–663 Author chain B； PDBConstruct 1–663； UniProt 1–663

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8jl1
Deposition date deposition_date	2023-06-02
Structure title title	membrane proteins
Keywords keywords	enzyme, acetylation, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8jl1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

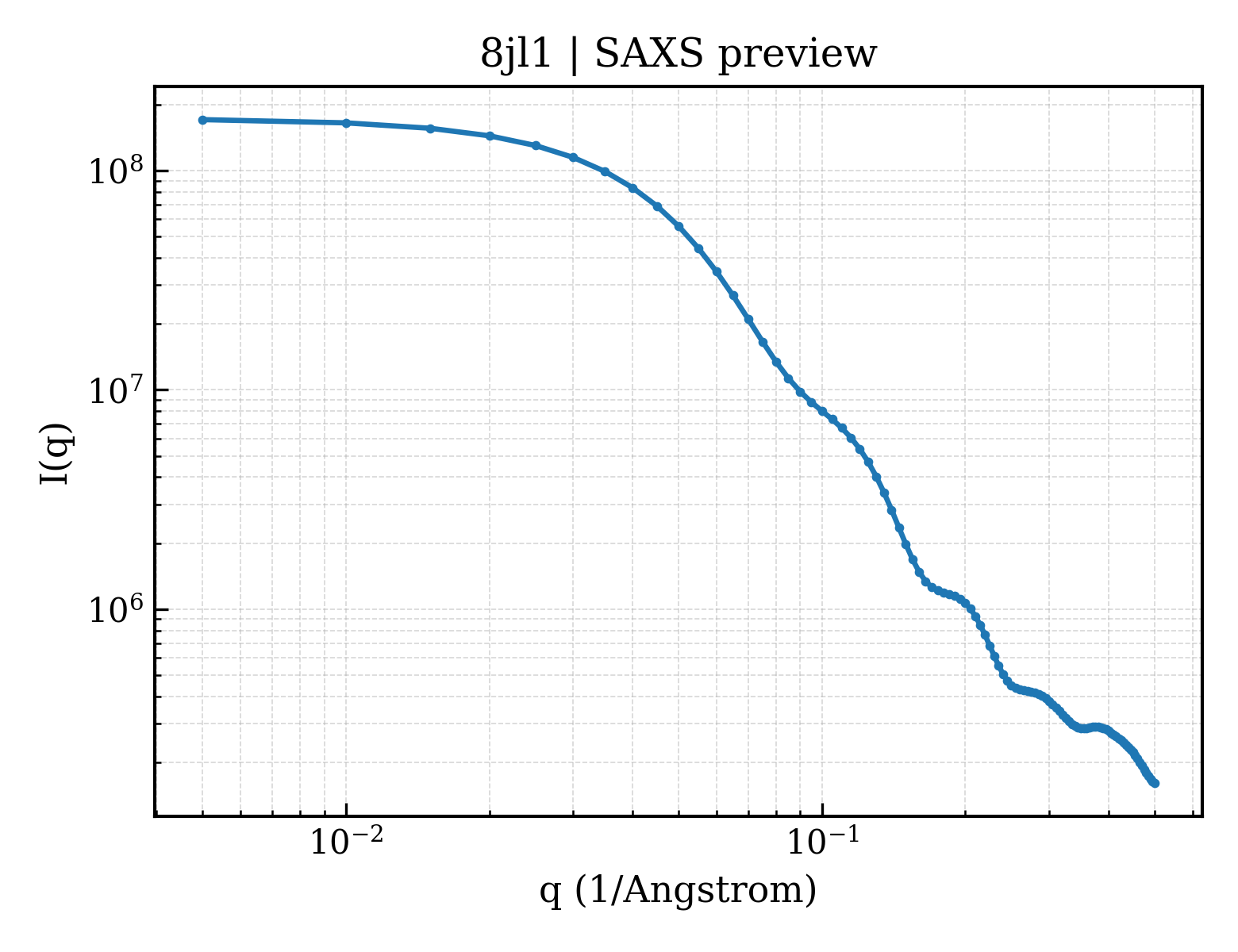

8jl1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8jl1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.84 Å
Rg (electron density)	36.53 Å
Total Rg	37.26 Å
Atom count	9384
Residues	1054
Excluded volume	177950 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8jl1__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (10)

Entity 1 Entity 1 polymer

Description description	Heparan-alpha-glucosaminide N-acetyltransferase
Molecular weight formula_weight	77184.0 kDa
EC 编号 ec_number	2.3.1.78
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	9384

MTGARASAAEQRRAGRSGQARAAERAAGMSGAGRALAALLLAASVLSAALLAPGGSSGRDAQAAPPRDLDKKRHAELKMDQALLLIHNELLWTNLTVYWKSECCYHCLFQVLVNVPQSPKAGKPSAAAASVSTQHGSILQLNDTLEEKEVCRLEYRFGEFGNYSLLVKNIHNGVSEIACDLAVNEDPVDSNLPVSIAFLIGLAVIIVISFLRLLLSLDDFNNWISKAISSRETDRLINSELGSPSRTDPLDGDVQPATWRLSALPPRLRSVDTFRGIALILMVFVNYGGGKYWYFKHASWNGLTVADLVFPWFVFIMGSSIFLSMTSILQRGCSKFRLLGKIAWRSFLLICIGIIIVNPNYCLGPLSWDKVRIPGVLQRLGVTYFVVAVLELLFAKPVPEHCASERSCLSLRDITSSWPQWLLILVLEGLWLGLTFLLPVPGCPTGYLGPGGIGDFGKYPNCTGGAAGYIDRLLLGDDHLYQHPSSAVLYHTEVAYDPEGILGTINSIVMAFLGVQAGKILLYYKARTKDILIRFTAWCCILGLISVALTKVSENEGFIPVNKNLWSLSYVTTLSSFAFFILLVLYPVVDVKGLWTGTPFFYPGMNSILVYVGHEVFENYFPFQWKLKDNQSHKEHLTQNIVATALWVLIAYILYRKKIFWKIGSGGGGSGGGGSGGGWSHPQFEKGGGSGGGSGGSAWSHPQFEK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	ACETYL COENZYME *A
Molecular weight formula_weight	809.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	DODECANE
Molecular weight formula_weight	170.3 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 6 Entity 6 non-polymer

Description description	N-OCTANE
Molecular weight formula_weight	114.2 kDa
Source method src_method	syn
Copy count entity_count	32

Entity 7 Entity 7 non-polymer

Description description	TETRADECANE
Molecular weight formula_weight	198.4 kDa
Source method src_method	syn
Copy count entity_count	24

Entity 8 Entity 8 non-polymer

Description description	CHOLESTEROL
Molecular weight formula_weight	386.7 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 9 Entity 9 non-polymer

Description description	DECANE
Molecular weight formula_weight	142.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 10 Entity 10 non-polymer

Description description	HEXADECANE
Molecular weight formula_weight	226.4 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.80 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	320689
