SAXSdb — 8jpw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-glutamate oxidase

Streptomyces sp. X-119-6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 8	FLAVIN-ADENINE DINUCLEOTIDE × 8 2-OXOGLUTARIC ACID × 8 ZINC ION × 16 water × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8L3C7_9ACTN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 23–661； UniProt 15–683

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8jpw
Deposition date deposition_date	2023-06-13
Structure title title	Crystal Structure of Single-chain L-Glutamate Oxidase Mutant from Streptomyces sp. X-119-6
Keywords keywords	amino acid oxidase, mutant, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8jpw__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

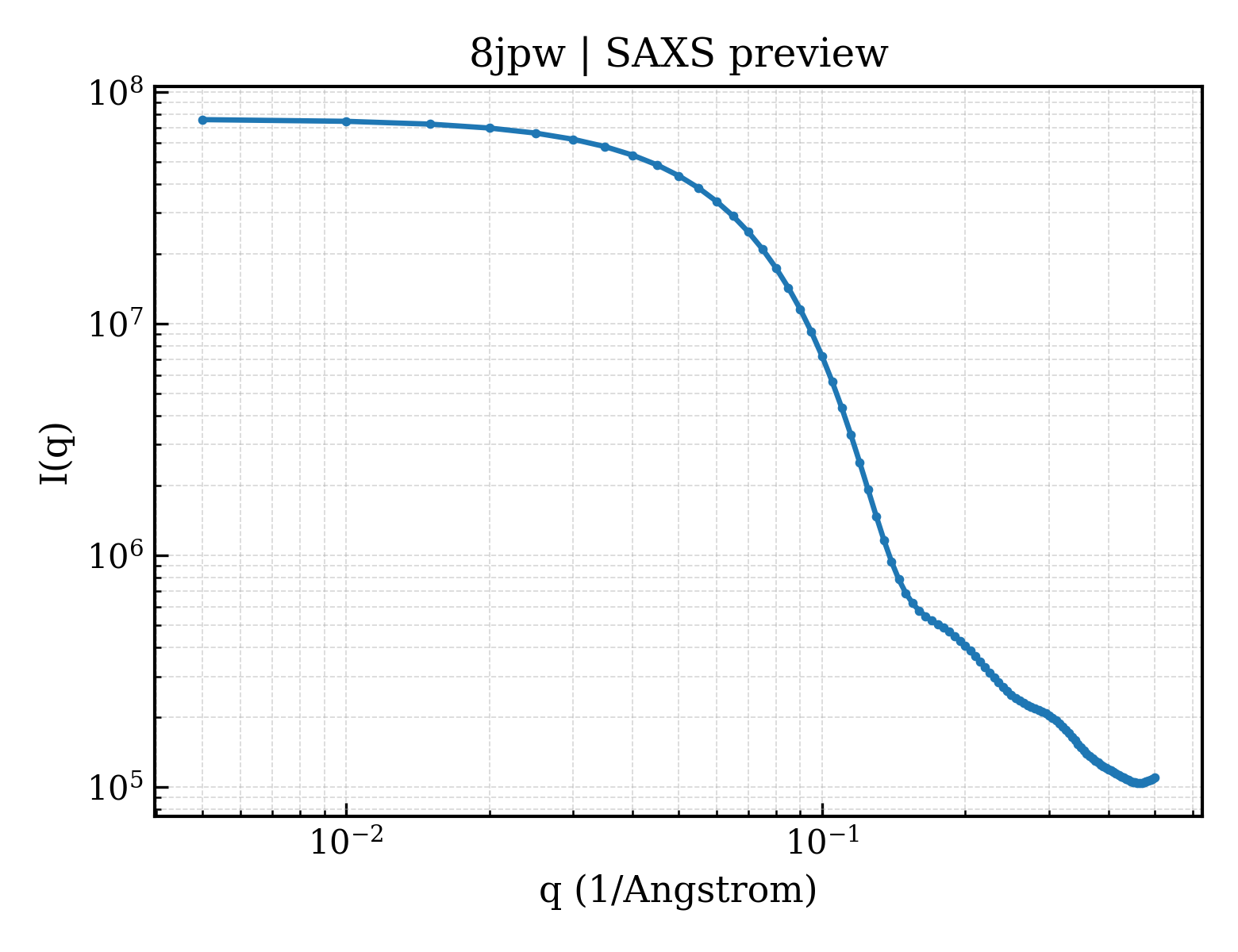

8jpw__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

8jpw__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	53.71 Å
Rg (electron density)	53.06 Å
Total Rg	53.36 Å
Atom count	38048
Residues	4752
Excluded volume	669710 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8jpw__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	L-glutamate oxidase
Molecular weight formula_weight	73306.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4940

MGHHHHHHHHHHSSGHIEGRHMANEMTYEQLARELLLVGPAPTNEDLKLRYLDVLIDNGLNPPGPPKRILIVGAGIAGLVAGDLLTRAGHDVTILEANANRVGGRIKTFHAKKGEPSPFADPAQYAEAGAMRLPSFHPLTLALIDKLGLKRRLFFNVDIDPQTGNQDAPVPPVFYKSFKDGKTWTNGAPSPEFKEPDKRNHTWIRTNREQVRRAQYATDPSSINEGFHLTGCETRLTVSDMVNQALEPVRDYYSVKQDDGTRVNKPFKEWLAGWADVVRDFDGYSMGRFLREYAEFSDEAVEAIGTIENMTSRLHLAFFHSFLGRSDIDPRATYWEIEGGSRMLPETLAKDLRDQIVMGQRMVRLEYYDPGRDGHHGEGGGGSLTGPGGPAVAIQTVPEGEPYGGGGSAATQTWTGDLAIVTIPFSSLRFVKVTPPFSYKKRRAVIETHYDQATKVLLEFSRRWWEFTEADWKRELDAIAPGLYDYYQQWGEDDAEAAGGVRPATNAYGGGSTTDNPNRFMYYPSHPVPGTQGGVVLAAYSWSDDAARWDSFDDAERYGYALENLQSVHGRRIEVFYTGAGQTQSWLRDPYACGEAAVYTPHQMTAFHLDVVRPEGPVYFAGEHVSLKHAWIEGAVETAVRAAIAVNEAPVGDTGVTAAAG

Source Source

Source organism organism	Streptomyces sp. X-119-6
NCBI taxonomy ID ncbi_taxonomy_id	196112
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	2-OXOGLUTARIC ACID
Molecular weight formula_weight	146.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	184

▶

Unit-cell length a length_a	158.400 Å
Unit-cell length b length_b	158.400 Å
Unit-cell length c length_c	138.235 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 4 2 2
Space-group number int_tables_number	97
Crystal system crystal_system	—

Resolution resolution	2.660 Å
Low-resolution limit resolution_low	49.320 Å
R factor r_factor	—
R_work r_work	0.2590
R_free r_free	0.3050

Crystal Structure of Single-chain L-Glutamate Oxidase Mutant from Streptomyces sp. X-119-6
