SAXSdb — 8jqk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Aldehyde reductase 2

Sporobolomyces salmonicolor

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ALD2_SPOSA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–343； UniProt 1–343 Author chain B； PDBConstruct 1–343； UniProt 1–343

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8jqk
Deposition date deposition_date	2023-06-14
Last revision last_revision	2023-12-27
Structure title title	Crystal structure of a carbonyl reductase SSCR mutant from Sporobolomyces Salmonicolor
Keywords keywords	SSCR, reductase, carbonyl reductase, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8jqk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8jqk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

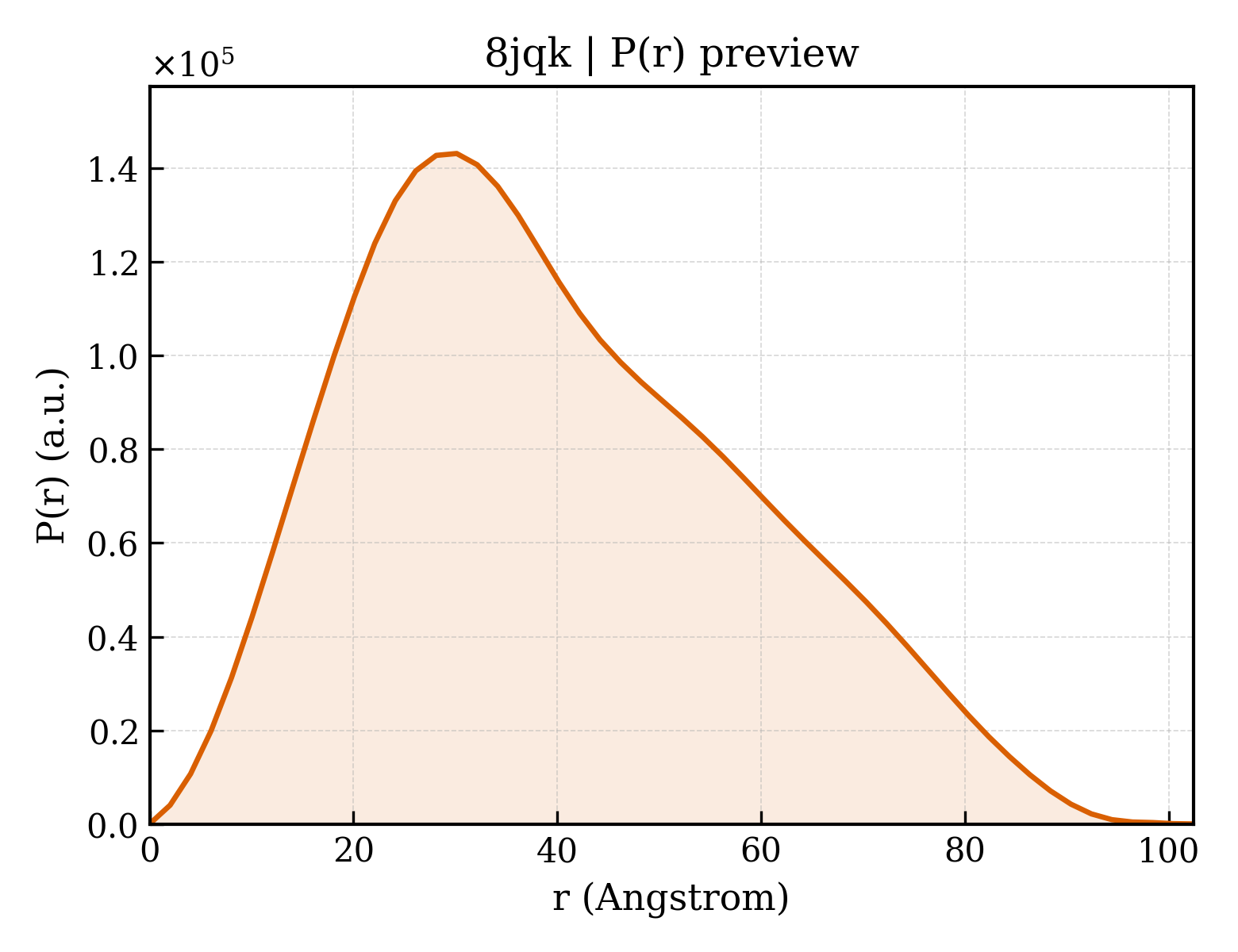

8jqk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.01 Å
Rg (electron density)	30.48 Å
Total Rg	31.10 Å
Atom count	5191
Residues	677
Excluded volume	92701 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8jqk__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Aldehyde reductase 2
Molecular weight formula_weight	37586.6 kDa
EC 编号 ec_number	1.1.1.2
Mutation mutation	M242F/Q245T
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5726

MAKIDNAVLPEGSLVLVTGANGFVASHVVEQLLEHGYKVRGTARSASKLANLQKRWDAKYPGRFETAVVEDMLKQGAYDEVIKGAAGVAHIASVVSFSNKYDEVVTPAIGGTLNALRAAAATPSVKRFVLTSSTVSALIPKPNVEGIYLDEKSWNLESIDKAKTLPESDPQKSLWVYAASKTEAELAAWKFMDENKPHFTLNAVLPNYTIGTIFDPETQSGSTSGWMMSLFNGEVSPALALFPPTYYVSAVDIGLLHLGCLVLPQIERRRVYGTAGTFDWNTVLATFRKLYPSKTFPADFPDQGQDLSKFDTAPSLEILKSLGRPGWRSIEESIKDLVGSETAIQ

Source Source

Source organism organism	Sporobolomyces salmonicolor
Common name common_name	Sporobolomyces salmonicolor
NCBI taxonomy ID ncbi_taxonomy_id	5005
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 Entity 2 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	535

▶

Unit-cell length a length_a	46.740 Å
Unit-cell length b length_b	144.600 Å
Unit-cell length c length_c	48.190 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.03 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.630 Å
Low-resolution limit resolution_low	39.250 Å
R factor r_factor	0.2333
R_work r_work	0.2314
R_free r_free	0.2686
