8juz

Human ATAD2 Walker B mutant-H3/H4K5Q complex, ATP state (Class III)

Method: ELECTRON MICROSCOPY
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ATPase family AAA domain-containing protein 2

Homo sapiens

UniProt Q6PL18

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein homooligomer Homooligomer Protein 6 ADENOSINE-5'-DIPHOSPHATE × 1 ADENOSINE-5'-TRIPHOSPHATE × 5 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
3dai 4qsp 4qsq 4qsr 4qss 4qst 4qsu 4qsv 4qsw 4qsx 4tt6 4tte

108 assemblies; showing the first 12

Homodimer
4qsp 4qsr 4qss 4qst 4qsu 5a5r

6 assemblies

Homotetramer

None

Other homooligomers
8h3h 8juw 8juy 8juz

4 assemblies

Heteromeric or nucleic-acid complex
4qut 4quu 4tt2 4tt4 7m98 8sdo 8sdq

7 assemblies

View Construct and Data Evidence
UniProt name ATAD2_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–581； UniProt 403–983 Author chain A； PDBConstruct 582–761； UniProt 1118–1297 Author chain A； PDBConstruct 762–831； UniProt 1321–1390 Author chain B； PDBConstruct 1–581； UniProt 403–983 Author chain B； PDBConstruct 582–761； UniProt 1118–1297 Author chain B； PDBConstruct 762–831； UniProt 1321–1390 Author chain C； PDBConstruct 1–581； UniProt 403–983 Author chain C； PDBConstruct 582–761； UniProt 1118–1297 Author chain C； PDBConstruct 762–831； UniProt 1321–1390 Author chain D； PDBConstruct 1–581； UniProt 403–983 Author chain D； PDBConstruct 582–761； UniProt 1118–1297 Author chain D； PDBConstruct 762–831； UniProt 1321–1390 Author chain E； PDBConstruct 1–581； UniProt 403–983 Author chain E； PDBConstruct 582–761； UniProt 1118–1297 Author chain E； PDBConstruct 762–831； UniProt 1321–1390 Author chain F； PDBConstruct 1–581； UniProt 403–983 Author chain F； PDBConstruct 582–761； UniProt 1118–1297 Author chain F； PDBConstruct 762–831； UniProt 1321–1390

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8juz
Deposition date deposition_date2023-06-27
Last revision last_revision2023-10-18
Structure title titleHuman ATAD2 Walker B mutant-H3/H4K5Q complex, ATP state (Class III)
Keywords keywordsHistone chaperone, AAA+ ATPase, GENE REGULATION; GENE REGULATION
Experimental Method methodELECTRON MICROSCOPY
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8juz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

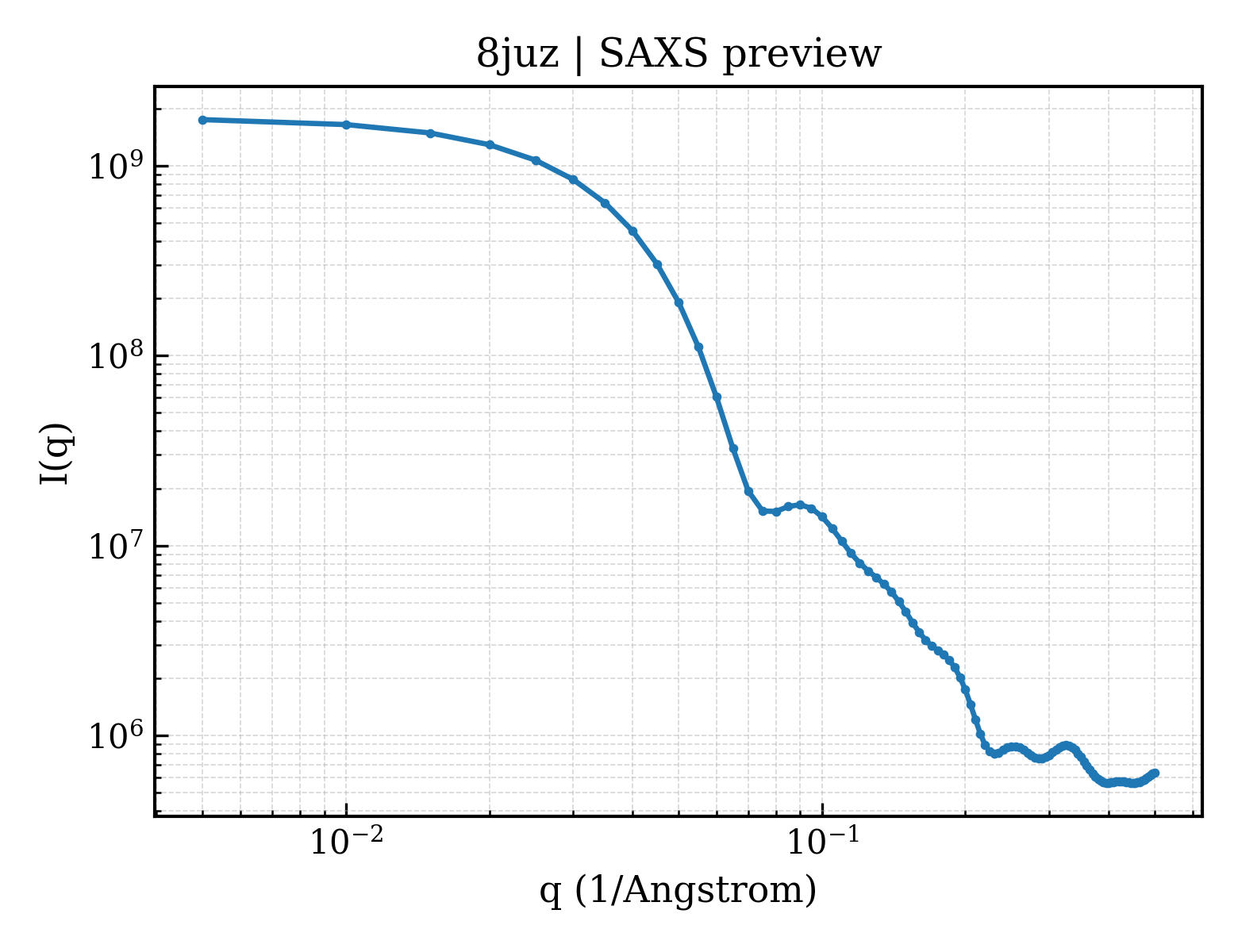

8juz__assembly_1__model_1 | I(q)

10-2 10-1 106 107 108 109 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

8juz__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）49.27 Å
Rg (electron density)48.54 Å
Total Rg48.88 Å
Atom count25274
Residues3155
Excluded volume452790 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 8juz__assembly_1__model_1 hexameric （6） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▶

7. Citations (1)
