SAXSdb — 8k77

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Synaptic vesicle glycoprotein 2A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 1	Botulinum neurotoxin × 1 （D2KCK3） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 (2S)-2-[(4R)-2-oxidanylidene-4-propyl-pyrrolidin-1-yl]butanamide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SV2A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 10–750； UniProt 2–742

Botulinum neurotoxin

Clostridium botulinum

UniProt D2KCK3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 1	Synaptic vesicle glycoprotein 2A × 1 （Q7L0J3） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 (2S)-2-[(4R)-2-oxidanylidene-4-propyl-pyrrolidin-1-yl]butanamide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	D2KCK3_CLOBO
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–426； UniProt 871–1296

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8k77
Deposition date deposition_date	2023-07-26
Structure title title	Cryo-EM structure of SV2A in complex with BoNT/A2 Hc and brivaracetam
Keywords keywords	Synapse, epilepsy, antiepileptic drug, botulinum neurotoxin, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8k77__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8k77__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

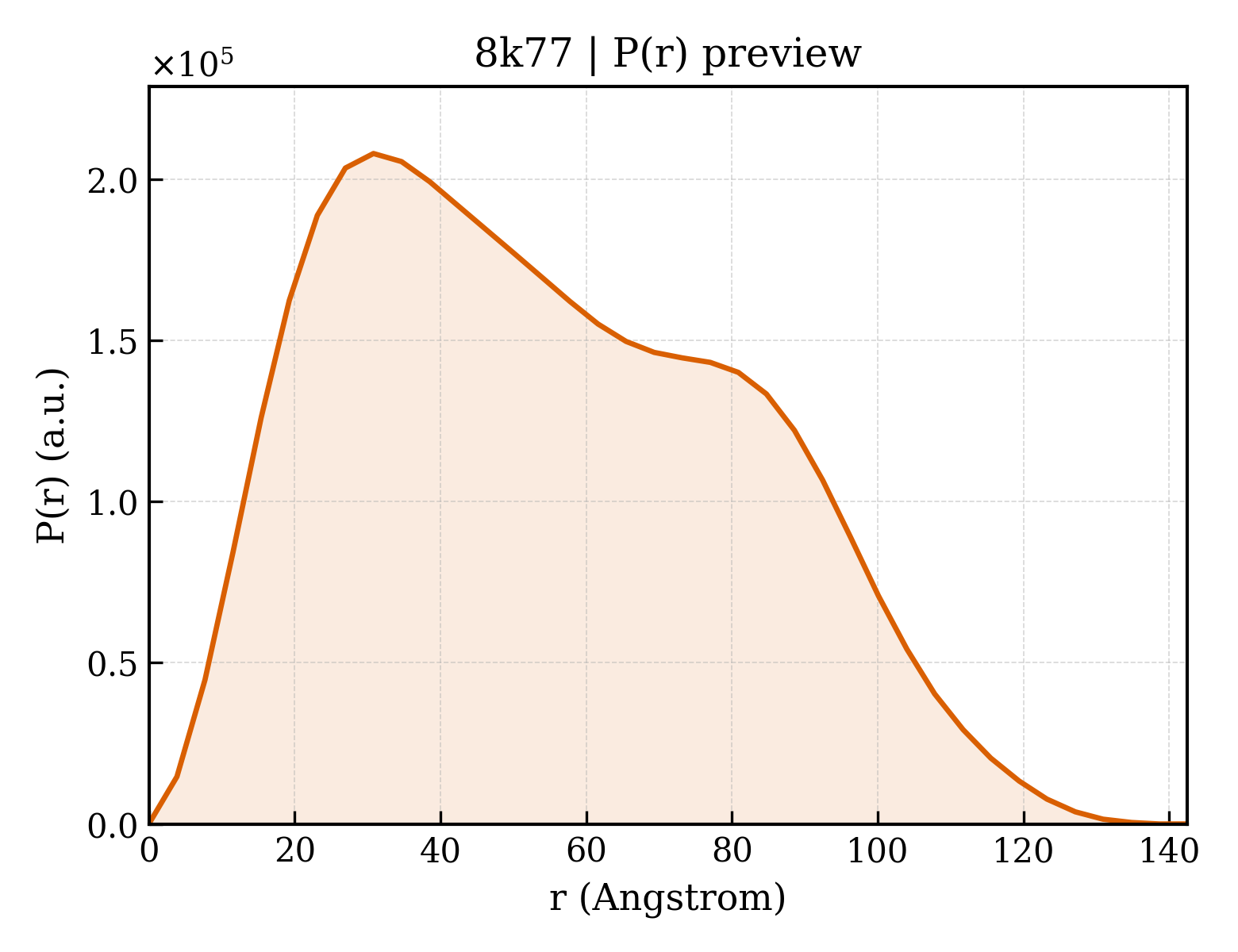

8k77__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.52 Å
Rg (electron density)	42.15 Å
Total Rg	42.48 Å
Atom count	8192
Residues	1012
Excluded volume	146940 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8k77__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Synaptic vesicle glycoprotein 2A
Molecular weight formula_weight	83774.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8192

MDYKDDDDKEEGFRDRAAFIRGAKDIAKEVKKHAAKKVVKGLDRVQDEYSRRSYSRFEEEDDDDDFPAPSDGYYRGEGTQDEEEGGASSDATEGHDEDDEIYEGEYQGIPRAESGGKGERMADGAPLAGVRGGLSDGEGPPGGRGEAQRRKEREELAQQYEAILRECGHGRFQWTLYFVLGLALMADGVEVFVVGFVLPSAEKDMCLSDSNKGMLGLIVYLGMMVGAFLWGGLADRLGRRQCLLISLSVNSVFAFFSSFVQGYGTFLFCRLLSGVGIGGSIPIVFSYFSEFLAQEKRGEHLSWLCMFWMIGGVYAAAMAWAIIPHYGWSFQMGSAYQFHSWRVFVLVCAFPSVFAIGALTTQPESPRFFLENGKHDEAWMVLKQVHDTNMRAKGHPERVFSVTHIKTIHQEDELIEIQSDTGTWYQRWGVRALSLGGQVWGNFLSCFGPEYRRITLMMMGVWFTMSFSYYGLTVWFPDMIRHLQAVDYASRTKVFPGERVEHVTFNFTLENQIHRGGQYFNDKFIGLRLKSVSFEDSLFEECYFEDVTSSNTFFRNCTFINTVFYNTDLFEYKFVNSRLINSTFLHNKEGCPLDVTGTGEGAYMVYFVSFLGTLAVLPGNIVSALLMDKIGRLRMLAGSSVMSCVSCFFLSFGNSESAMIALLCLFGGVSIASWNALDVLTVELYPSDKRTTAFGFLNALCKLAAVLGISIFTSFVGITKAAPILFASAALALGSSLALKLPETRGQVLQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Botulinum neurotoxin
Molecular weight formula_weight	49456.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

KNIVNTSILSIVYKKDDLIDLSRYGAKINIGDRVYYDSIDKNQIKLINLESSTIEVILKNAIVYNSMYENFSTSFWIKIPKYFSKINLNNEYTIINCIENNSGWKVSLNYGEIIWTLQDNKQNIQRVVFKYSQMVNISDYINRWIFVTITNNRLTKSKIYINGRLIDQKPISNLGNIHASNKIMFKLDGCRDPRRYIMIKYFNLFDKELNEKEIKDLYDSQSNSGILKDFWGNYLQYDKPYYMLNLFDPNKYVDVNNIGIRGYMYLKGPRGSVVTTNIYLNSTLYEGTKFIIKKYASGNEDNIVRNNDRVYINVVVKNKEYRLATNASQAGVEKILSALEIPDVGNLSQVVVMKSKDDQGIRNKCKMNLQDNNGNDIGFIGFHLYDNIAKLVASNWYNRQVGKASRTFGCSWEFIPVDDGWGESSL

Source Source

Source organism organism	Clostridium botulinum
NCBI taxonomy ID ncbi_taxonomy_id	1491
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	570.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	(2S)-2-[(4R)-2-oxidanylidene-4-propyl-pyrrolidin-1-yl]butanamide
Molecular weight formula_weight	212.3 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.11 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	479130
