SAXSdb — 8oov

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoside diphosphate kinase A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	3'-PHOSPHATE-ADENOSINE-5'-DIPHOSPHATE × 3 (4S)-2-METHYL-2,4-PENTANEDIOL × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NDKA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 21–172； UniProt 1–152 Author chain B； PDBConstruct 21–172； UniProt 1–152 Author chain C； PDBConstruct 21–172； UniProt 1–152

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8oov
Deposition date deposition_date	2023-04-06
Structure title title	human NME-1 in complex with CoA
Keywords keywords	nucleoside diphosphate kinase, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8oov__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8oov__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

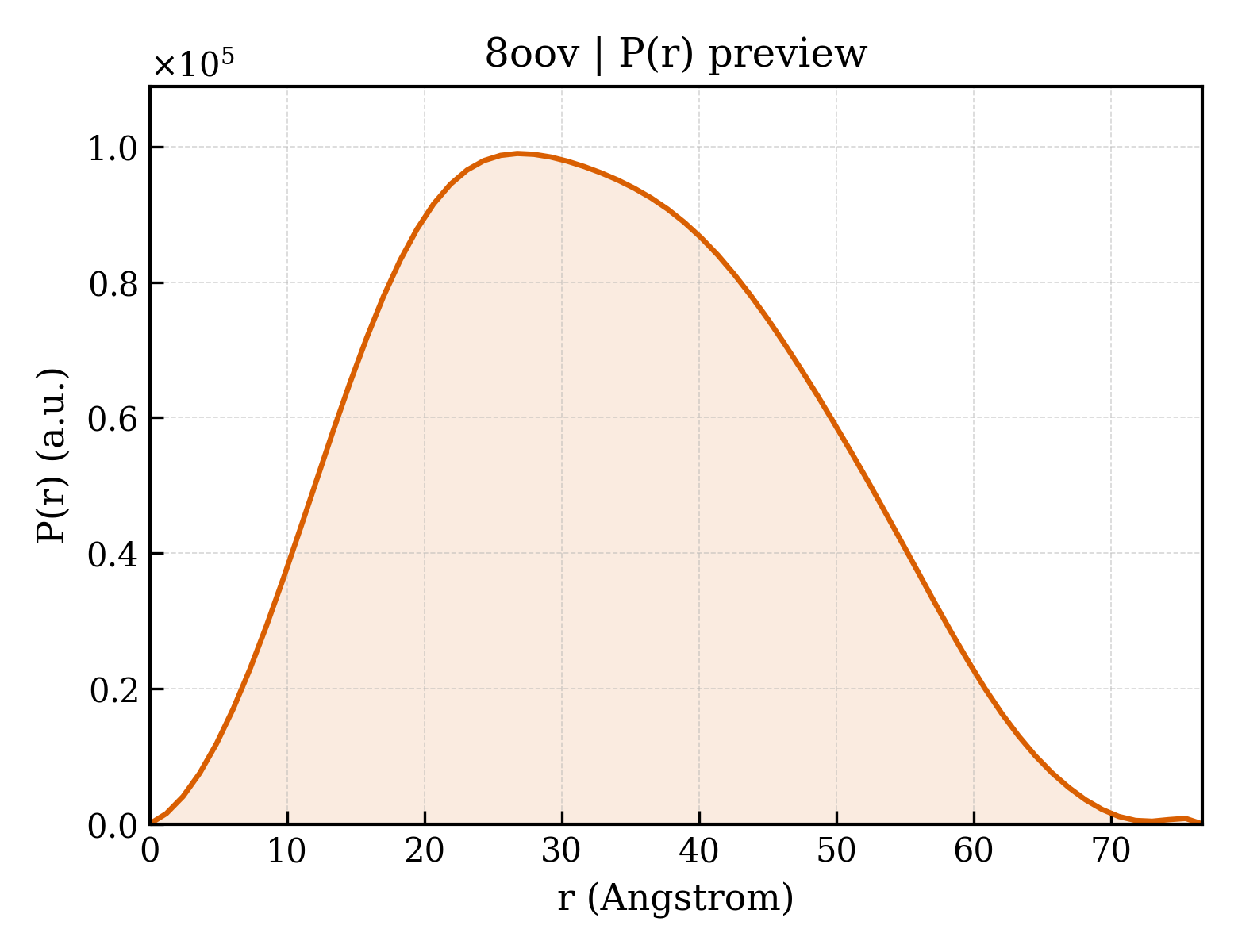

8oov__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.30 Å
Rg (electron density)	24.53 Å
Total Rg	25.27 Å
Atom count	3749
Residues	460
Excluded volume	66411 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8oov__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Nucleoside diphosphate kinase A
Molecular weight formula_weight	19342.1 kDa
EC 编号 ec_number	2.7.4.6
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	4393

MGSSHHHHHHSSGLVPRGSHMANCERTFIAIKPDGVQRGLVGEIIKRFEQKGFRLVGLKFMQASEDLLKEHYVDLKDRPFFAGLVKYMHSGPVVAMVWEGLNVVKTGRVMLGETNPADSKPGTIRGDFCIQVGRNIIHGSDSVESAEKEIGLWFHPEELVDYTSCAQNWIYE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	3'-PHOSPHATE-ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	507.2 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	512

▶

Unit-cell length a length_a	79.070 Å
Unit-cell length b length_b	113.012 Å
Unit-cell length c length_c	118.119 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	I 21 21 21
Space-group number int_tables_number	24
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	23.660 Å
R factor r_factor	0.1695
R_work r_work	0.1681
R_free r_free	0.1959
