SAXSdb — 8osb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Homeobox protein aristaless-like 4

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 3 DNA 2	DNA (25-MER) × 1 DNA (25-MER) × 1 Transcription factor 4 × 1 （P15884） Twist-related protein 1 × 1 （Q15672） water × 5	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ALX4_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 1–62； UniProt 216–277

Transcription factor 4

Homo sapiens

UniProt P15884

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 3 DNA 2	DNA (25-MER) × 1 DNA (25-MER) × 1 Homeobox protein aristaless-like 4 × 1 （Q9H161） Twist-related protein 1 × 1 （Q15672） water × 5	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ITF2_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain A； PDBConstruct 1–60； UniProt 565–624

Twist-related protein 1

Homo sapiens

UniProt Q15672

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 3 DNA 2	DNA (25-MER) × 1 DNA (25-MER) × 1 Homeobox protein aristaless-like 4 × 1 （Q9H161） Transcription factor 4 × 1 （P15884） water × 5	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TWST1_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain B； PDBConstruct 1–67； UniProt 101–167

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8osb
Deposition date deposition_date	2023-04-18
Structure title title	TWIST1-TCF4-ALX4 complex on specific DNA
Keywords keywords	transcription factor, complex with DNA, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8osb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

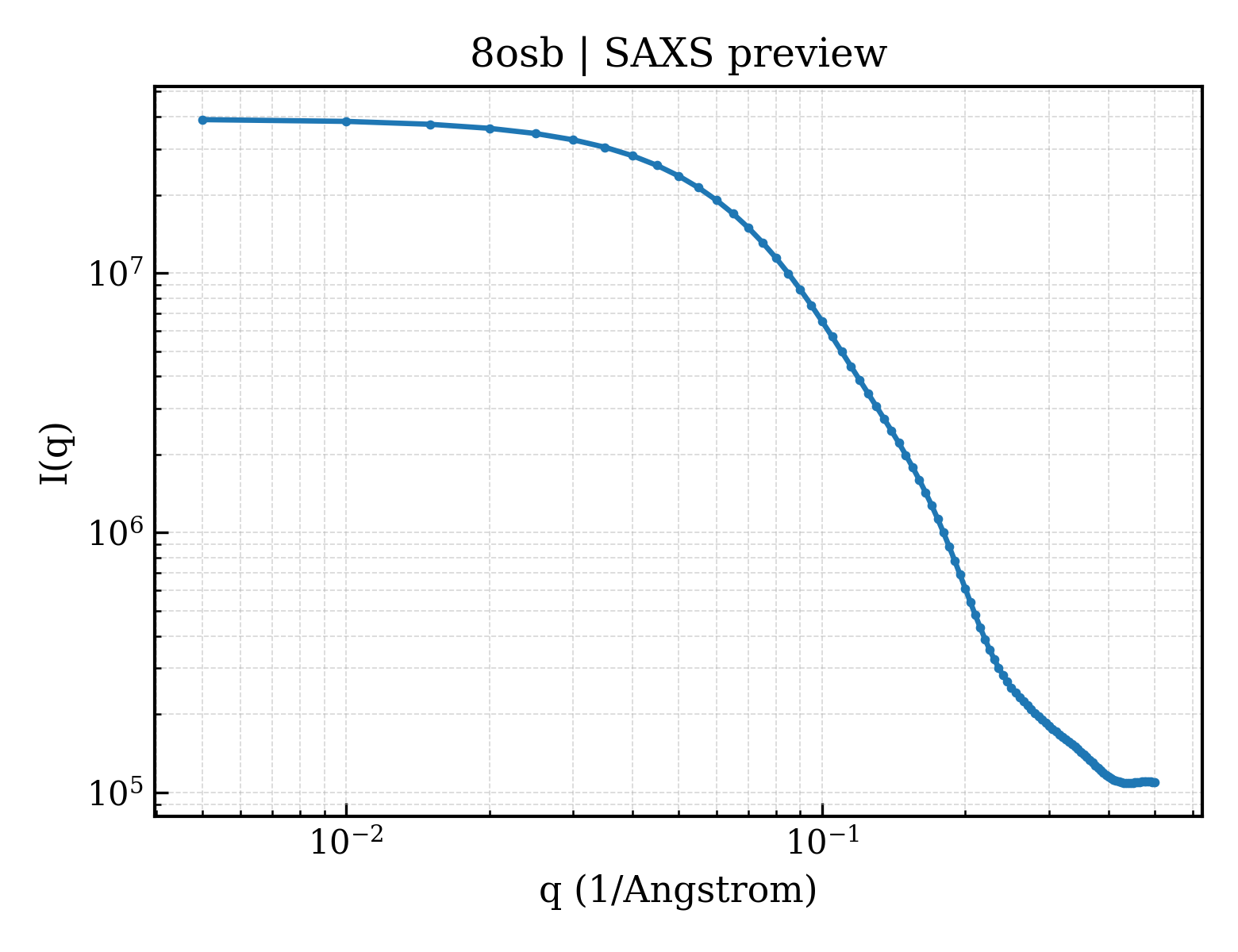

8osb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

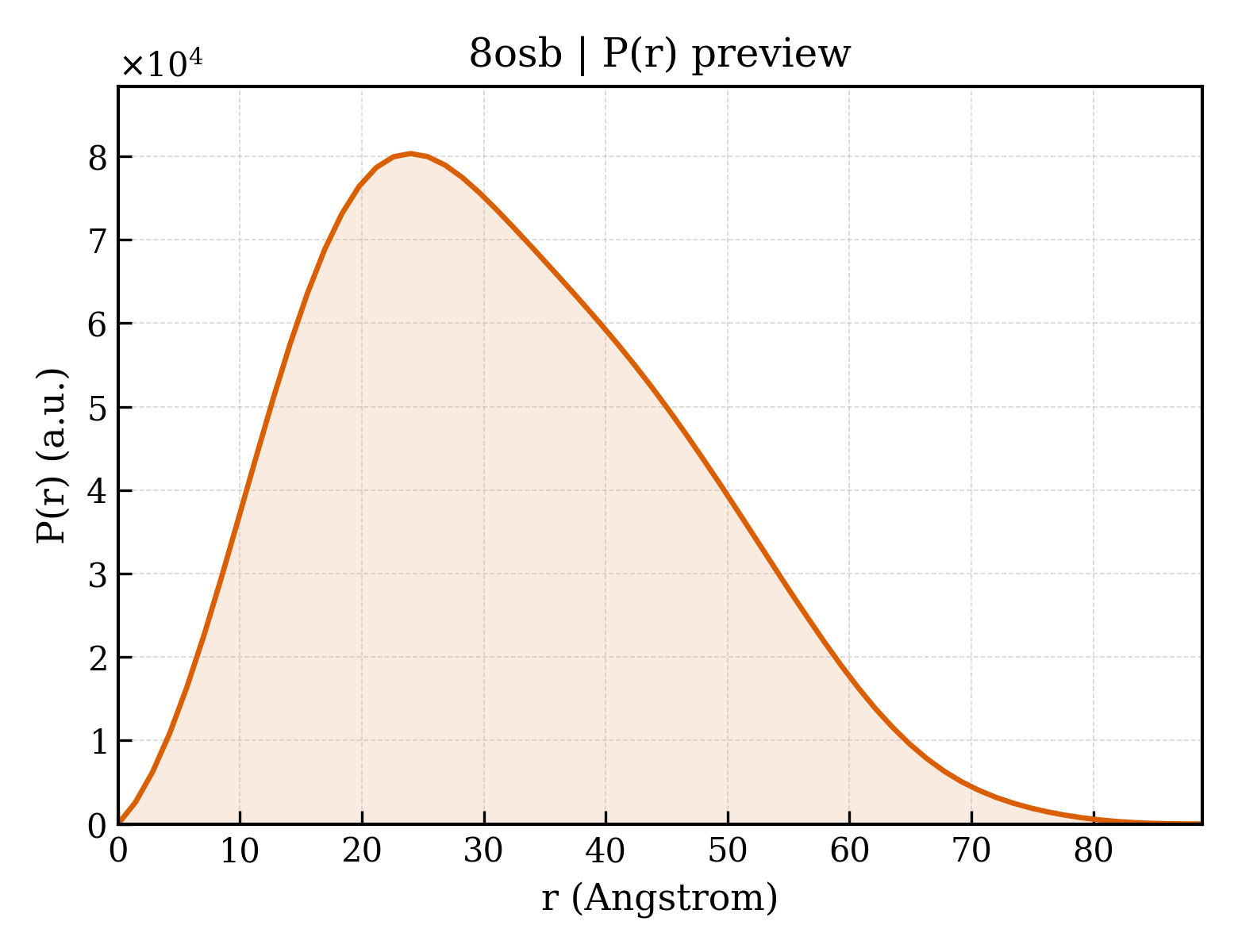

8osb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.70 Å
Rg (electron density)	23.90 Å
Total Rg	24.57 Å
Atom count	2617
Residues	238
Excluded volume	43314 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8osb__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	DNA (25-MER)
Molecular weight formula_weight	7745.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	X
Atom count atom_count	2663

AAGGTAATTAAAACCAGATGTGTTT

Entity 2 Entity 2 polymer

Description description	DNA (25-MER)
Molecular weight formula_weight	7606.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	W

AAACACATCTGGTTTTAATTACCTT

Entity 3 Entity 3 polymer

Description description	Homeobox protein aristaless-like 4
Molecular weight formula_weight	7809.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

RNRTTFTSYQLEELEKVFQKTHYPDVYAREQLAMRTDLTEARVQVWFQNRRAKWRKRERFGQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Transcription factor 4
Molecular weight formula_weight	7132.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

RRMANNARERLRVRDINEAFKELGRMVQLHLKSDKPQTKLLILHQAVAVILSLEQQVRER

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	Twist-related protein 1
Molecular weight formula_weight	7866.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

QSYEELQTQRVMANVRERQRTQSLNEAFAALRKIIPTLPSDKLSKIQTLKLAARYIDFLYQVLQSDE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	27

▶

Unit-cell length a length_a	60.589 Å
Unit-cell length b length_b	60.589 Å
Unit-cell length c length_c	237.289 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	47.000 Å
R factor r_factor	0.2225
R_work r_work	0.2197
R_free r_free	0.2699
