SAXSdb — 8p42

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Macrophage infectivity potentiator

Trypanosoma cruzi

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	;(2~{S})-1-[(4-fluorophenyl)methylsulfonyl]-~{N}-[(2~{S})-3-(4-fluorophenyl)-1-oxidanylidene-1-(pyridin-3-ylmethylamino)propan-2-yl]piperidine-2-carboxamide ; × 1 DI(HYDROXYETHYL)ETHER × 3 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	;(2~{S})-1-[(4-fluorophenyl)methylsulfonyl]-~{N}-[(2~{S})-3-(4-fluorophenyl)-1-oxidanylidene-1-(pyridin-3-ylmethylamino)propan-2-yl]piperidine-2-carboxamide ; × 1 DI(HYDROXYETHYL)ETHER × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MIP_TRYCR
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–161； UniProt 32–192 Author chain D； PDBConstruct 1–161； UniProt 32–192

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8p42
Deposition date deposition_date	2023-05-19
Structure title title	Full length structure of TcMIP with bound inhibitor NJS227.
Keywords keywords	Macrophage, potentiator, soluble, protein, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8p42__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8p42__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

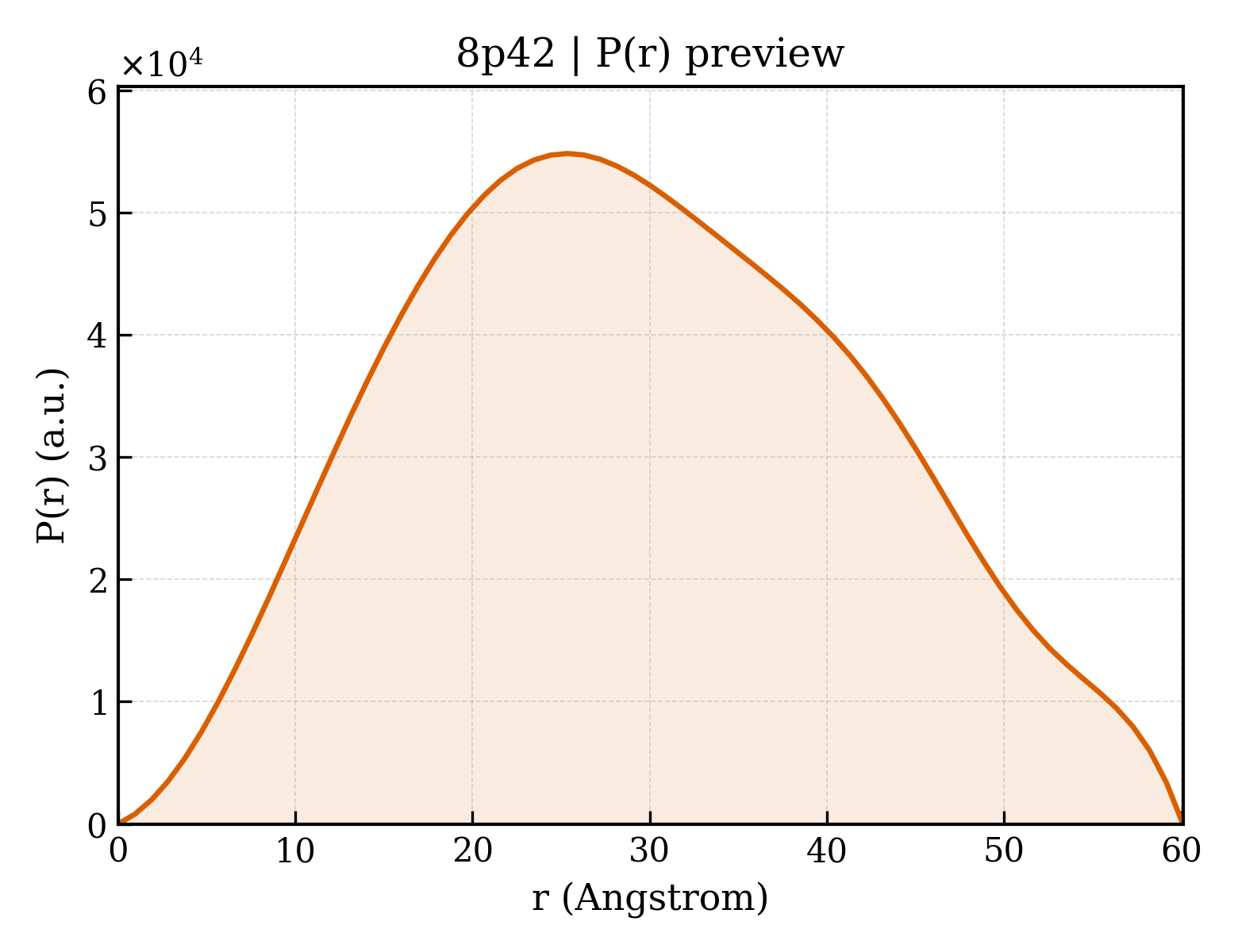

8p42__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	17.30 Å
Rg (electron density)	16.02 Å
Total Rg	17.12 Å
Atom count	1313
Residues	157
Excluded volume	23230 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8p42__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8p42__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Macrophage infectivity potentiator
Molecular weight formula_weight	18186.5 kDa
EC 编号 ec_number	5.2.1.8
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	2738

DAASHEERMNNYRKRVGRLFMEQKAAQPDAVKLPSGLVFQRIARGSGKRAPAIDDKCEVHYTGRLRDGTVFDSSRERGKPTTFRPNEVIKGWTEALQLMREGDRWRLFIPYDLAYGVTGGGGMIPPYSPLEFDVELISIKDGGKGRTAEEVDEILRKAEED

Source Source

Source organism organism	Trypanosoma cruzi
NCBI taxonomy ID ncbi_taxonomy_id	5693
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	;(2~{S})-1-[(4-fluorophenyl)methylsulfonyl]-~{N}-[(2~{S})-3-(4-fluorophenyl)-1-oxidanylidene-1-(pyridin-3-ylmethylamino)propan-2-yl]piperidine-2-carboxamide ;
Molecular weight formula_weight	556.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	71

▶

Unit-cell length a length_a	87.744 Å
Unit-cell length b length_b	87.744 Å
Unit-cell length c length_c	57.505 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41
Space-group number int_tables_number	76
Crystal system crystal_system	—

Resolution resolution	2.640 Å
Low-resolution limit resolution_low	34.880 Å
R factor r_factor	0.2270
R_work r_work	0.2241
R_free r_free	0.2819

Full length structure of TcMIP with bound inhibitor NJS227.
