8p5t

Single particle cryo-EM structure of the homohexameric 2-oxoglutarate dehydrogenase OdhA from Corynebacterium glutamicum

Method: ELECTRON MICROSCOPY D_max: 253.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

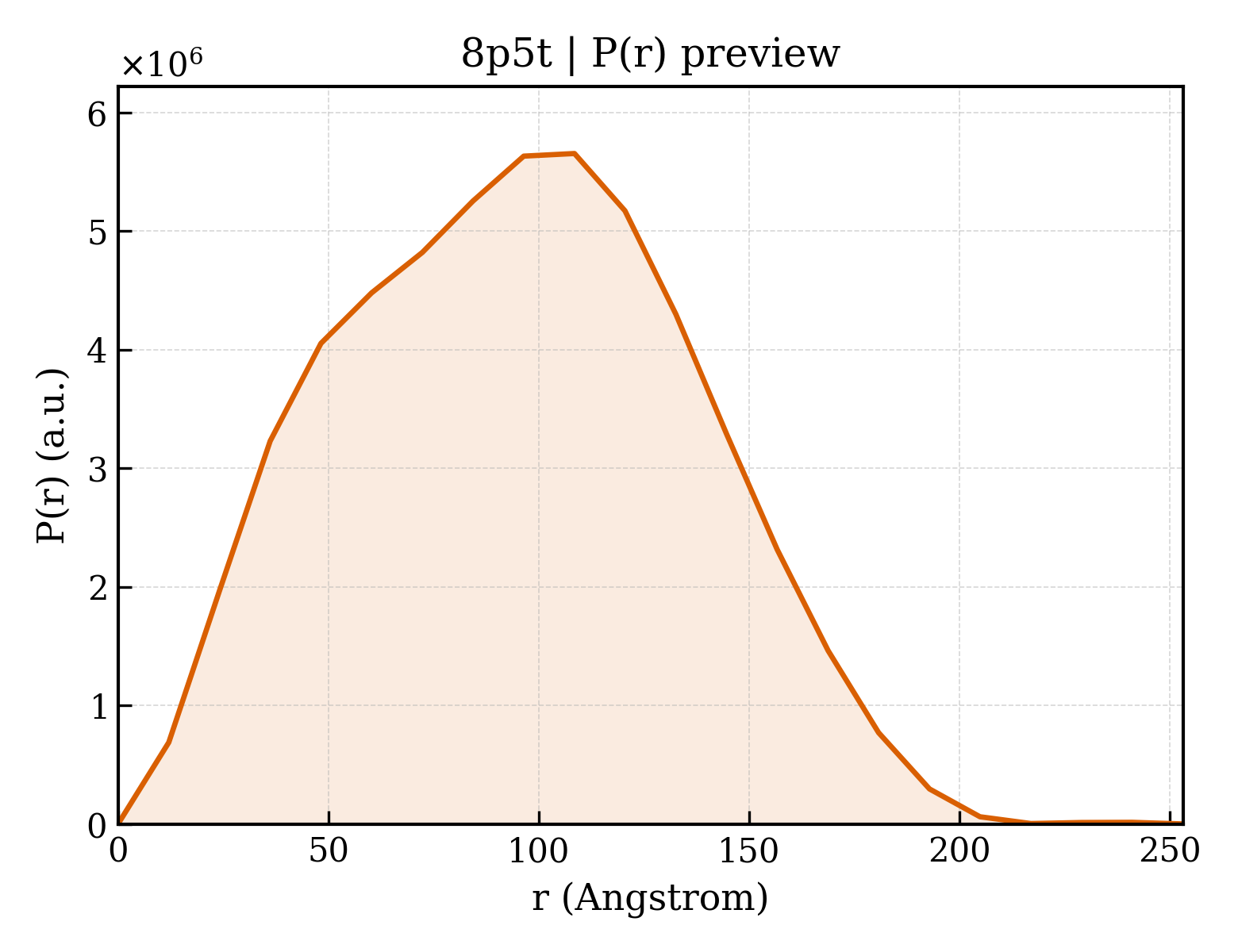

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8p5t
沉积日期 deposition_date	2023-05-24
结构标题 title	Single particle cryo-EM structure of the homohexameric 2-oxoglutarate dehydrogenase OdhA from Corynebacterium glutamicum
关键词 keywords	2-oxoglutarate dehydrogenase; ODH, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	73.09 Å
回转半径 Rg (电子) rg_electron	72.81 Å
零角强度 I(0) i0	8093880000.00
分子量 molecular_weight	747560.0 kDa
排除体积 excluded_volume	928710 Å³
包络体积 envelope_volume	1399700 Å³
水化壳体积 shell_volume	158170 Å³
包络直径 envelope_diameter	222.5 Å
壳层 Rg shell_rg	74.78 Å
包络 Rg envelope_rg	70.72 Å
形状 Rg shape_rg	72.80 Å
总 Rg total_rg	72.85 Å
总原子数 total_atoms	52590
残基数 n_residues	6714
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	253.2 Å
Rg (实空间) rg_real	73.07 Å
Rg 误差 (实空间) rg_real_error	2.05 Å
I(0) (实空间) i0_real	8.0960e+09
I(0) 误差 (实空间) i0_real_error	1.7100e+08
Rg (倒空间) rg_reciprocal	73.53 Å
I(0) (倒空间) i0_reciprocal	8103000000.0000
解质量估计 total_estimate	0.8734
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	108.5 Å
偏度 Skewness skewness	0.101
峰度 Kurtosis kurtosis	-0.637
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.0354
最高正则化参数 α highest_alpha	598800000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.833; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.867

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	2-oxoglutarate dehydrogenase E1/E2 component
分子量 formula_weight	134972.1 kDa
EC 编号 ec_number	1.2.4.2,2.3.1.61
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	52590

GSMSSASTFGQNAWLVDEMFQQFQKDPKSVDKEWRELFEAQGGPNTTPATTEAQPSAPKESAKPAPKAAPAAKAAPRVETKPADKTAPKAKESSVPQQPKLPEPGQTPIRGIFKSIAKNMDISLEIPTATSVRDMPARLMFENRAMVNDQLKRTRGGKISFTHIIGYAMVKAVMAHPDMNNSYDVIDGKPTLIVPEHINLGLAIDLPQKDGSRALVVAAIKETEKMNFSEFLAAYEDIVARSRKGKLTMDDYQGVTVSLTNPGGIGTRHSVPRLTKGQGTIIGVGSMDYPAEFQGASEDRLAELGVGKLVTITSTYDHRVIQGAVSGEFLRTMSRLLTDDSFWDEIFDAMNVPYTPMRWAQDVPNTGVDKNTRVMQLIEAYRSRGHLIADTNPLSWVQPGMPVPDHRDLDIETHNLTIWDLDRTFNVGGFGGKETMTLREVLSRLRAAYTLKVGSEYTHILDRDERTWLQDRLEAGMPKPTQAEQKYILQKLNAAEAFENFLQTKYVGQKRFSLEGAEALIPLMDSAIDTAAGQGLDEVVIGMPHRGRLNVLFNIVGKPLASIFNEFEGQMEQGQIGGSGDVKYHLGSEGQHLQMFGDGEIKVSLTANPSHLEAVNPVMEGIVRAKQDYLDKGVDGKTVVPLLLHGDAAFAGLGIVPETINLAKLRGYDVGGTIHIVVNNQIGFTTTPDSSRSMHYATDYAKAFGCPVFHVNGDDPEAVVWVGQLATEYRRRFGKDVFIDLVCYRLRGHNEADDPSMTQPKMYELITGRETVRAQYTEDLLGRGDLSNEDAEAVVRDFHDQMESVFNEVKEGGKKQAEAQTGITGSQKLPHGLETNISREELLELGQAFANTPEGFNYHPRVAPVAKKRVSSVTEGGIDWAWGELLAFGSLANSGRLVRLAGEDSRRGTFTQRHAVAIDPATAEEFNPLHELAQSKGNNGKFLVYNSALTEYAGMGFEYGYSVGNEDSIVAWEAQFGDFANGAQTIIDEYVSSGEAKWGQTSKLILLLPHGYEGQGPDHSSARIERFLQLCAEGSMTVAQPSTPANHFHLLRRHALSDLKRPLVIFTPKSMLRNKAAASAPEDFTEVTKFQSVINDPNVADAAKVKKVMLVSGKLYYELAKRKEKDGRDDIAIVRIEMLHPIPFNRISEALAGYPNAEEVLFVQDEPANQGPWPFYQEHLPELIPNMPKMRRVSRRAQSSTATGVAKVHQLEEKQLIDEAFEA

来源 Source

来源生物 organism	Corynebacterium glutamicum ATCC 13032
NCBI 分类编号 ncbi_taxonomy_id	196627
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 3 non-polymer

描述 description	ACETYL COENZYME *A
分子量 formula_weight	809.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 4 non-polymer

描述 description	THIAMINE DIPHOSPHATE
分子量 formula_weight	425.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.170 Å
最低分辨率 resolution_low	2.170 Å
R 因子 r_factor	0.3102
R_work r_work	0.3102
R_free r_free	—

分辨率 resolution	2.17 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	1474608
