SAXSdb — 8pkj

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Histone H3 (Fragment)

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H4 × 2 （A0A3Q2Z0K7） Histone H2A × 2 （B2RVF0） Histone H2B × 2 （A0A2J8S4Y0） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A7L1D652_9PASS
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–136； UniProt 1–136 Author chain E； PDBConstruct 1–136； UniProt 1–136

Histone H4

Mus musculus

UniProt A0A3Q2Z0K7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3 (Fragment) × 2 （A0A7L1D652） Histone H2A × 2 （B2RVF0） Histone H2B × 2 （A0A2J8S4Y0） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A3Q2Z0K7_HIPCM
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–103； UniProt 1–103 Author chain F； PDBConstruct 1–103； UniProt 1–103

Histone H2A

Mus musculus

UniProt B2RVF0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3 (Fragment) × 2 （A0A7L1D652） Histone H4 × 2 （A0A3Q2Z0K7） Histone H2B × 2 （A0A2J8S4Y0） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2RVF0_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–130； UniProt 1–130 Author chain G； PDBConstruct 1–130； UniProt 1–130

Histone H2B

Mus musculus

UniProt A0A2J8S4Y0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 8 DNA 2	Histone H3 (Fragment) × 2 （A0A7L1D652） Histone H4 × 2 （A0A3Q2Z0K7） Histone H2A × 2 （B2RVF0） DNA × 1 DNA × 1	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A2J8S4Y0_PONAB
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–126； UniProt 1–126 Author chain H； PDBConstruct 1–126； UniProt 1–126

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8pkj
Deposition date deposition_date	2023-06-26
Structure title title	Cryo-EM structure of the nucleosome containing Nr5a2 motif at SHL+5.5
Keywords keywords	Nucleosome, nuclear receptor, NR5A2, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8pkj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8pkj__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

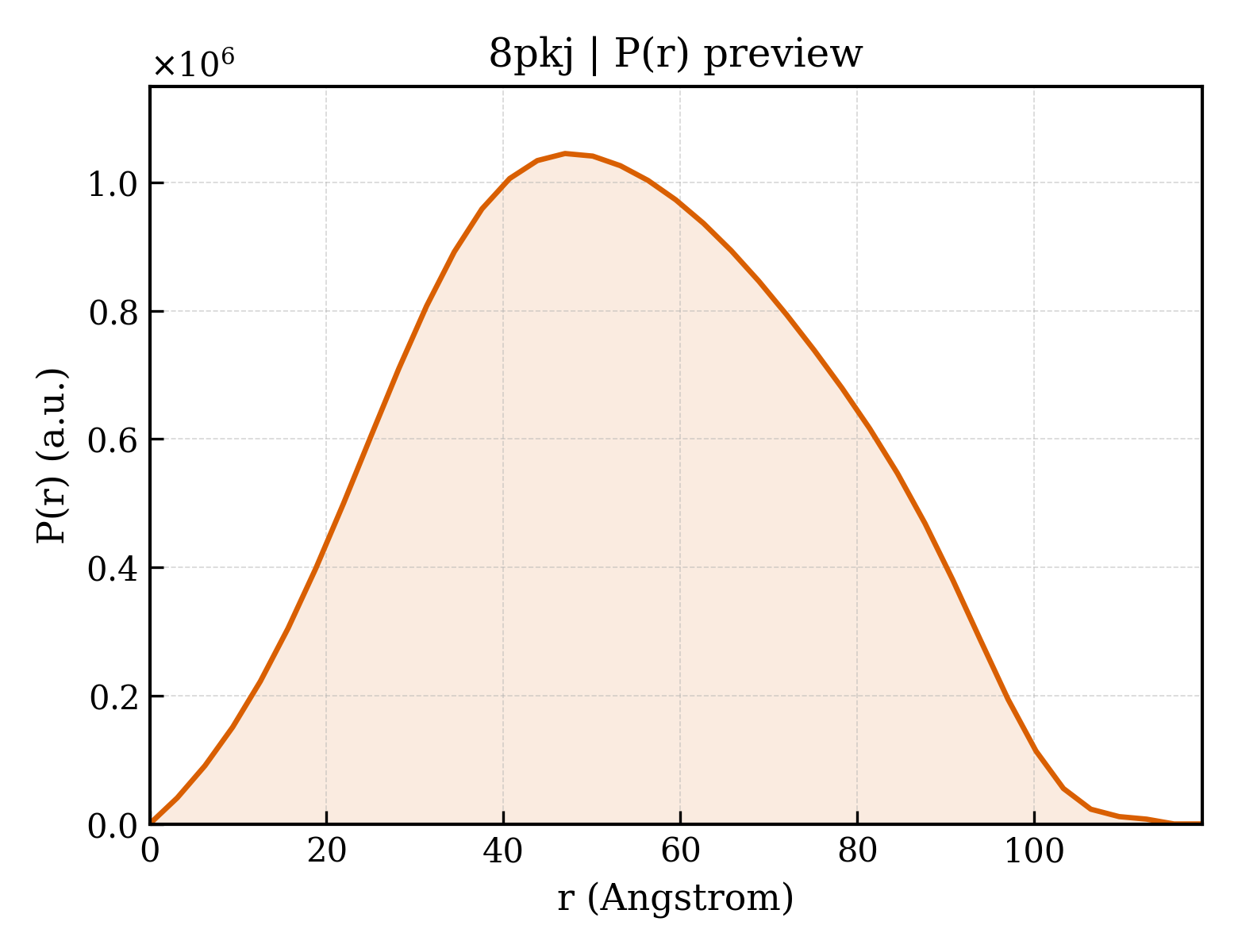

8pkj__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.04 Å
Rg (electron density)	38.20 Å
Total Rg	38.92 Å
Atom count	11692
Residues	1020
Excluded volume	189390 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8pkj__assembly_1__model_1`	decameric （10）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Histone H3 (Fragment)
Molecular weight formula_weight	15361.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E
Atom count atom_count	11692

MARTKQTARKSTGGKAPRKQLATKAARKSAPSTGGVKKPHRYRPGTVALREIRRYQKSTELLIRKLPFQRLVREIAQDFKTDLRFQSAAIGALQEASEAYLVGLFEDTNLCAIHAKRVTIMPKDIQLARRIRGERA

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Histone H4
Molecular weight formula_weight	11394.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F

MSGRGKGGKGLGKGGAKRHRKVLRDNIQGITKPAIRRLARRGGVKRISGLIYEETRGVLKVFLENVIRDAVTYTEHAKRKTVTAMDVVYALKRQGRTLYGFGG

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Histone H2A
Molecular weight formula_weight	14165.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G

MSGRGKQGGKARAKAKTRSSRAGLQFPVGRVHRLLRKGNYSERVGAGAPVYLAAVLEYLTAEILELAGNAARDNKKTRIIPRHLQLAIRNDEELNKLLGRVTIAQGGVLPNIQAVLLPKKTESHHKAKGK

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Histone H2B
Molecular weight formula_weight	13937.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H

MPEPAKSAPAPKKGSKKAVTKAQKKDGKKRKRSRKESYSVYVYKVLKQVHPDTGISSKAMGIMNSFVNDIFERIAGEASRLAHYNKRSTITSREIQTAVRLLLPGELAKHAVSEGTKAVTKYTSSK

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 5 Entity 5 polymer

Description description	DNA
Molecular weight formula_weight	46968.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	I

ATCCTGGAGAATCCCGGTGCCGAGGCCGCTCAATTGGTCGTAGACAGCTCTAGCACCGCTTAAACGCACGTACGCGCTGTCCCCCGCGTTTTAACCGCCAAGGGGATTACTCCCTAGTCTCCAGGCACGTTCAAGGCCAATACATCCTGTGAT

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli

Entity 6 Entity 6 polymer

Description description	DNA
Molecular weight formula_weight	47489.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	J

ATCACAGGATGTATTGGCCTTGAACGTGCCTGGAGACTAGGGAGTAATCCCCTTGGCGGTTAAAACGCGGGGGACAGCGCGTACGTGCGTTTAAGCGGTGCTAGAGCTGTCTACGACCAATTGAGCGGCCTCGGCACCGGGATTCTCCAGGAT

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	2.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	473492

Cryo-EM structure of the nucleosome containing Nr5a2 motif at SHL+5.5
