8ppt

Pyrococcus abyssi DNA polymerase D (PolD) in its editing mode bound to a primer/template substrate containing a mismatch

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA polymerase II small subunit

Pyrococcus abyssi GE5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 5 DNA 2	DNA polymerase sliding clamp × 3 （Q9UYX8） ;DNA (5'-D(PCPCPGPGPGPCPCPGPAPGPCPCPGPTPGPCPTPTPT)-3') ; × 1 ;DNA (5'-D(PAPGPCPAPCPGPGPCPTPCPGPGPCPCPCPGPG)-3') ; × 1 DP2 × 1 MAGNESIUM ION × 3 ZINC ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DP2S_PYRAB
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 45–662； UniProt 2–619

DNA polymerase sliding clamp

Pyrococcus abyssi GE5

UniProt Q9UYX8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein–DNA	Heteromer	Protein 5 DNA 2	DNA polymerase II small subunit × 1 （Q9V2F3） ;DNA (5'-D(PCPCPGPGPGPCPCPGPAPGPCPCPGPTPGPCPTPTPT)-3') ; × 1 ;DNA (5'-D(PAPGPCPAPCPGPGPCPTPCPGPGPCPCPCPGPG)-3') ; × 1 DP2 × 1 MAGNESIUM ION × 3 ZINC ION × 3	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PCNA_PYRAB
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 13–261； UniProt 1–249 Author chain D； PDBConstruct 13–261； UniProt 1–249 Author chain E； PDBConstruct 13–261； UniProt 1–249

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ppt
Deposition date deposition_date	2023-07-10
Structure title title	Pyrococcus abyssi DNA polymerase D (PolD) in its editing mode bound to a primer/template substrate containing a mismatch
Keywords keywords	Polymerase, DNA, Replication, PolD, Archaea, Editing, Proofreading, Exonuclease, Nuclease, DNA BINDING PROTEIN; DNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ppt__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ppt__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

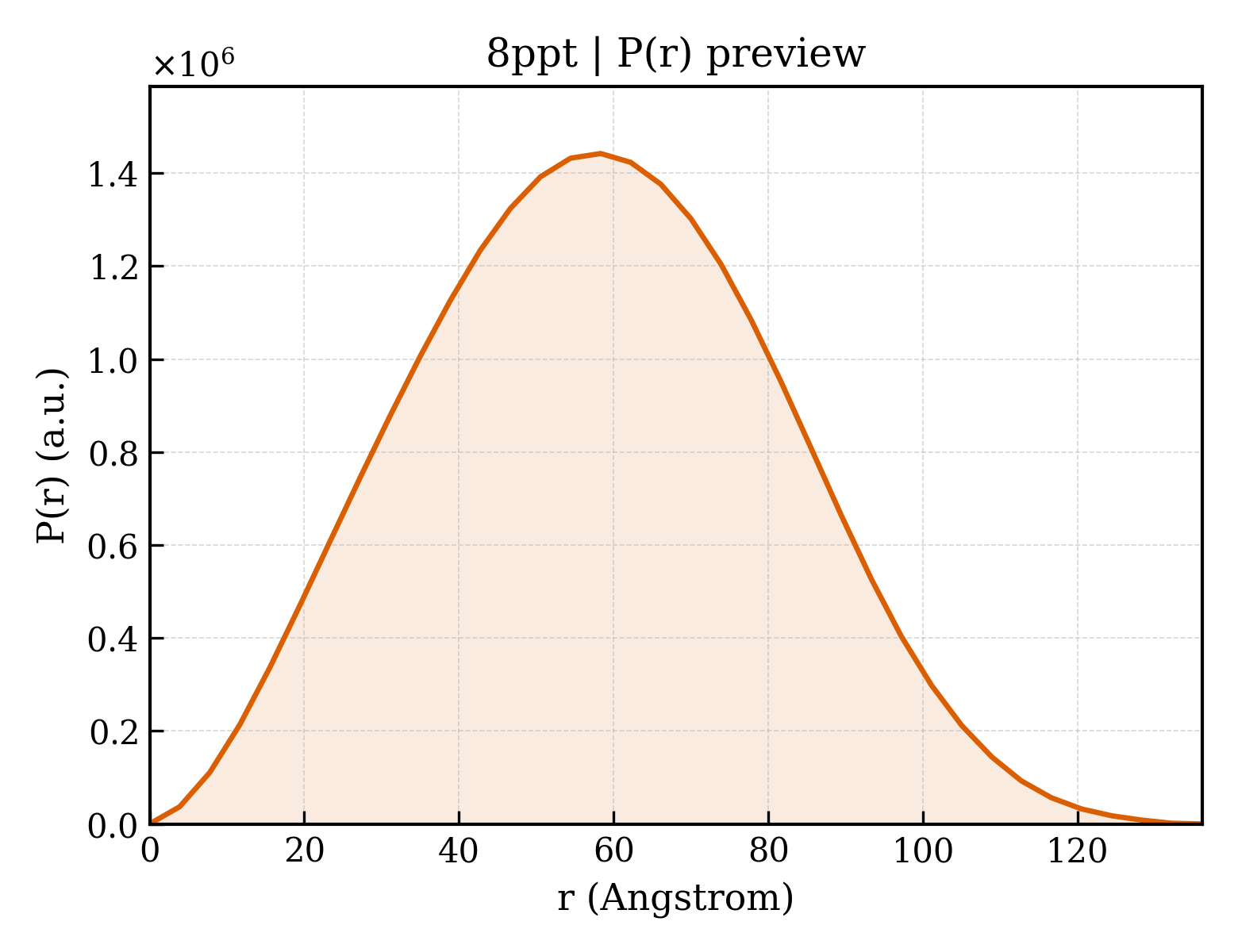

8ppt__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	44.48 Å
Rg (electron density)	44.37 Å
Total Rg	44.51 Å
Atom count	19613
Residues	2410
Excluded volume	350560 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ppt__assembly_1__model_1`	heptameric （7）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	DNA polymerase II small subunit
Molecular weight formula_weight	74009.7 kDa
EC 编号 ec_number	2.7.7.7,3.1.11.1
Mutation mutation	H451A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	19620

MGKHHHHSGHHHTGHHHHSGSHHHTSSSASTGENLYFQGTGDGSDELVKALERAGYLLTPSAYYLLVDHFKEGKFSLVELVKFAKSKGVFIIDGDLAYEFLQFLGLGVPQEIKESYISTGEEAEKTVESQETRASELEEGGVSQVSSGELQELKEESPEISTTEEEIGGLELVQSSISTGSEVEYNNGENGESVVVLDKYGYPILYAPEEIGEEKEYSKYEDVVIEWNPSVTPVQIEKNYEVKFDVRQVKLRPPKVKNGSGKEGEIIVEAYASLFKSRLSKLKRILRENPEISNVVDIGKLNYVSGDEEVTIIGLVNSKRETNRGLIFEVEDKTGIVKVFLPKDSEDYREAFKVLPDAVVAFKGFYSKKGIFFANKFYLPDVPLYRKQKPPLEEKVYAILISDIHVGSREFCEKAFLKFLEWLNGHVESKEEEEIVSRVKYLIIAGDVVDGIGIYPGQYSDLVIPDIFDQYEALANLLANVPEHITMFIGPGNADAARPAIPQPEFYKEYAKPIYKLKNAIIISNPAVIRLHGRDFLIAHGRGIEDVVSFVPGLTHHKPGLPMVELLKMRHLAPTFGGKVPIAPDPEDLLVIEEVPDLVQMGHVHVYDAVVYRGVQLVNSATWQAQTEFQKMVNIVPTPAKVPVVDVESARVVKVLDFSGWC

Source Source

Source organism organism	Pyrococcus abyssi GE5
NCBI taxonomy ID ncbi_taxonomy_id	272844
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	DNA polymerase sliding clamp
Molecular weight formula_weight	29471.8 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D,E

MRGSHHHHHHGSMPFEIVFEGAKEFAQLIETASRLIDEAAFKVTEEGISMRAMDPSRVVLIDLNLPASIFSKYEVDGEETIGVNMDHLKKVLKRGKAKETLILRKGEENFLEISLQGTATRTFKLPLIDVEEIEVDLPELPFTAKVVILGDVIKEAVKDASLVSDSMKFIAKENEFTMRAEGETQEVEVKLTLEDEGLLDIEVQEETKSAYGISYLSDMVKGLGKADEVTIKFGNEMPMQMEYYIRDEGRLIFLLAPRVEE

Source Source

Source organism organism	Pyrococcus abyssi GE5
NCBI taxonomy ID ncbi_taxonomy_id	272844
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	;DNA (5'-D(PCPCPGPGPGPCPCPGPAPGPCPCPGPTPGPCPTPTP*T)-3') ;
Molecular weight formula_weight	5519.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	P

CGCCGGGCCGAGCCGTGC

Entity 4 Entity 4 polymer

Description description	;DNA (5'-D(PAPGPCPAPCPGPGPCPTPCPGPGPCPCPCPGP*G)-3') ;
Molecular weight formula_weight	7742.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	T

AGGTCGTGAACGGCTCGGCCCGGCG

Entity 5 Entity 5 polymer

Description description	DP2
Molecular weight formula_weight	144419.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MELPKEMEEYFEMLQREIDKAYEIAKKARAQGKDPSLDVEIPQATDMAGRVESLVGPPGVAKRIRELVKEYGKEIAALKIVDEIIEGKFGDLGSREKYAEQAVRTALAILTEGIVSAPIEGIANVKIKRNTWADNSEYLALYYAGPIRSSGGTAQALSVLVGDYVRRKLGLDRFKPSEKHIERMVEEVDLYHRAVTRLQYHPSPEEVRLAMRNIPIEITGEATDDVEVSHRDVPGVETNQLRGGAILVLAEGVLQKAKKLVKYIDKMGIEGWEWLKEFVEAKEKGEPKEEGKEESLAESTLEETKVEVDMGFYYSLYQKFKEEIAPSDKYAKEVIGGRPLFSDPSKPGGFRLRYGRSRASGFATWGINPATMILVDEFLAIGTQLKTERPGKGAVVTPVTTIEGPIVKLKDGSVLRVDDYNLALKVREDVEEILYLGDAVIAFGDFVENNQTLLPANYCEEWWILEFVKALKEIYEVHLEPFTENEEESIEEASDYLEIDPEFLKEMLRDPLRVKPPVELAIHFSEVLGIPLHPYYTLYWNSVEPKDVEKLWRLLKNYAEIEWSNFRGIKFAKKIVISQEKLGDSKRTLELLGLPHTVRDGNVIVDYPWAAALLTPLGNLNWEFMAKPLYATIDIINENNEIKLRDRGISWIGARMGRPEKAKERKMKPPVQVLFPIGLAGGSSRDIKKAAEEGKVAEVEIAFFKCPKCGHVGPEHLCPNCGTRKELLWVCPRCNAEYPESQAEGYNYTCPKCNVKLRPYAKRKIRPSELLNRAMENVKVYGVDKLKGVMGMTSGWKMPEPLEKGLLRAKNDVYVFKDGTIRFDATDAPITHFRPREIGVSVEKLRELGYTHDFEGKPLVSEDQIVELKPQDIILSKEAGRYLLKVAKFVDDLLEKFYGLPRFYNAEKMEDLIGHLVIGLAPHTSAGIVGRIIGFVDALVGYAHPYFHAAKRRNCDGDEDAVMLLLDALLNFSRYYLPEKRGGKMDAPLVITTRLDPREVDSEVHNMDIVRYYPLEFYEATYELKSPKELVGVIERVEDRLGKPEMYYGLKFTHDTDDIALGPKMSLYKQLGDMEEKVRRQLEVAKRIRAVDEHGVAEKILNSHLIPDLRGNLRSFTRQEFRCVKCNTKFRRPPLNGKCPVCGGKIVLTVSKGAIEKYLGTAKMLVTEYNVKNYTRQRICLTERDIDSLFENVFPETQLTLIVNPNDICQRLVMARTGEVNKSGLLENLSNGSKKTEKAEKAEKPRKKSDEKPKKKRVISLEEFFSRKSK

Source Source

Source organism organism	Pyrococcus abyssi GE5
NCBI taxonomy ID ncbi_taxonomy_id	272844
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	3

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	496901
