8pr7

Aurora-A in complex with CEP192 and an inhibitory monobody

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Aurora kinase A

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Monobody × 2 Centrosomal protein of 192 kDa × 2 （Q8TEP8） ADENOSINE-5'-DIPHOSPHATE × 2 GLYCEROL × 1 MAGNESIUM ION × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AURKA_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–283； UniProt 122–403 Author chain D； PDBConstruct 2–283； UniProt 122–403

Centrosomal protein of 192 kDa

Homo sapiens

UniProt Q8TEP8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Aurora kinase A × 2 （O14965） Monobody × 2 ADENOSINE-5'-DIPHOSPHATE × 2 GLYCEROL × 1 MAGNESIUM ION × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CE192_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 4–69； UniProt 468–533 Author chain F； PDBConstruct 4–69； UniProt 468–533

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8pr7
Deposition date deposition_date	2023-07-12
Structure title title	Aurora-A in complex with CEP192 and an inhibitory monobody
Keywords keywords	kinase, inhibitor, allosteric, disordered, phosphorylation, TRANSFERASE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8pr7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8pr7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

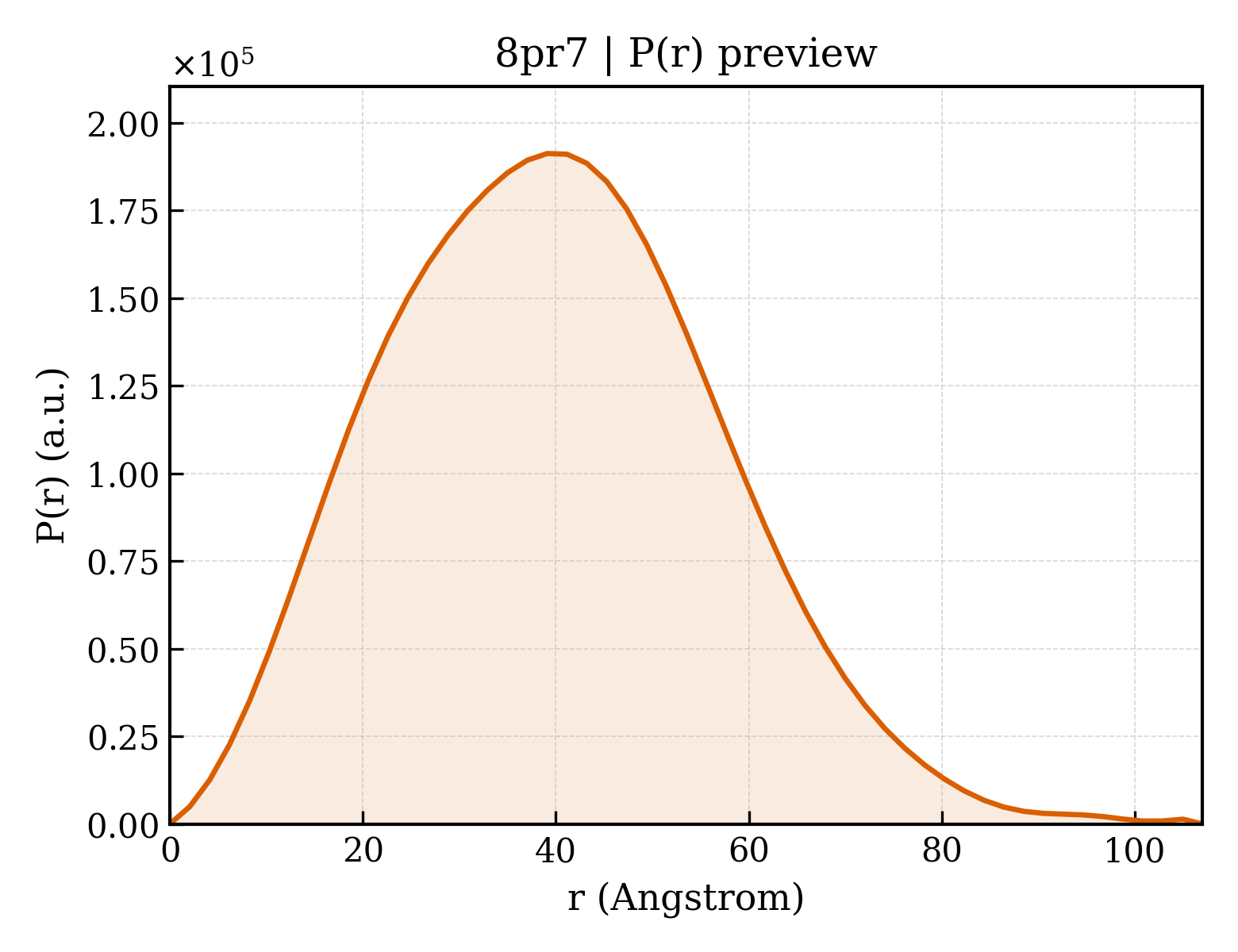

8pr7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	30.66 Å
Rg (electron density)	29.99 Å
Total Rg	30.63 Å
Atom count	5833
Residues	772
Excluded volume	102980 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8pr7__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Aurora kinase A
Molecular weight formula_weight	32581.4 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	5920

MESKKRQWALEDFEIGRPLGKGKFGNVYLAREKQSKFILALKVLFKAQLEKAGVEHQLRREVEIQSHLRHPNILRLYGYFHDATRVYLILEYAPLGTVYRELQKLSKFDEQRTATYITELANALSYCHSKRVIHRDIKPENLLLGSAGELKIANFGWSVHAPSSRRTTLAGTLDYLPPEMIEGRMHDEKVDLWSLGVLCYEFLVGKPPFEAATYAETYKRISRVEFAFPAFVTEGARDLISRLLKHNPSQRPMLREVLEHPWITANSSKPSNAQNKESASKQS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Monobody
Molecular weight formula_weight	10129.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

GSMGSVSSVPTKLEVVAATPTSLLISWDAPAVTVVHYVITYGETGGNSPVQEFTVPGSKSTATISGLKPGVDYTITVYAIDFYWGSYSPISINYRT

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Centrosomal protein of 192 kDa
Molecular weight formula_weight	8049.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

GSMPQSVVYQNEEGRWVTDLAYYTSFNSKQNLNVSLSDEMNEDFRSGSEAFDLIAQDEEEFNKEHQFIQ

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	87

▶

Unit-cell length a length_a	112.580 Å
Unit-cell length b length_b	112.580 Å
Unit-cell length c length_c	216.310 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 43 21 2
Space-group number int_tables_number	96
Crystal system crystal_system	—

Resolution resolution	2.760 Å
Low-resolution limit resolution_low	64.112 Å
R factor r_factor	—
R_work r_work	0.2023
R_free r_free	0.2564
