SAXSdb — 8py2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Lys-63-specific deubiquitinase BRCC36

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	BRISC complex subunit Abraxas 2 × 4 （Q15018） BRISC and BRCA1-A complex member 2 × 4 （Q9NXR7） BRISC and BRCA1-A complex member 1 × 4 （Q9NWV8） ZINC ION × 4 1-[2,6-bis(chloranyl)phenyl]carbonyl-4-[[2,6-bis(chloranyl)phenyl]carbonylamino]-N-piperidin-4-yl-pyrazole-3-carboxamide × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BRCC3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–316； UniProt 1–316 Author chain C； PDBConstruct 1–316； UniProt 1–316 Author chain G； PDBConstruct 1–316； UniProt 1–316 Author chain I； PDBConstruct 1–316； UniProt 1–316

BRISC complex subunit Abraxas 2

Homo sapiens

UniProt Q15018

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Lys-63-specific deubiquitinase BRCC36 × 4 （P46736） BRISC and BRCA1-A complex member 2 × 4 （Q9NXR7） BRISC and BRCA1-A complex member 1 × 4 （Q9NWV8） ZINC ION × 4 1-[2,6-bis(chloranyl)phenyl]carbonyl-4-[[2,6-bis(chloranyl)phenyl]carbonylamino]-N-piperidin-4-yl-pyrazole-3-carboxamide × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ABRX2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–267； UniProt 1–267 Author chain D； PDBConstruct 1–267； UniProt 1–267 Author chain H； PDBConstruct 1–267； UniProt 1–267 Author chain J； PDBConstruct 1–267； UniProt 1–267

BRISC and BRCA1-A complex member 2

Homo sapiens

UniProt Q9NXR7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Lys-63-specific deubiquitinase BRCC36 × 4 （P46736） BRISC complex subunit Abraxas 2 × 4 （Q15018） BRISC and BRCA1-A complex member 1 × 4 （Q9NWV8） ZINC ION × 4 1-[2,6-bis(chloranyl)phenyl]carbonyl-4-[[2,6-bis(chloranyl)phenyl]carbonylamino]-N-piperidin-4-yl-pyrazole-3-carboxamide × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BABA2_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 3–385； UniProt 1–383 Author chain F； PDBConstruct 3–385； UniProt 1–383 Author chain K； PDBConstruct 3–385； UniProt 1–383 Author chain L； PDBConstruct 3–385； UniProt 1–383

BRISC and BRCA1-A complex member 1

Homo sapiens

UniProt Q9NWV8

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 16	Lys-63-specific deubiquitinase BRCC36 × 4 （P46736） BRISC complex subunit Abraxas 2 × 4 （Q15018） BRISC and BRCA1-A complex member 2 × 4 （Q9NXR7） ZINC ION × 4 1-[2,6-bis(chloranyl)phenyl]carbonyl-4-[[2,6-bis(chloranyl)phenyl]carbonylamino]-N-piperidin-4-yl-pyrazole-3-carboxamide × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BABA1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain M； PDBConstruct 2–259； UniProt 72–329 Author chain N； PDBConstruct 2–259； UniProt 72–329 Author chain O； PDBConstruct 2–259； UniProt 72–329 Author chain P； PDBConstruct 2–259； UniProt 72–329

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8py2
Deposition date deposition_date	2023-07-24
Structure title title	Cryo-EM structure of the human BRISC dimer complex bound to compound JMS-175-2
Keywords keywords	BRISC, BRCC36, deubiquitylase, inhibitor, complex, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8py2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8py2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

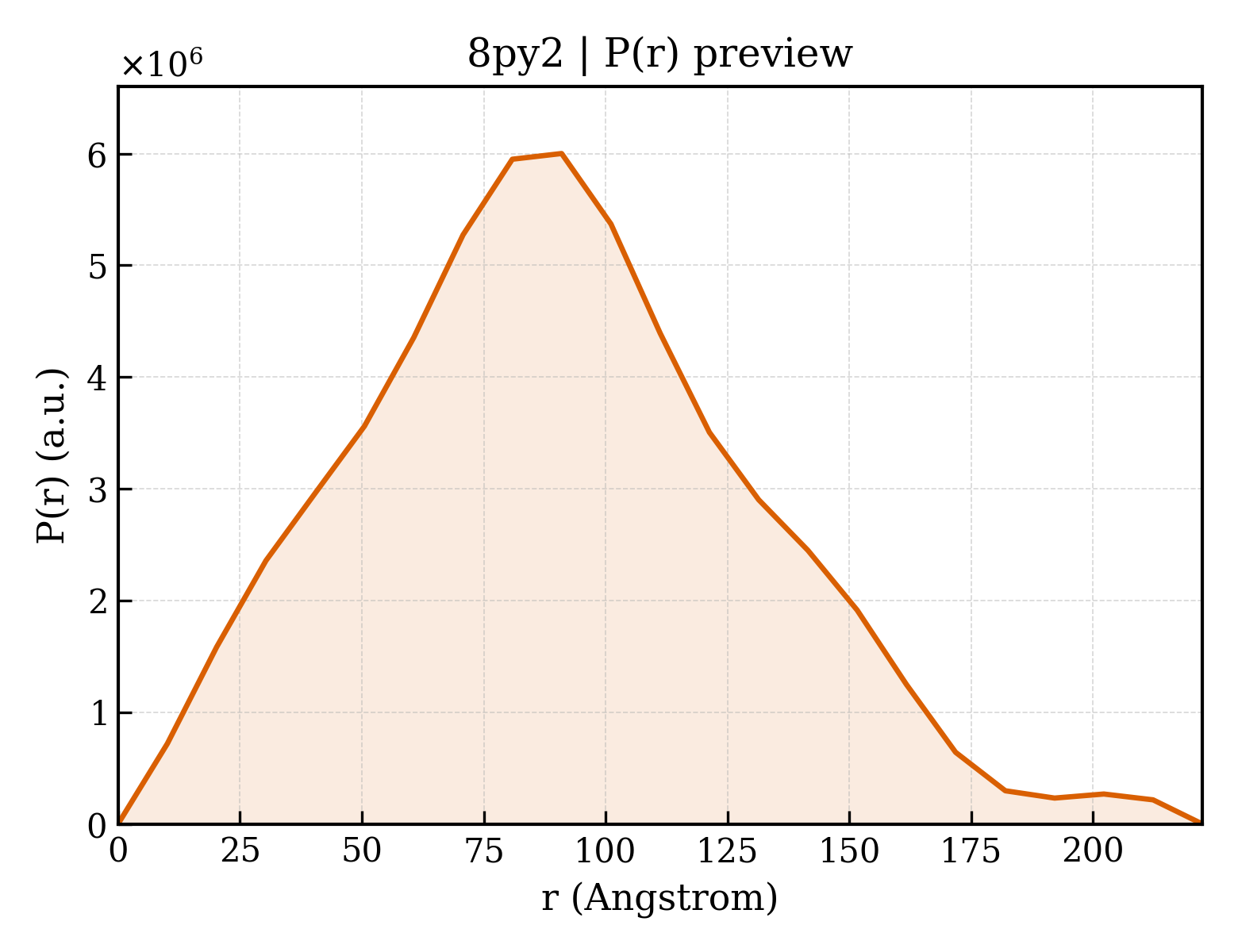

8py2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	69.51 Å
Rg (electron density)	69.71 Å
Total Rg	69.77 Å
Atom count	35730
Residues	4436
Excluded volume	636190 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8py2__assembly_1__model_1`	16-meric （16）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Lys-63-specific deubiquitinase BRCC36
Molecular weight formula_weight	36119.9 kDa
EC 编号 ec_number	3.4.19.-
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,G,I
Atom count atom_count	35730

MAVQVVQAVQAVHLESDAFLVCLNHALSTEKEEVMGLCIGELNDDTRSDSKFAYTGTEMRTVAEKVDAVRIVHIHSVIILRRSDKRKDRVEISPEQLSAASTEAERLAELTGRPMRVVGWYHSHPHITVWPSHVDVRTQAMYQMMDQGFVGLIFSCFIEDKNTKTGRVLYTCFQSIQAQKSSESLHGPRDFWSSSQHISIEGQKEEERYERIEIPIHIVPHVTIGKVCLESAVELPKILCQEEQDAYRRIHSLTHLDSVTKIHNGSVFTKNLCSQMSAVSGPLLQWLEDRLEQNQQHLQELQQEKEELMQELSSLE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	BRISC complex subunit Abraxas 2
Molecular weight formula_weight	31033.9 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,H,J

MAASISGYTFSAVCFHSANSNADHEGFLLGEVRQEETFSISDSQISNTEFLQVIEIHNHQPCSKLFSFYDYASKVNEESLDRILKDRRKKVIGWYRFRRNTQQQMSYREQVLHKQLTRILGVPDLVFLLFSFISTANNSTHALEYVLFRPNRRYNQRISLAIPNLGNTSQQEYKVSSVPNTSQSYAKVIKEHGTDFFDKDGVMKDIRAIYQVYNALQEKVQAVCADVEKSERVVESCQAEVNKLRRQITQRKNEKEQERRLQQAVLS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	BRISC and BRCA1-A complex member 2
Molecular weight formula_weight	43721.6 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,K,L

GAMSPEVALNRISPMLSPFISSVVRNGKVGLDATNCLRITDLKSGCTSLTPGPNCDRFKLHIPYAGETLKWDIIFNAQYPELPPDFIFGEDAEFLPDPSALQNLASWNPSNPECLLLVVKELVQQYHQFQCSRLRESSRLMFEYQTLLEEPQYGENMEIYAGKKNNWTGEFSARFLLKLPVDFSNIPTYLLKDVNEDPGEDVALLSVSFEDTEATQVYPKLYLSPRIEHALGGSSALHIPAFPGGGCLIDYVPQVCHLLTNKVQYVIQGYHKRREYIAAFLSHFGTGVVEYDAEGFTKLTLLLMWKDFCFLVHIDLPLFFPRDQPTLTFQSVYHFTNSGQLYSQAQKNYPYSPRWDGNEMAKRAKAYFKTFVPQFQEAAFANGKL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	BRISC and BRCA1-A complex member 1
Molecular weight formula_weight	29439.7 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,N,O,P

MSWQVPPPAPEVQIRTPRVNCPEKVIICLDLSEEMSLPKLESFNGSKTNALNVSQKMIEMFVRTKHKIDKSHEFALVVVNDDTAWLSGLTSDPRELCSCLYDLETASCSTFNLEGLFSLIQQKTELPVTENVQTIPPPYVVRTILVYSRPPCQPQFSLTEPMKKMFQCPYFFFDVVYIHNGTEEKEEEMSWKDMFAFMGSLDTKGTSYKYEVALAGPALELHNCMAKLLAHPLQRPCQSHASYSLLEEEDEAIEVEATV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 non-polymer

Description description	1-[2,6-bis(chloranyl)phenyl]carbonyl-4-[[2,6-bis(chloranyl)phenyl]carbonylamino]-N-piperidin-4-yl-pyrazole-3-carboxamide
Molecular weight formula_weight	555.2 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.32 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	371872

Cryo-EM structure of the human BRISC dimer complex bound to compound JMS-175-2
