SAXSdb — 8qcb

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8qcb
沉积日期 deposition_date	2023-08-25
结构标题 title	CryoEM structure of a S. Cerevisiae Ski2387 complex in the open state
关键词 keywords	Helicase, RNA binding, RNA degradation, HYDROLASE; HYDROLASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	38.31 Å
回转半径 Rg (电子) rg_electron	37.71 Å
零角强度 I(0) i0	386721000.00
分子量 molecular_weight	161840.0 kDa
排除体积 excluded_volume	203050 Å³
包络体积 envelope_volume	269310 Å³
水化壳体积 shell_volume	58299 Å³
包络直径 envelope_diameter	130.1 Å
壳层 Rg shell_rg	44.71 Å
包络 Rg envelope_rg	37.40 Å
形状 Rg shape_rg	37.74 Å
总 Rg total_rg	38.04 Å
总原子数 total_atoms	11423
残基数 n_residues	1506
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

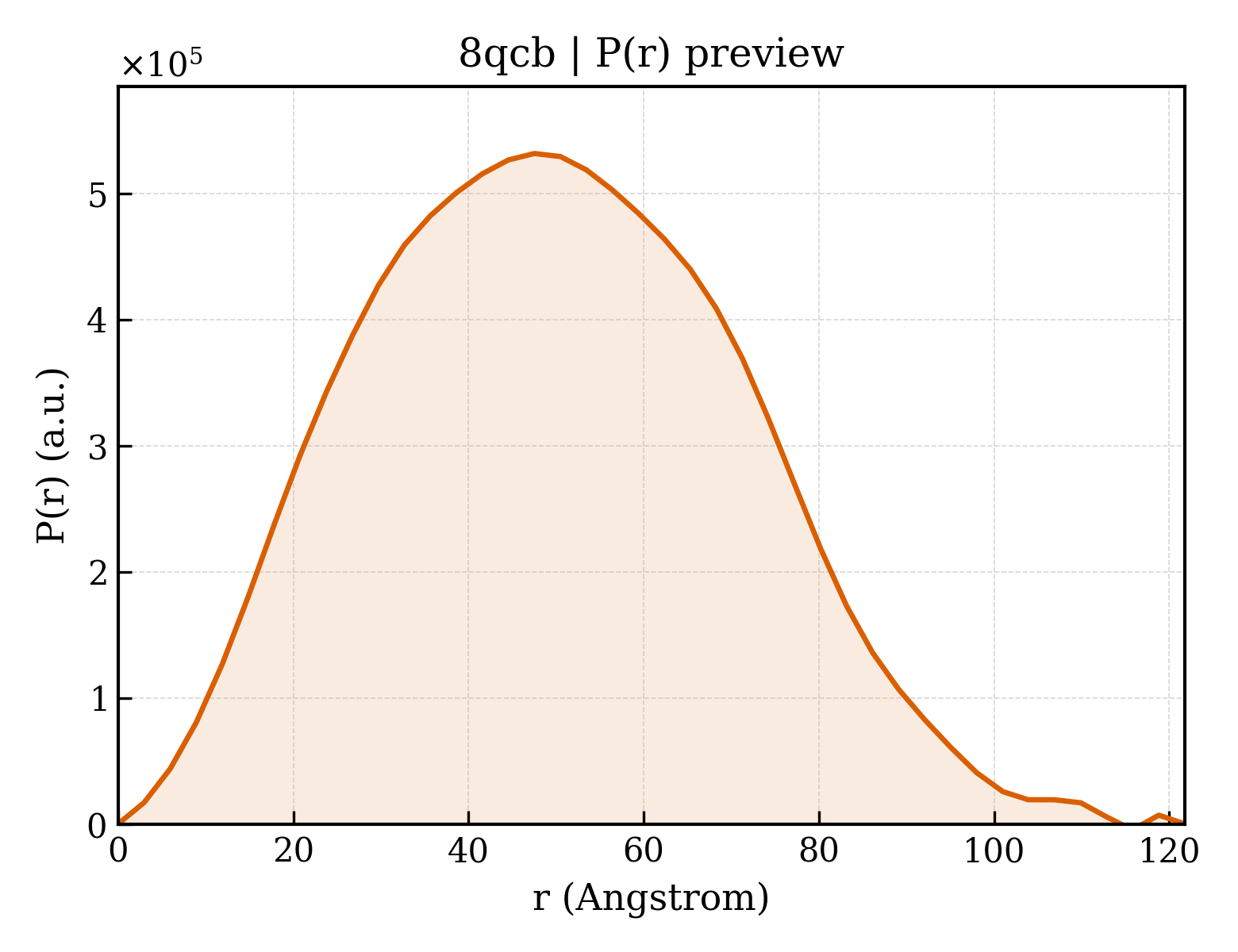

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	121.8 Å
Rg (实空间) rg_real	38.15 Å
Rg 误差 (实空间) rg_real_error	1.05 Å
I(0) (实空间) i0_real	3.8670e+08
I(0) 误差 (实空间) i0_real_error	6.8800e+06
Rg (倒空间) rg_reciprocal	38.25 Å
I(0) (倒空间) i0_reciprocal	386800000.0000
解质量估计 total_estimate	0.8265
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	47.5 Å
偏度 Skewness skewness	0.195
峰度 Kurtosis kurtosis	-0.462
角度范围 angular_range	— – 0.2050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	75410000.0000
实空间数据点数 n_real_points	42
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.918; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Antiviral helicase SKI2
分子量 formula_weight	146259.1 kDa
EC 编号 ec_number	3.6.4.13
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	11423

MSEGFSSSSIQELYQSLKEITNNADVELFEDRITKLDFESTDEPKHANDIIKDRFLRPSNALPWSLLDMVQDVPHTSSPEDCSGKLDYKELLKVPDPINRTSYQFKRTGLEGKISGYKEEVDLKEVANANASNSLSITRSINHNQNSVRGSTAQLPFTPGGIPMKSVKTDSEQNGSSTMANATKLLHKDGQGLFDIPEGMNRGIKPMDSPAENEDQNGQFKELKQLNEIDNELDIRIEANEAKLKEEEKSAKSISEEIMEEATEETTADNADDAEIDELLPIGIDFGRTKPVSKSVPVKKEWAHVVDLNHKIENFDELIPNPARSWPFELDTFQKEAVYHLEQGDSVFVAAHTSAGKTVVAEYAIAMAHRNMTKTIYTSPIKALSNQKFRDFKETFDDVNIGLITGDVQINPDANCLIMTTEILRSMLYRGADLIRDVEFVIFDEVHYVNDQDRGVVWEEVIIMLPQHVKFILLSATVPNTYEFANWIGRTKQKNIYVISTPKRPVPLEINIWAKKELIPVINQNSEFLEANFRKHKEILNGESAKGAPSKTDNGRGGSTARGGRGGSNTRDGRGGRGNSTRGGANRGGSRGAGAIGSNKRKFFTQDGPSKKTWPEIVNYLRKRELLPMVVFVFSKKRCEEYADWLEGINFCNNKEKSQIHMFIEKSITRLKKEDRDLPQILKTRSLLERGIAVHHGGLLPIVKELIEILFSKGFIKVLFATETFAMGLNLPTRTVIFSSIRKHDGNGLRELTPGEFTQMAGRAGRRGLDSTGTVIVMAYNSPLSIATFKEVTMGVPTRLQSQFRLTYNMILNLLRIEALRVEEMIKYSFSENAKETLQPEHEKQIKVLQEELQTIEYKSCEICDNDIEKFLELMLAYKEATVNLMQEMVKSPSILHILKEGRLVAFRDPNDCLKLGFVFKVSLKDAVCVIMTFTKPYKLPNGEPNHLIYFPKADGYRRRNFPKFQKTDFYMEEVPVTAIEVITKRKFAAPLGKVIKKDVAALNEFNAETNNILDGKTLKEAINIEKQGLKIHQILLDRTNIRDEIFKLKSIKCPNLSQHIVPKFKAHVIKKKIEELYHLMSDQNLSLLPDYEKRLAVLKDTEFIDQNHNVLLKGRVACEINSGYELVLTELILDNFLGSFEPEEIVALLSVFVYEGKTREEEPPIVTPRLAKGKQRIEEIYKKMLCVFNTHQIPLTQDEAEFLDRKRFAMMNVVYEWARGLSFKEIMEMSPEAEGTVVRVITWLDEICREVKTASIIIGNSTLHMKMSRAQELIKRDIVFAASLYL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Trichoplusia ni

Entity 2 polymer

描述 description	Superkiller protein 3
分子量 formula_weight	164278.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

GPDSMSDIKQLLKEAKQELTNRDYEETIEISEKVLKLDPDNYFAHIFLGKALSSLPASNNVSSNRNLERATNHYVSAAKLVPDNLLAWKGLFLLFRTTEVVPDILSYDEYFDLCGQYADALLKQEQSQVELINDIKLLKKTHPDCQKAFYQHLKPGSLMAETIGRHLSTPQDALLNLIKILSNIETTEIGKTLSQNRLKLKASDPDYQIKLNSFSWEIIKNSEIDQLYNQLVNILADDQKRSEIENQWLEYRIKVLKSMPLDVKKDFFTKVKEMVEDMVLVNHQSLLAWQKYFEWTDYEDLDNMDAPLIIKYFKKFPKDPLAMILYSWLSSKLSKYDIKSLESANKPPEGHKKTEKETDIKDVDETNEDEVKDRVEDEVKDRVEDEVKDQDEEAKEDEEEDLDDIEIGLLEEEVVTVLTENIVKCKNNILAHRILCQYYLLTKEYEAALPYIKNGISLIAYNIKDLGVHLPLTKREFSLDLATVYTYVDAPKDHNAALKLYDNILSGDFSNIQAKMGKGIIFIERKNWKDAMTLLTQVHEQSPNNLEVLSELSWSKAHMGYMDEALAGLDTVIKGIKGMDLRSIDFRALNLWRQAKVYIMKHASINDAKQENVKCAFKLLIQSIKILDTFAPGFSTLGDIYCHYYKDHLRAFKCYFKAFDLDAGDYTAAKYITETYASKPNWQAASSIASRLIKGEKAKAELRSNNWPFRVVGIAHLEKQEESDSIEWFQSALRVDPNDVESWVGLGQAYHACGRIEASIKVFDKAIQLRPSHTFAQYFKAISLCDVGEYLESLDILEKVCQEAATEESFQIGLVEVLMRCSLDLYSQGFLLKSVSIAKDTIERIKIIISELKCENQQVWIYLSQVLRLFIWIESKVDTLPVESLVSIFENSQFSGSEEIDSVDNIKIDTLLDSTTDDNVSIACKFLILASKYSVSDQKFTDIAGTVRASYWYNIGISELTAFITLKEPQYRDAAIFAFKKSIQLQSNTSETWIGLGIATMDINFRVSQHCFIKATALEPKATNTWFNLAMLGLKKKDTEFAQQVLNKLQSLAPQDSSPWLGMALILEEQGDIIGSSKLFAHSFILSNGRSKAAQFMYAKNVLENHINNGDDERDIETVEKLTTASIALEQFFKKSPDSQFALQCALLTLERLHHYENANELANRLIGILEKKFEKTQDERELFNFAIIKGQFARIHLGLGNFELSIENADLSQGIISESSDEKSMKTKISNHICLGLSYFFLNDFDQTLNQFQELLSISKDSKHLVVLIAKVLYDVGESDTKEIALQELTEYIATSGADLLVTLTIAAMSILDDKREDLSIILEELKALPLSKQIIDKHKDAPYLIEEITKRLYRNDTGKQVWQRSAYFFPNNLKVWERLDKNIQRRIASNGQNKVTAEEMSKLYCESKNLRSIQRGMFLCPWNVTAVKALNECF

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Trichoplusia ni

Entity 3 polymer

描述 description	Antiviral protein SKI8
分子量 formula_weight	44283.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

MSKVFIATANAGKAHDADIFSVSACNSFTVSCSGDGYLKVWDNKLLDNENPKDKSYSHFVHKSGLHHVDVLQAIERDAFELCLVATTSFSGDLLFYRITREDETKKVIFEKLDLLDSDMKKHSFWALKWGASNDRLLSHRLVATDVKGTTYIWKFHPFADESNSLTLNWSPTLELQGTVESPMTPSQFATSVDISERGLIATGFNNGTVQISELSTLRPLYNFESQHSMINNSNSIRSVKFSPQGSLLAIAHDSNSFGCITLYETEFGERIGSLSVPTHSSQASLGEFAHSSWVMSLSFNDSGETLCSAGWDGKLRFWDVKTKERITTLNMHCDDIEIEEDILAVDEHGDSLAEPGVFDVKFLKKGWRSGMGADLNESLCCVCLDRSIRWFREAGGK

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Trichoplusia ni

Entity 4 polymer

描述 description	Superkiller protein 7
分子量 formula_weight	28345.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

GPDSMSLLEQLARKRIEKSKGLLSADQSHSTSKSASLLERLHKNRETKDNNAETKRKDLKTLLAKDKVKRSDFTPNQHSVSLSLKLSALKKSNSDLEKQGKSVTLDSKENELPTKRKSPDDKLNLEESWKAIKEMNHYCFLKNDPCINQTDDFAFTNFIIKDKKNSLSTSIPLSSQNSSFLSLKKHNNELLGIFVPCNLPKTTRKVAIENFNRPSPDDIIQSAQLNAFNEKLENLNIKSAGSWSHPQFEK

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	357690

fit	/app/data/saxs_computation/qc/8qcb/8qcb.fit
pddf	/app/data/pr_computation/qc/8qcb/8qcb.pr.out
profile	/app/data/saxs_computation/qc/8qcb/8qcb.dat
