8qcq

B. subtilis ApdA-stalled ribosomal complex

Method: ELECTRON MICROSCOPY D_max: 294.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

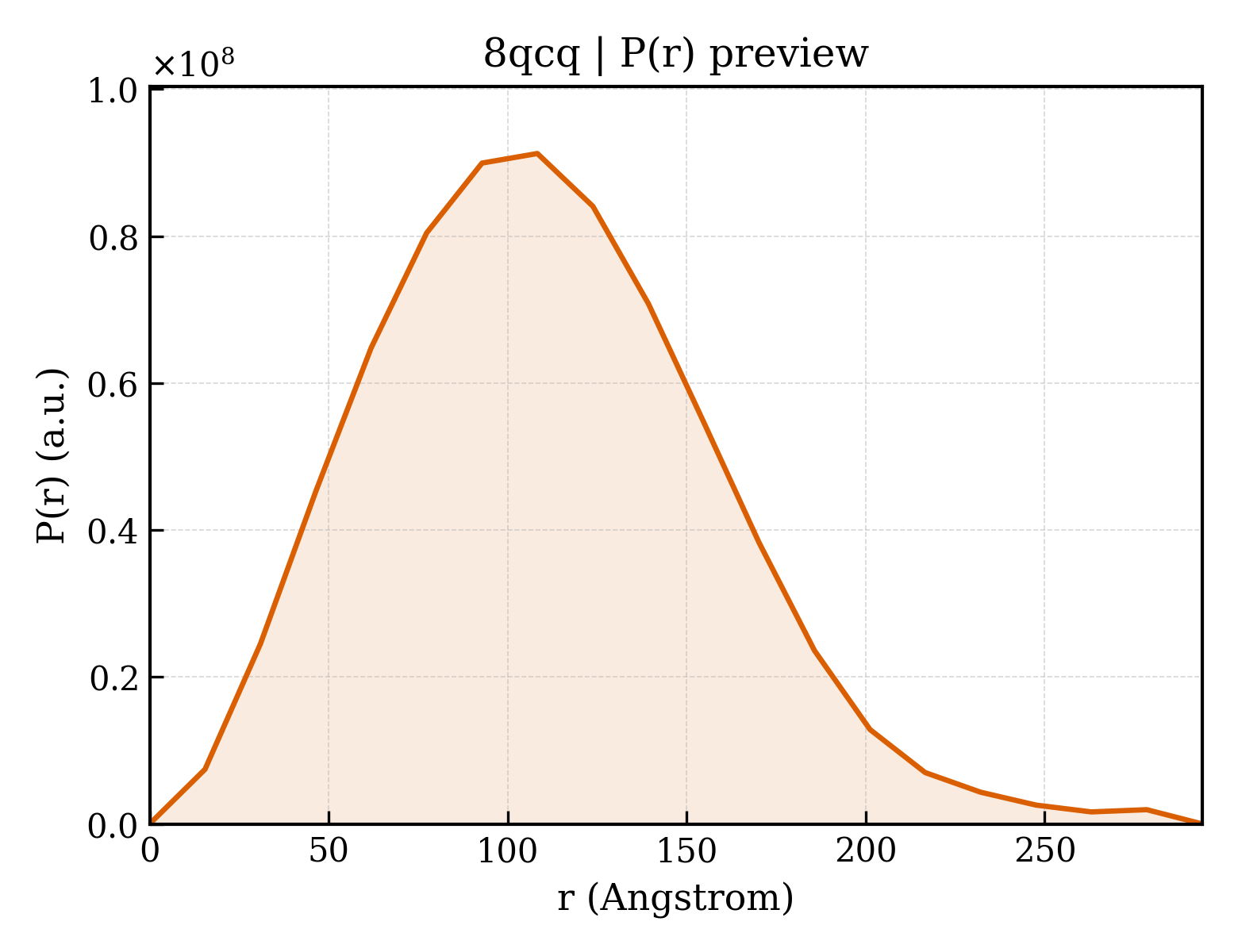

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8qcq
沉积日期 deposition_date	2023-08-28
结构标题 title	B. subtilis ApdA-stalled ribosomal complex
关键词 keywords	Stalling, Nascent chain, elongation arrest, regulation, RIBOSOME; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	81.73 Å
回转半径 Rg (电子) rg_electron	82.32 Å
零角强度 I(0) i0	137578000000.00
分子量 molecular_weight	2023900.0 kDa
排除体积 excluded_volume	2060300 Å³
包络体积 envelope_volume	3550800 Å³
水化壳体积 shell_volume	329880 Å³
包络直径 envelope_diameter	275.0 Å
壳层 Rg shell_rg	95.73 Å
包络 Rg envelope_rg	81.23 Å
形状 Rg shape_rg	82.37 Å
总 Rg total_rg	82.28 Å
总原子数 total_atoms	135642
残基数 n_residues	9368
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	294.0 Å
Rg (实空间) rg_real	84.59 Å
Rg 误差 (实空间) rg_real_error	1.67 Å
I(0) (实空间) i0_real	1.3720e+11
I(0) 误差 (实空间) i0_real_error	3.3060e+09
Rg (倒空间) rg_reciprocal	82.85 Å
I(0) (倒空间) i0_reciprocal	138000000000.0000
解质量估计 total_estimate	0.8994
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	108.3 Å
偏度 Skewness skewness	0.450
峰度 Kurtosis kurtosis	0.181
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	1.0620
最高正则化参数 α highest_alpha	9604000000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.740; Stabil: 0.898; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.821

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (54)

Entity 1 polymer

描述 description	50S ribosomal protein L32
分子量 formula_weight	6745.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	0
原子数 atom_count	136664

MAVPFRRTSKMKKRLRRTHFKLNVPGMTECPSCGEMKLSHRVCKACGSYNGKDINVKSN

Entity 2 polymer

描述 description	50S ribosomal protein L33 1
分子量 formula_weight	5915.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1

MRVNITLACTECGERNYISKKNKRNNPDRVEFKKYCPRDKKSTLHRETK

Entity 3 polymer

描述 description	50S ribosomal protein L34
分子量 formula_weight	5271.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2

MKRTFQPNNRKRSKVHGFRSRMSSKNGRLVLARRRRKGRKVLSA

Entity 4 polymer

描述 description	50S ribosomal protein L35
分子量 formula_weight	7581.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

MPKMKTHRGSAKRFKKTGSGKLKRSHAYTSHLFANKSQKQKRKLRKSAVVSAGDFKRIKQMLANIK

Entity 5 polymer

描述 description	50S ribosomal protein L36
分子量 formula_weight	4318.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4

MKVRPSVKPICEKCKVIRRKGKVMVICENPKHKQKQG

Entity 6 polymer

描述 description	Large ribosomal subunit protein bL31-A
分子量 formula_weight	7330.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6

MKAGIHPNFKKATVKCACGNEFETGSVKEEVRVEICSECHPFYTGRKFASADGRVDRFNKKYGLK

Entity 7 polymer

描述 description	23S rRNA
分子量 formula_weight	948733.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A

GGUUAAGUUAGAAAGGGCGCACGGUGGAUGCCUUGGCACUAGGAGCCGAUGAAGGACGGGACGAACACCGAUAUGCUUCGGGGAGCUGUAAGCAAGCUUUGAUCCGGAGAUUUCCGAAUGGGGAAACCCACCACUCGUAAUGGAGUGGUAUCCAUAUCUGAAUUCAUAGGAUAUGAGAAGGCAGACCCGGGGAACUGAAACAUCUAAGUACCCGGAGGAAGAGAAAGCAAAUGCGAUUCCCUGAGUAGCGGCGAGCGAAACGGGAUCAGCCCAAACCAAGAGGCUUGCCUCUUGGGGUUGUAGGACACUCUGUACGGAGUUACAAAGGAACGAGGUAGAUGAAGAGGUCUGGAAAGGCCCGCCAUAGGAGGUAACAGCCCUGUAGUCAAAACUUCGUUCUCUCCUGAGUGGAUCCUGAGUACGGCGGAACACGUGAAAUUCCGUCGGAAUCCGGGAGGACCAUCUCCCAAGGCUAAAUACUCCCUAGUGACCGAUAGUGAACCAGUACCGUGAGGGAAAGGUGAAAAGCACCCCGGAAGGGGAGUGAAAGAGAUCCUGAAACCGUGUGCCUACAAGUAGUCAGAGCCCGUUAACGGGUGAUGGCGUGCCUUUUGUAGAAUGAACCGGCGAGUUACGAUCUCGUGCAAGGUUAAGCAGAAGAUGCGGAGCCGCAGCGAAAGCGAGUCUGAAUAGGGCGCAUGAGUACGUGGUCGUAGACCCGAAACCAGGUGAUCUACCCAUGUCCAGGGUGAAGUUCAGGUAACACUGAAUGGAGGCCCGAACCCACGCACGUUGAAAAGUGCGGGGAUGAGGUGUGGGUAGGGGUGAAAUGCCAAUCGAACCUGGAGAUAGCUGGUUCUCUCCGAAAUAGCUUUAGGGCUAGCCUCAAGGUAAGAGUCUUGGAGGUAGAGCACUGAUUGGACUAGGGGCCCCUACCGGGUUACCGAAUUCAGUCAAACUCCGAAUGCCAAUGACUUAUCCUUGGGAGUCAGACUGCGAGUGAUAAGAUCCGUAGUCGAAAGGGAAACAGCCCAGACCGCCAGCUAAGGUCCCAAAGUAUACGUUAAGUGGAAAAGGAUGUGGAGUUGCUUAGACAACCAGGAUGUUGGCUUAGAAGCAGCCACCAUUUAAAGAGUGCGUAAUAGCUCACUGGUCGAGUGACUCUGCGCCGAAAAUGUACCGGGGCUAAACGUAUCACCGAAGCUGCGGACUGUUCUUCGAACAGUGGUAGGAGAGCGUUCUAAGGGCUGUGAAGCCAGACCGGAAGGACUGGUGGAGCGCUUAGAAGUGAGAAUGCCGGUAUGAGUAGCGAAAGAGGGGUGAGAAUCCCCUCCACCGAAUGCCUAAGGUUUCCUGAGGAAGGCUCGUCCGCUCAGGGUUAGUCGGGACCUAAGCCGAGGCCGAAAGGCGUAGGCGAUGGACAACAGGUUGAUAUUCCUGUACCACCUCCUCACCAUUUGAGCAAUGGGGGGACGCAGGAGGAUAGGGUAAGCGCGGUAUUGGAUAUCCGCGUCCAAGCAGUUAGGCUGGGAAAUAGGCAAAUCCGUUUCCCAUAAGGCUGAGCUGUGAUGGCGAGCGAAAUAUAGUAGCGAAGUUCCUGAUUCCACACUGCCAAGAAAAGCCUCUAGCGAGGUGAGAGGUGCCCGUACCGCAAACCGACACAGGUAGGCGAGGAGAGAAUCCUAAGGUGAUCGAGAGAACUCUCGUUAAGGAACUCGGCAAAAUGACCCCGUAACUUCGGGAGAAGGGGUGCUCUGUUAGGGUGCAAGCCCGAGAGAGCCGCAGUGAAUAGGCCCAGGCGACUGUUUAGCAAAAACACAGGUCUCUGCGAAGCCGUAAGGCGAAGUAUAGGGGCUGACGCCUGCCCGGUGCUGGAAGGUUAAGAGGAGCGCUUAGCGUAAGCGAAGGUGCGAAUUGAAGCCCCAGUAAACGGCGGCCGUAACUAUAACGGUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCCGCACGAAAGGCGCAACGAUCUGGGCACUGUCUCAACGAGAGACUCGGUGAAAUUAUAGUACCUGUGAAGAUGCAGGUUACCCGCGACAGGACGGAAAGACCCCGUGGAGCUUUACUGCAGCCUGAUAUUGAAUGUUGGUACAGCUUGUACAGGAUAGGUAGGAGCCUUGGAAACCGGAGCGCCAGCUUCGGUGGAGGCAUCGGUGGGAUACUACCCUGGCUGUAUUGACCUUCUAACCCGCCGCCCUUAUCGGGCGGGGAGACAGUGUCAGGUGGGCAGUUUGACUGGGGCGGUCGCCUCCUAAAAGGUAACGGAGGCGCCCAAAGGUUCCCUCAGAAUGGUUGGAAAUCAUUCGCAGAGUGUAAAGGCACAAGGGAGCUUGACUGCGAGACCUACAAGUCGAGCAGGGACGAAAGUCGGGCUUAGUGAUCCGGUGGUUCCGCAUGGAAGGGCCAUCGCUCAACGGAUAAAAGCUACCCCGGGGAUAACAGGCUUAUCUCCCCCAAGAGUCCACAUCGACGGGGAGGUUUGGCACCUCGAUGUCGGCUCAUCGCAUCCUGGGGCUGUAGUCGGUCCCAAGGGUUGGGCUGUUCGCCCAUUAAAGCGGUACGCGAGCUGGGUUCAGAACGUCGUGAGACAGUUCGGUCCCUAUCCGUCGCGGGCGCAGGAAAUUUGAGAGGAGCUGUCCUUAGUACGAGAGGACCGGGAUGGACGCACCGCUGGUGUACCAGUUGUUCUGCCAAGGGCAUCGCUGGGUAGCUAUGUGCGGACGGGAUAAGUGCUGAAAGCAUCUAAGCAUGAAGCCCCCCUCAAGAUGAGAUUUCCCAUUCCGCAAGGAAGUAAGAUCCCUGAAAGAUGAUCAGGUUGAUAGGUCUGAGGUGGAAGUGUGGCGACACAUGGAGCUGACAGAUACUAAUCGAUCGAGGACUUAAC

Entity 8 polymer

描述 description	5S rRNA
分子量 formula_weight	38423.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

UUUGGUGGCGAUAGCGAAGAGGUCACACCCGUUCCCAUACCGAACACGGAAGUUAAGCUCUUCAGCGCCGAUGGUAGUCGGGGGUUUCCCCCUGUGAGAGUAGGACGCCGCCAAGCAAG

Entity 9 polymer

描述 description	50S ribosomal protein L2
分子量 formula_weight	30335.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MAIKKYKPTSNGRRGMTTSDFAEITTDKPEKSLLAPLHKKGGRNNQGKLTVRHQGGGHKRQYRVIDFKRDKDGIPGRVATVEYDPNRSANIALINYADGEKRYILAPKGIQVGTEIMSGPEADIKVGNALPLINIPVGTVVHNIELKPGKGGQLVRSAGTSAQVLGKEGKYVLVRLNSGEVRMILSACRASIGQVGNEQHELINIGKAGRSRWKGIRPTVRGSVMNPNDHPHGGGEGRAPIGRKSPMSPWGKPTLGFKTRKKKNKSDKFIVRRRKNK

Entity 10 polymer

描述 description	50S ribosomal protein L3
分子量 formula_weight	22723.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MTKGILGRKIGMTQVFAENGDLIPVTVIEAAPNVVLQKKTAENDGYEAIQLGFDDKREKLSNKPEKGHVAKAETAPKRFVKELRGVEMDAYEVGQEVKVEIFSAGEIVDVTGVSKGKGFQGAIKRHGQSRGPMSHGSRYHRRPGSMGPVDPNRVFKGKLLPGRMGGEQITVQNLEIVKVDAERNLLLIKGNVPGAKKSLITVKSAVKSK

Entity 11 polymer

描述 description	50S ribosomal protein L4
分子量 formula_weight	22425.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MPKVALYNQNGSTAGDIELNASVFGIEPNESVVFDAILMQRASLRQGTHKVKNRSEVRGGGRKPWRQKGTGRARQGSIRSPQWRGGGVVFGPTPRSYSYKLPKKVRRLAIKSVLSSKVIDNNIIVLEDLTLDTAKTKEMAAILKGLSVEKKALIVTADANEAVALSARNIPGVTVVEANGINVLDVVNHEKLLITKAAVEKVEEVLA

Entity 12 polymer

描述 description	50S ribosomal protein L5
分子量 formula_weight	20177.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MNRLKEKYNKEIAPALMTKFNYDSVMQVPKIEKIVINMGVGDAVQNAKAIDSAVEELTFIAGQKPVVTRAKKSIAGFRLREGMPIGAKVTLRGERMYDFLDKLISVSLPRVRDFRGVSKKSFDGRGNYTLGIKEQLIFPEIDYDKVTKVRGMDIVIVTTANTDEEARELLTQVGMPFQK

Entity 13 polymer

描述 description	Large ribosomal subunit protein uL6
分子量 formula_weight	19543.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MSRVGKKLLEIPSDVTVTLNDNNTVAVKGPKGELTRTFHPDMEIKVEDNVLTVARPSDQKEHRALHGTTRSLLGNMVEGVSKGFERGLELVGVGYRASKSGNKLVLNVGYSHPVEIVPEEGIEIEVPSQTKVVVKGTDKERVGAIAANIRAVRSPEPYKGKGIRYEGEVVRRKEGKSAK

Entity 14 polymer

描述 description	50S ribosomal protein L13
分子量 formula_weight	16407.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MRTTPMANASTIERKWLVVDAAGKTLGRLSSEVAAILRGKHKPTYTPHVDTGDHVIIINAEKIELTGKKLTDKIYYRHTQHPGGLKSRTALEMRTNYPEKMLELAIKGMLPKGSLGRQMFKKLNVYRGSEHPHEAQKPEVYELRG

Entity 15 polymer

描述 description	50S ribosomal protein L14
分子量 formula_weight	13175.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MIQQETRLKVADNSGAREVLTIKVLGGSGRKTANIGDVIVCTVKQATPGGVVKKGEVVKAVIVRTKSGARRSDGSYISFDENACVIIRDDKSPRGTRIFGPVARELRENNFMKIVSLAPEVI

Entity 16 polymer

描述 description	50S ribosomal protein L15
分子量 formula_weight	15410.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MKLHELKPSEGSRKTRNRVGRGIGSGNGKTAGKGHKGQNARSGGGVRPGFEGGQMPLFQRLPKRGFTNINRKEYAVVNLDKLNGFAEGTEVTPELLLETGVISKLNAGVKILGNGKLEKKLTVKANKFSASAKEAVEAAGGTAEVI

Entity 17 polymer

描述 description	50S ribosomal protein L16
分子量 formula_weight	16223.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MLLPKRVKYRREHRGKMRGRAKGGTEVHFGEFGIQALEASWITNRQIEAARIAMTRYMKRGGKVWIKIFPSKPYTAKPLEVRMGSGKGAPEGWVAVVKPGKVLFEISGVSEEVAREALRLASHKLPIKTKFVKREEIGGESNES

Entity 18 polymer

描述 description	50S ribosomal protein L17
分子量 formula_weight	13774.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MSYRKLGRTSAQRKAMLRDLTTDLIINERIETTETRAKELRSVVEKMITLGKRGDLHARRQAAAYIRNEVANEENNQDALQKLFSDIATRYEERQGGYTRIMKLGPRRGDGAPMAIIELV

Entity 19 polymer

描述 description	50S ribosomal protein L18
分子量 formula_weight	12993.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MITKTSKNAARLKRHARVRAKLSGTAERPRLNVFRSNKHIYAQIIDDVNGVTLASASTLDKDLNVESTGDTSAATKVGELVAKRAAEKGISDVVFDRGGYLYHGRVKALADAAREAGLKF

Entity 20 polymer

描述 description	50S ribosomal protein L19
分子量 formula_weight	13416.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MQKLIEDITKEQLRTDLPAFRPGDTLRVHVKVVEGNRERIQIFEGVVIKRRGGGISETFTVRKISYGVGVERTFPVHTPKIAKIEVVRYGKVRRAKLYYLRELRGKAARIKEIRR

Entity 21 polymer

描述 description	Large ribosomal subunit protein bL20
分子量 formula_weight	13669.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MPRVKGGTVTRKRRKKVLKLAKGYFGSKHTLYKVANQQVMKSGNYAFRDRRQKKRDFRKLWITRINAAARMNGLSYSRLMHGLKLSGIEVNRKMLADLAVNDLTAFNQLADAAKAQLNK

Entity 22 polymer

描述 description	50S ribosomal protein L21
分子量 formula_weight	11296.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MYAIIKTGGKQIKVEEGQTVYIEKLAAEAGETVTFEDVLFVGGDNVKVGNPTVEGATVTAKVEKQGRAKKITVFRYKPKKNVHKKQGHRQPYTKVTIEKINA

Entity 23 polymer

描述 description	50S ribosomal protein L22
分子量 formula_weight	12481.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MQAKAVARTVRIAPRKARLVMDLIRGKQVGEAVSILNLTPRAASPIIEKVLKSAIANAEHNYEMDANNLVISQAFVDEGPTLKRFRPRAMGRASQINKRTSHITIVVSEKKEG

Entity 24 polymer

描述 description	Large ribosomal subunit protein uL23
分子量 formula_weight	10978.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MKDPRDVLKRPVITERSADLMTEKKYTFEVDVRANKTEVKDAVESIFGVKVDKVNIMNYKGKSKRVGRYTGMTSRRRKAIVKLTADSKEIEIFEA

Entity 25 polymer

描述 description	50S ribosomal protein L24
分子量 formula_weight	11166.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MHVKKGDKVMVISGKDKGKQGTILAAFPKKDRVLVEGVNMVKKHSKPTQANPQGGISNQEAPIHVSNVMPLDPKTGEVTRVGYKVEDGKKVRVAKKSGQVLDK

Entity 26 polymer

描述 description	Large ribosomal subunit protein bL27
分子量 formula_weight	10391.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MLRLDLQFFASKKGVGSTKNGRDSEAKRLGAKRADGQFVTGGSILYRQRGTKIYPGENVGRGGDDTLFAKIDGTVKFERFGRDRKKVSVYPVAQ

Entity 27 polymer

描述 description	50S ribosomal protein L28
分子量 formula_weight	6826.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MARKCVITGKKTTAGNNRSHAMNASKRTWGANLQKVRILVNGKPKKVYVSARALKSGKVERV

Entity 28 polymer

描述 description	50S ribosomal protein L29
分子量 formula_weight	7728.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MKANEIRDLTTAEIEQKVKSLKEELFNLRFQLATGQLENTARIREVRKAIARMKTVIREREIAANK

Entity 29 polymer

描述 description	Large ribosomal subunit protein uL30
分子量 formula_weight	6650.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MAKLEITLKRSVIGRPEDQRVTVRTLGLKKTNQTVVHEDNAAIRGMINKVSHLVSVKEQ

Entity 30 polymer

描述 description	16S rRNA
分子量 formula_weight	503369.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	a

UUUAUCGGAGAGUUUGAUCCUGGCUCAGGACGAACGCUGGCGGCGUGCCUAAUACAUGCAAGUCGAGCGGACAGAUGGGAGCUUGCUCCCUGAUGUUAGCGGCGGACGGGUGAGUAACACGUGGGUAACCUGCCUGUAAGACUGGGAUAACUCCGGGAAACCGGGGCUAAUACCGGAUGGUUGUUUGAACCGCAUGGUUCAAACAUAAAAGGUGGCUUCGGCUACCACUUACAGAUGGACCCGCGGCGCAUUAGCUAGUUGGUGAGGUAACGGCUCACCAAGGCGACGAUGCGUAGCCGACCUGAGAGGGUGAUCGGCCACACUGGGACUGAGACACGGCCCAGACUCCUACGGGAGGCAGCAGUAGGGAAUCUUCCGCAAUGGACGAAAGUCUGACGGAGCAACGCCGCGUGAGUGAUGAAGGUUUUCGGAUCGUAAAGCUCUGUUGUUAGGGAAGAACAAGUGCCGUUCGAAUAGGGCGGUACCUUGACGGUACCUAACCAGAAAGCCACGGCUAACUACGUGCCAGCAGCCGCGGUAAUACGUAGGUGGCAAGCGUUGUCCGGAAUUAUUGGGCGUAAAGGGCUCGCAGGCGGUUUCUUAAGUCUGAUGUGAAAGCCCCCGGCUCAACCGGGGAGGGUCAUUGGAAACUGGGGAACUUGAGUGCAGAAGAGGAGAGUGGAAUUCCACGUGUAGCGGUGAAAUGCGUAGAGAUGUGGAGGAACACCAGUGGCGAAGGCGACUCUCUGGUCUGUAACUGACGCUGAGGAGCGAAAGCGUGGGGAGCGAACAGGAUUAGAUACCCUGGUAGUCCACGCCGUAAACGAUGAGUGCUAAGUGUUAGGGGGUUUCCGCCCCUUAGUGCUGCAGCUAACGCAUUAAGCACUCCGCCUGGGGAGUACGGUCGCAAGACUGAAACUCAAAGGAAUUGACGGGGGCCCGCACAAGCGGUGGAGCAUGUGGUUUAAUUCGAAGCAACGCGAAGAACCUUACCAGGUCUUGACAUCCUCUGACAAUCCUAGAGAUAGGACGUCCCCUUCGGGGGCAGAGUGACAGGUGGUGCAUGGUUGUCGUCAGCUCGUGUCGUGAGAUGUUGGGUUAAGUCCCGCAACGAGCGCAACCCUUGAUCUUAGUUGCCAGCAUUCAGUUGGGCACUCUAAGGUGACUGCCGGUGACAAACCGGAGGAAGGUGGGGAUGACGUCAAAUCAUCAUGCCCCUUAUGACCUGGGCUACACACGUGCUACAAUGGACAGAACAAAGGGCAGCGAAACCGCGAGGUUAAGCCAAUCCCACAAAUCUGUUCUCAGUUCGGAUCGCAGUCUGCAACUCGACUGCGUGAAGCUGGAAUCGCUAGUAAUCGCGGAUCAGCAUGCCGCGGUGAAUACGUUCCCGGGCCUUGUACACACCGCCCGUCACACCACGAGAGUUUGUAACACCCGAAGUCGGUGAGGUAACCUUUUAGGAGCCAGCCGCCGAAGGUGGGACAGAUGAUUGGGGUGAAGUCGUAACAAGGUAGCCGUAUCGGAAGGUGCGGCUGGAUCACCUCCUUUCUA

Entity 31 polymer

描述 description	30S ribosomal protein S5
分子量 formula_weight	17650.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MRRIDPSKLELEERLVTVNRVAKVVKGGRRFRFAALVVVGDKNGHVGFGTGKAQEVPEAIRKAVEDAKKNLIEVPMVGTTIPHEIIGRFGAGNILLKPASEGTGVIAGGPVRAVLELAGVADILSKSLGSNTPINMIRATLQGLSELKRAEDVAKLRGKSVEELLG

Entity 32 polymer

描述 description	30S ribosomal protein S11
分子量 formula_weight	13952.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	k

MAAARKSNTRKRRVKKNIESGIAHIRSTFNNTIVTITDTHGNAISWSSAGALGFRGSRKSTPFAAQMAAETAAKGSIEHGLKTLEVTVKGPGSGREAAIRALQAAGLEVTAIRDVTPVPHNGCRPPKRRRV

Entity 33 polymer

描述 description	30S ribosomal protein S12
分子量 formula_weight	15248.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	l

MPTINQLIRKGRVSKVENSKSPALNKGYNSFKKEHTNVSSPQKRGVCTRVGTMTPKKPNSALRKYARVRLTNGIEVTAYIPGIGHNLQEHSVVLIRGGRVKDLPGVRYHIVRGALDTAGVENRAQGRSKYGTKKPKAK

Entity 34 polymer

描述 description	30S ribosomal protein S15
分子量 formula_weight	10597.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

MAITQERKNQLINEFKTHESDTGSPEVQIAILTDSINNLNEHLRTHKKDHHSRRGLLKMVGKRRNLLTYLRNKDVTRYRELINKLGLRR

Entity 35 polymer

描述 description	30S ribosomal protein S17
分子量 formula_weight	10221.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	q

MSERNQRKVYQGRVVSDKMDKTITVVVETYKKHTLYGKRVKYSKKFKAHDENNQAKIGDIVKIMETRPLSATKRFRLVEVVEEAVII

Entity 36 polymer

描述 description	30S ribosomal protein S20
分子量 formula_weight	9622.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	t

MPNIKSAIKRTKTNNERRVHNATIKSAMRTAIKQVEASVANNEADKAKTALTEAAKRIDKAVKTGLVHKNTAARYKSRLAKKVNGLSA

Entity 37 polymer

描述 description	Pro-tRNA
分子量 formula_weight	24832.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	y,w

CGGGAAGUAGCUCAGCUUGGUAGAGCACAUGGUUUGGGACCAUGGGGUCGCAGGUUCGAAUCCUGUCUUCCCGACCA

Entity 38 polymer

描述 description	mRNA
分子量 formula_weight	1788.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	8

CCUCCU

来源 Source

来源生物 organism	Amycolatopsis japonica
NCBI 分类编号 ncbi_taxonomy_id	208439
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 39 polymer

描述 description	Small ribosomal subunit protein uS3
分子量 formula_weight	23050.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

MGQKVNPVGLRIGVIRDWESKWYAGKDYADFLHEDLKIREYISKRLSDASVSKVEIERAANRVNITIHTAKPGMVIGKGGSEVEALRKALNSLTGKRVHINILEIKRADLDAQLVADNIARQLENRVSFRRAQKQQIQRTMRAGAQGVKTMVSGRLGGADIARSEYYSEGTVPLHTLRADIDYATSEADTTYGKLGVKVWIYRGEV

Entity 40 polymer

描述 description	Small ribosomal subunit protein uS7
分子量 formula_weight	17915.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

MPRKGPVAKRDVLPDPIYNSKLVSRLINKMMIDGKKGKSQTILYKSFDIIKERTGNDAMEVFEQALKNIMPVLEVKARRVGGANYQVPVEVRPERRTTLGLRWLVNYARLRGEKTMEERLANEILDAANNTGAAVKKREDTHKMAEANKAFAHYRW

Entity 41 polymer

描述 description	30S ribosomal protein S9
分子量 formula_weight	14335.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

MAQVQYYGTGRRKSSVARVRLVPGEGRIVVNNREISEHIPSAALIEDIKQPLTLTETAGTYDVLVNVHGGGLSGQAGAIRHGIARALLEADPEYRTTLKRAGLLTRDARMKERKKYGLKGARRAPQFSKR

Entity 42 polymer

描述 description	30S ribosomal protein S10
分子量 formula_weight	11687.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j

MAKQKIRIRLKAYDHRILDQSAEKIVETAKRSGASVSGPIPLPTEKSVYTILRAVHKYKDSREQFEMRTHKRLIDIVNPTPQTVDALMRLDLPSGVDIEIKL

Entity 43 polymer

描述 description	30S ribosomal protein S13
分子量 formula_weight	13818.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m

MARIAGVDIPRDKRVVISLTYIFGIGRTTAQQVLKEAGVSEDTRVRDLTEEELGKIRDIIDKLKVEGDLRREVSLNIKRLIEIGSYRGIRHRRGLPVRGQNSKNNARTRKGPRRTVANKKK

Entity 44 polymer

描述 description	30S ribosomal protein S14
分子量 formula_weight	7263.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n

MAKKSMIAKQQRTPKFKVQEYTRCERCGRPHSVIRKFKLCRICFRELAYKGQIPGVKKASW

Entity 45 polymer

描述 description	30S ribosomal protein S19
分子量 formula_weight	10607.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	s

MARSLKKGPFVDGHLMTKIEKLNETDKKQVVKTWSRRSTIFPQFIGHTIAVYDGRKHVPVFISEDMVGHKLGEFAPTRTYKGHASDDKKTRR

Entity 46 polymer

描述 description	30S ribosomal protein S8
分子量 formula_weight	14901.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h

MVMTDPIADMLTRIRNANMVRHEKLEIPASKLKREIAEILKREGFIRDVEFVEDSKQGIIRVFLKYGQNNERVITGLKRISKPGLRVYAKSNEVPRVLNGLGIAIISTSQGVLTDKEARAKQAGGEVLAYVW

Entity 47 polymer

描述 description	30S ribosomal protein S18
分子量 formula_weight	8990.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r

MAGGRRGGRAKRRKVCYFTSNGITHIDYKDVDLLKKFVSERGKILPRRVTGTNAKYQRKLTAAIKRARQMALLPYVSGE

Entity 48 polymer

描述 description	30S ribosomal protein S6
分子量 formula_weight	11140.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MRKYEVMYIIRPNIDEESKKAVIERFNNVLTSNGAEITGTKDWGKRRLAYEINDFRDGFYQIVNVQSDAAAVQEFDRLAKISDDIIRHIVVKEEE

Entity 49 polymer

描述 description	ApdA nascent chain
分子量 formula_weight	970.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7

RLALGDRAP

来源 Source

来源生物 organism	Amycolatopsis japonica
NCBI 分类编号 ncbi_taxonomy_id	208439
宿主生物 host_organism	Bacillus subtilis subsp. subtilis str. 168

Entity 50 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 51 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	199

Entity 52 non-polymer

描述 description	POTASSIUM ION
分子量 formula_weight	39.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	43

Entity 53 non-polymer

描述 description	PROLINE
分子量 formula_weight	115.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 54 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1022

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.300 Å
最低分辨率 resolution_low	2.300 Å
R 因子 r_factor	0.2620
R_work r_work	0.2620
R_free r_free	—

分辨率 resolution	2.30 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	142978

fit	/app/data/saxs_computation/qc/8qcq/8qcq.fit
pddf	/app/data/pr_computation/qc/8qcq/8qcq.pr.out
profile	/app/data/saxs_computation/qc/8qcq/8qcq.dat

B. subtilis ApdA-stalled ribosomal complex

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

精修参数 Refinement

冷冻电镜 EM 3D

5. 实体与聚合体信息 (54)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer
