SAXSdb — 8ql0

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Protein-arginine deiminase type-6

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	DI(HYDROXYETHYL)ETHER × 8 GLYCEROL × 2 PENTAETHYLENE GLYCOL × 2 CHLORIDE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PADI6_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–693； UniProt 2–694

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ql0
Deposition date deposition_date	2023-09-18
Structure title title	Structure of human PAD6 Phosphomimic mutant V10E/S446E, apo
Keywords keywords	peptidylarginine deiminase, apo, mammalian fertilization, cytoplasmic lattice, UNKNOWN FUNCTION; UNKNOWN FUNCTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ql0__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ql0__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

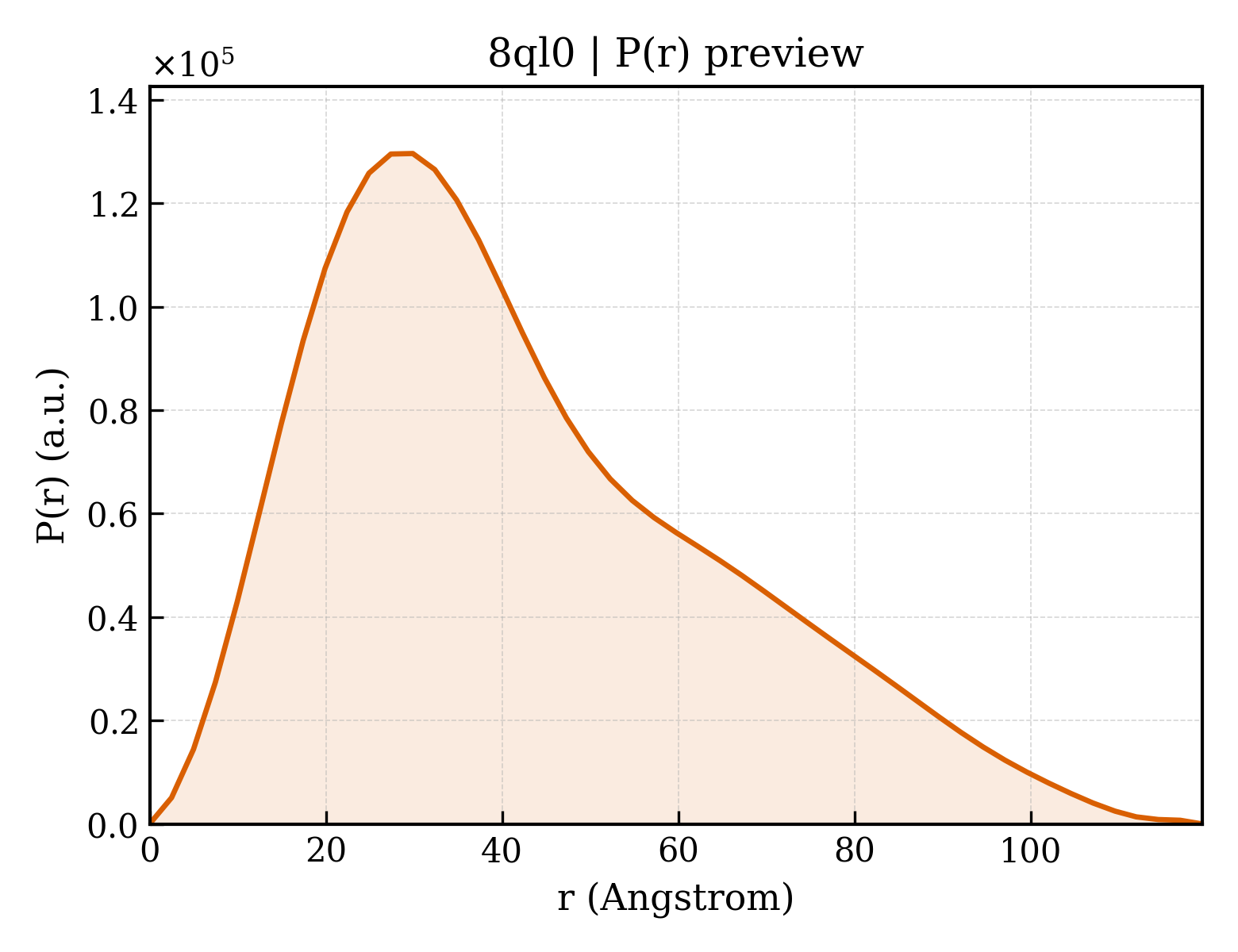

8ql0__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.45 Å
Rg (electron density)	37.02 Å
Total Rg	37.46 Å
Atom count	10200
Residues	1282
Excluded volume	183990 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ql0__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Protein-arginine deiminase type-6
Molecular weight formula_weight	77759.0 kDa
EC 编号 ec_number	3.5.3.15
Mutation mutation	S10E, S446E
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5485

VSVEGRAMEFQSIIHLSLDSPVHAVCVLGTEICLDLSGCAPQKCQCFTIHGSGRVLIDVANTVISEKEDATIWWPLSDPTYATVKMTSPSPSVDADKVSVTYYGPNEDAPVGTAVLYLTGIEVSLEVDIYRNGQVEMSSDKQAKKKWIWGPSGWGAILLVNCNPADVGQQLEDKKTKKVIFSEEITNLSQMTLNVQGPSCILKKYRLVLHTSKEESKKARVYWPQKDNSSTFELVLGPDQHAYTLALLGNHLKETFYVEAIAFPSAEFSGLISYSVSLVEESQDPSIPETVLYKDTVVFRVAPCVFIPCTQVPLEVYLCRELQLQGFVDTVTKLSEKSNSQVASVYEDPNRLGRWLQDEMAFCYTQAPHKTTSLILDTPQAADLDEFPMKYSLSPGIGYMIQDTEDHKVASMDSIGNLMVSPPVKVQGKEYPLGRVLIGSSFYPEAEGRAMSKTLRDFLYAQQVQAPVELYSDWLMTGHVDEFMCFIPTDDKNEGKKGFLLLLASPSACYKLFREKQKEGYGDALLFDELRADQLLSNGREAKTIDQLLADESLKKQNEYVEKCIHLNRDILKTELGLVEQDIIEIPQLFCLEKLTNIPSDQQPKRSFARPYFPDLLRMIVMGKNLGIPKPFGPQIKGTCCLEEKICCLLEPLGFKCTFINDFDCYLTEVGDICACANIRRVPFAFKWWKMVP

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	PENTAETHYLENE GLYCOL
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	304

▶

Unit-cell length a length_a	127.323 Å
Unit-cell length b length_b	54.318 Å
Unit-cell length c length_c	106.785 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	108.61 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.675 Å
Low-resolution limit resolution_low	101.200 Å
R factor r_factor	0.1987
R_work r_work	0.1965
R_free r_free	0.2407
