8ryn

Structure of S2 TCR in complex with HLA-A*11:01 bound to ELFSYLIEK peptide

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

MHC class I antigen

Homo sapiens

UniProt A0A583ZB34

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 5 Beta-2-microglobulin × 1 （P61769） ELFSYLIEK peptide × 1 TCR alpha × 1 TCR beta × 1 water × 5 Consistent with protein count

Other States of the Same Protein in the Database

Monomer

None

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
7ow3 7ow3 7ow3 7ow3 7ow4 7ow4 7ow4 7ow4 7ow5 7ow6 7pb2 7pb2

15 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name A0A583ZB34_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–275； UniProt 25–299

Beta-2-microglobulin

Homo sapiens

UniProt P61769

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein heterocomplex Heteromer Protein 5 MHC class I antigen × 1 （A0A583ZB34） ELFSYLIEK peptide × 1 TCR alpha × 1 TCR beta × 1 water × 5 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1jnj 1lds 1py4 1py4 1py4 1py4 2d4d 2d4f 2vb5 2xks 2xku 2yxf

61 assemblies; showing the first 12

Homodimer
2x89 2x89 2z9t 3low 4r9h 4r9h 4ra3 4ra3 4rah 6m1b

10 assemblies

Homotetramer
2e8d 2f8o 3tlr 3tm6 3tm6 7afv

6 assemblies

Other homooligomers
3ciq 3ciq 3loz 6gk3 8a7o 8a7p 8a7q 8a7t

8 assemblies

Heteromeric or nucleic-acid complex
1a1m 1a1n 1a1o 1a6z 1a6z 1a9b 1a9b 1a9e 1agb 1agc 1agd 1age

1914 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name B2MG_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 2–100； UniProt 21–119

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8ryn
Deposition date deposition_date2024-02-09
Structure title titleStructure of S2 TCR in complex with HLA-A*11:01 bound to ELFSYLIEK peptide
Keywords keywordsTCR, HLA, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ryn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

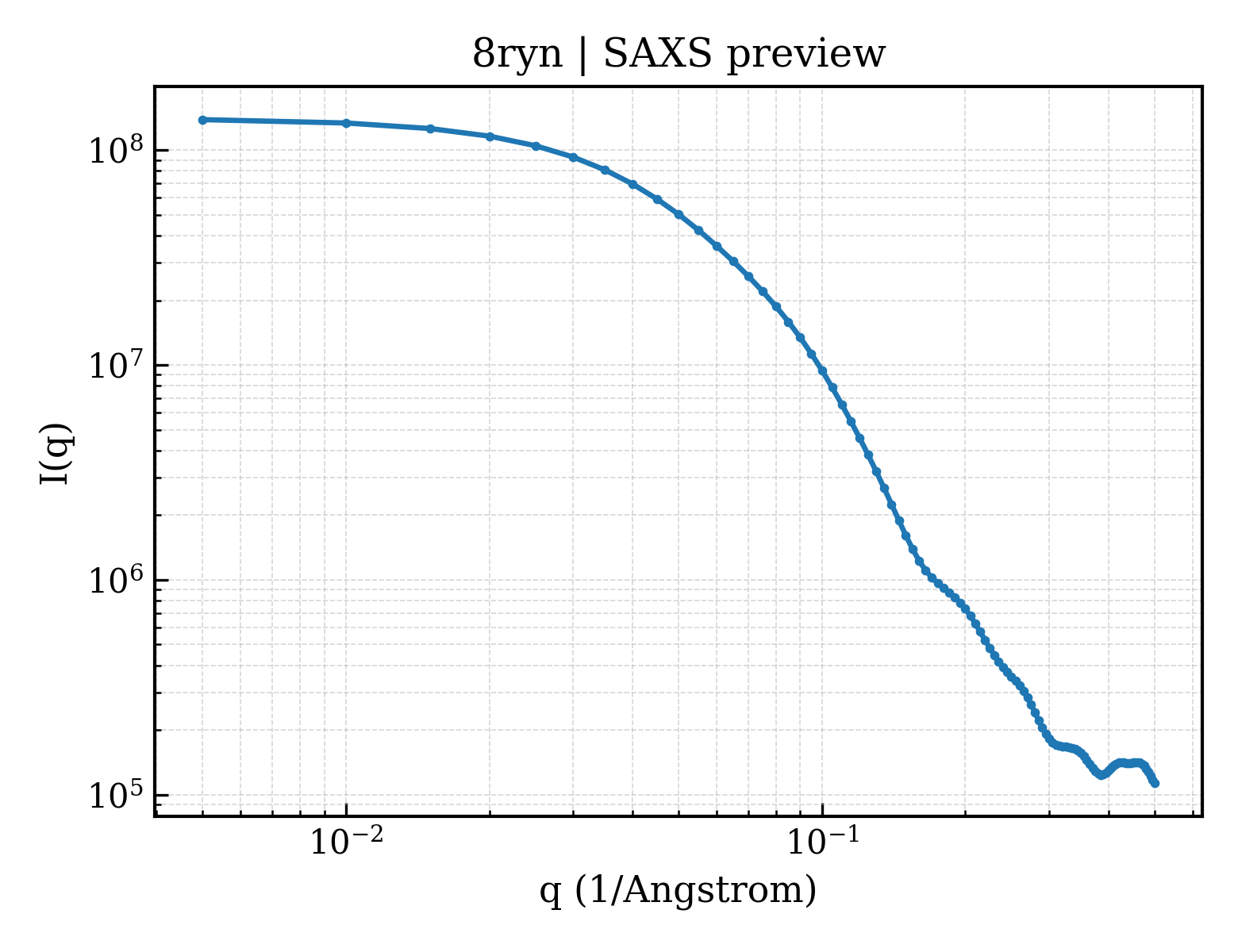

8ryn__assembly_1__model_1 | I(q)

10-2 10-1 106 107 108 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

8ryn__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）37.40 Å
Rg (electron density)37.67 Å
Total Rg37.75 Å
Atom count6466
Residues809
Excluded volume113100 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 8ryn__assembly_1__model_1 pentameric （5） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

▶

7. Citations (1)
