SAXSdb — 8sat

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CH848.10.17 gp120

HIV-1 06TG.HT008

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 12	CH848.10.17 gp41 × 3 VRC01-variable heavy chain × 3 VRC01-variable light chain × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A1W6IPB2_9HIV1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–469； UniProt 30–495 Author chain E； PDBConstruct 4–469； UniProt 30–495 Author chain I； PDBConstruct 4–469； UniProt 30–495

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8sat
Deposition date deposition_date	2023-04-02
Structure title title	CryoEM structure of VRC01-CH848.10.17
Keywords keywords	HIV-1, antibody, VRC01, CH848.10.17, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8sat__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8sat__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

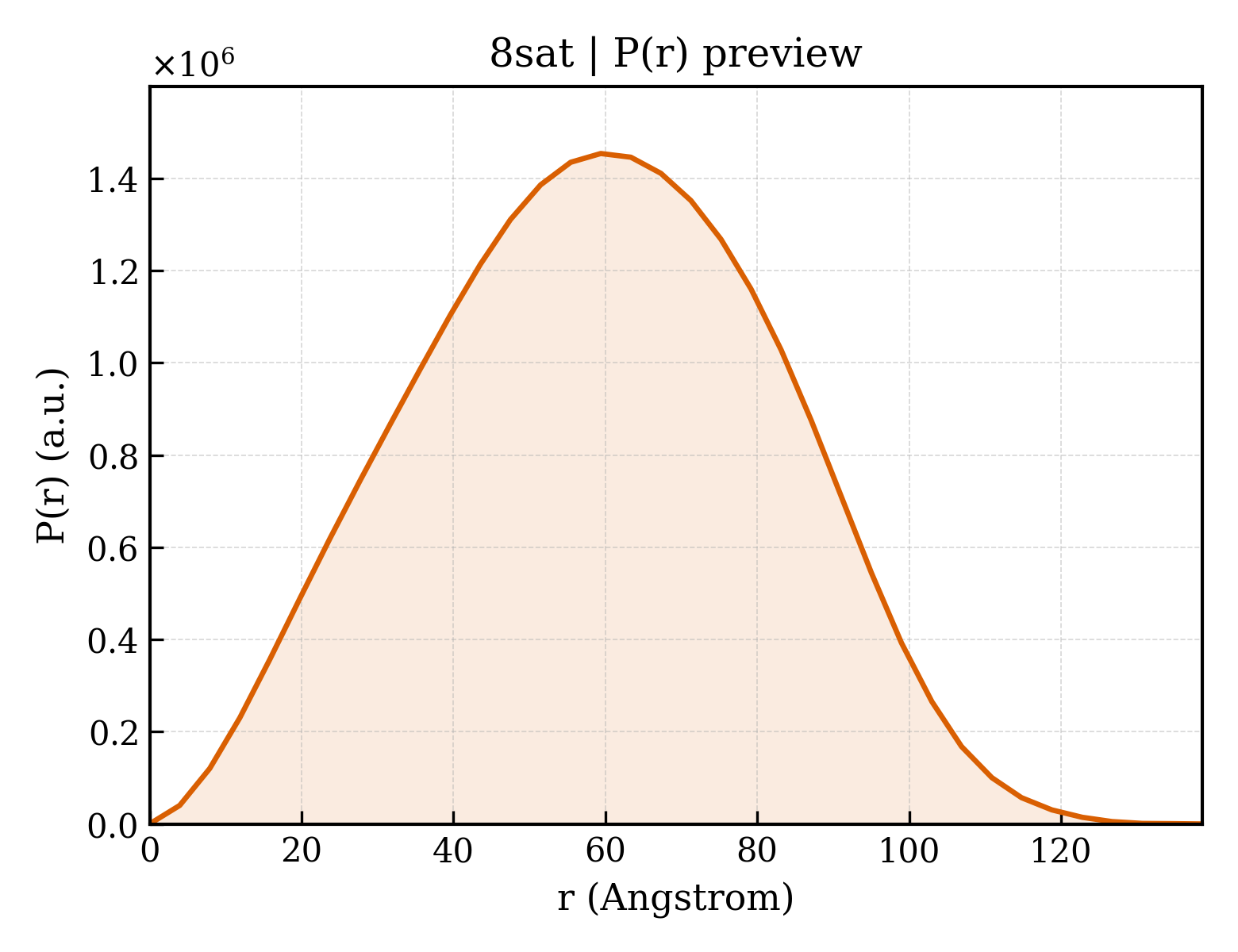

8sat__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	45.12 Å
Rg (electron density)	44.28 Å
Total Rg	44.55 Å
Atom count	38298
Residues	2457
Excluded volume	342730 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8sat__assembly_1__model_1`	dodecameric （12）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	CH848.10.17 gp120
Molecular weight formula_weight	52847.9 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,E,I
Atom count atom_count	38298

AENLWVTVYYGVPVWKEAKTTLFCASDARAYEKEVHNVWATHACVPTDPSPQELVLGNVTENFNMWKNDMVDQMHEDIISLWDQSLKPCVKLTPLCVTLICSNATVKNGTVEEMKNCSFNTTTEIRDKEKKEYALFYKPDIVPLSETNNTSEYRLINCNTSACTQACPKVTFEPIPIHYCAPAGYAILKCNDETFNGTGPCSNVSTVQCTHGIRPVVSTQLLLNGSLAEKEIVIRSENLTNNAKIIIVHLHTPVEIVCTRPNNNTRKSVRIGPGQTFYATGDIIGDIKQAHCNISEEKWNDTLQKVGIELQKHFPNKTIKYNQSAGGDMEITTHSFNCGGEFFYCNTSNLFNGTYNGTYISTNSSANSTSTITLQCRIKQIINMWQGVGRCMYAPPIAGNITCRSNITGLLLTRDGGTNSNETETFRPAGGDMRDNWRSELYKYKVVKIEPLGVAPTRCKRRVVGRRRRRR

Source Source

Source organism organism	HIV-1 06TG.HT008
NCBI taxonomy ID ncbi_taxonomy_id	587638
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	CH848.10.17 gp41
Molecular weight formula_weight	17146.5 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,F,J

AVGIGAVFLGFLGAAGSTMGAASMTLTVQARNLLSGIVQQQSNLLRAPEAQQHLLKLTVWGIKQLQARVLAVERYLRDQQLLGIWGCSGKLICCTNVPWNSSWSNRNLSEIWDNMTWLQWDKEISNYTQIIYGLLEESQNQQEKNEQDLLALD

Source Source

Source organism organism	HIV-1 06TG.HT008
NCBI taxonomy ID ncbi_taxonomy_id	587638
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	VRC01-variable heavy chain
Molecular weight formula_weight	13801.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,G,K

QVQLVQSGGQMKKPGESMRISCRASGYEFIDCTLNWIRLAPGKRPEWMGWLKPRGGAVNYARPLQGRVTMTRDVYSDTAFLELRSLTVDDTAVYFCTRGKNCDYNWDFEHWGRGTPVIVSS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	VRC01-variable light chain
Molecular weight formula_weight	11440.6 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,H,L

EIVLTQSPGTLSLSPGETAIISCRTSQYGSLAWYQQRPGQAPRLVIYSGSTRAAGIPDRFSGSRWGPDYNLTISNLESGDFGVYYCQQYXXXXEFFGQGTKVQVD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	35839
