8say

CryoEM structure of DH270.3-CH848.10.17

Method: ELECTRON MICROSCOPY D_max: 151.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

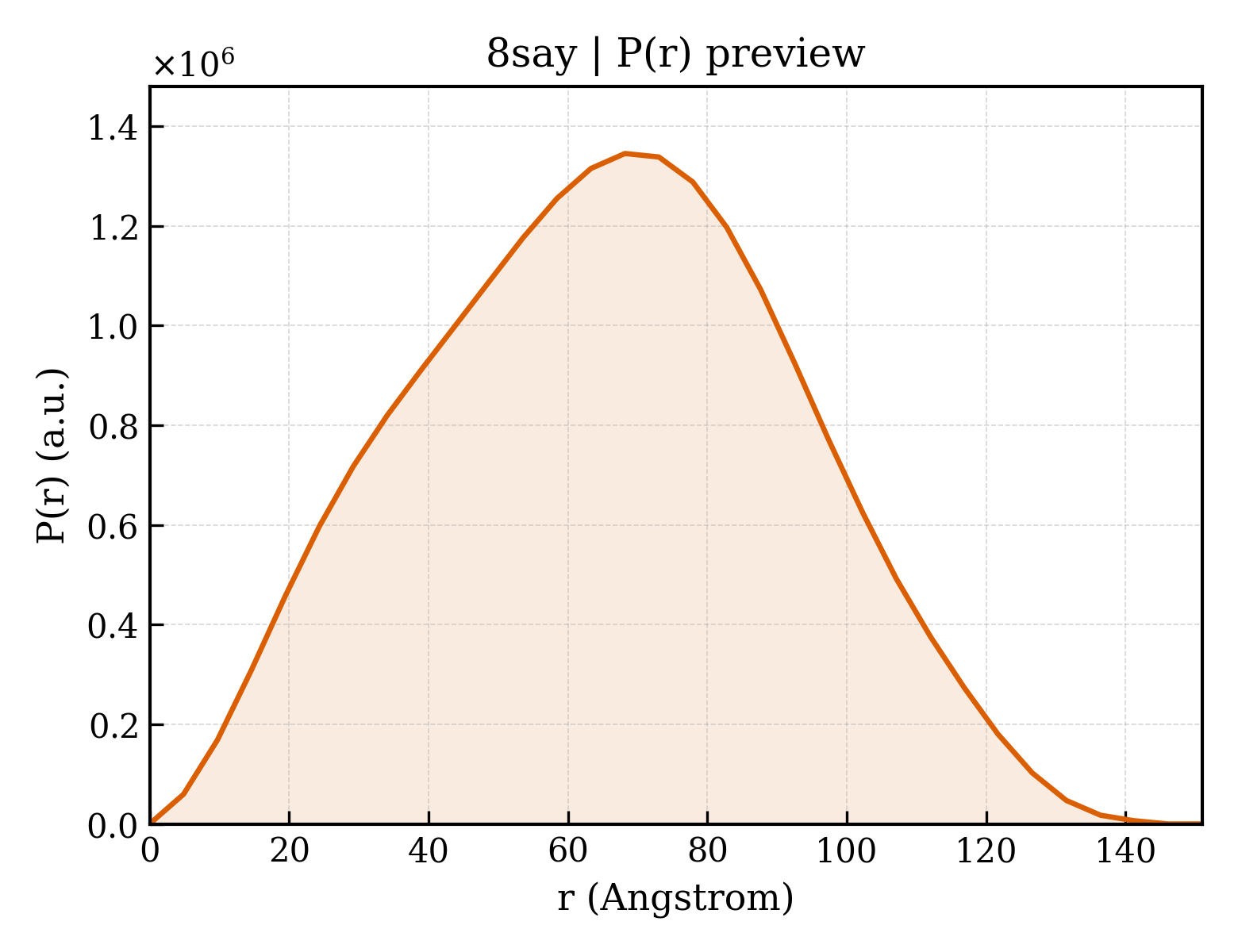

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8say
沉积日期 deposition_date	2023-04-02
结构标题 title	CryoEM structure of DH270.3-CH848.10.17
关键词 keywords	HIV-1, antibody, DH270.3, CH848.10.17, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	50.32 Å
回转半径 Rg (电子) rg_electron	49.85 Å
零角强度 I(0) i0	1219620000.00
分子量 molecular_weight	283970.0 kDa
排除体积 excluded_volume	352660 Å³
包络体积 envelope_volume	511270 Å³
水化壳体积 shell_volume	85536 Å³
包络直径 envelope_diameter	150.3 Å
壳层 Rg shell_rg	53.63 Å
包络 Rg envelope_rg	48.69 Å
形状 Rg shape_rg	49.87 Å
总 Rg total_rg	49.92 Å
总原子数 total_atoms	19902
残基数 n_residues	2450
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	151.0 Å
Rg (实空间) rg_real	50.10 Å
Rg 误差 (实空间) rg_real_error	1.23 Å
I(0) (实空间) i0_real	1.2200e+09
I(0) 误差 (实空间) i0_real_error	2.2420e+07
Rg (倒空间) rg_reciprocal	50.48 Å
I(0) (倒空间) i0_reciprocal	1220000000.0000
解质量估计 total_estimate	0.8690
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	68.2 Å
偏度 Skewness skewness	0.031
峰度 Kurtosis kurtosis	-0.601
角度范围 angular_range	— – 0.1550 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	85310000.0000
实空间数据点数 n_real_points	32
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.966; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.983; Smooth: 0.411

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	CH848.10.17 gp120
分子量 formula_weight	51748.6 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,F,K
原子数 atom_count	19902

AENLWVTVYYGVPVWKEAKTTLFCASDARAYEKEVHNVWATHACVPTDPSPQELVLGNVTENFNMWKNDMVDQMHEDIISLWDQSLKPCVKLTPLCVTLICSNATVKNGTVEEMKNCSFNTTTEIRDKEKKEYALFYKPDIVPLSETNNTSEYRLINCNTSACTQACPKVTFEPIPIHYCAPAGYAILKCNDETFNGTGPCSNVSTVQCTHGIRPVVSTQLLLNGSLAEKEIVIRSENLTNNAKIIIVHLHTPVEIVCTRPNNNTRKSVRIGPGQTFYATGDIIGDIKQAHCNISEEKWNDTLQKVGIELQKHFPNKTIKYNQSAGGDMEITTHSFNCGGEFFYCNTSNLFNGTYNGTYISTNSSANSTSTITLQCRIKQIINMWQGVGRCMYAPPIAGNITCRSNITGLLLTRDGGTNSNETETFRPAGGDMRDNWRSELYKYKVVKIEPLGVAPTRCKRRV

来源 Source

来源生物 organism	HIV-1 06TG.HT008
NCBI 分类编号 ncbi_taxonomy_id	587638
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	CH848.10.17 gp41
分子量 formula_weight	14733.7 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,G,L

AVGIGAVFLGFLGAAGSTMGAASMTLTVQARNLLSGTVWGIKQLQARVLAVERYLRDQQLLGIWGCSGKLICCTNVPWNSSWSNRNLSEIWDNMTWLQWDKEISNYTQIIYGLLEESQNQQEKNEQDLLALD

来源 Source

来源生物 organism	HIV-1 06TG.HT008
NCBI 分类编号 ncbi_taxonomy_id	587638
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	DH270.3 variable heavy chain
分子量 formula_weight	14075.8 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,H,M

QVQLVQSGAELKKPGASVKVSCKASGYTLSDYYVHWLRQAPGQGLEWVAWINPTSGRTISPRKFQGRVTMTTDTSMNVAYMELRGLRSDDTAVYFCARGGWISLYVDYSYYPNFDSWGQGTLVSVS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 polymer

描述 description	DH270.3 variable light chain
分子量 formula_weight	11476.7 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,I,N

QPVLTQPASVSGSPGQSITISCTGSSSDVGSYNLVSWYQQHPGKAPKLMIYEVNKWASGVSDRFAGSKSGNTASLTISRLQAEDEANYFCSSSTNSATVIFGGGTKLTVL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 6 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1883.7 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 7 branched

描述 description	;alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 8 branched

描述 description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 9 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 10 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

▼

6. 折叠分类 (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

结构域编号 domain_id	8sayC01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8sayD01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8sayH01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8sayI01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8sayM01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8sayN01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.40 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	76274
