8smj

Chimeric ETS-domain of murine PU.1 harboring the corresponding beta-strand 3 (S3) residues from murine Ets-1 in complex with d(AATAAGCGGAATGGGG)

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription factor PU.1

Mus musculus

UniProt P17433

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein–DNA Monomer Protein 1 DNA 2 ;DNA (5'-D(*AP*AP*TP*AP*AP*GP*CP*GP*GP*AP*AP*TP*GP*GP*GP*G)-3') ; × 1 ;DNA (5'-D(*TP*CP*CP*CP*CP*AP*TP*TP*CP*CP*GP*CP*TP*TP*AP*T)-3') ; × 1 water × 3 Consistent with all polymers

Other States of the Same Protein in the Database

Monomer
5w3g

1 assemblies

Homodimer

None

Homotetramer

None

Other homooligomers

None

Heteromeric or nucleic-acid complex
1pue 1pue 8evh 8evi 8evj 8smh 8smj 8sp1

8 assemblies

View Construct and Data Evidence
UniProt name SPI1_MOUSE
Isoform —
PDB entities 3
Chains and sequence ranges Author chain F； PDBConstruct 1–109； UniProt 167–272

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8smj
Deposition date deposition_date2023-04-26
Structure title titleChimeric ETS-domain of murine PU.1 harboring the corresponding beta-strand 3 (S3) residues from murine Ets-1 in complex with d(AATAAGCGGAATGGGG)
Keywords keywordstranscription factor, protein-DNA complex, ETS family, ETS, PU.1, TRANSCRIPTION-DNA complex, TRANSCRIPTION; TRANSCRIPTION/DNA
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8smj__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

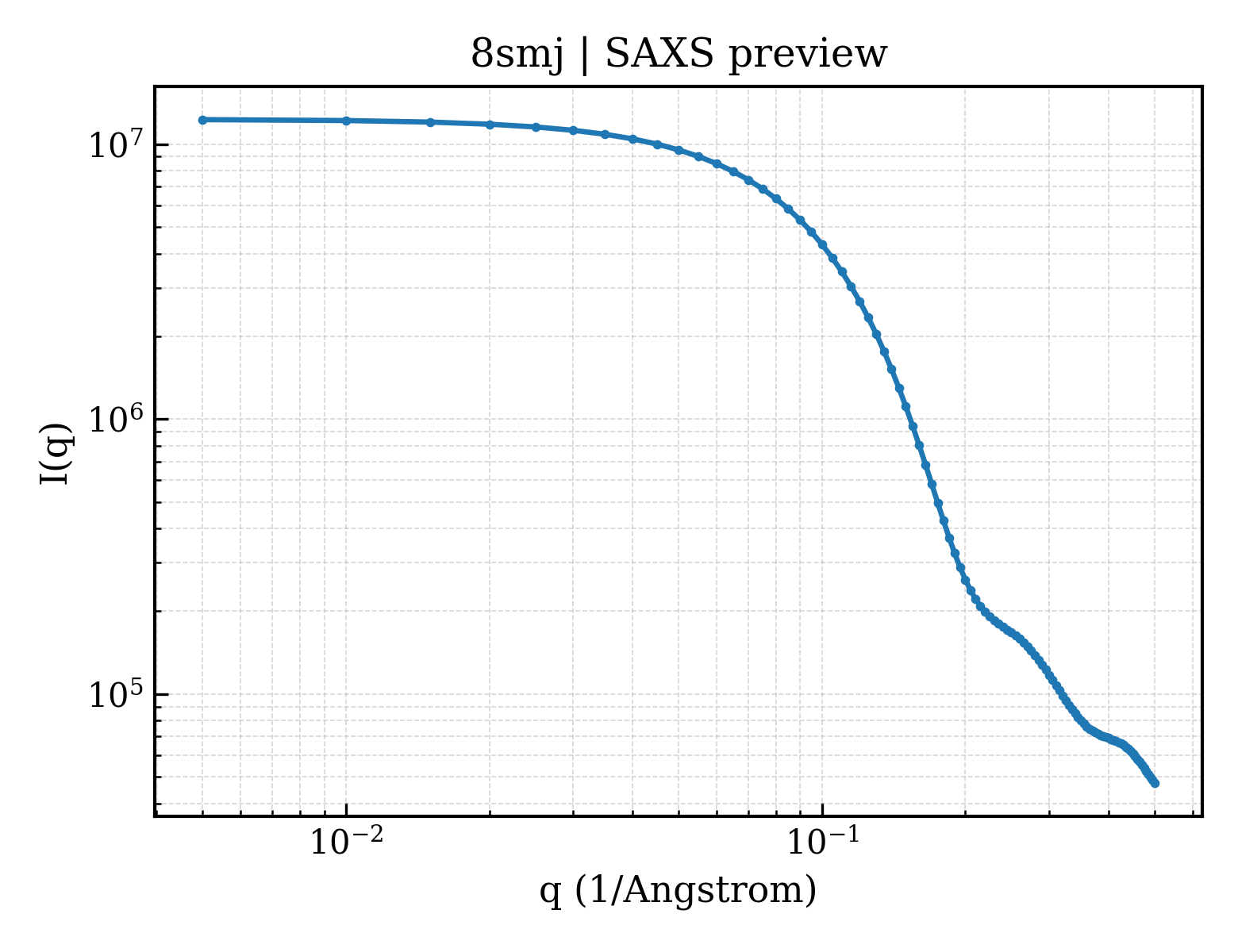

8smj__assembly_1__model_1 | I(q)

10-2 10-1 105 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

8smj__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）17.55 Å
Rg (electron density)16.39 Å
Total Rg17.31 Å
Atom count2520
Residues124
Excluded volume22838 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 8smj__assembly_1__model_1 trimeric （3） Success 4.1.3-1-20251215 (887e7ef) View Download
▶
