8sw9

Plasmodium falciparum M17 (A460S) mutant

Method: X-RAY DIFFRACTION D_max: 208.4 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Leucine aminopeptidase

Plasmodium falciparum

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 84–605 Chain B； UniProt 84–605 Chain C； UniProt 84–605 Chain D； UniProt 84–605 Chain E； UniProt 84–605 Chain F； UniProt 84–605	Not recorded	ZN ZINC ION × 12 CO3 CARBONATE ION × 6 SO4 SULFATE ION × 8 1PE PENTAETHYLENE GLYCOL × 12	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% (v/v) PEG 400, 0.1 M Tris pH 8.5, 0.2 M Li2SO4	Resolution 2.60 Å R-free 0.281
2	Protein homooligomer Homooligomer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain G； UniProt 84–605 Chain H； UniProt 84–605 Chain I； UniProt 84–605 Chain J； UniProt 84–605 Chain K； UniProt 84–605 Chain L； UniProt 84–605	Not recorded	ZN ZINC ION × 12 CO3 CARBONATE ION × 6 SO4 SULFATE ION × 9 1PE PENTAETHYLENE GLYCOL × 8	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% (v/v) PEG 400, 0.1 M Tris pH 8.5, 0.2 M Li2SO4	Resolution 2.60 Å R-free 0.281

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8SW9	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3KQX Structure of a protease 1 Deposited 2009-11-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 84–605（522 aa） Fragment：residues 84-605 Chain B 84–605（522 aa） Fragment：residues 84-605 Chain C 84–605（522 aa） Fragment：residues 84-605 Chain D 84–605（522 aa） Fragment：residues 84-605 Chain E 84–605（522 aa） Fragment：residues 84-605 Chain F 84–605（522 aa） Fragment：residues 84-605	Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q	ZN ZINC ION × 6 CO3 CARBONATE ION × 6 SO4 SULFATE ION × 11 1PE PENTAETHYLENE GLYCOL × 24 2PE NONAETHYLENE GLYCOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% PEG 400, 0.1M Tris pH 8.5, 0.2M LiSO4, 1mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.01 Å R-free 0.232
3KQX Structure of a protease 1 Deposited 2009-11-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 84–605（522 aa） Fragment：residues 84-605 Chain H 84–605（522 aa） Fragment：residues 84-605 Chain I 84–605（522 aa） Fragment：residues 84-605 Chain J 84–605（522 aa） Fragment：residues 84-605 Chain K 84–605（522 aa） Fragment：residues 84-605 Chain L 84–605（522 aa） Fragment：residues 84-605	Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q	ZN ZINC ION × 6 CO3 CARBONATE ION × 6 SO4 SULFATE ION × 5 1PE PENTAETHYLENE GLYCOL × 30 2PE NONAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% PEG 400, 0.1M Tris pH 8.5, 0.2M LiSO4, 1mM TCEP, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.01 Å R-free 0.232
3KQZ Structure of a protease 2 Deposited 2009-11-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 84–605（522 aa） Fragment：residues 84-605 Chain B 84–605（522 aa） Fragment：residues 84-605 Chain C 84–605（522 aa） Fragment：residues 84-605 Chain D 84–605（522 aa） Fragment：residues 84-605 Chain E 84–605（522 aa） Fragment：residues 84-605 Chain F 84–605（522 aa） Fragment：residues 84-605	Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q	CO3 CARBONATE ION × 6 ZN ZINC ION × 12 SO4 SULFATE ION × 16 1PE PENTAETHYLENE GLYCOL × 24 2PE NONAETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% PEG 400, 0.1M Tris pH 8.5, 0.2M LiSO4, 1mM TCEP, 1mM ZnCl2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.39 Å R-free 0.242
3KQZ Structure of a protease 2 Deposited 2009-11-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 84–605（522 aa） Fragment：residues 84-605 Chain H 84–605（522 aa） Fragment：residues 84-605 Chain I 84–605（522 aa） Fragment：residues 84-605 Chain J 84–605（522 aa） Fragment：residues 84-605 Chain K 84–605（522 aa） Fragment：residues 84-605 Chain L 84–605（522 aa） Fragment：residues 84-605	Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q	CO3 CARBONATE ION × 6 ZN ZINC ION × 12 SO4 SULFATE ION × 11 1PE PENTAETHYLENE GLYCOL × 29 2PE NONAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% PEG 400, 0.1M Tris pH 8.5, 0.2M LiSO4, 1mM TCEP, 1mM ZnCl2, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.39 Å R-free 0.242
3KR4 Structure of a protease 3 Deposited 2009-11-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 84–605（522 aa） Fragment：residues 84-605 Chain B 84–605（522 aa） Fragment：residues 84-605 Chain C 84–605（522 aa） Fragment：residues 84-605 Chain D 84–605（522 aa） Fragment：residues 84-605 Chain E 84–605（522 aa） Fragment：residues 84-605 Chain F 84–605（522 aa） Fragment：residues 84-605	Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q	CO3 CARBONATE ION × 6 ZN ZINC ION × 6 BES 2-(3-AMINO-2-HYDROXY-4-PHENYL-BUTYRYLAMINO)-4-METHYL-PENTANOIC ACID × 6 MG MAGNESIUM ION × 6 SO4 SULFATE ION × 8 1PE PENTAETHYLENE GLYCOL × 17	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% PEG 400, 0.1M Tris pH 8.5, 0.2M LiSo4, 1mM TCEP, 1mM MgCl2, 1mM Bestatin, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.242
3KR4 Structure of a protease 3 Deposited 2009-11-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 84–605（522 aa） Fragment：residues 84-605 Chain H 84–605（522 aa） Fragment：residues 84-605 Chain I 84–605（522 aa） Fragment：residues 84-605 Chain J 84–605（522 aa） Fragment：residues 84-605 Chain K 84–605（522 aa） Fragment：residues 84-605 Chain L 84–605（522 aa） Fragment：residues 84-605	Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q	CO3 CARBONATE ION × 6 ZN ZINC ION × 6 BES 2-(3-AMINO-2-HYDROXY-4-PHENYL-BUTYRYLAMINO)-4-METHYL-PENTANOIC ACID × 6 MG MAGNESIUM ION × 6 SO4 SULFATE ION × 6 1PE PENTAETHYLENE GLYCOL × 20	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% PEG 400, 0.1M Tris pH 8.5, 0.2M LiSo4, 1mM TCEP, 1mM MgCl2, 1mM Bestatin, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.242
3KR5 Structure of a protease 4 Deposited 2009-11-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 84–605（522 aa） Fragment：residues 84-605 Chain B 84–605（522 aa） Fragment：residues 84-605 Chain C 84–605（522 aa） Fragment：residues 84-605 Chain D 84–605（522 aa） Fragment：residues 84-605 Chain E 84–605（522 aa） Fragment：residues 84-605 Chain F 84–605（522 aa） Fragment：residues 84-605	Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q	CO3 CARBONATE ION × 6 ZN ZINC ION × 12 BEY (2S)-3-[(R)-[(1S)-1-amino-3-phenylpropyl](hydroxy)phosphoryl]-2-benzylpropanoic acid × 6 SO4 SULFATE ION × 8 1PE PENTAETHYLENE GLYCOL × 17	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% PEG 400, 0.1M Tris pH 8.5, 0.2M LiSO4, 1mM TCEP, 1mM ZnCl2, 1mM Co4/BEY, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.56 Å R-free 0.278
3KR5 Structure of a protease 4 Deposited 2009-11-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 84–605（522 aa） Fragment：residues 84-605 Chain H 84–605（522 aa） Fragment：residues 84-605 Chain I 84–605（522 aa） Fragment：residues 84-605 Chain J 84–605（522 aa） Fragment：residues 84-605 Chain K 84–605（522 aa） Fragment：residues 84-605 Chain L 84–605（522 aa） Fragment：residues 84-605	Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q	CO3 CARBONATE ION × 6 ZN ZINC ION × 12 BEY (2S)-3-[(R)-[(1S)-1-amino-3-phenylpropyl](hydroxy)phosphoryl]-2-benzylpropanoic acid × 6 SO4 SULFATE ION × 7 1PE PENTAETHYLENE GLYCOL × 20	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% PEG 400, 0.1M Tris pH 8.5, 0.2M LiSO4, 1mM TCEP, 1mM ZnCl2, 1mM Co4/BEY, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.56 Å R-free 0.278
3T8W A bestatin-based chemical biology strategy reveals distinct roles for malaria M1- and M17-family aminopeptidases Deposited 2011-08-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 84–605（522 aa） Fragment：UNP residues 84-605 Chain B 84–605（522 aa） Fragment：UNP residues 84-605 Chain C 84–605（522 aa） Fragment：UNP residues 84-605 Chain D 84–605（522 aa） Fragment：UNP residues 84-605 Chain E 84–605（522 aa） Fragment：UNP residues 84-605 Chain F 84–605（522 aa） Fragment：UNP residues 84-605	Not recorded	CO3 CARBONATE ION × 6 ZN ZINC ION × 12 DGZ N-((2R,3S,6S,18S,21S)-2-amino-18-(4-benzoylbenzyl)-21-carbamoyl-3-hydroxy-6-(naphthalen-2-ylmethyl)-4,7,16,19-tetraoxo-1-phenyl-11,14-dioxa-5,8,17,20-tetraazapentacosan-25-yl)hex-5-ynamide × 6 SO4 SULFATE ION × 12 1PE PENTAETHYLENE GLYCOL × 14 2PE NONAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40%(v/v) PEG400, 0.1M Tris, 0.2M LiSO4, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.200
3T8W A bestatin-based chemical biology strategy reveals distinct roles for malaria M1- and M17-family aminopeptidases Deposited 2011-08-01	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 84–605（522 aa） Fragment：UNP residues 84-605 Chain H 84–605（522 aa） Fragment：UNP residues 84-605 Chain I 84–605（522 aa） Fragment：UNP residues 84-605 Chain J 84–605（522 aa） Fragment：UNP residues 84-605 Chain K 84–605（522 aa） Fragment：UNP residues 84-605 Chain L 84–605（522 aa） Fragment：UNP residues 84-605	Not recorded	CO3 CARBONATE ION × 6 ZN ZINC ION × 12 DGZ N-((2R,3S,6S,18S,21S)-2-amino-18-(4-benzoylbenzyl)-21-carbamoyl-3-hydroxy-6-(naphthalen-2-ylmethyl)-4,7,16,19-tetraoxo-1-phenyl-11,14-dioxa-5,8,17,20-tetraazapentacosan-25-yl)hex-5-ynamide × 6 SO4 SULFATE ION × 17 1PE PENTAETHYLENE GLYCOL × 19 2PE NONAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40%(v/v) PEG400, 0.1M Tris, 0.2M LiSO4, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.200
4K3N Phosphonic Arginine Mimetics as Inhibitors of the M17 Aminopeptidases from Plasmodium falciparum Deposited 2013-04-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 84–605（522 aa） Fragment：unp residues 84-605 Chain B 84–605（522 aa） Fragment：unp residues 84-605 Chain C 84–605（522 aa） Fragment：unp residues 84-605 Chain D 84–605（522 aa） Fragment：unp residues 84-605 Chain E 84–605（522 aa） Fragment：unp residues 84-605 Chain F 84–605（522 aa） Fragment：unp residues 84-605	Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N	ZN ZINC ION × 12 CO3 CARBONATE ION × 6 1OT {(R)-amino[4-(1H-pyrazol-1-yl)phenyl]methyl}phosphonic acid × 6 SO4 SULFATE ION × 11 1PE PENTAETHYLENE GLYCOL × 15 2PE NONAETHYLENE GLYCOL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% PEG 400, 0.1M Tris, 0.2M LiSO4, 1mM TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.240
4K3N Phosphonic Arginine Mimetics as Inhibitors of the M17 Aminopeptidases from Plasmodium falciparum Deposited 2013-04-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 84–605（522 aa） Fragment：unp residues 84-605 Chain H 84–605（522 aa） Fragment：unp residues 84-605 Chain I 84–605（522 aa） Fragment：unp residues 84-605 Chain J 84–605（522 aa） Fragment：unp residues 84-605 Chain K 84–605（522 aa） Fragment：unp residues 84-605 Chain L 84–605（522 aa） Fragment：unp residues 84-605	Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N	ZN ZINC ION × 12 CO3 CARBONATE ION × 6 1OT {(R)-amino[4-(1H-pyrazol-1-yl)phenyl]methyl}phosphonic acid × 6 SO4 SULFATE ION × 10 1PE PENTAETHYLENE GLYCOL × 19 2PE NONAETHYLENE GLYCOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% PEG 400, 0.1M Tris, 0.2M LiSO4, 1mM TCEP, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.00 Å R-free 0.240
4R6T Structure of the m17 leucyl aminopeptidase from malaria complexed with a hydroxamic acid-based inhibitor Deposited 2014-08-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 84–605（522 aa） Chain B 84–605（522 aa） Chain C 84–605（522 aa） Chain D 84–605（522 aa） Chain E 84–605（522 aa） Chain F 84–605（522 aa）	Not recorded	ZN ZINC ION × 12 CO3 CARBONATE ION × 6 SO4 SULFATE ION × 12 R5T tert-butyl {(1S)-2-(hydroxyamino)-2-oxo-1-[4-(1H-pyrazol-1-yl)phenyl]ethyl}carbamate × 6 1PE PENTAETHYLENE GLYCOL × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% (v/v) PEG 400, 0.1 M Tris pH 8.5, 0.2 M Li2SO4, 1 mM TCEP, vapor diffusion, hanging drop, temperature 298K	Resolution 2.60 Å R-free 0.269
4R6T Structure of the m17 leucyl aminopeptidase from malaria complexed with a hydroxamic acid-based inhibitor Deposited 2014-08-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 84–605（522 aa） Chain H 84–605（522 aa） Chain I 84–605（522 aa） Chain J 84–605（522 aa） Chain K 84–605（522 aa） Chain L 84–605（522 aa）	Not recorded	ZN ZINC ION × 12 CO3 CARBONATE ION × 6 SO4 SULFATE ION × 11 R5T tert-butyl {(1S)-2-(hydroxyamino)-2-oxo-1-[4-(1H-pyrazol-1-yl)phenyl]ethyl}carbamate × 6 1PE PENTAETHYLENE GLYCOL × 8 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% (v/v) PEG 400, 0.1 M Tris pH 8.5, 0.2 M Li2SO4, 1 mM TCEP, vapor diffusion, hanging drop, temperature 298K	Resolution 2.60 Å R-free 0.269
4R7M Structure of the m17 leucyl aminopeptidase from malaria complexed with a hydroxamic acid-based inhibitor Deposited 2014-08-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 84–605（522 aa） Fragment：unp residues 84-605 Chain B 84–605（522 aa） Fragment：unp residues 84-605 Chain C 84–605（522 aa） Fragment：unp residues 84-605 Chain D 84–605（522 aa） Fragment：unp residues 84-605 Chain E 84–605（522 aa） Fragment：unp residues 84-605 Chain F 84–605（522 aa） Fragment：unp residues 84-605	Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N	ZN ZINC ION × 12 CO3 CARBONATE ION × 6 1PE PENTAETHYLENE GLYCOL × 7 3MW 4-amino-N-{(1R)-2-(hydroxyamino)-2-oxo-1-[4-(1H-pyrazol-1-yl)phenyl]ethyl}benzamide × 6 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% (v/v) PEG 400, 0.1 M Tris pH 8.5, 0.2 M Li2SO4, 1 mM TCEP, vapor diffusion, hanging drop, temperature 298K	Resolution 2.85 Å R-free 0.291
4R7M Structure of the m17 leucyl aminopeptidase from malaria complexed with a hydroxamic acid-based inhibitor Deposited 2014-08-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 84–605（522 aa） Fragment：unp residues 84-605 Chain H 84–605（522 aa） Fragment：unp residues 84-605 Chain I 84–605（522 aa） Fragment：unp residues 84-605 Chain J 84–605（522 aa） Fragment：unp residues 84-605 Chain K 84–605（522 aa） Fragment：unp residues 84-605 Chain L 84–605（522 aa） Fragment：unp residues 84-605	Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N Mutation：D152N, D515N, D516N	ZN ZINC ION × 12 CO3 CARBONATE ION × 6 1PE PENTAETHYLENE GLYCOL × 4 3MW 4-amino-N-{(1R)-2-(hydroxyamino)-2-oxo-1-[4-(1H-pyrazol-1-yl)phenyl]ethyl}benzamide × 6 SO4 SULFATE ION × 5 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% (v/v) PEG 400, 0.1 M Tris pH 8.5, 0.2 M Li2SO4, 1 mM TCEP, vapor diffusion, hanging drop, temperature 298K	Resolution 2.85 Å R-free 0.291
4X2T X-ray crystal structure of the orally available aminopeptidase inhibitor, Tosedostat, bound to the M17 Leucyl Aminopeptidase from P. falciparum Deposited 2014-11-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 85–603（519 aa） Fragment：UNP residues 85 to 603 Chain B 85–603（519 aa） Fragment：UNP residues 85 to 603 Chain C 85–603（519 aa） Fragment：UNP residues 85 to 603 Chain D 85–603（519 aa） Fragment：UNP residues 85 to 603 Chain E 85–603（519 aa） Fragment：UNP residues 85 to 603 Chain F 85–603（519 aa） Fragment：UNP residues 85 to 603	Mutation：N152Q, N515Q, N545Q Mutation：N152Q, N515Q, N545Q Mutation：N152Q, N515Q, N545Q Mutation：N152Q, N515Q, N545Q Mutation：N152Q, N515Q, N545Q Mutation：N152Q, N515Q, N545Q	ZN ZINC ION × 12 TOD (2S)-({(2R)-2-[(1S)-1-hydroxy-2-(hydroxyamino)-2-oxoethyl]-4-methylpentanoyl}amino)(phenyl)ethanoic acid × 5 CO3 CARBONATE ION × 6 SO4 SULFATE ION × 8 1PE PENTAETHYLENE GLYCOL × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.6；298 K；35% (v/v) PEG 400, 0.1 M Tris pH 8.6, 0.2 M Li2SO4	Resolution 2.73 Å R-free 0.274
4X2T X-ray crystal structure of the orally available aminopeptidase inhibitor, Tosedostat, bound to the M17 Leucyl Aminopeptidase from P. falciparum Deposited 2014-11-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 85–603（519 aa） Fragment：UNP residues 85 to 603 Chain H 85–603（519 aa） Fragment：UNP residues 85 to 603 Chain I 85–603（519 aa） Fragment：UNP residues 85 to 603 Chain J 85–603（519 aa） Fragment：UNP residues 85 to 603 Chain K 85–603（519 aa） Fragment：UNP residues 85 to 603 Chain L 85–603（519 aa） Fragment：UNP residues 85 to 603	Mutation：N152Q, N515Q, N545Q Mutation：N152Q, N515Q, N545Q Mutation：N152Q, N515Q, N545Q Mutation：N152Q, N515Q, N545Q Mutation：N152Q, N515Q, N545Q Mutation：N152Q, N515Q, N545Q	ZN ZINC ION × 12 TOD (2S)-({(2R)-2-[(1S)-1-hydroxy-2-(hydroxyamino)-2-oxoethyl]-4-methylpentanoyl}amino)(phenyl)ethanoic acid × 6 CO3 CARBONATE ION × 6 SO4 SULFATE ION × 5 1PE PENTAETHYLENE GLYCOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.6；298 K；35% (v/v) PEG 400, 0.1 M Tris pH 8.6, 0.2 M Li2SO4	Resolution 2.73 Å R-free 0.274
7RIE Plasmodium falciparum M17 in complex with inhibitor MIPS2571 Deposited 2021-07-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 85–605（521 aa） Chain B 85–605（521 aa） Chain C 85–605（521 aa） Chain D 85–605（521 aa） Chain E 85–605（521 aa） Chain F 85–605（521 aa）	Not recorded	CO3 CARBONATE ION × 6 ZN ZINC ION × 12 1PE PENTAETHYLENE GLYCOL × 5 5IF N-{(1R)-2-(hydroxyamino)-1-[4'-(hydroxymethyl)[1,1'-biphenyl]-4-yl]-2-oxoethyl}-2,2-dimethylpropanamide × 6 SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG400, 0.2M LiSO4, 0.1M Tris pH 7.5 to 8.8	Resolution 2.49 Å R-free 0.229
7RIE Plasmodium falciparum M17 in complex with inhibitor MIPS2571 Deposited 2021-07-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 85–605（521 aa） Chain H 85–605（521 aa） Chain I 85–605（521 aa） Chain J 85–605（521 aa） Chain K 85–605（521 aa） Chain L 85–605（521 aa）	Not recorded	CO3 CARBONATE ION × 6 ZN ZINC ION × 12 1PE PENTAETHYLENE GLYCOL × 4 5IF N-{(1R)-2-(hydroxyamino)-1-[4'-(hydroxymethyl)[1,1'-biphenyl]-4-yl]-2-oxoethyl}-2,2-dimethylpropanamide × 6 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG400, 0.2M LiSO4, 0.1M Tris pH 7.5 to 8.8	Resolution 2.49 Å R-free 0.229
7SRV Metal dependent activation of Plasmodium falciparum M17 aminopeptidase (inactive form), spacegroup P22121 Deposited 2021-11-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 85–605（521 aa） Chain B 85–605（521 aa） Chain C 85–605（521 aa） Chain D 85–605（521 aa） Chain E 85–605（521 aa） Chain F 85–605（521 aa）	Not recorded	ZN ZINC ION × 12 CO3 CARBONATE ION × 6 ACT ACETATE ION × 8 CA CALCIUM ION × 12 EDO 1,2-ETHANEDIOL × 6 PO4 PHOSPHATE ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；20 % PEG3350, 0.2 M calcium acetate	Resolution 2.03 Å R-free 0.219
7T3V Metal dependent activation of Plasmodium falciparum M17 aminopeptidase, spacegroup P22121 after crystals soaked with Zn2+ Deposited 2021-12-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 85–605（521 aa） Chain B 85–605（521 aa） Chain C 85–605（521 aa） Chain D 85–605（521 aa） Chain E 85–605（521 aa） Chain F 85–605（521 aa）	Not recorded	CO3 CARBONATE ION × 6 ZN ZINC ION × 12 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；50 mM HEPES pH 8.0, 150 mM NaCl	Resolution 2.30 Å R-free 0.264
8EZ4 Plasmodium falciparum M17 in complex with inhibitor 9aa Deposited 2022-10-31	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 85–605（521 aa） Chain B 85–605（521 aa） Chain C 85–605（521 aa） Chain D 85–605（521 aa） Chain E 85–605（521 aa） Chain F 85–605（521 aa）	Not recorded	X10 N-[(1R)-2-(hydroxyamino)-2-oxo-1-(3',4',5'-trifluoro[1,1'-biphenyl]-4-yl)ethyl]-N~2~-phenylglycinamide × 6 SO4 SULFATE ION × 7 1PE PENTAETHYLENE GLYCOL × 16 CO3 CARBONATE ION × 6 ZN ZINC ION × 12 NA SODIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；30-40% PEG400, 0.1 M Tris pH 7.5-8.5, 0.2 M Li2SO4	Resolution 1.89 Å R-free 0.216
8EZ4 Plasmodium falciparum M17 in complex with inhibitor 9aa Deposited 2022-10-31	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 85–605（521 aa） Chain H 85–605（521 aa） Chain I 85–605（521 aa） Chain J 85–605（521 aa） Chain K 85–605（521 aa） Chain L 85–605（521 aa）	Not recorded	X10 N-[(1R)-2-(hydroxyamino)-2-oxo-1-(3',4',5'-trifluoro[1,1'-biphenyl]-4-yl)ethyl]-N~2~-phenylglycinamide × 6 SO4 SULFATE ION × 6 1PE PENTAETHYLENE GLYCOL × 14 CO3 CARBONATE ION × 6 ZN ZINC ION × 12 NA SODIUM ION × 5 2PE NONAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；30-40% PEG400, 0.1 M Tris pH 7.5-8.5, 0.2 M Li2SO4	Resolution 1.89 Å R-free 0.216
8SVM Plasmodium falciparum M17 aminopeptidase bound to MMV1557817 Deposited 2023-05-17	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 84–605（522 aa） Chain B 84–605（522 aa） Chain C 84–605（522 aa） Chain D 84–605（522 aa） Chain E 84–605（522 aa） Chain F 84–605（522 aa）	Not recorded	CO3 CARBONATE ION × 6 ZN ZINC ION × 12 WRC N-[(1R)-2-(hydroxyamino)-2-oxo-1-(3',4',5'-trifluoro[1,1'-biphenyl]-4-yl)ethyl]-3,3-dimethylbutanamide × 6 1PE PENTAETHYLENE GLYCOL × 15 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% (v/v) PEG 400, 0.1 M Tris pH 8.5, 0.2 M Li2SO4	Resolution 2.30 Å R-free 0.252
8SVM Plasmodium falciparum M17 aminopeptidase bound to MMV1557817 Deposited 2023-05-17	Different ligand/ion Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 84–605（522 aa） Chain H 84–605（522 aa） Chain I 84–605（522 aa） Chain J 84–605（522 aa） Chain K 84–605（522 aa） Chain L 84–605（522 aa）	Not recorded	CO3 CARBONATE ION × 6 ZN ZINC ION × 12 WRC N-[(1R)-2-(hydroxyamino)-2-oxo-1-(3',4',5'-trifluoro[1,1'-biphenyl]-4-yl)ethyl]-3,3-dimethylbutanamide × 6 1PE PENTAETHYLENE GLYCOL × 13 SO4 SULFATE ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；40% (v/v) PEG 400, 0.1 M Tris pH 8.5, 0.2 M Li2SO4	Resolution 2.30 Å R-free 0.252
9YC0 Plasmodium falciparum M17 aminopeptidase (PfA-M17) bound to inhibitor 3ab (MIPS3413) Deposited 2025-09-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 85–605（521 aa） Chain B 85–605（521 aa） Chain C 85–605（521 aa） Chain D 85–605（521 aa） Chain E 85–605（521 aa） Chain F 85–605（521 aa）	Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q	ZN ZINC ION × 12 CO3 CARBONATE ION × 6 PEG DI(HYDROXYETHYL)ETHER × 20 SO4 SULFATE ION × 29 A1CT4 N-[(1R)-1-(1,3-benzothiazol-5-yl)-2-(hydroxyamino)-2-oxoethyl]-3,3-dimethylbutanamide × 6 1PE PENTAETHYLENE GLYCOL × 16 DMS DIMETHYL SULFOXIDE × 7 2PE NONAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；30-40% PEG400, 0.1 M Tris pH 7.5-8.5, 0.2 M Li2SO4	Resolution 2.37 Å R-free 0.271
9YC0 Plasmodium falciparum M17 aminopeptidase (PfA-M17) bound to inhibitor 3ab (MIPS3413) Deposited 2025-09-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 85–605（521 aa） Chain H 85–605（521 aa） Chain I 85–605（521 aa） Chain J 85–605（521 aa） Chain K 85–605（521 aa） Chain L 85–605（521 aa）	Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q Mutation：N152Q, N515Q, N546Q	ZN ZINC ION × 12 CO3 CARBONATE ION × 6 PEG DI(HYDROXYETHYL)ETHER × 16 SO4 SULFATE ION × 30 A1CT4 N-[(1R)-1-(1,3-benzothiazol-5-yl)-2-(hydroxyamino)-2-oxoethyl]-3,3-dimethylbutanamide × 5 1PE PENTAETHYLENE GLYCOL × 21 DMS DIMETHYL SULFOXIDE × 6 2PE NONAETHYLENE GLYCOL × 1 A1CT5 N-[(1S)-1-(1,3-benzothiazol-5-yl)-2-(hydroxyamino)-2-oxoethyl]-3,3-dimethylbutanamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；30-40% PEG400, 0.1 M Tris pH 7.5-8.5, 0.2 M Li2SO4	Resolution 2.37 Å R-free 0.271
9YC7 Plasmodium falciparum M17 aminopeptidase (PfA-M17) bound to inhibitor 3k (MIPS3415) Deposited 2025-09-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain A 85–605（521 aa） Chain B 85–605（521 aa） Chain C 85–605（521 aa） Chain D 85–605（521 aa） Chain E 85–605（521 aa） Chain F 85–605（521 aa）	Not recorded	ZN ZINC ION × 12 CO3 CARBONATE ION × 6 PEG DI(HYDROXYETHYL)ETHER × 23 DMS DIMETHYL SULFOXIDE × 10 SO4 SULFATE ION × 12 GOL GLYCEROL × 1 A1CTH N-[(1R)-2-(hydroxyamino)-2-oxo-1-(quinolin-7-yl)ethyl]-3,3-dimethylbutanamide × 1 1PE PENTAETHYLENE GLYCOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；30-40% PEG400, 0.1 M Tris pH 7.5-8.5, 0.2 M Li2SO4	Resolution 2.37 Å R-free 0.287
9YC7 Plasmodium falciparum M17 aminopeptidase (PfA-M17) bound to inhibitor 3k (MIPS3415) Deposited 2025-09-18	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 6 PDB declaration: hexameric	Chain G 85–605（521 aa） Chain H 85–605（521 aa） Chain I 85–605（521 aa） Chain J 85–605（521 aa） Chain K 85–605（521 aa） Chain L 85–605（521 aa）	Not recorded	ZN ZINC ION × 12 CO3 CARBONATE ION × 6 PEG DI(HYDROXYETHYL)ETHER × 20 DMS DIMETHYL SULFOXIDE × 9 SO4 SULFATE ION × 11 GOL GLYCEROL × 1 1PE PENTAETHYLENE GLYCOL × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；30-40% PEG400, 0.1 M Tris pH 7.5-8.5, 0.2 M Li2SO4	Resolution 2.37 Å R-free 0.287

16 other PDB entries and 30 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AMPL_PLAF7
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–522； UniProt 84–605 Author chain B； PDBConstruct 1–522； UniProt 84–605 Author chain C； PDBConstruct 1–522； UniProt 84–605 Author chain D； PDBConstruct 1–522； UniProt 84–605 Author chain E； PDBConstruct 1–522； UniProt 84–605 Author chain F； PDBConstruct 1–522； UniProt 84–605 Author chain G； PDBConstruct 1–522； UniProt 84–605 Author chain H； PDBConstruct 1–522； UniProt 84–605 Author chain I； PDBConstruct 1–522； UniProt 84–605 Author chain J； PDBConstruct 1–522； UniProt 84–605 Author chain K； PDBConstruct 1–522； UniProt 84–605 Author chain L； PDBConstruct 1–522； UniProt 84–605

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

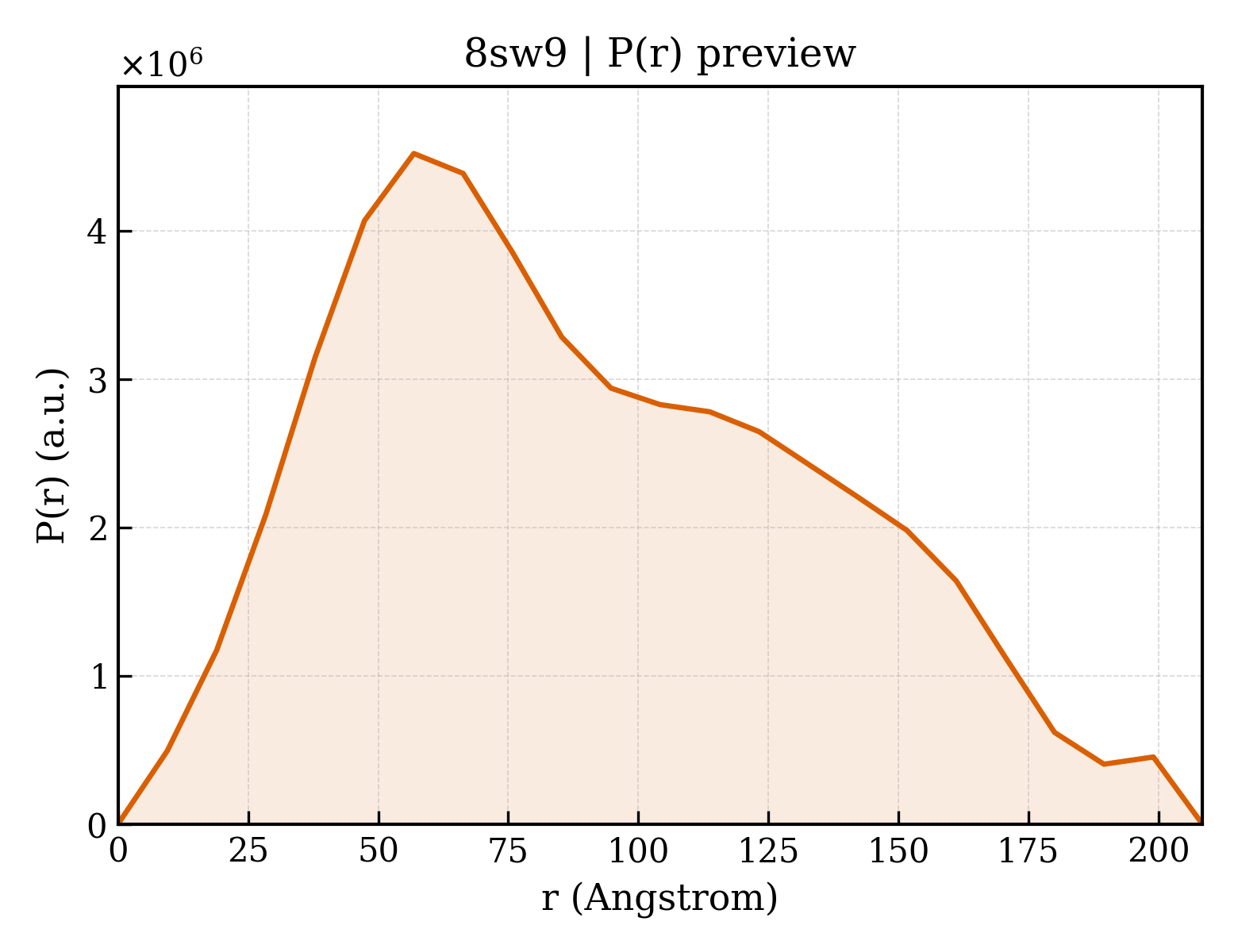

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8sw9
Deposition date deposition_date	2023-05-17
最后修订 last_revision	2024-04-24
Structure title title	Plasmodium falciparum M17 (A460S) mutant
Keywords keywords	metallo-exopeptidase, M17 aminopeptidase, Leucine Aminopeptidase, malaria, aminopeptidase, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	70.74 Å
Radius of gyration Rg (electron density) rg_electron	70.96 Å
Forward intensity I(0) i0	5856580000.00
Molecular weight molecular_weight	668020.0 kDa
Excluded volume excluded_volume	842070 Å³
Envelope volume envelope_volume	1144400 Å³
Hydration-shell volume shell_volume	133440 Å³
Envelope diameter envelope_diameter	243.3 Å
Shell Rg shell_rg	69.71 Å
Envelope Rg envelope_rg	69.47 Å
Shape Rg shape_rg	70.99 Å
Total Rg total_rg	70.84 Å
Total atoms total_atoms	92470
Residues n_residues	6149
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	208.4 Å
Rg (real space) rg_real	70.62 Å
Rg uncertainty (real space) rg_real_error	1.18 Å
I(0) (real space) i0_real	5.8400e+09
I(0) uncertainty (real space) i0_real_error	1.2070e+08
Rg (reciprocal space) rg_reciprocal	69.60 Å
I(0) (reciprocal space) i0_reciprocal	5840000000.0000
Solution quality estimate total_estimate	0.5780
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	56.9 Å
Skewness Skewness skewness	0.394
Kurtosis Kurtosis kurtosis	-0.702
Angular range angular_range	— – 0.1100 Å⁻¹
Current regularization parameter α current_alpha	0.0144
Highest regularization parameter α highest_alpha	1897000000.0000
Real-space data points n_real_points	23
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.838; Stabil: 0.997; Sysdev: 0.006; Positv: 1.000; Valcen: 0.978; Smooth: 0.002

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Leucine aminopeptidase
Molecular weight formula_weight	58725.0 kDa
EC 编号 ec_number	3.4.11.1,3.4.13.-
Source method src_method	man
Copy count entity_count	12

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H,I,J,K,L
Atom count atom_count	93534

MASEVPQVVSLDPTSIPIEYNTPIHDIKVQVYDIKGGCNVEEGLTIFLVNNPGKENGPVKISSKVNDKQVSEFLKDENMEKFNVKLGTSKHFYMFNDNKNSVAVGYVGCGSVADLSEADMKRVVLSLVTMLHDNKLSKLTVVFEINVDKNLFRFFLETLFYEYMTDERFKSTDKNVNMEYIKHLGVYINNADTYKEEVEKARVYYFGTYYASQLIAAPSNYCNPVSLSNAAVELAQKLNLEYKILGVKELEELKMGAYLSVGKGSMYPNKFIHLTYKSKGDVKKKIALVGKGITFDSGGYNLKAAPGSMIDLMKFDMSGCAAVLGCAYCVGTLKPENVEIHFLSAVCENMVSKNSYRPGDIITASNGKTIEVGNTDSEGRLTLADALVYAEKLGVDYIVDIATLTGAMLYSLGTSYAGVFGNNEELINKILQSSKTSNEPVWWLPIINEYRATLNSKYADINQISSSVKASSIVASLFLKEFVQNTAWAHIDIAGVSWNFKARKPKGFGVRLLTEFVLNDALHHHHHH

来源 Source

来源生物 organism	Plasmodium falciparum
通用名 common_name	malaria parasite P. falciparum
NCBI Class编号 ncbi_taxonomy_id	5833
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	24

Entity 3 Entity 3 non-polymer

Description description	CARBONATE ION
Molecular weight formula_weight	60.0 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	17

Entity 5 Entity 5 non-polymer

Description description	PENTAETHYLENE GLYCOL
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	20

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1056

▶

8. Citations (1)

▶

Unit-cell length a length_a	174.335 Å
Unit-cell length b length_b	176.725 Å
Unit-cell length c length_c	225.210 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	48

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	49.570 Å
R factor r_factor	0.2370
R_work r_work	0.2346
R_free r_free	0.2808
