SAXSdb — 8tea

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Envelope protein UL128

Human betaherpesvirus 5

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 7 PDB declaration: heptameric（7） Consistent with protein copy count	Chain C； UniProt 28–171	Not recorded	Envelope glycoprotein UL130 × 1 （A0A0G2TB82） UL131A × 1 （Q38M12） CS2pt1p2_A10L Fab light chain × 1 CS2pt1p2_A10L Fab heavy chain × 1 CS3pt1p4_C1L Fab heavy chain × 1 CS3pt1p4_C1L Fab light chain × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8TEA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7T4Q CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with neutralizing fabs 2C12, 7I13 and 13H11 Deposited 2021-12-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain C 1–171（171 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5s before plunging	Resolution 2.90 Å
7T4R CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with THBD and neutralizing fabs MSL-109 and 13H11 Deposited 2021-12-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric	Chain D 1–171（171 aa） Chain M 1–171（171 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5s before plunging	Resolution 3.30 Å
7T4S CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with NRP2 and neutralizing fabs 8I21 and 13H11 Deposited 2021-12-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain C 1–171（171 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds before plunging	Resolution 3.10 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q38LY2_HCMV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 20–163； UniProt 28–171

Envelope glycoprotein UL130

Human betaherpesvirus 5

UniProt A0A0G2TB82

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 7 PDB declaration: heptameric（7） Consistent with protein copy count	Chain D； UniProt 26–214	Not recorded	Envelope protein UL128 × 1 （Q38LY2） UL131A × 1 （Q38M12） CS2pt1p2_A10L Fab light chain × 1 CS2pt1p2_A10L Fab heavy chain × 1 CS3pt1p4_C1L Fab heavy chain × 1 CS3pt1p4_C1L Fab light chain × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8TEA	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7KBB Cryo-EM structure of the HCMV pentamer bound by Fabs 2-18 and 8I21 Deposited 2020-10-01	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain D 26–214（189 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.02 Å
7M22 Cryo-EM structure of the HCMV pentamer bound by human neuropilin 2 Deposited 2021-03-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 26–214（189 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；Grid was blotted with a force of -6 for 3 seconds	Resolution 3.65 Å
7M30 Cryo-EM structure of the HCMV pentamer bound by antibodies 1-103, 1-32 and 2-25 Deposited 2021-03-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain D 26–214（189 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；Blotted for six seconds with a force of "1" before plunging	Resolution 3.81 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A0G2TB82_HCMV
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 20–208； UniProt 26–214

UL131A

Human betaherpesvirus 5

UniProt Q38M12

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 7 PDB declaration: heptameric（7） Consistent with protein copy count	Chain E； UniProt 19–129	Not recorded	Envelope protein UL128 × 1 （Q38LY2） Envelope glycoprotein UL130 × 1 （A0A0G2TB82） CS2pt1p2_A10L Fab light chain × 1 CS2pt1p2_A10L Fab heavy chain × 1 CS3pt1p4_C1L Fab heavy chain × 1 CS3pt1p4_C1L Fab light chain × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence

UniProt name	Q38M12_HCMV
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain E； PDBConstruct 20–130； UniProt 19–129

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8tea
Deposition date deposition_date	2023-07-05
Structure title title	HCMV Pentamer in complex with CS2pt1p2_A10L Fab and CS3pt1p4_C1L Fab
Keywords keywords	Virus, glycoprotein, antibody, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	34.54 Å
Radius of gyration Rg (electron density) rg_electron	34.41 Å
Forward intensity I(0) i0	122233000.00
Molecular weight molecular_weight	86062.0 kDa
Excluded volume excluded_volume	106660 Å³
Envelope volume envelope_volume	138640 Å³
Hydration-shell volume shell_volume	35329 Å³
Envelope diameter envelope_diameter	120.3 Å
Shell Rg shell_rg	38.68 Å
Envelope Rg envelope_rg	34.40 Å
Shape Rg shape_rg	34.39 Å
Total Rg total_rg	34.77 Å
Total atoms total_atoms	6054
Residues n_residues	756
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

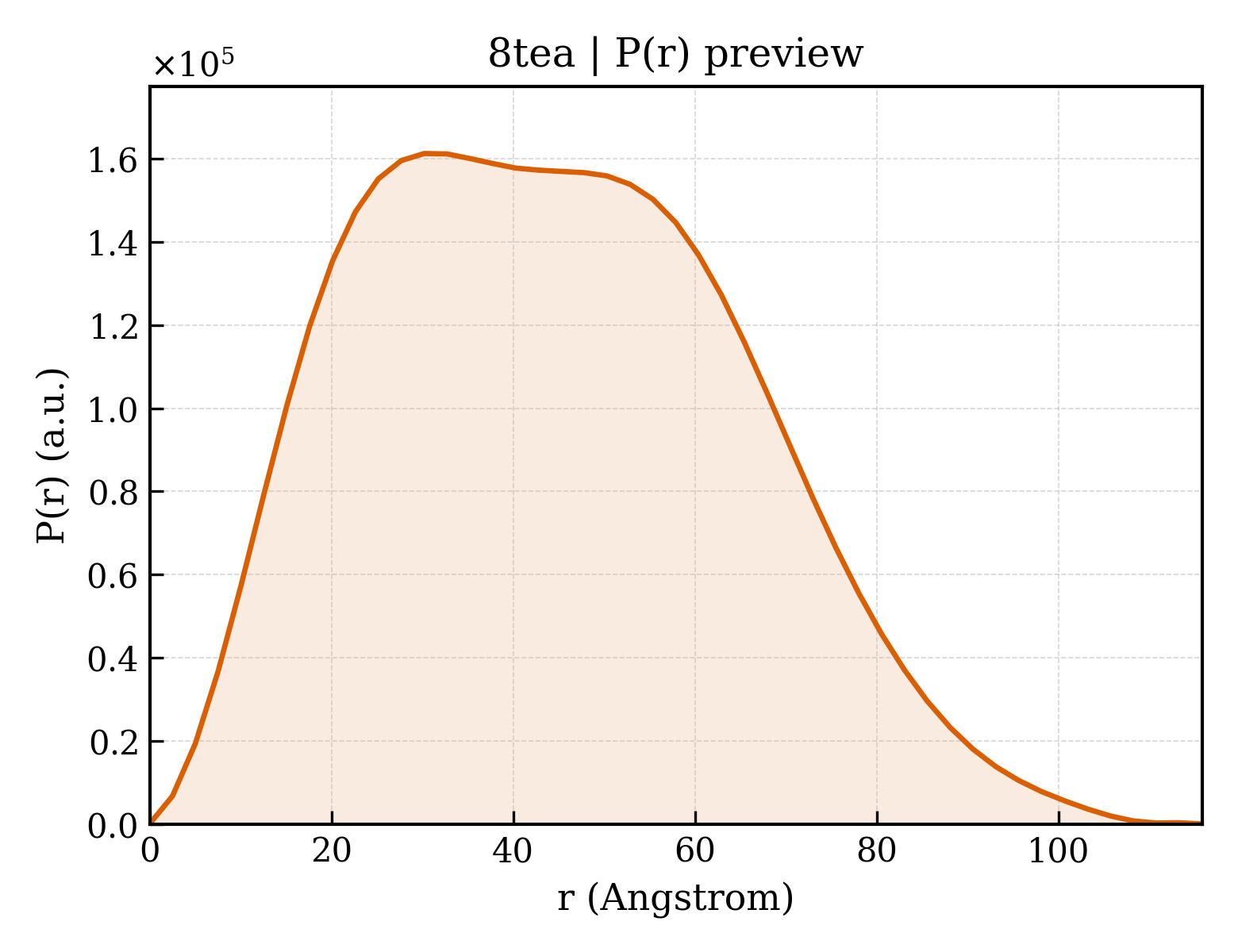

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	115.8 Å
Rg (real space) rg_real	34.59 Å
Rg uncertainty (real space) rg_real_error	0.87 Å
I(0) (real space) i0_real	1.2220e+08
I(0) uncertainty (real space) i0_real_error	2.1600e+06
Rg (reciprocal space) rg_reciprocal	34.56 Å
I(0) (reciprocal space) i0_reciprocal	122200000.0000
Solution quality estimate total_estimate	0.8778
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	30.2 Å
Skewness Skewness skewness	0.278
Kurtosis Kurtosis kurtosis	-0.571
Angular range angular_range	— – 0.2300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	20940000.0000
Real-space data points n_real_points	47
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.872; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.932; Smooth: 0.857

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Envelope protein UL128
Molecular weight formula_weight	18940.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	6054

MEWSWVFLFFLSVTTGVHSEECCEFINVNHPPERCYDFKMCNRFTVALRCPDGEVCYSPEKTAEIRGIVTTMTHSLTRQVVHNKLTSCNYNPLYLEADGRIRCGKVNDKAQYLLGAAGSVPYRWINLEYDKITRIVGLDQYLESVKKHKRLDVCRAKMGYMLQ

来源 Source

来源生物 organism	Human betaherpesvirus 5
NCBI Class编号 ncbi_taxonomy_id	10359
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Envelope glycoprotein UL130
Molecular weight formula_weight	24018.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MEWSWVFLFFLSVTTGVHSSPWSTLTANQNPSPPWSKLTYSKPHDAATFYCPFLYPSPPRSPLQFSGFQQVSTGPECRNETLYLLYNREGQTLVERSSTWVKKVIWYLSGRNQTILQRMPQTASKPSDGNVQISVEDAKIFGAHMVPKQTKLLRFVVNDGTRYQMCVMKLESWAHVFRDYSVSFQVRLTFTEANNQTYTFCTHPNLIV

来源 Source

来源生物 organism	Human betaherpesvirus 5
NCBI Class编号 ncbi_taxonomy_id	10359
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	UL131A
Molecular weight formula_weight	15262.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MEWSWVFLFFLSVTTGVHSQCQRETAEKNDYYRVPHYWDACSRALPDQTRYKYVEQLVDLTLNYHYDASHGLDNFDVLKRINVTEVSLLISDFRRQNRRGGTNKRTTFNAAGSLAPHARSLEFSVRLFAN

来源 Source

来源生物 organism	Human betaherpesvirus 5
NCBI Class编号 ncbi_taxonomy_id	10359
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	CS2pt1p2_A10L Fab light chain
Molecular weight formula_weight	22850.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

QSALTQPPSASGTPGQRVTISCSGSSSNIGSNTVHWYQQLPGTAPKLLIYSNNQRPSGVPDRFSGSRSGTSASLAISGLRSEDEADYYCAAWDDSLNGRVFGTGTKVTVLGQPKANPTVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	CS2pt1p2_A10L Fab heavy chain
Molecular weight formula_weight	25916.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MEFGLSWVFLVALIKGVQCQVHLEESGGGLVKPGGSLRLSCVASGFSFSDYYMSWIRQAPGKGLEWLSYISPSGSPTSNADSMKGRFTISRDNARSSLYLQVHSLRVEDTAVYYCARDNTVFGVVTTPMDHWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 6 Entity 6 polymer

Description description	CS3pt1p4_C1L Fab heavy chain
Molecular weight formula_weight	23630.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

QVQLVQSGAEVKKPGSSVKVSCKASGGTFTDYALSWVRQAPGQGLEWMGGIIPVLGTPHYAQKFEDRVTIIADESTGTVFMALSSLRSDDTGMYYCARGVTHPYYYYAMDVWGQGTTITVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 7 Entity 7 polymer

Description description	CS3pt1p4_C1L Fab light chain
Molecular weight formula_weight	23239.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

QSALTQPASVSGSPGQSISISCTGTSSDVGAYDYVSWYQQHPGKAPRLIIYDVNKRPSGVPYRFSGSKSGTAASLTISGLQSEDEAVYYCGSYTSSSAFFYVFGTGTMVTVLRQPKANPTVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	8teaF01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	8teaG01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	8teaI01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.40 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	71677

fit	/app/data/saxs_computation/te/8tea/8tea.fit
pddf	/app/data/pr_computation/te/8tea/8tea.pr.out
profile	/app/data/saxs_computation/te/8tea/8tea.dat

HCMV Pentamer in complex with CS2pt1p2_A10L Fab and CS3pt1p4_C1L Fab
