CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with NRP2 and neutralizing fabs 8I21 and 13H11

Method: ELECTRON MICROSCOPY D_max: 215.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Envelope glycoprotein H

Human betaherpesvirus 5

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count	Chain A； UniProt 1–715	Not recorded	Envelope glycoprotein L × 1 （Q71DN9） Envelope protein UL128 × 1 （Q38LY2） Envelope glycoprotein UL130 × 1 （Q38M07） Envelope protein UL131A × 1 （Q8AZ45） Neuropilin-2 × 1 （O60462） Fab 8I21 heavy chain × 1 Fab 13H11 heavy chain × 1 Fab 13H11 light chain × 1 Fab 8I21 light chain × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；blot for 3.5 seconds before plunging	Resolution 3.10 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 7T4S	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7T4Q CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with neutralizing fabs 2C12, 7I13 and 13H11 Deposited 2021-12-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 1–715（715 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5s before plunging	Resolution 2.90 Å
7T4R CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with THBD and neutralizing fabs MSL-109 and 13H11 Deposited 2021-12-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric	Chain B 1–715（715 aa） Chain K 1–715（715 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5s before plunging	Resolution 3.30 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	F5H9T3_HCMV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–715； UniProt 1–715

Envelope glycoprotein L

Human betaherpesvirus 5

UniProt Q71DN9

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count	Chain B； UniProt 1–278	Not recorded	Envelope glycoprotein H × 1 （F5H9T3） Envelope protein UL128 × 1 （Q38LY2） Envelope glycoprotein UL130 × 1 （Q38M07） Envelope protein UL131A × 1 （Q8AZ45） Neuropilin-2 × 1 （O60462） Fab 8I21 heavy chain × 1 Fab 13H11 heavy chain × 1 Fab 13H11 light chain × 1 Fab 8I21 light chain × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；blot for 3.5 seconds before plunging	Resolution 3.10 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7T4S	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7T4Q CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with neutralizing fabs 2C12, 7I13 and 13H11 Deposited 2021-12-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain B 1–278（278 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5s before plunging	Resolution 2.90 Å
7T4R CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with THBD and neutralizing fabs MSL-109 and 13H11 Deposited 2021-12-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric	Chain C 1–278（278 aa） Chain L 1–278（278 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5s before plunging	Resolution 3.30 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q71DN9_HCMV
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–278； UniProt 1–278

Envelope protein UL128

Human betaherpesvirus 5

UniProt Q38LY2

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count	Chain C； UniProt 1–171	Not recorded	Envelope glycoprotein H × 1 （F5H9T3） Envelope glycoprotein L × 1 （Q71DN9） Envelope glycoprotein UL130 × 1 （Q38M07） Envelope protein UL131A × 1 （Q8AZ45） Neuropilin-2 × 1 （O60462） Fab 8I21 heavy chain × 1 Fab 13H11 heavy chain × 1 Fab 13H11 light chain × 1 Fab 8I21 light chain × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；blot for 3.5 seconds before plunging	Resolution 3.10 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7T4S	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7T4Q CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with neutralizing fabs 2C12, 7I13 and 13H11 Deposited 2021-12-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain C 1–171（171 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5s before plunging	Resolution 2.90 Å
7T4R CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with THBD and neutralizing fabs MSL-109 and 13H11 Deposited 2021-12-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric	Chain D 1–171（171 aa） Chain M 1–171（171 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5s before plunging	Resolution 3.30 Å
8TEA HCMV Pentamer in complex with CS2pt1p2_A10L Fab and CS3pt1p4_C1L Fab Deposited 2023-07-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain C 28–171（144 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å

3 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q38LY2_HCMV
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–171； UniProt 1–171

Envelope glycoprotein UL130

Human betaherpesvirus 5

UniProt Q38M07

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count	Chain D； UniProt 1–214	Not recorded	Envelope glycoprotein H × 1 （F5H9T3） Envelope glycoprotein L × 1 （Q71DN9） Envelope protein UL128 × 1 （Q38LY2） Envelope protein UL131A × 1 （Q8AZ45） Neuropilin-2 × 1 （O60462） Fab 8I21 heavy chain × 1 Fab 13H11 heavy chain × 1 Fab 13H11 light chain × 1 Fab 8I21 light chain × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；blot for 3.5 seconds before plunging	Resolution 3.10 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7T4S	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7T4Q CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with neutralizing fabs 2C12, 7I13 and 13H11 Deposited 2021-12-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain D 1–214（214 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5s before plunging	Resolution 2.90 Å
7T4R CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with THBD and neutralizing fabs MSL-109 and 13H11 Deposited 2021-12-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric	Chain E 1–214（214 aa） Chain N 1–214（214 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5s before plunging	Resolution 3.30 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q38M07_HCMV
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–214； UniProt 1–214

Envelope protein UL131A

Human betaherpesvirus 5

UniProt Q8AZ45

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count	Chain E； UniProt 1–129	Not recorded	Envelope glycoprotein H × 1 （F5H9T3） Envelope glycoprotein L × 1 （Q71DN9） Envelope protein UL128 × 1 （Q38LY2） Envelope glycoprotein UL130 × 1 （Q38M07） Neuropilin-2 × 1 （O60462） Fab 8I21 heavy chain × 1 Fab 13H11 heavy chain × 1 Fab 13H11 light chain × 1 Fab 8I21 light chain × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；blot for 3.5 seconds before plunging	Resolution 3.10 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7T4S	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
7T4Q CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with neutralizing fabs 2C12, 7I13 and 13H11 Deposited 2021-12-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain E 1–129（129 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5s before plunging	Resolution 2.90 Å
7T4R CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with THBD and neutralizing fabs MSL-109 and 13H11 Deposited 2021-12-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 19 PDB declaration: nonadecameric	Chain F 1–129（129 aa） Chain O 1–129（129 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 14	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5s before plunging	Resolution 3.30 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q8AZ45_HCMV
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 1–129； UniProt 1–129

Neuropilin-2

Homo sapiens

UniProt O60462

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 10 PDB declaration: decameric（10） Consistent with protein copy count	Chain F； UniProt 1–864	Not recorded	Envelope glycoprotein H × 1 （F5H9T3） Envelope glycoprotein L × 1 （Q71DN9） Envelope protein UL128 × 1 （Q38LY2） Envelope glycoprotein UL130 × 1 （Q38M07） Envelope protein UL131A × 1 （Q8AZ45） Fab 8I21 heavy chain × 1 Fab 13H11 heavy chain × 1 Fab 13H11 light chain × 1 Fab 8I21 light chain × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen ETHANE；blot for 3.5 seconds before plunging	Resolution 3.10 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 7T4S	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2QQJ Crystal Structure of the b1b2 Domains from Human Neuropilin-2 Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 275–595（321 aa） Fragment：F5/8 type C 1 and C 2 domains	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；297 K；0.1 M Bis-Tris, 20% PEG 5000 MME, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 1.95 Å R-free 0.235
2QQK Neuropilin-2 a1a2b1b2 Domains in Complex with a Semaphorin-Blocking Fab Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 23–595（573 aa） Fragment：CUB 1, CUB2, F5/8 type C 1, and C2 domains	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 22% polyacrylic acid 5100, 0.02 M MgCl2, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.75 Å R-free 0.243
2QQK Neuropilin-2 a1a2b1b2 Domains in Complex with a Semaphorin-Blocking Fab Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 23–595（573 aa） Fragment：CUB 1, CUB2, F5/8 type C 1, and C2 domains	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 22% polyacrylic acid 5100, 0.02 M MgCl2, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.75 Å R-free 0.243
2QQL Neuropilin-2 a1a2b1b2 Domains in Complex with a Semaphorin-Blocking Fab Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 23–595（573 aa） Fragment：CUB 1, CUB2, F5/8 type C 1, and C2 domains	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；297 K；10% PEG 1000, 10% PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.10 Å R-free 0.232
2QQL Neuropilin-2 a1a2b1b2 Domains in Complex with a Semaphorin-Blocking Fab Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 23–595（573 aa） Fragment：CUB 1, CUB2, F5/8 type C 1, and C2 domains	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；297 K；10% PEG 1000, 10% PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.10 Å R-free 0.232
2QQO Crystal Structure of the a2b1b2 Domains from Human Neuropilin-2 Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 145–595（451 aa） Fragment：CUB 2, F5/8 type C 1, and F5/8 type C 2 domains	Not recorded	CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 10% PEG 8000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.30 Å R-free 0.239
2QQO Crystal Structure of the a2b1b2 Domains from Human Neuropilin-2 Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 145–595（451 aa） Fragment：CUB 2, F5/8 type C 1, and F5/8 type C 2 domains	Not recorded	CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 10% PEG 8000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.30 Å R-free 0.239
2QQO Crystal Structure of the a2b1b2 Domains from Human Neuropilin-2 Deposited 2007-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 145–595（451 aa） Fragment：CUB 2, F5/8 type C 1, and F5/8 type C 2 domains Chain B 145–595（451 aa） Fragment：CUB 2, F5/8 type C 1, and F5/8 type C 2 domains	Not recorded	CA CALCIUM ION × 2 EDO 1,2-ETHANEDIOL × 6 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 10% PEG 8000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.30 Å R-free 0.239
4QDQ Physical basis for Nrp2 ligand binding Deposited 2014-05-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 276–595（320 aa） Fragment：Neuropilin-2 b1b2 domain, VEGF-C C-terminus	Not recorded	GOL GLYCEROL × 6 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M HEPES, 0.5 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.241
4QDQ Physical basis for Nrp2 ligand binding Deposited 2014-05-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 276–595（320 aa） Fragment：Neuropilin-2 b1b2 domain, VEGF-C C-terminus	Not recorded	GOL GLYCEROL × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M HEPES, 0.5 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.241
4QDR Physical basis for Nrp2 ligand binding Deposited 2014-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 276–595（320 aa） Fragment：unp residues 276-595	Mutation：T319R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1 M HEPES, 18% (w/v) PEG 12000, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.255
4QDS Physical basis for Nrp2 ligand binding Deposited 2014-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 275–457（183 aa） Fragment：Proteolytic fragment of s9Nrp2 coagulation factor domains Chain B 275–457（183 aa） Fragment：Proteolytic fragment of s9Nrp2 coagulation factor domains	Not recorded	GOL GLYCEROL × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；10% PEG 1000, 10% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.264
5DN2 Human NRP2 b1 domain in complex with the peptide corresponding to the C-terminus of VEGF-A Deposited 2015-09-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 275–429（155 aa） Fragment：Neuropilin-2 domain B1 F5/8 type C 1, UNP residues 275-429	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；289 K；10% PEG20000, 0.1M Bicine, 2% v/v dioxane	Resolution 1.95 Å R-free 0.234
5DN2 Human NRP2 b1 domain in complex with the peptide corresponding to the C-terminus of VEGF-A Deposited 2015-09-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 275–429（155 aa） Fragment：Neuropilin-2 domain B1 F5/8 type C 1, UNP residues 275-429	Not recorded	DIO 1,4-DIETHYLENE DIOXIDE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；289 K；10% PEG20000, 0.1M Bicine, 2% v/v dioxane	Resolution 1.95 Å R-free 0.234
5DN2 Human NRP2 b1 domain in complex with the peptide corresponding to the C-terminus of VEGF-A Deposited 2015-09-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 275–429（155 aa） Fragment：Neuropilin-2 domain B1 F5/8 type C 1, UNP residues 275-429	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；289 K；10% PEG20000, 0.1M Bicine, 2% v/v dioxane	Resolution 1.95 Å R-free 0.234
5DN2 Human NRP2 b1 domain in complex with the peptide corresponding to the C-terminus of VEGF-A Deposited 2015-09-09	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 275–429（155 aa） Fragment：Neuropilin-2 domain B1 F5/8 type C 1, UNP residues 275-429	Not recorded	DIO 1,4-DIETHYLENE DIOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；289 K；10% PEG20000, 0.1M Bicine, 2% v/v dioxane	Resolution 1.95 Å R-free 0.234
5DQ0 Structure of human neuropilin-2 b1 domain with novel and unique zinc binding site Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 275–430（156 aa） Fragment：b1 domain, UNP residues 475-430	Not recorded	ZN ZINC ION × 3 CL CHLORIDE ION × 2 EDO 1,2-ETHANEDIOL × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289.15 K；25 % PEG 550 MME, 0.1 M MES pH 6.5, 0.01 M ZnSO4	Resolution 1.80 Å R-free 0.217
6GH8 Crystal structure of GP1 domain of Lujo virus in complex with the first CUB domain of neuropilin-2 Deposited 2018-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 27–146（120 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；0.03M glycyl-glycyl-glycine, 25.9% PEG 6000, 0.09M Bis-Tris Propane pH 9.5	Resolution 2.44 Å R-free 0.311
6GH8 Crystal structure of GP1 domain of Lujo virus in complex with the first CUB domain of neuropilin-2 Deposited 2018-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 27–146（120 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；0.03M glycyl-glycyl-glycine, 25.9% PEG 6000, 0.09M Bis-Tris Propane pH 9.5	Resolution 2.44 Å R-free 0.311
6TDB Neuropilin2-b1 domain in a complex with the C-terminal VEGFB167 peptide Deposited 2019-11-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 275–430（156 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 ACE ACETYL GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；N2b1-apo 0.05 M KCl, 0.01 M MgCl2 and 15 % (w/v) PEG600 N2b1/VEGFB167 0.1 M HEPES pH 7.5, 10 % (w/v) PEG4000, 20 % (w/v) isopropanol	Resolution 2.45 Å R-free 0.250
6TDB Neuropilin2-b1 domain in a complex with the C-terminal VEGFB167 peptide Deposited 2019-11-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 275–430（156 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 ACE ACETYL GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；N2b1-apo 0.05 M KCl, 0.01 M MgCl2 and 15 % (w/v) PEG600 N2b1/VEGFB167 0.1 M HEPES pH 7.5, 10 % (w/v) PEG4000, 20 % (w/v) isopropanol	Resolution 2.45 Å R-free 0.250
6TDB Neuropilin2-b1 domain in a complex with the C-terminal VEGFB167 peptide Deposited 2019-11-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 275–430（156 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；N2b1-apo 0.05 M KCl, 0.01 M MgCl2 and 15 % (w/v) PEG600 N2b1/VEGFB167 0.1 M HEPES pH 7.5, 10 % (w/v) PEG4000, 20 % (w/v) isopropanol	Resolution 2.45 Å R-free 0.250
6TDB Neuropilin2-b1 domain in a complex with the C-terminal VEGFB167 peptide Deposited 2019-11-08	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 275–430（156 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；N2b1-apo 0.05 M KCl, 0.01 M MgCl2 and 15 % (w/v) PEG600 N2b1/VEGFB167 0.1 M HEPES pH 7.5, 10 % (w/v) PEG4000, 20 % (w/v) isopropanol	Resolution 2.45 Å R-free 0.250
6TJT Neuropilin2-b1 domain in a complex with the C-terminal VEGFC peptide Deposited 2019-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 275–430（156 aa）	Not recorded	SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M NaOAc, 0.1 M HEPES pH 7.5, 12 % (w/v) PEG4000	Resolution 1.31 Å R-free 0.179
6TJT Neuropilin2-b1 domain in a complex with the C-terminal VEGFC peptide Deposited 2019-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 275–430（156 aa）	Not recorded	SO4 SULFATE ION × 4 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M NaOAc, 0.1 M HEPES pH 7.5, 12 % (w/v) PEG4000	Resolution 1.31 Å R-free 0.179
7M22 Cryo-EM structure of the HCMV pentamer bound by human neuropilin 2 Deposited 2021-03-15	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain N 23–595（573 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；Grid was blotted with a force of -6 for 3 seconds	Resolution 3.65 Å
8IVW Crystal structure of NRP2 in complex with aNRP2-10 Fab fragment Deposited 2023-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 25–595（571 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；21% PEG1000, 0.1M Sodium citrate tribasic dihydrate pH 5.5, 0.05M Lithium sulfate monohydrate	Resolution 3.21 Å R-free 0.294
8IVW Crystal structure of NRP2 in complex with aNRP2-10 Fab fragment Deposited 2023-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 25–595（571 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；21% PEG1000, 0.1M Sodium citrate tribasic dihydrate pH 5.5, 0.05M Lithium sulfate monohydrate	Resolution 3.21 Å R-free 0.294
8IVW Crystal structure of NRP2 in complex with aNRP2-10 Fab fragment Deposited 2023-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 25–595（571 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；21% PEG1000, 0.1M Sodium citrate tribasic dihydrate pH 5.5, 0.05M Lithium sulfate monohydrate	Resolution 3.21 Å R-free 0.294
8IVW Crystal structure of NRP2 in complex with aNRP2-10 Fab fragment Deposited 2023-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 25–595（571 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；21% PEG1000, 0.1M Sodium citrate tribasic dihydrate pH 5.5, 0.05M Lithium sulfate monohydrate	Resolution 3.21 Å R-free 0.294
8IVX Crystal structure of NRP2 in complex with aNRP2-14 Fab fragment Deposited 2023-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 25–595（571 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；289 K；30% PEG300, 0.1M Sodium acetate trihydrate pH 4.5	Resolution 1.90 Å R-free 0.225

15 other PDB entries and 31 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NRP2_HUMAN
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain F； PDBConstruct 1–864； UniProt 1–864

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

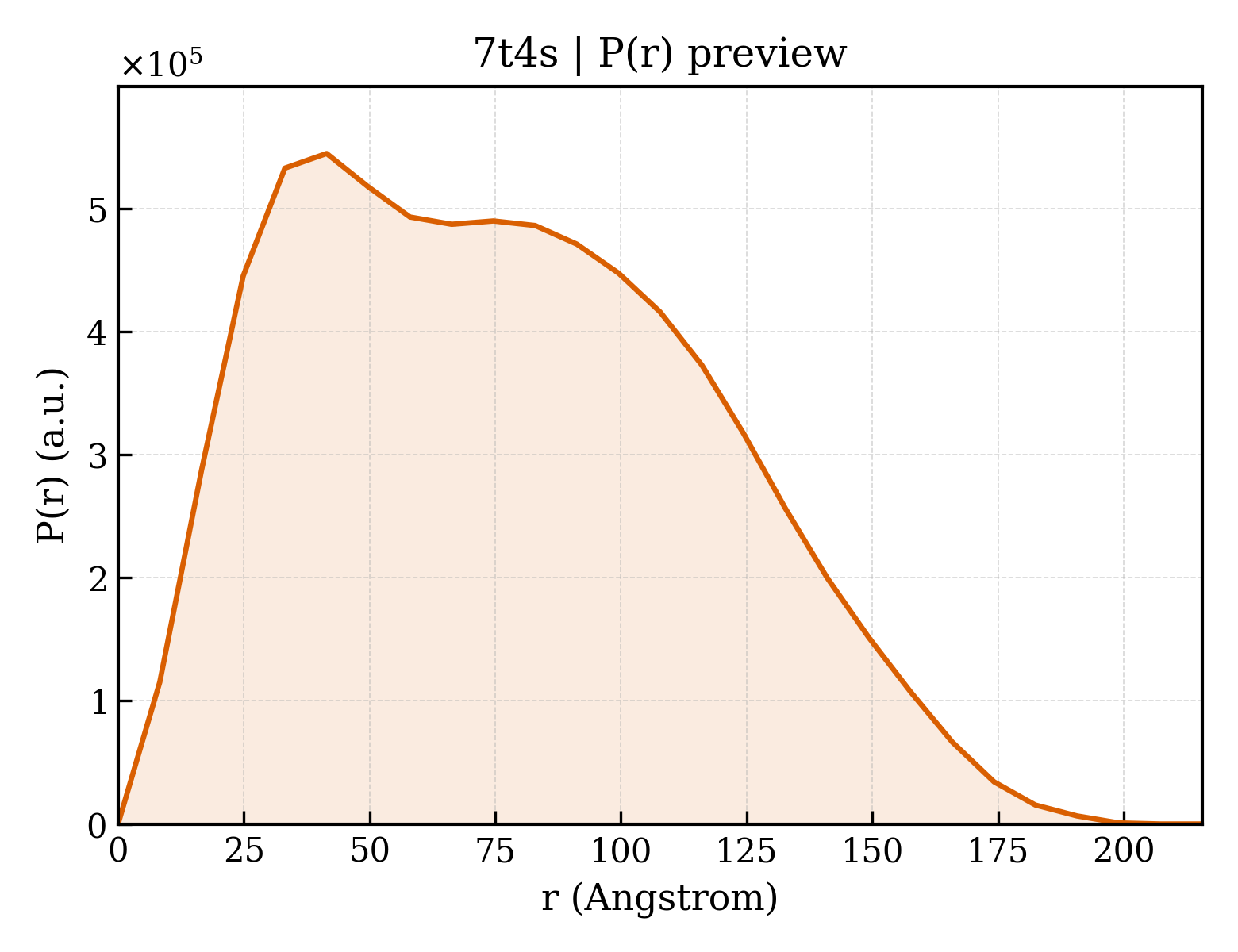

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7t4s
Deposition date deposition_date	2021-12-10
Structure title title	CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with NRP2 and neutralizing fabs 8I21 and 13H11
Keywords keywords	glycoprotein complex, antibody complex, Neuropilin 2, VIRAL PROTEIN, VIRAL PROTEIN-Immune System complex; VIRAL PROTEIN/Immune System
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	60.68 Å
Radius of gyration Rg (electron density) rg_electron	61.17 Å
Forward intensity I(0) i0	756824000.00
Molecular weight molecular_weight	232890.0 kDa
Excluded volume excluded_volume	292070 Å³
Envelope volume envelope_volume	443690 Å³
Hydration-shell volume shell_volume	62317 Å³
Envelope diameter envelope_diameter	212.2 Å
Shell Rg shell_rg	60.63 Å
Envelope Rg envelope_rg	58.94 Å
Shape Rg shape_rg	61.13 Å
Total Rg total_rg	61.31 Å
Total atoms total_atoms	16404
Residues n_residues	2045
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	215.6 Å
Rg (real space) rg_real	61.17 Å
Rg uncertainty (real space) rg_real_error	3.09 Å
I(0) (real space) i0_real	7.5680e+08
I(0) uncertainty (real space) i0_real_error	1.4490e+07
Rg (reciprocal space) rg_reciprocal	60.20 Å
I(0) (reciprocal space) i0_reciprocal	755600000.0000
Solution quality estimate total_estimate	0.7561
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	41.5 Å
Skewness Skewness skewness	0.327
Kurtosis Kurtosis kurtosis	-0.710
Angular range angular_range	— – 0.1300 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	26270000.0000
Real-space data points n_real_points	27
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.674; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.804; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (12)

Entity 1 Entity 1 polymer

Description description	Envelope glycoprotein H
Molecular weight formula_weight	87311.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	16404

MRPGLPSYLIILAVCLFSHLLSSRYGAEAVSEPLDKAFHLLLNTYGRPIRFLRENTTQCTYNSSLRNSTVVRENAISFNFFQSYNQYYVFHMPRCLFAGPLAEQFLNQVDLTETLERYQQRLNTYALVSKDLASYRSFSQQLKAQDSLGEQPTTVPPPIDLSIPHVWMPPQTTPHGWTESHTTSGLHRPHFNQTCILFDGHDLLFSTVTPCLHQGFYLIDELRYVKITLTEDFFVVTVSIDDDTPMLLIFGHLPRVLFKAPYQRDNFILRQTEKHELLVLVKKDQLNRHSYLKDPDFLDAALDFNYLDLSALLRNSFHRYAVDVLKSGRCQMLDRRTVEMAFAYALALFAAARQEEAGAQVSVPRALDRQAALLQIQEFMITCLSQTPPRTTLLLYPTAVDLAKRALWTPNQITDITSLVRLVYILSKQNQQHLIPQWALRQIADFALKLHKTHLASFLSAFARQELYLMGSLVHSMLVHTTERREIFIVETGLCSLAELSHFTQLLAHPHHEYLSDLYTPCSSSGRRDHSLERLTRLFPDATVPATVPAALSILSTMQPSTLETFPDLFCLPLGESFSALTVSEHVSYIVTNQYLIKGISYPVSTTVVGQSLIITQTDSQTKCELTRNMHTTHSITVALNISLENCAFCQSALLEYDDTQGVINIMYMHDSDDVLFALDPYNEVVVSSPRTHYLMLLKNGTVLEVTDVVVDATDGTKLGPEQKLISEEDLNSAVDGSGLNDIFEAQKIEWHENLYFQGHHHHHHHH

来源 Source

来源生物 organism	Human betaherpesvirus 5
NCBI Class编号 ncbi_taxonomy_id	10359
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Envelope glycoprotein L
Molecular weight formula_weight	30846.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MCRRPDCGFSFSPGPVILLWCCLLLPIVSSAAVSVAPTAAEKVPAECPELTRRCLLGEVFEGDKYESWLRPLVNVTGRDGPLSQLIRYRPVTPEAANSVLLDEAFLDTLALLYNNPDQLRALLTLLSSDTAPRWMTVMRGYSECGDGSPAVYTCVDDLCRGYDLTRLSYGRSIFTEHVLGFELVPPSLFNVVVAIRNEATRTNRAVRLPVSTAAAPEGITLFYGLYNAVKEFCLRHQLDPPLLRHLDKYYAGLPPELKQTRVNLPAHSRYGPQAVDAR

来源 Source

来源生物 organism	Human betaherpesvirus 5
NCBI Class编号 ncbi_taxonomy_id	10359
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Envelope protein UL128
Molecular weight formula_weight	19746.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MSPKNLTPFLTALWLLLGHSRVPRVRAEECCEFINVNHPPERCYDFKMCNRFTVALRCPDGEVCYSPEKTAEIRGIVTTMTHSLTRQVVHNKLTSCNYNPLYLEADGRIRCGKVNDKAQYLLGAAGSVPYRWINLEYDKITRIVGLDQYLESVKKHKRLDVCRAKMGYMLQ

来源 Source

来源生物 organism	Human betaherpesvirus 5
NCBI Class编号 ncbi_taxonomy_id	10359
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Envelope glycoprotein UL130
Molecular weight formula_weight	28866.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MLRLLLRHHFHCLLLCAVWATPCLASPWFTLTANQNPSPPWSKLTYPKPHDAATFYCPFLYPSPPRSPSQFSGFQRVSTGPECRNETLYLLYNREGQTLVERSSTWVKKVIWYLSGRNQTILQRMPRTASKPSDGNVQISVEDAKIFGAHMVPKQTKLLRFVVNDGTRYQMCVMKLESWAHVFRDYSVSFQVRLTFTEANNQTYTFCTHPNLIVGSENLYFQGSAWSHPQFEKGGGSGGGSGGGSAWSHPQFEK

来源 Source

来源生物 organism	Human betaherpesvirus 5
NCBI Class编号 ncbi_taxonomy_id	10359
宿主生物 host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	Envelope protein UL131A
Molecular weight formula_weight	15011.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MRLCRVWLSVCLCAVVLGQCQRETAEKNDYYRVPHYWDACSRALPDQTRYKYVEQLVDLTLNYHYDASHGLDNFDVLKRINVTEVSLLISDFRRQNRRGGTNKRTTFNAAGSLAPHARSLEFSVRLFAN

来源 Source

来源生物 organism	Human betaherpesvirus 5
NCBI Class编号 ncbi_taxonomy_id	10359
宿主生物 host_organism	Homo sapiens

Entity 6 Entity 6 polymer

Description description	Neuropilin-2
Molecular weight formula_weight	98923.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MDMFPLTWVFLALYFSRHQVRGQPDPPCGGRLNSKDAGYITSPGYPQDYPSHQNCEWIVYAPEPNQKIVLNFNPHFEIEKHDCKYDFIEIRDGDSESADLLGKHCGNIAPPTIISSGSMLYIKFTSDYARQGAGFSLRYEIFKTGSEDCSKNFTSPNGTIESPGFPEKYPHNLDCTFTILAKPKMEIILQFLIFDLEHDPLQVGEGDCKYDWLDIWDGIPHVGPLIGKYCGTKTPSELRSSTGILSLTFHTDMAVAKDGFSARYYLVHQEPLENFQCNVPLGMESGRIANEQISASSTYSDGRWTPQQSRLHGDDNGWTPNLDSNKEYLQVDLRFLTMLTAIATQGAISRETQNGYYVKSYKLEVSTNGEDWMVYRHGKNHKVFQANNDATEVVLNKLHAPLLTRFVRIRPQTWHSGIALRLELFGCRVTDAPCSNMLGMLSGLIADSQISASSTQEYLWSPSAARLVSSRSGWFPRIPQAQPGEEWLQVDLGTPKTVKGVIIQGARGGDSITAVEARAFVRKFKVSYSLNGKDWEYIQDPRTQQPKLFEGNMHYDTPDIRRFDPIPAQYVRVYPERWSPAGIGMRLEVLGCDWTDSKPTVETLGPTVKSEETTTPYPTEEEATECGENCSFEDDKDLQLPSGFNCNFDFLEEPCGWMYDHAKWLRTTWASSSSPNDRTFPDDRNFLRLQSDSQREGQYARLISPPVHLPRSPVCMEFQYQATGGRGVALQVVREASQESKLLWVIREDQGGEWKHGRIILPSYDMEYQIVFEGVIGKGRSGEIAIDDIRISTDVPLENCMEPISAFAGENFKVDIPEIHEREGYEDEIDDEYEVDWSNSSSATSGSGAPSTDKEKSWLYTLDPGNSDYKDDDDK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 7 Entity 7 polymer

Description description	Fab 8I21 heavy chain
Molecular weight formula_weight	26816.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MKKNIAFLLASMFVFSIATNAYALVELVESGGGVVQPGRSLRLSCAASGFTFSSDGMHWVRQSPGRGLEWVAFISSDGSTPYYADSVKGRFTISRDNSKNTLYLQMNSLRAEDTAMYFCAKDWALFRWLRTFDHWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCD

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 8 Entity 8 polymer

Description description	Fab 13H11 heavy chain
Molecular weight formula_weight	26600.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	J

MKKNIAFLLASMFVFSIATNAYAQVQLVQSGAEVKKPGASVKVSCKASGYTFTNYYIHWVRQAPGQGLEWMGIIHPSSGGTSYAQKFQGRVTMTRDTSTSTVSMDLSSLRSEDTAVYYCGRAFRILGLSDVFVNDWGQGTVVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCD

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 9 Entity 9 polymer

Description description	Fab 13H11 light chain
Molecular weight formula_weight	25780.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

MKKNIAFLLASMFVFSIATNAYADIQMTQSPSSLSASVGDRVTITCRASQGINNYLAWYQQKPGKVPKLLIYAASTLQSGVPSRFSGSGSGTAFTLTILSLQPEDVATYYCQKYNSAPFTFGPGTKVDIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 10 Entity 10 polymer

Description description	Fab 8I21 light chain
Molecular weight formula_weight	25995.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

MKKNIAFLLASMFVFSIATNAYAETVMTQSPATLSVSPGGRATLSCRASQSVGINLAWYQQKPGQAPRLLIYGASTRASGFPARFSGSGSGTEFTLTITSLQSEDFAVYYCQQYNDWPPWTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 11 Entity 11 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 12 Entity 12 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	7t4sF01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.10 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	2252924

fit	/app/data/saxs_computation/t4/7t4s/7t4s.fit
pddf	/app/data/pr_computation/t4/7t4s/7t4s.pr.out
profile	/app/data/saxs_computation/t4/7t4s/7t4s.dat

CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with NRP2 and neutralizing fabs 8I21 and 13H11

1. Protein Identity and Related Structures Protein Identity & Related Structures

Envelope glycoprotein H

State in the Current Structure

Other States of the Same Protein in the Database

Envelope glycoprotein L

State in the Current Structure

Other States of the Same Protein in the Database

Envelope protein UL128

State in the Current Structure

Other States of the Same Protein in the Database

Envelope glycoprotein UL130

State in the Current Structure

Other States of the Same Protein in the Database

Envelope protein UL131A

State in the Current Structure

Other States of the Same Protein in the Database

Neuropilin-2

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (12)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

Entity 6 Entity 6 polymer

Polymer Polymer

来源 Source

Entity 7 Entity 7 polymer

Polymer Polymer

来源 Source

Entity 8 Entity 8 polymer

Polymer Polymer

来源 Source

Entity 9 Entity 9 polymer

Polymer Polymer

来源 Source

Entity 10 Entity 10 polymer

Polymer Polymer

来源 Source

Entity 11 Entity 11 non-polymer

Entity 12 Entity 12 non-polymer

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
