SAXSdb — 2qqk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Neuropilin-2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 6 PDB declaration: hexameric（6） Consistent with protein copy count	Chain A； UniProt 23–595	Fragment：CUB 1, CUB2, F5/8 type C 1, and C2 domains	Antibody Heavy Chain × 2 Antibody Light Chain × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 22% polyacrylic acid 5100, 0.02 M MgCl2, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.75 Å R-free 0.243
2	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 23–595	Fragment：CUB 1, CUB2, F5/8 type C 1, and C2 domains	Antibody Heavy Chain × 1 Antibody Light Chain × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 22% polyacrylic acid 5100, 0.02 M MgCl2, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.75 Å R-free 0.243

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2QQK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2QQJ Crystal Structure of the b1b2 Domains from Human Neuropilin-2 Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 275–595（321 aa） Fragment：F5/8 type C 1 and C 2 domains	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；297 K；0.1 M Bis-Tris, 20% PEG 5000 MME, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 1.95 Å R-free 0.235
2QQL Neuropilin-2 a1a2b1b2 Domains in Complex with a Semaphorin-Blocking Fab Deposited 2007-07-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 23–595（573 aa） Fragment：CUB 1, CUB2, F5/8 type C 1, and C2 domains	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；297 K；10% PEG 1000, 10% PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.10 Å R-free 0.232
2QQL Neuropilin-2 a1a2b1b2 Domains in Complex with a Semaphorin-Blocking Fab Deposited 2007-07-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 23–595（573 aa） Fragment：CUB 1, CUB2, F5/8 type C 1, and C2 domains	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；297 K；10% PEG 1000, 10% PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.10 Å R-free 0.232
2QQO Crystal Structure of the a2b1b2 Domains from Human Neuropilin-2 Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 145–595（451 aa） Fragment：CUB 2, F5/8 type C 1, and F5/8 type C 2 domains	Not recorded	CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 10% PEG 8000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.30 Å R-free 0.239
2QQO Crystal Structure of the a2b1b2 Domains from Human Neuropilin-2 Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 145–595（451 aa） Fragment：CUB 2, F5/8 type C 1, and F5/8 type C 2 domains	Not recorded	CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 10% PEG 8000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.30 Å R-free 0.239
2QQO Crystal Structure of the a2b1b2 Domains from Human Neuropilin-2 Deposited 2007-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 145–595（451 aa） Fragment：CUB 2, F5/8 type C 1, and F5/8 type C 2 domains Chain B 145–595（451 aa） Fragment：CUB 2, F5/8 type C 1, and F5/8 type C 2 domains	Not recorded	CA CALCIUM ION × 2 EDO 1,2-ETHANEDIOL × 6 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 10% PEG 8000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.30 Å R-free 0.239
4QDQ Physical basis for Nrp2 ligand binding Deposited 2014-05-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 276–595（320 aa） Fragment：Neuropilin-2 b1b2 domain, VEGF-C C-terminus	Not recorded	GOL GLYCEROL × 6 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M HEPES, 0.5 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.241
4QDQ Physical basis for Nrp2 ligand binding Deposited 2014-05-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 276–595（320 aa） Fragment：Neuropilin-2 b1b2 domain, VEGF-C C-terminus	Not recorded	GOL GLYCEROL × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M HEPES, 0.5 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.241
4QDR Physical basis for Nrp2 ligand binding Deposited 2014-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 276–595（320 aa） Fragment：unp residues 276-595	Mutation：T319R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1 M HEPES, 18% (w/v) PEG 12000, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.255
4QDS Physical basis for Nrp2 ligand binding Deposited 2014-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 275–457（183 aa） Fragment：Proteolytic fragment of s9Nrp2 coagulation factor domains Chain B 275–457（183 aa） Fragment：Proteolytic fragment of s9Nrp2 coagulation factor domains	Not recorded	GOL GLYCEROL × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；10% PEG 1000, 10% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.264
5DN2 Human NRP2 b1 domain in complex with the peptide corresponding to the C-terminus of VEGF-A Deposited 2015-09-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 275–429（155 aa） Fragment：Neuropilin-2 domain B1 F5/8 type C 1, UNP residues 275-429	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；289 K；10% PEG20000, 0.1M Bicine, 2% v/v dioxane	Resolution 1.95 Å R-free 0.234
5DN2 Human NRP2 b1 domain in complex with the peptide corresponding to the C-terminus of VEGF-A Deposited 2015-09-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 275–429（155 aa） Fragment：Neuropilin-2 domain B1 F5/8 type C 1, UNP residues 275-429	Not recorded	DIO 1,4-DIETHYLENE DIOXIDE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；289 K；10% PEG20000, 0.1M Bicine, 2% v/v dioxane	Resolution 1.95 Å R-free 0.234
5DN2 Human NRP2 b1 domain in complex with the peptide corresponding to the C-terminus of VEGF-A Deposited 2015-09-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 275–429（155 aa） Fragment：Neuropilin-2 domain B1 F5/8 type C 1, UNP residues 275-429	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；289 K；10% PEG20000, 0.1M Bicine, 2% v/v dioxane	Resolution 1.95 Å R-free 0.234
5DN2 Human NRP2 b1 domain in complex with the peptide corresponding to the C-terminus of VEGF-A Deposited 2015-09-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 275–429（155 aa） Fragment：Neuropilin-2 domain B1 F5/8 type C 1, UNP residues 275-429	Not recorded	DIO 1,4-DIETHYLENE DIOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；289 K；10% PEG20000, 0.1M Bicine, 2% v/v dioxane	Resolution 1.95 Å R-free 0.234
5DQ0 Structure of human neuropilin-2 b1 domain with novel and unique zinc binding site Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 275–430（156 aa） Fragment：b1 domain, UNP residues 475-430	Not recorded	ZN ZINC ION × 3 CL CHLORIDE ION × 2 EDO 1,2-ETHANEDIOL × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289.15 K；25 % PEG 550 MME, 0.1 M MES pH 6.5, 0.01 M ZnSO4	Resolution 1.80 Å R-free 0.217
6GH8 Crystal structure of GP1 domain of Lujo virus in complex with the first CUB domain of neuropilin-2 Deposited 2018-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 27–146（120 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；0.03M glycyl-glycyl-glycine, 25.9% PEG 6000, 0.09M Bis-Tris Propane pH 9.5	Resolution 2.44 Å R-free 0.311
6GH8 Crystal structure of GP1 domain of Lujo virus in complex with the first CUB domain of neuropilin-2 Deposited 2018-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 27–146（120 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；0.03M glycyl-glycyl-glycine, 25.9% PEG 6000, 0.09M Bis-Tris Propane pH 9.5	Resolution 2.44 Å R-free 0.311
6TDB Neuropilin2-b1 domain in a complex with the C-terminal VEGFB167 peptide Deposited 2019-11-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 275–430（156 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 ACE ACETYL GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；N2b1-apo 0.05 M KCl, 0.01 M MgCl2 and 15 % (w/v) PEG600 N2b1/VEGFB167 0.1 M HEPES pH 7.5, 10 % (w/v) PEG4000, 20 % (w/v) isopropanol	Resolution 2.45 Å R-free 0.250
6TDB Neuropilin2-b1 domain in a complex with the C-terminal VEGFB167 peptide Deposited 2019-11-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 275–430（156 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 ACE ACETYL GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；N2b1-apo 0.05 M KCl, 0.01 M MgCl2 and 15 % (w/v) PEG600 N2b1/VEGFB167 0.1 M HEPES pH 7.5, 10 % (w/v) PEG4000, 20 % (w/v) isopropanol	Resolution 2.45 Å R-free 0.250
6TDB Neuropilin2-b1 domain in a complex with the C-terminal VEGFB167 peptide Deposited 2019-11-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 275–430（156 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；N2b1-apo 0.05 M KCl, 0.01 M MgCl2 and 15 % (w/v) PEG600 N2b1/VEGFB167 0.1 M HEPES pH 7.5, 10 % (w/v) PEG4000, 20 % (w/v) isopropanol	Resolution 2.45 Å R-free 0.250
6TDB Neuropilin2-b1 domain in a complex with the C-terminal VEGFB167 peptide Deposited 2019-11-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 275–430（156 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；N2b1-apo 0.05 M KCl, 0.01 M MgCl2 and 15 % (w/v) PEG600 N2b1/VEGFB167 0.1 M HEPES pH 7.5, 10 % (w/v) PEG4000, 20 % (w/v) isopropanol	Resolution 2.45 Å R-free 0.250
6TJT Neuropilin2-b1 domain in a complex with the C-terminal VEGFC peptide Deposited 2019-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 275–430（156 aa）	Not recorded	SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M NaOAc, 0.1 M HEPES pH 7.5, 12 % (w/v) PEG4000	Resolution 1.31 Å R-free 0.179
6TJT Neuropilin2-b1 domain in a complex with the C-terminal VEGFC peptide Deposited 2019-11-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 275–430（156 aa）	Not recorded	SO4 SULFATE ION × 4 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M NaOAc, 0.1 M HEPES pH 7.5, 12 % (w/v) PEG4000	Resolution 1.31 Å R-free 0.179
7M22 Cryo-EM structure of the HCMV pentamer bound by human neuropilin 2 Deposited 2021-03-15	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain N 23–595（573 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；Grid was blotted with a force of -6 for 3 seconds	Resolution 3.65 Å
7T4S CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with NRP2 and neutralizing fabs 8I21 and 13H11 Deposited 2021-12-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain F 1–864（864 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds before plunging	Resolution 3.10 Å
8IVW Crystal structure of NRP2 in complex with aNRP2-10 Fab fragment Deposited 2023-03-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 25–595（571 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；21% PEG1000, 0.1M Sodium citrate tribasic dihydrate pH 5.5, 0.05M Lithium sulfate monohydrate	Resolution 3.21 Å R-free 0.294
8IVW Crystal structure of NRP2 in complex with aNRP2-10 Fab fragment Deposited 2023-03-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 25–595（571 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；21% PEG1000, 0.1M Sodium citrate tribasic dihydrate pH 5.5, 0.05M Lithium sulfate monohydrate	Resolution 3.21 Å R-free 0.294
8IVW Crystal structure of NRP2 in complex with aNRP2-10 Fab fragment Deposited 2023-03-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 25–595（571 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；21% PEG1000, 0.1M Sodium citrate tribasic dihydrate pH 5.5, 0.05M Lithium sulfate monohydrate	Resolution 3.21 Å R-free 0.294
8IVW Crystal structure of NRP2 in complex with aNRP2-10 Fab fragment Deposited 2023-03-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 25–595（571 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；21% PEG1000, 0.1M Sodium citrate tribasic dihydrate pH 5.5, 0.05M Lithium sulfate monohydrate	Resolution 3.21 Å R-free 0.294
8IVX Crystal structure of NRP2 in complex with aNRP2-14 Fab fragment Deposited 2023-03-29	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 25–595（571 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；289 K；30% PEG300, 0.1M Sodium acetate trihydrate pH 4.5	Resolution 1.90 Å R-free 0.225

15 other PDB entries and 30 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NRP2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–573； UniProt 23–595

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2qqk
Deposition date deposition_date	2007-07-26
Structure title title	Neuropilin-2 a1a2b1b2 Domains in Complex with a Semaphorin-Blocking Fab
Keywords keywords	;VEGF receptor, semaphorin receptor, Phage-Derived Antibody, Developmental protein, Differentiation, Glycoprotein, Membrane, Neurogenesis, Transmembrane, HORMONE, SIGNALING PROTEIN ;; SIGNALING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	43.46 Å
Radius of gyration Rg (electron density) rg_electron	43.97 Å
Forward intensity I(0) i0	177942000.00
Molecular weight molecular_weight	108070.0 kDa
Excluded volume excluded_volume	134780 Å³
Envelope volume envelope_volume	192200 Å³
Hydration-shell volume shell_volume	39084 Å³
Envelope diameter envelope_diameter	162.4 Å
Shell Rg shell_rg	44.38 Å
Envelope Rg envelope_rg	43.78 Å
Shape Rg shape_rg	43.94 Å
Total Rg total_rg	44.08 Å
Total atoms total_atoms	7621
Residues n_residues	960
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

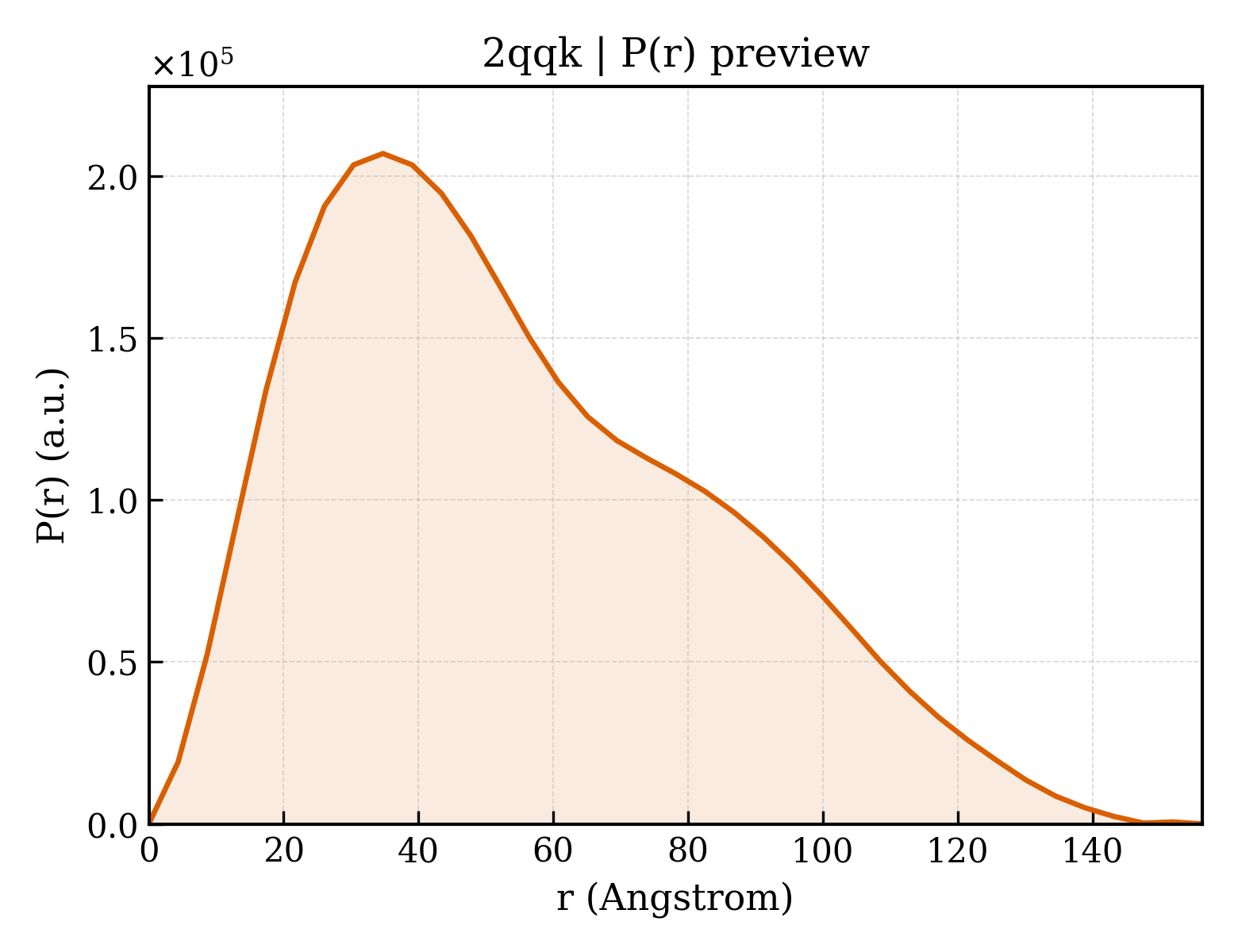

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	156.3 Å
Rg (real space) rg_real	44.05 Å
Rg uncertainty (real space) rg_real_error	2.35 Å
I(0) (real space) i0_real	1.7790e+08
I(0) uncertainty (real space) i0_real_error	3.5740e+06
Rg (reciprocal space) rg_reciprocal	43.47 Å
I(0) (reciprocal space) i0_reciprocal	177800000.0000
Solution quality estimate total_estimate	0.7519
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	34.7 Å
Skewness Skewness skewness	0.561
Kurtosis Kurtosis kurtosis	-0.449
Angular range angular_range	— – 0.1800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	12460000.0000
Real-space data points n_real_points	37
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.551; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.418; Smooth: 0.701

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Neuropilin-2
Molecular weight formula_weight	65385.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7621

QPDPPCGGRLNSKDAGYITSPGYPQDYPSHQNCEWIVYAPEPNQKIVLNFNPHFEIEKHDCKYDFIEIRDGDSESADLLGKHCGNIAPPTIISSGSMLYIKFTSDYARQGAGFSLRYEIFKTGSEDCSKNFTSPNGTIESPGFPEKYPHNLDCTFTILAKPKMEIILQFLIFDLEHDPLQVGEGDCKYDWLDIWDGIPHVGPLIGKYCGTKTPSELRSSTGILSLTFHTDMAVAKDGFSARYYLVHQEPLENFQCNVPLGMESGRIANEQISASSTYSDGRWTPQQSRLHGDDNGWTPNLDSNKEYLQVDLRFLTMLTAIATQGAISRETQNGYYVKSYKLEVSTNGEDWMVYRHGKNHKVFQANNDATEVVLNKLHAPLLTRFVRIRPQTWHSGIALRLELFGCRVTDAPCSNMLGMLSGLIADSQISASSTQEYLWSPSAARLVSSRSGWFPRIPQAQPGEEWLQVDLGTPKTVKGVIIQGARGGDSITAVEARAFVRKFKVSYSLNGKDWEYIQDPRTQQPKLFEGNMHYDTPDIRRFDPIPAQYVRVYPERWSPAGIGMRLEVLGCDWTHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Antibody Heavy Chain
Molecular weight formula_weight	24847.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EVQLVESGGGLVQPGGSLRLSCAASGFTISGYGIHWVRQAPGKGLEWVAYIYPDSGYTDYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCAREDFRNRRRLWYVMDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Antibody Light Chain
Molecular weight formula_weight	23342.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIQMTQSPSSLSASVGDRVTITCRASQDVSTAVAWYQQKPGKAPKLLIYSASFLYSGVPSRFSGSGSGTDFTLTISSLQPEDFATYYCQQAWAYLPTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

▼

7. Fold Classification (SCOP + CATH) 11 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d2qqkh1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.1 — V set domains (antibody variable domain-like)

Domain ID domain_id	d2qqkl1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d2qqkl2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (8 domains)

Domain ID domain_id	2qqkA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	290 — Spermadhesin, CUB domain

Domain ID domain_id	2qqkA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	290 — Spermadhesin, CUB domain

Domain ID domain_id	2qqkA03
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2qqkA04
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	260 — Galactose-binding domain-like

Domain ID domain_id	2qqkH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2qqkH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2qqkL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2qqkL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	148.277 Å
Unit-cell length b length_b	105.873 Å
Unit-cell length c length_c	92.400 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.83 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.750 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1890
R_work r_work	0.1860
R_free r_free	0.2430

fit	/app/data/saxs_computation/qq/2qqk/2qqk.fit
pddf	/app/data/pr_computation/qq/2qqk/2qqk.pr.out
profile	/app/data/saxs_computation/qq/2qqk/2qqk.dat
