SAXSdb — 6gh8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glycoprotein

Lujo mammarenavirus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 74–199	Not recorded	Neuropilin-2 × 1 （O60462） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；0.03M glycyl-glycyl-glycine, 25.9% PEG 6000, 0.09M Bis-Tris Propane pH 9.5	Resolution 2.44 Å R-free 0.311
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 74–199	Not recorded	Neuropilin-2 × 1 （O60462） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；0.03M glycyl-glycyl-glycine, 25.9% PEG 6000, 0.09M Bis-Tris Propane pH 9.5	Resolution 2.44 Å R-free 0.311

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6GH8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8P4T The spike complex of the Lujo Virus Deposited 2023-05-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Homooligomer；Protein × 9 PDB declaration: nonameric	Chain A 59–221（163 aa） Chain B 59–221（163 aa） Chain C 59–221（163 aa） Chain SA 1–58（58 aa） Chain SB 1–58（58 aa） Chain SC 1–58（58 aa） Chain a 222–454（233 aa） Chain b 222–454（233 aa） Chain c 222–454（233 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 21 NA SODIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.96 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	C5ILC1_9VIRU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 14–139； UniProt 74–199 Author chain D； PDBConstruct 14–139； UniProt 74–199

Neuropilin-2

Homo sapiens

UniProt O60462

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 27–146	Not recorded	Glycoprotein × 1 （C5ILC1） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；0.03M glycyl-glycyl-glycine, 25.9% PEG 6000, 0.09M Bis-Tris Propane pH 9.5	Resolution 2.44 Å R-free 0.311
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 27–146	Not recorded	Glycoprotein × 1 （C5ILC1） NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 9.5；293 K；0.03M glycyl-glycyl-glycine, 25.9% PEG 6000, 0.09M Bis-Tris Propane pH 9.5	Resolution 2.44 Å R-free 0.311

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 6GH8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2QQJ Crystal Structure of the b1b2 Domains from Human Neuropilin-2 Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 275–595（321 aa） Fragment：F5/8 type C 1 and C 2 domains	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；297 K；0.1 M Bis-Tris, 20% PEG 5000 MME, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 1.95 Å R-free 0.235
2QQK Neuropilin-2 a1a2b1b2 Domains in Complex with a Semaphorin-Blocking Fab Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 23–595（573 aa） Fragment：CUB 1, CUB2, F5/8 type C 1, and C2 domains	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 22% polyacrylic acid 5100, 0.02 M MgCl2, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.75 Å R-free 0.243
2QQK Neuropilin-2 a1a2b1b2 Domains in Complex with a Semaphorin-Blocking Fab Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 23–595（573 aa） Fragment：CUB 1, CUB2, F5/8 type C 1, and C2 domains	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 22% polyacrylic acid 5100, 0.02 M MgCl2, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.75 Å R-free 0.243
2QQL Neuropilin-2 a1a2b1b2 Domains in Complex with a Semaphorin-Blocking Fab Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 23–595（573 aa） Fragment：CUB 1, CUB2, F5/8 type C 1, and C2 domains	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；297 K；10% PEG 1000, 10% PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.10 Å R-free 0.232
2QQL Neuropilin-2 a1a2b1b2 Domains in Complex with a Semaphorin-Blocking Fab Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 23–595（573 aa） Fragment：CUB 1, CUB2, F5/8 type C 1, and C2 domains	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；297 K；10% PEG 1000, 10% PEG 8000, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.10 Å R-free 0.232
2QQO Crystal Structure of the a2b1b2 Domains from Human Neuropilin-2 Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 145–595（451 aa） Fragment：CUB 2, F5/8 type C 1, and F5/8 type C 2 domains	Not recorded	CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 1 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 10% PEG 8000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.30 Å R-free 0.239
2QQO Crystal Structure of the a2b1b2 Domains from Human Neuropilin-2 Deposited 2007-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 145–595（451 aa） Fragment：CUB 2, F5/8 type C 1, and F5/8 type C 2 domains	Not recorded	CA CALCIUM ION × 1 EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 10% PEG 8000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.30 Å R-free 0.239
2QQO Crystal Structure of the a2b1b2 Domains from Human Neuropilin-2 Deposited 2007-07-26	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 145–595（451 aa） Fragment：CUB 2, F5/8 type C 1, and F5/8 type C 2 domains Chain B 145–595（451 aa） Fragment：CUB 2, F5/8 type C 1, and F5/8 type C 2 domains	Not recorded	CA CALCIUM ION × 2 EDO 1,2-ETHANEDIOL × 6 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；297 K；0.1 M Hepes, 10% PEG 8000, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 2.30 Å R-free 0.239
4QDQ Physical basis for Nrp2 ligand binding Deposited 2014-05-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 276–595（320 aa） Fragment：Neuropilin-2 b1b2 domain, VEGF-C C-terminus	Not recorded	GOL GLYCEROL × 6 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M HEPES, 0.5 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.241
4QDQ Physical basis for Nrp2 ligand binding Deposited 2014-05-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 276–595（320 aa） Fragment：Neuropilin-2 b1b2 domain, VEGF-C C-terminus	Not recorded	GOL GLYCEROL × 2 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1 M HEPES, 0.5 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.95 Å R-free 0.241
4QDR Physical basis for Nrp2 ligand binding Deposited 2014-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 276–595（320 aa） Fragment：unp residues 276-595	Mutation：T319R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；0.1 M HEPES, 18% (w/v) PEG 12000, pH 7, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.255
4QDS Physical basis for Nrp2 ligand binding Deposited 2014-05-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 275–457（183 aa） Fragment：Proteolytic fragment of s9Nrp2 coagulation factor domains Chain B 275–457（183 aa） Fragment：Proteolytic fragment of s9Nrp2 coagulation factor domains	Not recorded	GOL GLYCEROL × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；10% PEG 1000, 10% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.40 Å R-free 0.264
5DN2 Human NRP2 b1 domain in complex with the peptide corresponding to the C-terminus of VEGF-A Deposited 2015-09-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 275–429（155 aa） Fragment：Neuropilin-2 domain B1 F5/8 type C 1, UNP residues 275-429	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；289 K；10% PEG20000, 0.1M Bicine, 2% v/v dioxane	Resolution 1.95 Å R-free 0.234
5DN2 Human NRP2 b1 domain in complex with the peptide corresponding to the C-terminus of VEGF-A Deposited 2015-09-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 275–429（155 aa） Fragment：Neuropilin-2 domain B1 F5/8 type C 1, UNP residues 275-429	Not recorded	DIO 1,4-DIETHYLENE DIOXIDE × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；289 K；10% PEG20000, 0.1M Bicine, 2% v/v dioxane	Resolution 1.95 Å R-free 0.234
5DN2 Human NRP2 b1 domain in complex with the peptide corresponding to the C-terminus of VEGF-A Deposited 2015-09-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 275–429（155 aa） Fragment：Neuropilin-2 domain B1 F5/8 type C 1, UNP residues 275-429	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；289 K；10% PEG20000, 0.1M Bicine, 2% v/v dioxane	Resolution 1.95 Å R-free 0.234
5DN2 Human NRP2 b1 domain in complex with the peptide corresponding to the C-terminus of VEGF-A Deposited 2015-09-09	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 275–429（155 aa） Fragment：Neuropilin-2 domain B1 F5/8 type C 1, UNP residues 275-429	Not recorded	DIO 1,4-DIETHYLENE DIOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；289 K；10% PEG20000, 0.1M Bicine, 2% v/v dioxane	Resolution 1.95 Å R-free 0.234
5DQ0 Structure of human neuropilin-2 b1 domain with novel and unique zinc binding site Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 275–430（156 aa） Fragment：b1 domain, UNP residues 475-430	Not recorded	ZN ZINC ION × 3 CL CHLORIDE ION × 2 EDO 1,2-ETHANEDIOL × 2 MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；289.15 K；25 % PEG 550 MME, 0.1 M MES pH 6.5, 0.01 M ZnSO4	Resolution 1.80 Å R-free 0.217
6TDB Neuropilin2-b1 domain in a complex with the C-terminal VEGFB167 peptide Deposited 2019-11-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 275–430（156 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 ACE ACETYL GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；N2b1-apo 0.05 M KCl, 0.01 M MgCl2 and 15 % (w/v) PEG600 N2b1/VEGFB167 0.1 M HEPES pH 7.5, 10 % (w/v) PEG4000, 20 % (w/v) isopropanol	Resolution 2.45 Å R-free 0.250
6TDB Neuropilin2-b1 domain in a complex with the C-terminal VEGFB167 peptide Deposited 2019-11-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 275–430（156 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 ACE ACETYL GROUP × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；N2b1-apo 0.05 M KCl, 0.01 M MgCl2 and 15 % (w/v) PEG600 N2b1/VEGFB167 0.1 M HEPES pH 7.5, 10 % (w/v) PEG4000, 20 % (w/v) isopropanol	Resolution 2.45 Å R-free 0.250
6TDB Neuropilin2-b1 domain in a complex with the C-terminal VEGFB167 peptide Deposited 2019-11-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 275–430（156 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；N2b1-apo 0.05 M KCl, 0.01 M MgCl2 and 15 % (w/v) PEG600 N2b1/VEGFB167 0.1 M HEPES pH 7.5, 10 % (w/v) PEG4000, 20 % (w/v) isopropanol	Resolution 2.45 Å R-free 0.250
6TDB Neuropilin2-b1 domain in a complex with the C-terminal VEGFB167 peptide Deposited 2019-11-08	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 275–430（156 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；N2b1-apo 0.05 M KCl, 0.01 M MgCl2 and 15 % (w/v) PEG600 N2b1/VEGFB167 0.1 M HEPES pH 7.5, 10 % (w/v) PEG4000, 20 % (w/v) isopropanol	Resolution 2.45 Å R-free 0.250
6TJT Neuropilin2-b1 domain in a complex with the C-terminal VEGFC peptide Deposited 2019-11-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 275–430（156 aa）	Not recorded	SO4 SULFATE ION × 2 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M NaOAc, 0.1 M HEPES pH 7.5, 12 % (w/v) PEG4000	Resolution 1.31 Å R-free 0.179
6TJT Neuropilin2-b1 domain in a complex with the C-terminal VEGFC peptide Deposited 2019-11-26	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 275–430（156 aa）	Not recorded	SO4 SULFATE ION × 4 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1 M NaOAc, 0.1 M HEPES pH 7.5, 12 % (w/v) PEG4000	Resolution 1.31 Å R-free 0.179
7M22 Cryo-EM structure of the HCMV pentamer bound by human neuropilin 2 Deposited 2021-03-15	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain N 23–595（573 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；Grid was blotted with a force of -6 for 3 seconds	Resolution 3.65 Å
7T4S CryoEM structure of the HCMV Pentamer gH/gL/UL128/UL130/UL131A in complex with NRP2 and neutralizing fabs 8I21 and 13H11 Deposited 2021-12-10	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain F 1–864（864 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9 CA CALCIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE；blot for 3.5 seconds before plunging	Resolution 3.10 Å
8IVW Crystal structure of NRP2 in complex with aNRP2-10 Fab fragment Deposited 2023-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 25–595（571 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；21% PEG1000, 0.1M Sodium citrate tribasic dihydrate pH 5.5, 0.05M Lithium sulfate monohydrate	Resolution 3.21 Å R-free 0.294
8IVW Crystal structure of NRP2 in complex with aNRP2-10 Fab fragment Deposited 2023-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 25–595（571 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；21% PEG1000, 0.1M Sodium citrate tribasic dihydrate pH 5.5, 0.05M Lithium sulfate monohydrate	Resolution 3.21 Å R-free 0.294
8IVW Crystal structure of NRP2 in complex with aNRP2-10 Fab fragment Deposited 2023-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 25–595（571 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；21% PEG1000, 0.1M Sodium citrate tribasic dihydrate pH 5.5, 0.05M Lithium sulfate monohydrate	Resolution 3.21 Å R-free 0.294
8IVW Crystal structure of NRP2 in complex with aNRP2-10 Fab fragment Deposited 2023-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain J 25–595（571 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；21% PEG1000, 0.1M Sodium citrate tribasic dihydrate pH 5.5, 0.05M Lithium sulfate monohydrate	Resolution 3.21 Å R-free 0.294
8IVX Crystal structure of NRP2 in complex with aNRP2-14 Fab fragment Deposited 2023-03-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 25–595（571 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；289 K；30% PEG300, 0.1M Sodium acetate trihydrate pH 4.5	Resolution 1.90 Å R-free 0.225

15 other PDB entries and 30 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NRP2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 6–125； UniProt 27–146 Author chain C； PDBConstruct 6–125； UniProt 27–146

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	6gh8
Deposition date deposition_date	2018-05-06
Structure title title	Crystal structure of GP1 domain of Lujo virus in complex with the first CUB domain of neuropilin-2
Keywords keywords	Viral Glycoprotein, receptor recognition, viral protein; VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	45.54 Å
Radius of gyration Rg (electron density) rg_electron	45.26 Å
Forward intensity I(0) i0	44368800.00
Molecular weight molecular_weight	53378.0 kDa
Excluded volume excluded_volume	66093 Å³
Envelope volume envelope_volume	112360 Å³
Hydration-shell volume shell_volume	20417 Å³
Envelope diameter envelope_diameter	125.3 Å
Shell Rg shell_rg	53.40 Å
Envelope Rg envelope_rg	41.62 Å
Shape Rg shape_rg	45.25 Å
Total Rg total_rg	45.68 Å
Total atoms total_atoms	3760
Residues n_residues	460
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	128.5 Å
Rg (real space) rg_real	45.72 Å
Rg uncertainty (real space) rg_real_error	1.02 Å
I(0) (real space) i0_real	4.4370e+07
I(0) uncertainty (real space) i0_real_error	7.5100e+05
Rg (reciprocal space) rg_reciprocal	45.55 Å
I(0) (reciprocal space) i0_reciprocal	44360000.0000
Solution quality estimate total_estimate	0.3448
Solution quality rating solution_quality	SUSPICIOUS a SUSPICIOUS solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	84.4 Å
Skewness Skewness skewness	-0.059
Kurtosis Kurtosis kurtosis	-1.475
Angular range angular_range	— – 0.1750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1069000.0000
Real-space data points n_real_points	36
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.024; Stabil: 0.998; Sysdev: 0.062; Positv: 1.000; Valcen: 0.224; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Glycoprotein
Molecular weight formula_weight	16021.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,B
Atom count atom_count	3801

ADLGSHHHHHHGGMSLLSSIPMVSEQQHCIQHNHSSITFSLLTNKSDLEKCNFTRLQAVDRVIFDLFREFHHRVGDFPVTSDLKCSHNTSYRVIEYEVTKESLPRLQEAVSTLFPDLHLSEDRFLQIQAHDDKNCTGLH

来源 Source

来源生物 organism	Lujo mammarenavirus
NCBI Class编号 ncbi_taxonomy_id	649188
宿主生物 host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Neuropilin-2
Molecular weight formula_weight	14914.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C

ADLGSPCGGRLNSKDAGYITSPGYPQDYPSHQNCEWIVYAPEPNQKIVLNFNPHFEIEKHDCKYDFIEIRDGDSESADLLGKHCGNIAPPTIISSGSMLYIRFTSDYARQGAGFSLRYEIFKTGSGTHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Trichoplusia ni

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	41

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	6gh8A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	290 — Spermadhesin, CUB domain

Domain ID domain_id	6gh8C00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	290 — Spermadhesin, CUB domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	141.808 Å
Unit-cell length b length_b	59.294 Å
Unit-cell length c length_c	83.567 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	2.440 Å
Low-resolution limit resolution_low	71.996 Å
R factor r_factor	0.2679
R_work r_work	0.2656
R_free r_free	0.3115

fit	/app/data/saxs_computation/gh/6gh8/6gh8.fit
pddf	/app/data/pr_computation/gh/6gh8/6gh8.pr.out
profile	/app/data/saxs_computation/gh/6gh8/6gh8.dat

Crystal structure of GP1 domain of Lujo virus in complex with the first CUB domain of neuropilin-2

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glycoprotein

State in the Current Structure

Other States of the Same Protein in the Database

Neuropilin-2

State in the Current Structure

Other States of the Same Protein in the Database

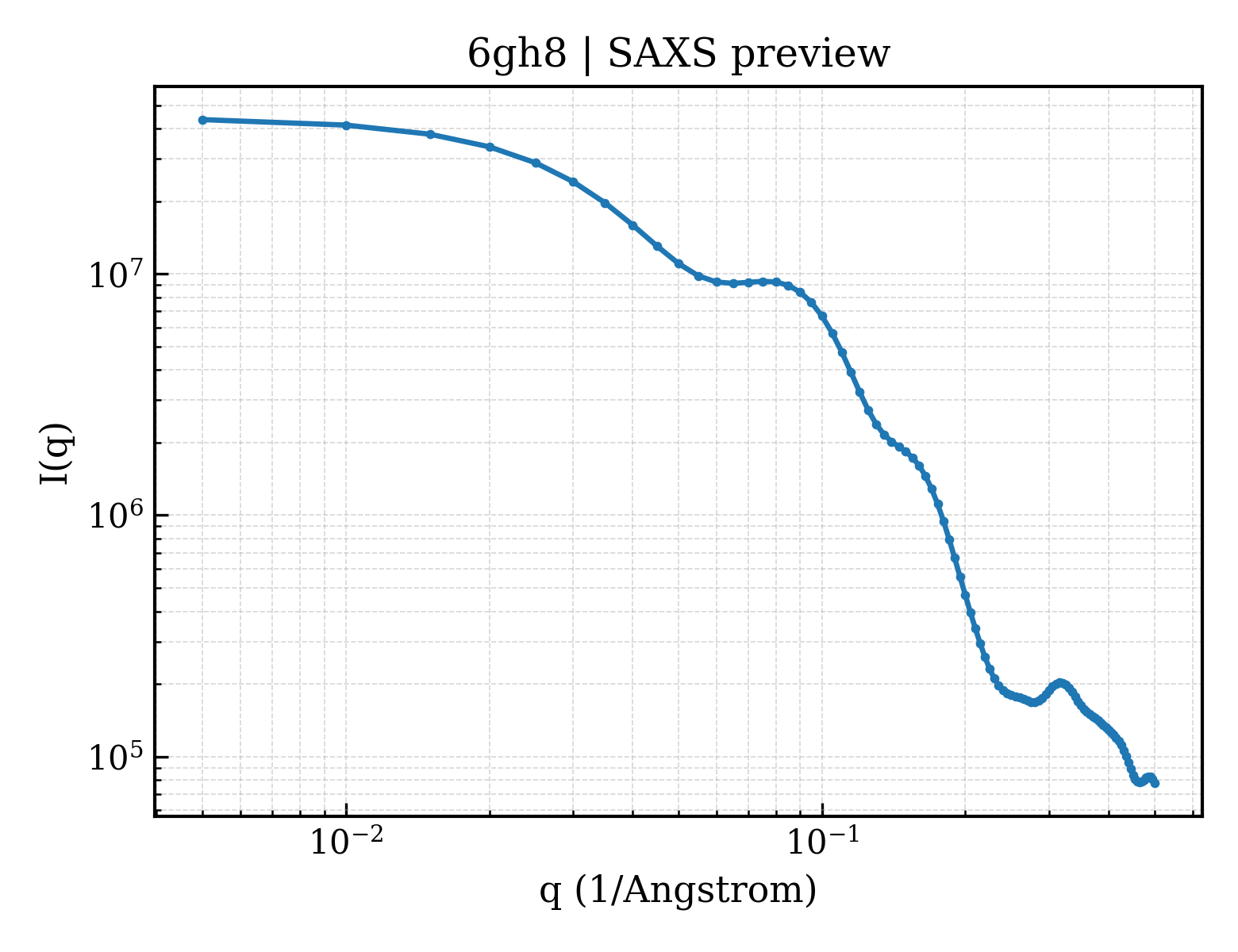

SAXS scattering curve SAXS Profile

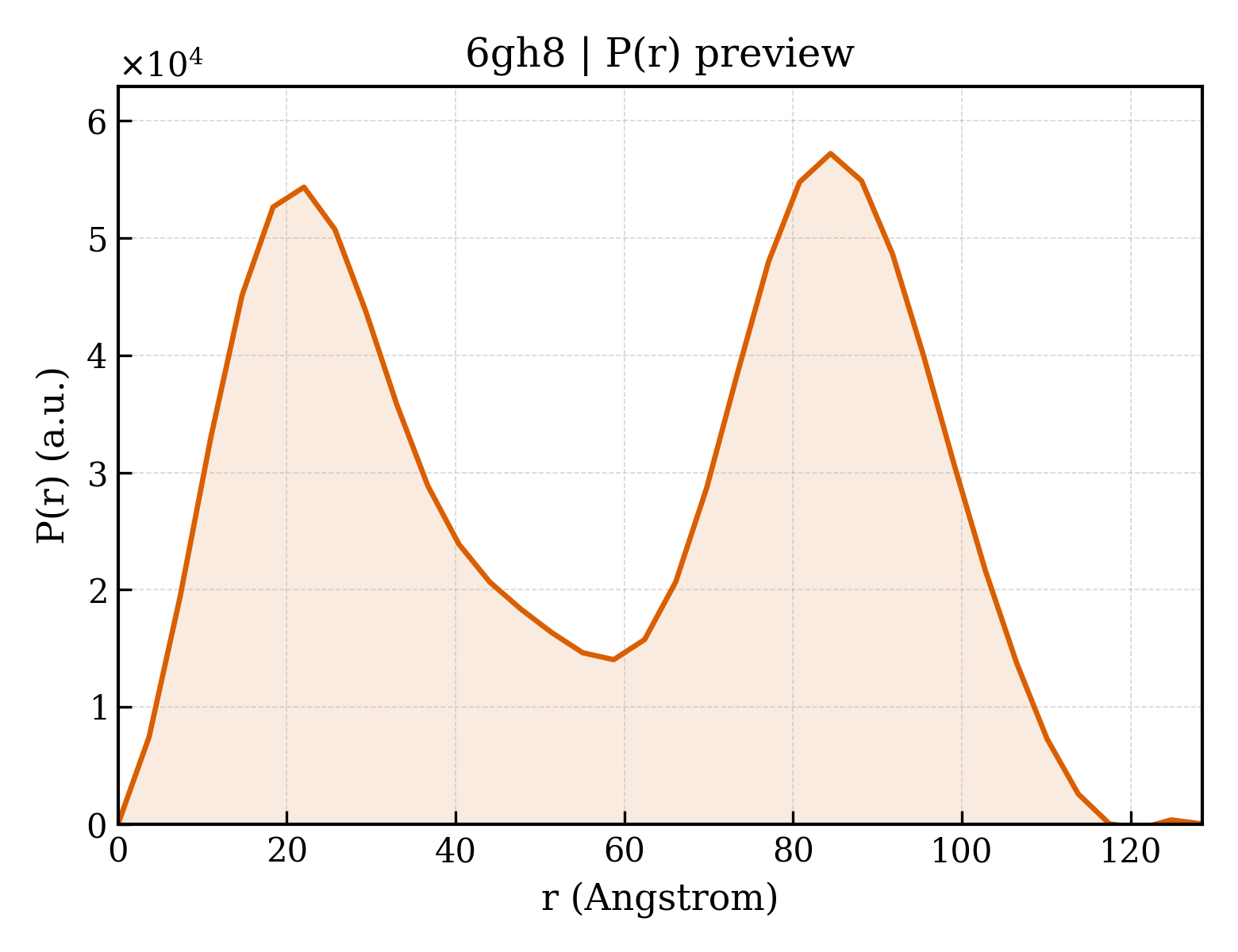

P(r) Distance Distribution P(r) Distribution
