8thd

Structure of the Saccharomyces cerevisiae clamp unloader Elg1-RFC bound to PCNA

Method: ELECTRON MICROSCOPY D_max: 140.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8thd
沉积日期 deposition_date	2023-07-14
结构标题 title	Structure of the Saccharomyces cerevisiae clamp unloader Elg1-RFC bound to PCNA
关键词 keywords	DNA replication, DNA sliding clamp, PCNA clamp, clamp loader/unloader, Elg1-RFC unloader, REPLICATION; REPLICATION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.84 Å
回转半径 Rg (电子) rg_electron	45.40 Å
零角强度 I(0) i0	1199400000.00
分子量 molecular_weight	290690.0 kDa
排除体积 excluded_volume	365690 Å³
包络体积 envelope_volume	514490 Å³
水化壳体积 shell_volume	90931 Å³
包络直径 envelope_diameter	143.4 Å
壳层 Rg shell_rg	53.22 Å
包络 Rg envelope_rg	44.30 Å
形状 Rg shape_rg	45.42 Å
总 Rg total_rg	45.62 Å
总原子数 total_atoms	20396
残基数 n_residues	2553
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

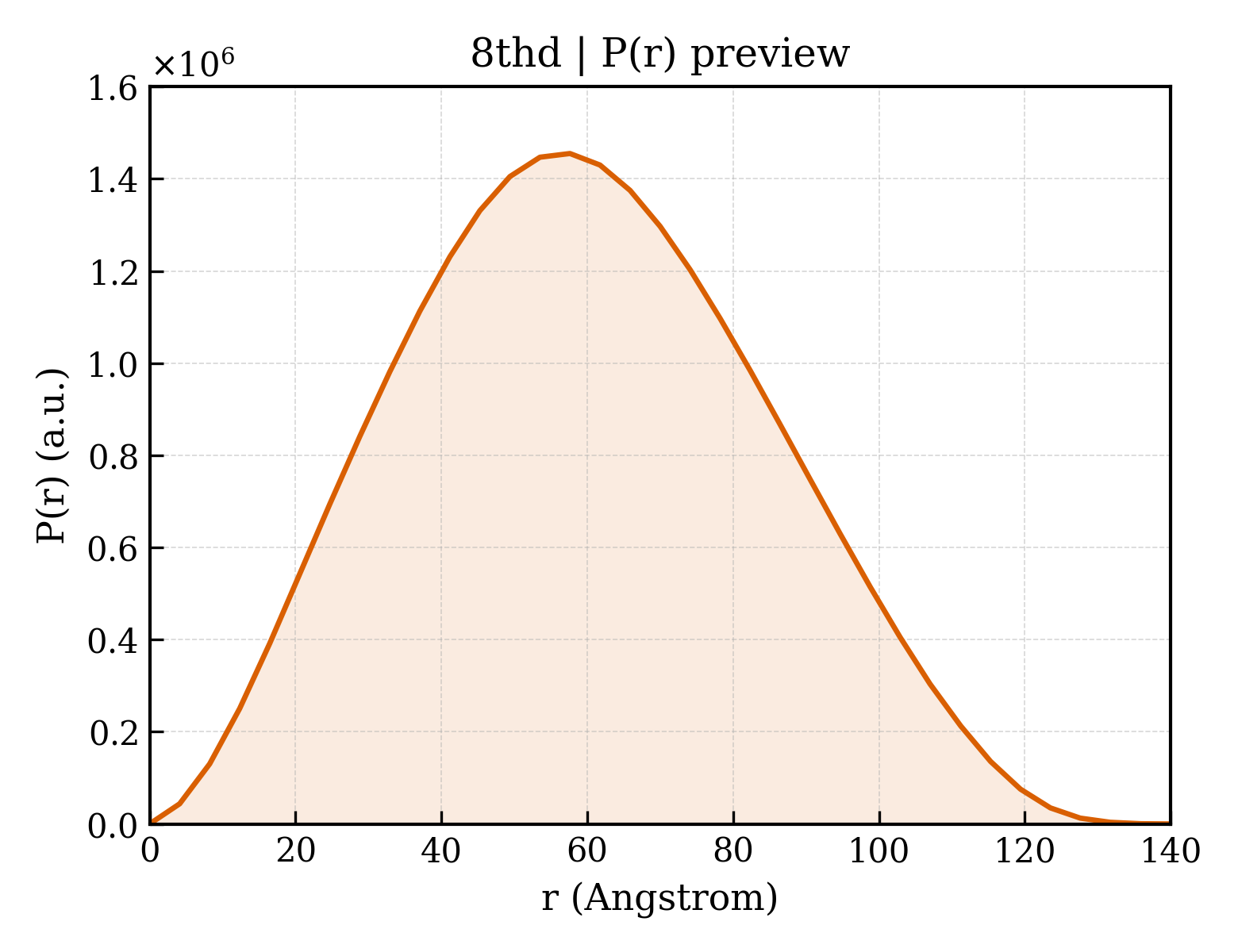

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	140.0 Å
Rg (实空间) rg_real	45.60 Å
Rg 误差 (实空间) rg_real_error	0.87 Å
I(0) (实空间) i0_real	1.1990e+09
I(0) 误差 (实空间) i0_real_error	1.9300e+07
Rg (倒空间) rg_reciprocal	45.84 Å
I(0) (倒空间) i0_reciprocal	1200000000.0000
解质量估计 total_estimate	0.8819
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	57.6 Å
偏度 Skewness skewness	0.147
峰度 Kurtosis kurtosis	-0.555
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	121000000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.958; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.608

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	ELG1 isoform 1
分子量 formula_weight	91391.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	20396

MKRHVSLSDILTGNKRKVRRQDALQITIDDENDTESGTFDARTAKHDDSSVIFLNHSVVKPIEAVSTNHKSAKEFLMTKRTKEKCDDDDDDLIVISDKSPKSETNCSKIALSQEHEDDISIISTSRIKSSLLNERASKIKNFLKHETTDTFKRLNSISKLNEIEPPLPLHQSIFPVGDKELSDRSVDIPLPFRTIPPLNHNFLPSDYESLKDKNSASCIPVRYQAPVLLGTNIKRNTTLTWPQLFKPVTLKQVLIEPKLKLRIKNWIETSFHTLEKPTLRNRLLNRINPNKQQGSGDELANFIVPDLEEDENLRPDFYRNGEANSSLSEFVPLMILHGNSIGKKTLIQTIMREIAGDDNSYQIYEVNSNMNRSKKDLLDILLDFTTTHYVKDSSKRKSDYGLVLFNDVDVLFKEHDRGYWAMISKLCEFSRRPLVLTCKDLSLVPSELIALASEQNSLFHTKKISTSTVYAFLTKYLKSLEIEVCDDWLRDVVKQNNADIRKCLMHLQFWCVDTEADLISSKNRLPVLTSTLGSSVKDISQLTDLLSINDVIGQATLNRSMVRQEIDSTTMTPEKVNTFQDQNLDDEMKLKFDYVIDYKLHLNDPNRQPLLPFELNIYQHIQEQLEARYSYVREANHRLDNEYLVNRFKKMTESTLNFLASRIPKYDHLQSARRTRNSKKISDILNQFKGIYNDETLNENAEIDLLSATTQQIKAEINPFVFEIAKSDANVKNENKQIFELHSENVSERRYKDLVYQLSQEGVLKNVWFNADPSIVVRKWEHLHSGFSKNK

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 2 polymer

描述 description	Replication factor C subunit 4
分子量 formula_weight	36201.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MSKTLSLQLPWVEKYRPQVLSDIVGNKETIDRLQQIAKDGNMPHMIISGMPGIGKTTSVHCLAHELLGRSYADGVLELNASDDRGIDVVRNQIKHFAQKKLHLPPGKHKIVILDEADSMTAGAQQALRRTMELYSNSTRFAFACNQSNKIIEPLQSRCAILRYSKLSDEDVLKRLLQIIKLEDVKYTNDGLEAIIFTAEGDMRQAINNLQSTVAGHGLVNADNVFKIVDSPHPLIVKKMLLASNLEDSIQILRTDLWKKGYSSIDIVTTSFRVTKNLAQVKESVRLEMIKEIGLTHMRILEGVGTYLQLASMLAKIHKLNNKA

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 3 polymer

描述 description	Replication factor C subunit 3
分子量 formula_weight	37841.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MSTSTEKRSKENLPWVEKYRPETLDEVYGQNEVITTVRKFVDEGKLPHLLFYGPPGTGKTSTIVALAREIYGKNYSNMVLELNASDDRGIDVVRNQIKDFASTRQIFSKGFKLIILDEADAMTNAAQNALRRVIERYTKNTRFCVLANYAHKLTPALLSRCTRFRFQPLPQEAIERRIANVLVHEKLKLSPNAEKALIELSNGDMRRVLNVLQSCKATLDNPDEDEISDDVIYECCGAPRPSDLKAVLKSILEDDWGTAHYTLNKVRSAKGLALIDLIEGIVKILEDYELQNEETRVHLLTKLADIEYSISKGGNDQIQGSAVIGAIKASFENETV

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 4 polymer

描述 description	Replication factor C subunit 2
分子量 formula_weight	39794.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MFEGFGPNKKRKISKLAAEQSLAQQPWVEKYRPKNLDEVTAQDHAVTVLKKTLKSANLPHMLFYGPPGTGKTSTILALTKELYGPDLMKSRILELNASDERGISIVREKVKNFARLTVSKPSKHDLENYPCPPYKIIILDEADSMTADAQSALRRTMETYSGVTRFCLICNYVTRIIDPLASRCSKFRFKALDASNAIDRLRFISEQENVKCDDGVLERILDISAGDLRRGITLLQSASKGAQYLGDGKNITSTQVEELAGVVPHDILIEIVEKVKSGDFDEIKKYVNTFMKSGWSAASVVNQLHEYYITNDNFDTNFKNQISWLLFTTDSRLNNGTNEHIQLLNLLVKISQL

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 5 polymer

描述 description	Replication factor C subunit 5
分子量 formula_weight	39993.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MSLWVDKYRPKSLNALSHNEELTNFLKSLSDQPRDLPHLLLYGPNGTGKKTRCMALLESIFGPGVYRLKIDVRQFVTASNRKLELNVVSSPYHLEITPSDMGNNDRIVIQELLKEVAQMEQVDFQDSKDGLAHRYKCVIINEANSLTKDAQAALRRTMEKYSKNIRLIMVCDSMSPIIAPIKSRCLLIRCPAPSDSEISTILSDVVTNERIQLETKDILKRIAQASNGNLRVSLLMLESMALNNELALKSSSPIIKPDWIIVIHKLTRKIVKERSVNSLIECRAVLYDLLAHCIPANIILKELTFSLLDVETLNTTNKSSIIEYSSVFDERLSLGNKAIFHLEGFIAKVMCCLD

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 6 polymer

描述 description	Proliferating cell nuclear antigen
分子量 formula_weight	29102.2 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,G,H

ASMLEAKFEEASLFKRIIDGFKDCVQLVNFQCKEDGIIAQAVDDSRVLLVSLEIGVEAFQEYRCDHPVTLGMDLTSLSKILRCGNNTDTLTLIADNTPDSIILLFEDTKKDRIAEYSLKLMDIDADFLKIEELQYDSTLSLPSSEFSKIVRDLSQLSDSINIMITKETIKFVADGDIGSGSVIIKPFVDMEHPETSIKLEMDQPVDLTFGAKYLLDIIKGSSLSDRVGIRLSSEAPALFQFDLKSGFLQFFLAPKFNDEE

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;baker's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 7 non-polymer

描述 description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
分子量 formula_weight	523.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 8 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 9 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.25 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	173929

fit	/app/data/saxs_computation/th/8thd/8thd.fit
pddf	/app/data/pr_computation/th/8thd/8thd.pr.out
profile	/app/data/saxs_computation/th/8thd/8thd.dat
