8tk3

;HUMAN VH1-RELATED DUAL-SPECIFICITY PHOSPHATASE (VHR) having oxidized catalytic cysteine and complexed with 6-(difluoromethyl)pyrimidin-4-ol at two allosteric sites ;

Method: X-RAY DIFFRACTION D_max: 55.9 Å Quality: GOOD

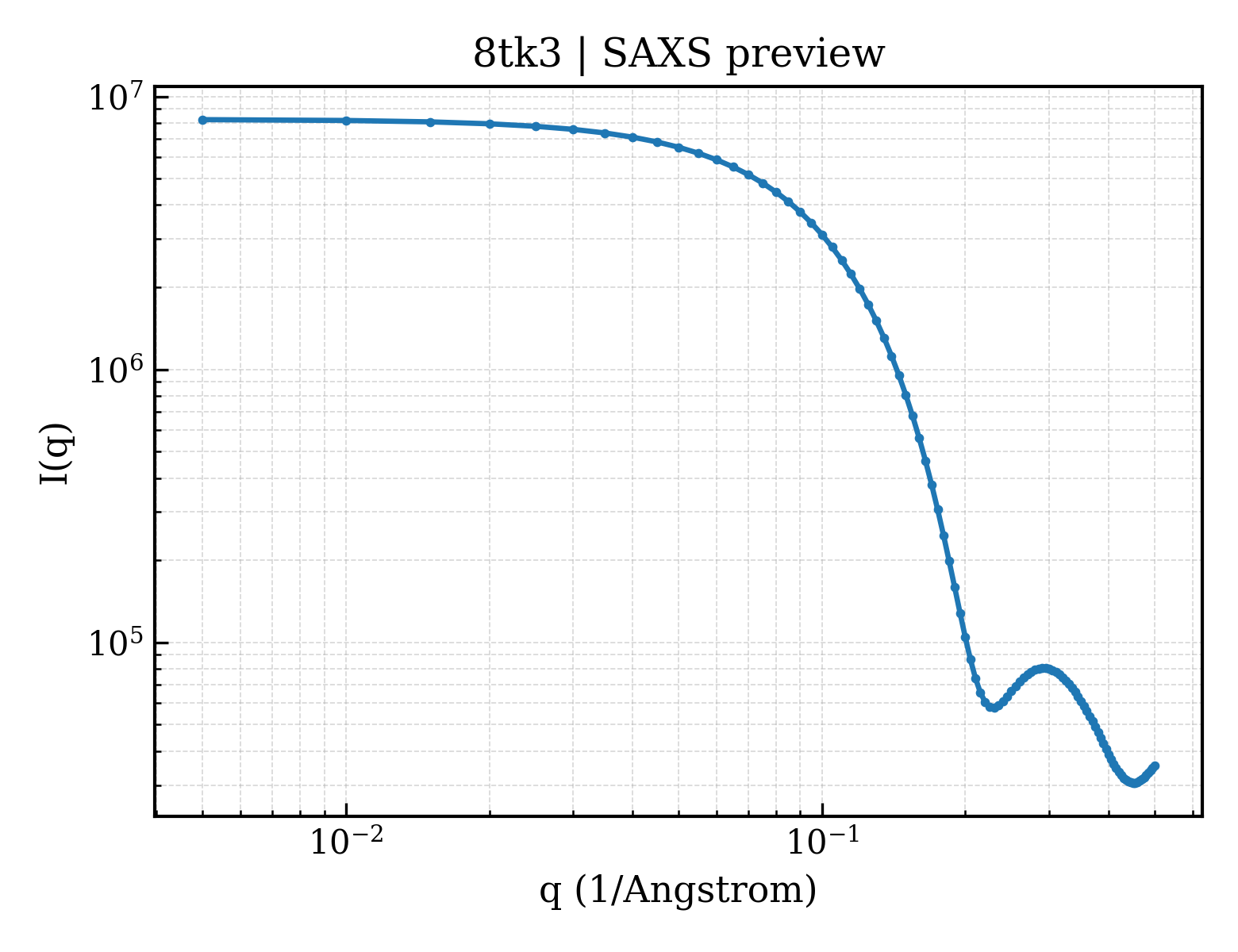

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8tk3
沉积日期 deposition_date	2023-07-25
结构标题 title	;HUMAN VH1-RELATED DUAL-SPECIFICITY PHOSPHATASE (VHR) having oxidized catalytic cysteine and complexed with 6-(difluoromethyl)pyrimidin-4-ol at two allosteric sites ;
关键词 keywords	PROTEIN DUAL-SPECIFICITY PHOSPHATASE, VHR, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	16.82 Å
回转半径 Rg (电子) rg_electron	15.55 Å
零角强度 I(0) i0	8240960.00
分子量 molecular_weight	20384.0 kDa
排除体积 excluded_volume	25260 Å³
包络体积 envelope_volume	28086 Å³
水化壳体积 shell_volume	15097 Å³
包络直径 envelope_diameter	55.2 Å
壳层 Rg shell_rg	21.65 Å
包络 Rg envelope_rg	15.97 Å
形状 Rg shape_rg	15.53 Å
总 Rg total_rg	16.65 Å
总原子数 total_atoms	1433
残基数 n_residues	178
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	55.9 Å
Rg (实空间) rg_real	16.72 Å
Rg 误差 (实空间) rg_real_error	0.39 Å
I(0) (实空间) i0_real	8.2410e+06
I(0) 误差 (实空间) i0_real_error	1.0440e+05
Rg (倒空间) rg_reciprocal	16.73 Å
I(0) (倒空间) i0_reciprocal	8241000.0000
解质量估计 total_estimate	0.7913
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	22.5 Å
偏度 Skewness skewness	0.159
峰度 Kurtosis kurtosis	-0.317
角度范围 angular_range	— – 0.4750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	1850000.0000
实空间数据点数 n_real_points	78
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.764; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Dual specificity protein phosphatase 3
分子量 formula_weight	20315.0 kDa
EC 编号 ec_number	3.1.3.16,3.1.3.48
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	1589

GSFELSVQDLNDLLSDGSGCYSLPSQPCNEVTPRIYVGNASVAQDIPKLQKLGITHVLNAAEGRSFMHVNTNANFYKDSGITYLGIKANDTQEFNLSAYFERAADFIDQALAQKNGRVLVHCREGYSRSPTLVIAYLMMRQKMDVKSALSIVRQNREIGPNDGFLAQLCQLNDRLAKEGKLKP

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	6-(difluoromethyl)pyrimidin-4-ol
分子量 formula_weight	146.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	DIMETHYL SULFOXIDE
分子量 formula_weight	78.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	106

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	34.133 Å
晶胞边长 b length_b	52.467 Å
晶胞边长 c length_c	100.493 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.000 Å
最低分辨率 resolution_low	40.250 Å
R 因子 r_factor	0.1897
R_work r_work	0.1862
R_free r_free	0.2554
