SAXSdb — 8ua1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cell division control protein 48

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 7 PDB declaration: heptameric（7） Consistent with protein copy count	Chain A； UniProt 1–835 Chain B； UniProt 1–835 Chain C； UniProt 1–835 Chain D； UniProt 1–835 Chain E； UniProt 1–835 Chain F； UniProt 1–835	Not recorded	Substrate × 1 08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 7 MG MAGNESIUM ION × 7 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.40 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8UA1	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6OA9 Cdc48-Npl4 complex processing poly-ubiquitinated substrate in the presence of ATP Deposited 2019-03-15	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 9 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；Waited 20 seconds before blotting for 2.5-3 seconds.	Resolution 3.90 Å
6OAA Cdc48-Npl4 complex processing poly-ubiquitinated substrate in the presence of ADP-BeFx, state 1 Deposited 2019-03-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 8 BEF BERYLLIUM TRIFLUORIDE ION × 6	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；Waited 20 seconds before blotting for 2.5-3 seconds.	Resolution 4.10 Å
6OAB Cdc48-Npl4 complex processing poly-ubiquitinated substrate in the presence of ADP-BeFx, state 2 Deposited 2019-03-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 10 BEF BERYLLIUM TRIFLUORIDE ION × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE；Waited 20 seconds before blotting for 2.5-3 seconds.	Resolution 3.60 Å
6OMB Cdc48 Hexamer (Subunits A to E) with substrate bound to the central pore Deposited 2019-04-18	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 10 BEF BERYLLIUM TRIFLUORIDE ION × 8 MG MAGNESIUM ION × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
6OPC Cdc48 Hexamer in a complex with substrate and Shp1(Ubx Domain) Deposited 2019-04-24	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 10 BEF BERYLLIUM TRIFLUORIDE ION × 8 MG MAGNESIUM ION × 8	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8DAR Saccharomyces cerevisiae Ufd1/Npl4/Cdc48 complex unbound but in the presence of SUMO-ubiquitin(K48polyUb)-mEOS and ATP Deposited 2022-06-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 6 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 150 mM NaCl, 0.1 mM TCEP, 1 mM MgCl2, 5 mM ATP. Added 0.05% CHAPSO before vitrification. cryo-EM vitrification conditions Cryogen ETHANE；8 s wait, 4 s blot before plunging	Resolution 3.00 Å
8DAS Saccharomyces cerevisiae Ufd1/Npl4/Cdc48 complex bound to two ubiquitin moieties in presence of SUMO-ubiquitin(K48polyUb)-mEOS and ATP, state 1 (intA) Deposited 2022-06-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 150 mM NaCl, 0.1 mM TCEP, 1 mM MgCl2, 5 mM ATP. Added 0.05% CHAPSO before vitrification. cryo-EM vitrification conditions Cryogen ETHANE；8 s wait, 4 s blot before plunging	Resolution 3.50 Å
8DAT Saccharomyces cerevisiae Ufd1/Npl4/Cdc48 complex bound to three ubiquitin moieties in presence of SUMO-ubiquitin(K48polyUb)-mEOS and ATP, state 1 (intB) Deposited 2022-06-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 150 mM NaCl, 0.1 mM TCEP, 1 mM MgCl2, 5 mM ATP. Added 0.05% CHAPSO before vitrification. cryo-EM vitrification conditions Cryogen ETHANE；8 s wait, 4 s blot before plunging	Resolution 3.80 Å
8DAU Saccharomyces cerevisiae Ufd1/Npl4/Cdc48 complex bound to two folded ubiquitin moieties and one unfolded ubiquitin in presence of SUMO-ubiquitin(K48polyUb)-mEOS and ATP, state 1 (uA) Deposited 2022-06-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 150 mM NaCl, 0.1 mM TCEP, 1 mM MgCl2, 5 mM ATP. Added 0.05% CHAPSO before vitrification. cryo-EM vitrification conditions Cryogen ETHANE；8 s wait, 4 s blot before plunging	Resolution 3.70 Å
8DAV Saccharomyces cerevisiae Ufd1/Npl4/Cdc48 complex bound to two ubiquitin moieties and one unfolded ubiquitin in presence of SUMO-ubiquitin(K48polyUb)-mEOS and ATP, state 2 (uC) Deposited 2022-06-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 11 PDB declaration: undecameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 150 mM NaCl, 0.1 mM TCEP, 1 mM MgCl2, 5 mM ATP. Added 0.05% CHAPSO before vitrification. cryo-EM vitrification conditions Cryogen ETHANE；8 s wait, 4 s blot before plunging	Resolution 3.50 Å
8DAW Saccharomyces cerevisiae Ufd1/Npl4/Cdc48 complex bound to three ubiquitin moieties and one unfolded ubiquitin in presence of SUMO-ubiquitin(K48polyUb)-mEOS and ATP, state 2 (uD) Deposited 2022-06-14	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 5 ADP ADENOSINE-5'-DIPHOSPHATE × 7 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8；20 mM HEPES pH 8.0, 150 mM NaCl, 0.1 mM TCEP, 1 mM MgCl2, 5 mM ATP. Added 0.05% CHAPSO before vitrification. cryo-EM vitrification conditions Cryogen ETHANE；8 s wait, 4 s blot before plunging	Resolution 3.60 Å
8U7T Substrate-bound Cdc48, Class 1 Deposited 2023-09-15	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 8 MG MAGNESIUM ION × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8U8I Cdc48-Shp1 unfolding native substrate, Class 4 Deposited 2023-09-18	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 8 MG MAGNESIUM ION × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8U9C Cdc48-Shp1 unfolding native substrate, Class 5 Deposited 2023-09-19	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 8 MG MAGNESIUM ION × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å
8U9P Cdc48-Shp1 unfolding native substrate, Class 2 Deposited 2023-09-19	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 8 MG MAGNESIUM ION × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
8U9Q Cdc48-Shp1 unfolding native substrate, Class 6 Deposited 2023-09-19	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 6 MG MAGNESIUM ION × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
8U9Z Cdc48-Shp1 unfolding native substrate, Class 7 Deposited 2023-09-20	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 6 MG MAGNESIUM ION × 6 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.80 Å
8UA0 Cdc48-Shp1 unfolding native substrate, Class 8 Deposited 2023-09-20	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 7 MG MAGNESIUM ION × 7 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.50 Å
8UAA Cdc48-Shp1 unfolding native substrate, Class 3 Deposited 2023-09-20	Different ligand/ion	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 8 MG MAGNESIUM ION × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8UB4 Cdc48-Shp1 unfolding native substrate, consensus structure Deposited 2023-09-22	Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 10 PDB declaration: decameric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	08T [[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium × 8 MG MAGNESIUM ION × 8 ADP ADENOSINE-5'-DIPHOSPHATE × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.90 Å
9OFV Consensus reconstruction of the eukaryotic Ribosome-associated Quality Control complex Deposited 2025-04-30	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 59 PDB declaration: 64-meric	Chain A 1–835（835 aa） Chain B 1–835（835 aa） Chain C 1–835（835 aa） Chain D 1–835（835 aa） Chain E 1–835（835 aa） Chain F 1–835（835 aa）	Not recorded	ATP ADENOSINE-5'-TRIPHOSPHATE × 9 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ZN ZINC ION × 7 MG MAGNESIUM ION × 12 SPD SPERMIDINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.16 Å

21 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CDC48_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–835； UniProt 1–835 Author chain B； PDBConstruct 1–835； UniProt 1–835 Author chain C； PDBConstruct 1–835； UniProt 1–835 Author chain D； PDBConstruct 1–835； UniProt 1–835 Author chain E； PDBConstruct 1–835； UniProt 1–835 Author chain F； PDBConstruct 1–835； UniProt 1–835

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ua1
Deposition date deposition_date	2023-09-20
最后修订 last_revision	2024-11-06
Structure title title	Cdc48-Shp1 unfolding native substrate, Class 9
Keywords keywords	unfoldase, AAA ATPase, p97, CHAPERONE, Cdc48; CHAPERONE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	45.76 Å
Radius of gyration Rg (electron density) rg_electron	45.23 Å
Forward intensity I(0) i0	3115330000.00
Molecular weight molecular_weight	298710.0 kDa
Excluded volume excluded_volume	283770 Å³
Envelope volume envelope_volume	599160 Å³
Hydration-shell volume shell_volume	103600 Å³
Envelope diameter envelope_diameter	148.6 Å
Shell Rg shell_rg	54.67 Å
Envelope Rg envelope_rg	44.72 Å
Shape Rg shape_rg	45.25 Å
Total Rg total_rg	45.47 Å
Total atoms total_atoms	22550
Residues n_residues	3210
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

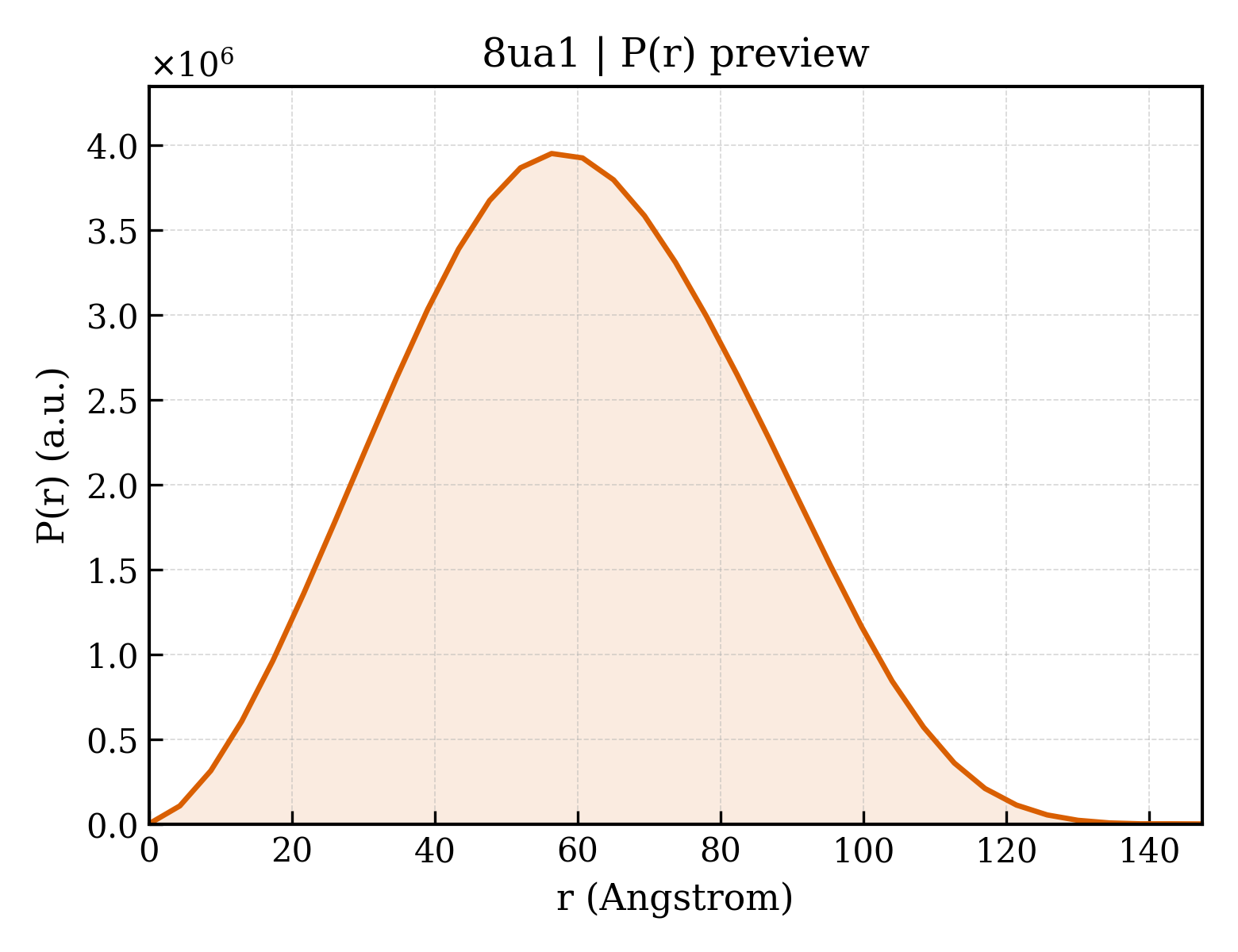

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	147.4 Å
Rg (real space) rg_real	45.45 Å
Rg uncertainty (real space) rg_real_error	0.82 Å
I(0) (real space) i0_real	3.1150e+09
I(0) uncertainty (real space) i0_real_error	4.7100e+07
Rg (reciprocal space) rg_reciprocal	45.76 Å
I(0) (reciprocal space) i0_reciprocal	3116000000.0000
Solution quality estimate total_estimate	0.8834
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	56.4 Å
Skewness Skewness skewness	0.124
Kurtosis Kurtosis kurtosis	-0.484
Angular range angular_range	— – 0.1700 Å⁻¹
Current regularization parameter α current_alpha	0.0001
Highest regularization parameter α highest_alpha	238400000.0000
Real-space data points n_real_points	35
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.853; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.951; Smooth: 0.968

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Cell division control protein 48
Molecular weight formula_weight	92106.9 kDa
EC 编号 ec_number	3.6.4.6
Source method src_method	nat
Copy count entity_count	6

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F
Atom count atom_count	22550

MGEEHKPLLDASGVDPREEDKTATAILRRKKKDNMLLVDDAINDDNSVIAINSNTMDKLELFRGDTVLVKGKKRKDTVLIVLIDDELEDGACRINRVVRNNLRIRLGDLVTIHPCPDIKYATRISVLPIADTIEGITGNLFDVFLKPYFVEAYRPVRKGDHFVVRGGMRQVEFKVVDVEPEEYAVVAQDTIIHWEGEPINREDEENNMNEVGYDDIGGCRKQMAQIREMVELPLRHPQLFKAIGIKPPRGVLMYGPPGTGKTLMARAVANETGAFFFLINGPEVMSKMAGESESNLRKAFEEAEKNAPAIIFIDEIDSIAPKRDKTNGEVERRVVSQLLTLMDGMKARSNVVVIAATNRPNSIDPALRRFGRFDREVDIGIPDATGRLEVLRIHTKNMKLADDVDLEALAAETHGYVGADIASLCSEAAMQQIREKMDLIDLDEDEIDAEVLDSLGVTMDNFRFALGNSNPSALRETVVESVNVTWDDVGGLDEIKEELKETVEYPVLHPDQYTKFGLSPSKGVLFYGPPGTGKTLLAKAVATEVSANFISVKGPELLSMWYGESESNIRDIFDKARAAAPTVVFLDELDSIAKARGGSLGDAGGASDRVVNQLLTEMDGMNAKKNVFVIGATNRPDQIDPAILRPGRLDQLIYVPLPDENARLSILNAQLRKTPLEPGLELTAIAKATQGFSGADLLYIVQRAAKYAIKDSIEAHRQHEAEKEVKVEGEDVEMTDEGAKAEQEPEVDPVPYITKEHFAEAMKTAKRSVSDAELRRYEAYSQQMKASRGQFSNFNFNDAPLGTTATDNANSNNSAPSGAGAAFGSNAEEDDDLYS

Entity 2 Entity 2 polymer

Description description	Substrate
Molecular weight formula_weight	1765.0 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G

AAAAAAAAAAAAAVAVAVAVAAA

Entity 3 Entity 3 non-polymer

Description description	;[[[(2R,3S,4R,5R)-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-tris(fluoranyl)beryllium ;
Molecular weight formula_weight	492.2 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 4 Entity 4 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 5 Entity 5 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	2

▶

8. Citations (1)

▶

Resolution resolution	3.40 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	29717

fit	/app/data/saxs_computation/ua/8ua1/8ua1.fit
pddf	/app/data/pr_computation/ua/8ua1/8ua1.pr.out
profile	/app/data/saxs_computation/ua/8ua1/8ua1.dat
