8ujy

;Crystal structure of human WD repeat-containing protein 5 in complex with 4-(3,5-dimethoxybenzyl)-9-(4-fluoro-2-methylphenyl)-7-((2-imino-3-methyl-2,3-dihydro-1H-imidazol-1-yl)methyl)-3,4-dihydrobenzo[f][1,4]oxazepin-5(2H)-one (compound 8) ;

Method: X-RAY DIFFRACTION D_max: 84.3 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8ujy
沉积日期 deposition_date	2023-10-11
结构标题 title	;Crystal structure of human WD repeat-containing protein 5 in complex with 4-(3,5-dimethoxybenzyl)-9-(4-fluoro-2-methylphenyl)-7-((2-imino-3-methyl-2,3-dihydro-1H-imidazol-1-yl)methyl)-3,4-dihydrobenzo[f][1,4]oxazepin-5(2H)-one (compound 8) ;
关键词 keywords	WDR5, Cancer, Drug Discovery, TRANSCRIPTION; TRANSCRIPTION
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.46 Å
回转半径 Rg (电子) rg_electron	26.70 Å
零角强度 I(0) i0	71220800.00
分子量 molecular_weight	67122.0 kDa
排除体积 excluded_volume	84277 Å³
包络体积 envelope_volume	96987 Å³
水化壳体积 shell_volume	30597 Å³
包络直径 envelope_diameter	86.8 Å
壳层 Rg shell_rg	33.80 Å
包络 Rg envelope_rg	26.37 Å
形状 Rg shape_rg	26.68 Å
总 Rg total_rg	27.51 Å
总原子数 total_atoms	9364
残基数 n_residues	611
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

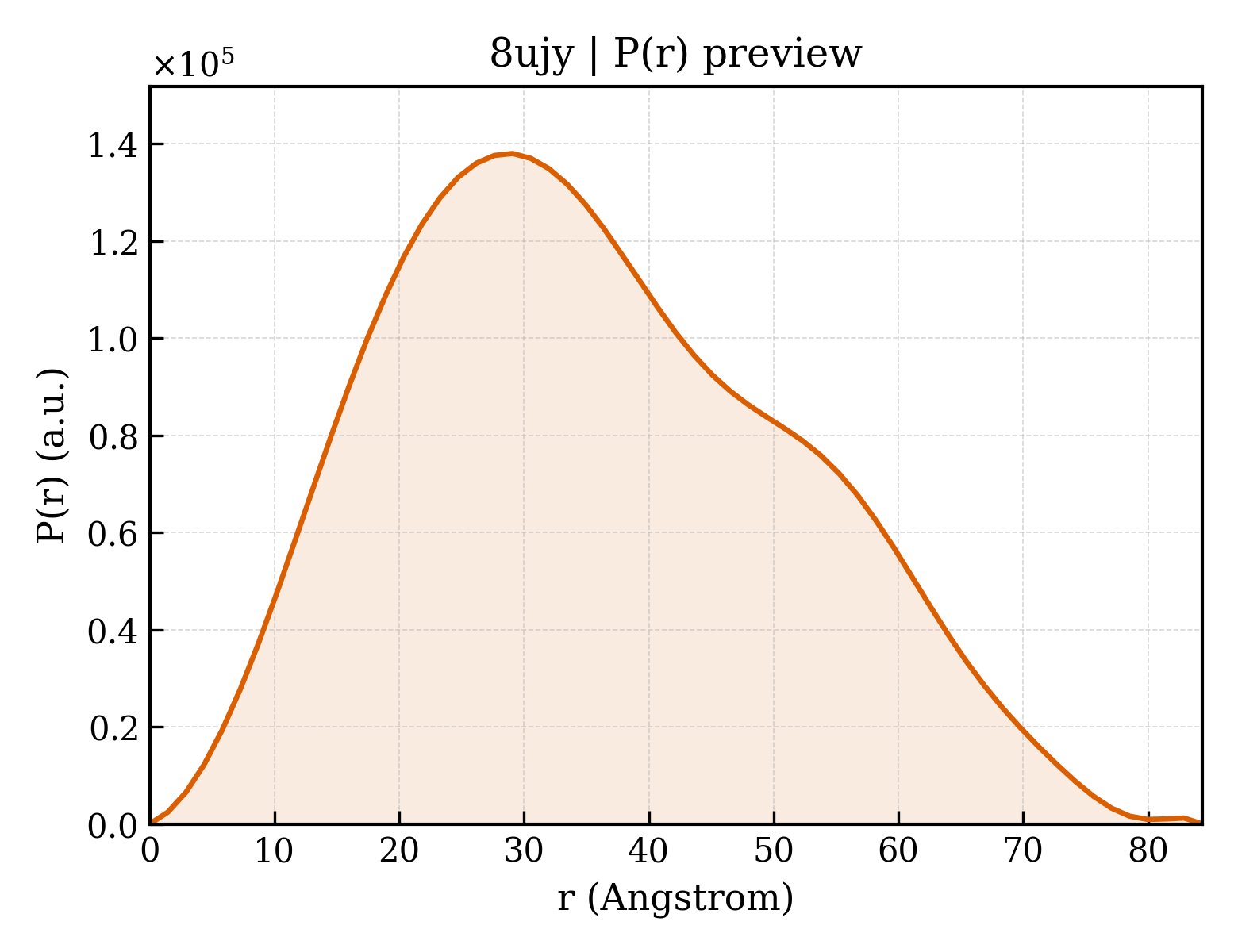

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	84.3 Å
Rg (实空间) rg_real	27.48 Å
Rg 误差 (实空间) rg_real_error	0.46 Å
I(0) (实空间) i0_real	7.1220e+07
I(0) 误差 (实空间) i0_real_error	9.8410e+05
Rg (倒空间) rg_reciprocal	27.48 Å
I(0) (倒空间) i0_reciprocal	71220000.0000
解质量估计 total_estimate	0.9009
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	29.1 Å
偏度 Skewness skewness	0.312
峰度 Kurtosis kurtosis	-0.611
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	16590000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.939; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.901

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	WD repeat-containing protein 5
分子量 formula_weight	34289.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	9844

GTQSKPTPVKPNYALKFTLAGHTKAVSSVKFSPNGEWLASSSADKLIKIWGAYDGKFEKTISGHKLGISDVAWSSDSNLLVSASDDKTLKIWDVSSGKCLKTLKGHSNYVFCCNFNPQSNLIVSGSFDESVRIWDVKTGKCLKTLPAHSDPVSAVHFNRDGSLIVSSSYDGLCRIWDTASGQCLKTLIDDDNPPVSFVKFSPNGKYILAATLDNTLKLWDYSKGKCLKTYTGHKNEKYCIFANFSVTGGKWIVSGSEDNLVYIWNLQTKEIVQKLQGHTDVVISTACHPTENIIASAALENDKTIKLWKSDC

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	;(9P)-4-[(3,5-dimethoxyphenyl)methyl]-9-(4-fluoro-2-methylphenyl)-7-{[(2E)-2-imino-3-methyl-2,3-dihydro-1H-imidazol-1-yl]methyl}-3,4-dihydro-1,4-benzoxazepin-5(2H)-one ;
分子量 formula_weight	530.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	480

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	46.810 Å
晶胞边长 b length_b	47.680 Å
晶胞边长 c length_c	68.869 Å
晶胞夹角 α angle_alpha	88.04 °
晶胞夹角 β angle_beta	89.27 °
晶胞夹角 γ angle_gamma	74.66 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.010 Å
最低分辨率 resolution_low	28.658 Å
R 因子 r_factor	—
R_work r_work	0.1884
R_free r_free	0.2322
