SAXSdb — 8v3j

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Type 1 fimbrin D-mannose specific adhesin,Protein FimG

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 1	Consistent with protein count
2	Insufficient information	Monomer	Protein 1	2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 1	Consistent with protein count
3	Insufficient information	Monomer	Protein 1	2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 1	Consistent with protein count
4	Insufficient information	Monomer	Protein 1	2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIMG_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 287–300； UniProt 24–37 Author chain B； PDBConstruct 287–300； UniProt 24–37 Author chain C； PDBConstruct 287–300； UniProt 24–37 Author chain D； PDBConstruct 287–300； UniProt 24–37

Type 1 fimbrin D-mannose specific adhesin,Protein FimG

Escherichia coli

UniProt P08191

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 1	Consistent with protein count
2	Insufficient information	Monomer	Protein 1	2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 1	Consistent with protein count
3	Insufficient information	Monomer	Protein 1	2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 1	Consistent with protein count
4	Insufficient information	Monomer	Protein 1	2-acetamido-2-deoxy-beta-D-glucopyranose × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIMH_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–279； UniProt 22–300 Author chain B； PDBConstruct 1–279； UniProt 22–300 Author chain C； PDBConstruct 1–279； UniProt 22–300 Author chain D； PDBConstruct 1–279； UniProt 22–300

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8v3j
Deposition date deposition_date	2023-11-28
Structure title title	Structure-Based Engineering of a Highly Immunogenic, Conformationally Stabilized FimH Antigen for a Urinary Tract Infection Vaccine
Keywords keywords	TYPE I PILUS, CATCH-BOND, CELL ADHESION, LECTIN, UPEC, BACTERIAL ADHESIN, UTI, MANNOSE; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8v3j__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8v3j__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

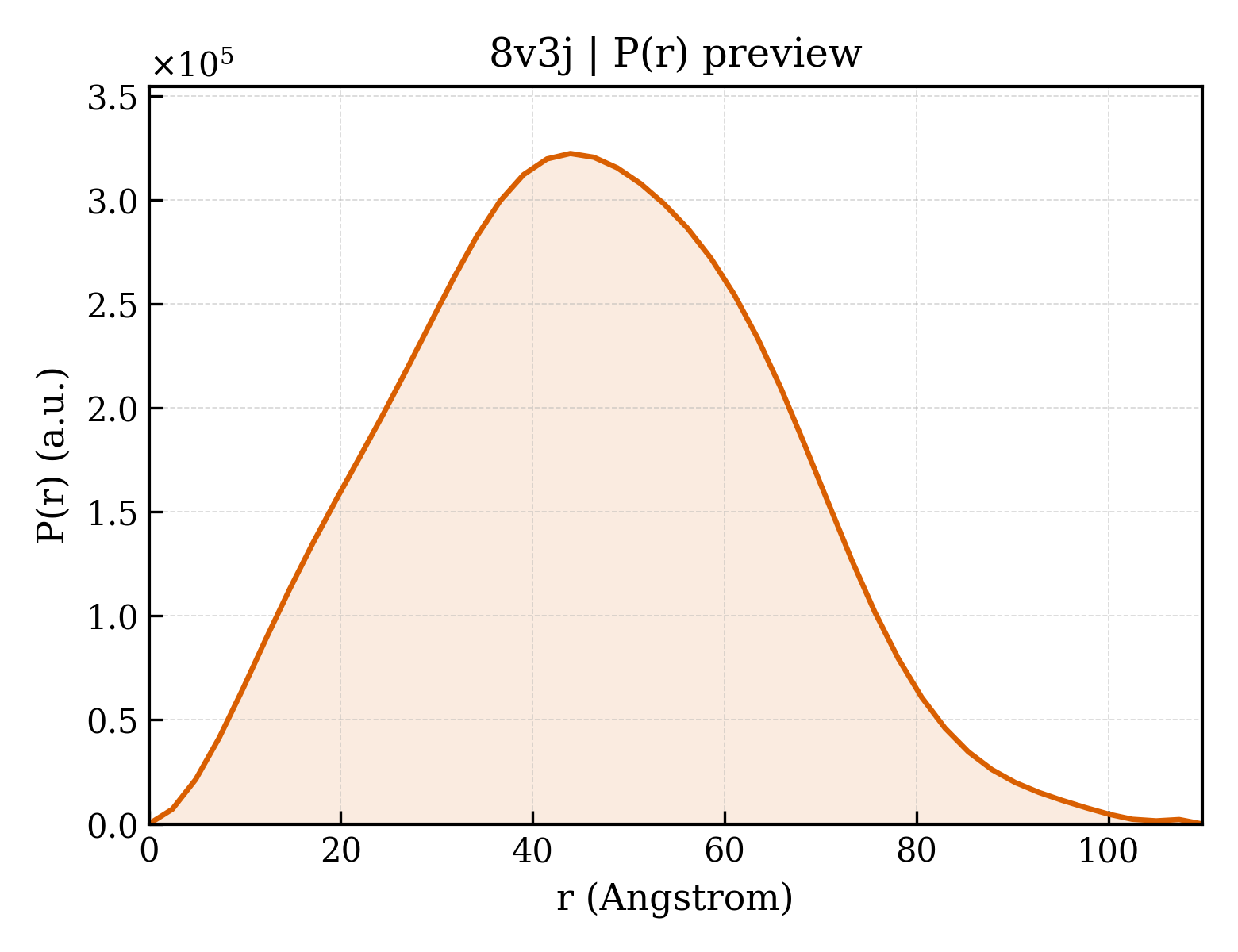

8v3j__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.20 Å
Rg (electron density)	25.71 Å
Total Rg	26.17 Å
Atom count	2192
Residues	300
Excluded volume	38902 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8v3j__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`8v3j__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`8v3j__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
4	1	`8v3j__assembly_4__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Type 1 fimbrin D-mannose specific adhesin,Protein FimG
Molecular weight formula_weight	32118.6 kDa
Mutation mutation	N7S,G15A,G16A,V27A,N70S,N228Q
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	8913

FACKTASGTAIPIGAASANVYVNLAPAVNVGQNLVVDLSTQIFCHNDYPETITDYVTLQRGSAYGGVLSSFSGTVKYSGSSYPFPTTSETPRVVYNSRTDKPWPVALYLTPVSSAGGVAIKAGSLIAVLILRQTNNYNSDDFQFVWNIYANNDVVVPTGGCDVSARDVTVTLPDYPGSVPIPLTVYCAKSQNLGYYLSGTTADAGNSIFTNTASFSPAQGVGVQLTRQGTIIPANNTVSLGAVGTSAVSLGLTANYARTGGQVTAGNVQSIIGVTFVYQGGSSGGGADVTITVNGKVVAKGGHHHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	nat
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	857

▶

Unit-cell length a length_a	140.040 Å
Unit-cell length b length_b	149.260 Å
Unit-cell length c length_c	99.350 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	130.03 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.898 Å
Low-resolution limit resolution_low	27.500 Å
R factor r_factor	0.2124
R_work r_work	0.2109
R_free r_free	0.2384
