3jwn

Complex of FimC, FimF, FimG and FimH

Method: X-RAY DIFFRACTION D_max: 212.5 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chaperone protein fimC

Escherichia coli

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain C； UniProt 37–241	Not recorded	Protein fimF × 2 （P08189） Protein fimG × 1 （P08190） FimH protein × 1 （Q0T8Y8）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.1；293 K；1.6 M potassium chloride, 0.1 M sodium citrate, pH 4.1, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.69 Å R-free 0.272
2	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain I； UniProt 37–241	Not recorded	Protein fimF × 2 （P08189） Protein fimG × 1 （P08190） FimH protein × 1 （Q0T8Y8） GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.1；293 K；1.6 M potassium chloride, 0.1 M sodium citrate, pH 4.1, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.69 Å R-free 0.272

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3JWN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BF8 PERIPLASMIC CHAPERONE FIMC, NMR, 20 STRUCTURES Deposited 1998-05-28	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 37–241（205 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5；311 K	Resolution not provided
1KIU FimH adhesin Q133N mutant-FimC chaperone complex with methyl-alpha-D-mannose Deposited 2001-12-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 37–241（205 aa）	Not recorded	MMA methyl alpha-D-mannopyranoside × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；297 K；ammonium sulphate, pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.00 Å R-free 0.278
1KIU FimH adhesin Q133N mutant-FimC chaperone complex with methyl-alpha-D-mannose Deposited 2001-12-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 10 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 37–241（205 aa） Chain G 37–241（205 aa） Chain K 37–241（205 aa） Chain O 37–241（205 aa）	Not recorded	MMA methyl alpha-D-mannopyranoside × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；297 K；ammonium sulphate, pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.00 Å R-free 0.278
1KIU FimH adhesin Q133N mutant-FimC chaperone complex with methyl-alpha-D-mannose Deposited 2001-12-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 11 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 37–241（205 aa） Chain M 37–241（205 aa）	Not recorded	MMA methyl alpha-D-mannopyranoside × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；297 K；ammonium sulphate, pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.00 Å R-free 0.278
1KIU FimH adhesin Q133N mutant-FimC chaperone complex with methyl-alpha-D-mannose Deposited 2001-12-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 37–241（205 aa）	Not recorded	MMA methyl alpha-D-mannopyranoside × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；297 K；ammonium sulphate, pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.00 Å R-free 0.278
1KIU FimH adhesin Q133N mutant-FimC chaperone complex with methyl-alpha-D-mannose Deposited 2001-12-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 37–241（205 aa）	Not recorded	MMA methyl alpha-D-mannopyranoside × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；297 K；ammonium sulphate, pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.00 Å R-free 0.278
1KIU FimH adhesin Q133N mutant-FimC chaperone complex with methyl-alpha-D-mannose Deposited 2001-12-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 37–241（205 aa）	Not recorded	MMA methyl alpha-D-mannopyranoside × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；297 K；ammonium sulphate, pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.00 Å R-free 0.278
1KIU FimH adhesin Q133N mutant-FimC chaperone complex with methyl-alpha-D-mannose Deposited 2001-12-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 37–241（205 aa）	Not recorded	MMA methyl alpha-D-mannopyranoside × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；297 K；ammonium sulphate, pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.00 Å R-free 0.278
1KIU FimH adhesin Q133N mutant-FimC chaperone complex with methyl-alpha-D-mannose Deposited 2001-12-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 37–241（205 aa）	Not recorded	MMA methyl alpha-D-mannopyranoside × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；297 K；ammonium sulphate, pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.00 Å R-free 0.278
1KIU FimH adhesin Q133N mutant-FimC chaperone complex with methyl-alpha-D-mannose Deposited 2001-12-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 37–241（205 aa）	Not recorded	MMA methyl alpha-D-mannopyranoside × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；297 K；ammonium sulphate, pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.00 Å R-free 0.278
1KIU FimH adhesin Q133N mutant-FimC chaperone complex with methyl-alpha-D-mannose Deposited 2001-12-03	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain O 37–241（205 aa）	Not recorded	MMA methyl alpha-D-mannopyranoside × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；297 K；ammonium sulphate, pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.00 Å R-free 0.278
1KIU FimH adhesin Q133N mutant-FimC chaperone complex with methyl-alpha-D-mannose Deposited 2001-12-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 9 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 37–241（205 aa） Chain I 37–241（205 aa）	Not recorded	MMA methyl alpha-D-mannopyranoside × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；297 K；ammonium sulphate, pH 8.2, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 3.00 Å R-free 0.278
1KLF FIMH ADHESIN-FIMC CHAPERONE COMPLEX WITH D-MANNOSE Deposited 2001-12-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 37–241（205 aa）	Not recorded	MAN alpha-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；298 K；ammonium suplhate, pH 8.20, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.79 Å R-free 0.280
1KLF FIMH ADHESIN-FIMC CHAPERONE COMPLEX WITH D-MANNOSE Deposited 2001-12-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 37–241（205 aa）	Not recorded	MAN alpha-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；298 K；ammonium suplhate, pH 8.20, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.79 Å R-free 0.280
1KLF FIMH ADHESIN-FIMC CHAPERONE COMPLEX WITH D-MANNOSE Deposited 2001-12-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 37–241（205 aa）	Not recorded	MAN alpha-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；298 K；ammonium suplhate, pH 8.20, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.79 Å R-free 0.280
1KLF FIMH ADHESIN-FIMC CHAPERONE COMPLEX WITH D-MANNOSE Deposited 2001-12-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 37–241（205 aa）	Not recorded	MAN alpha-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；298 K；ammonium suplhate, pH 8.20, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.79 Å R-free 0.280
1KLF FIMH ADHESIN-FIMC CHAPERONE COMPLEX WITH D-MANNOSE Deposited 2001-12-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 37–241（205 aa）	Not recorded	MAN alpha-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；298 K；ammonium suplhate, pH 8.20, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.79 Å R-free 0.280
1KLF FIMH ADHESIN-FIMC CHAPERONE COMPLEX WITH D-MANNOSE Deposited 2001-12-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 37–241（205 aa）	Not recorded	MAN alpha-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；298 K；ammonium suplhate, pH 8.20, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.79 Å R-free 0.280
1KLF FIMH ADHESIN-FIMC CHAPERONE COMPLEX WITH D-MANNOSE Deposited 2001-12-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 37–241（205 aa）	Not recorded	MAN alpha-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；298 K；ammonium suplhate, pH 8.20, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.79 Å R-free 0.280
1KLF FIMH ADHESIN-FIMC CHAPERONE COMPLEX WITH D-MANNOSE Deposited 2001-12-11	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain O 37–241（205 aa）	Not recorded	MAN alpha-D-mannopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；298 K；ammonium suplhate, pH 8.20, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.79 Å R-free 0.280
1QUN X-RAY STRUCTURE OF THE FIMC-FIMH CHAPERONE ADHESIN COMPLEX FROM UROPATHOGENIC E.COLI Deposited 1999-07-01	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 37–241（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；289 K；Ammonium Sulphate, Tris, pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.268
1QUN X-RAY STRUCTURE OF THE FIMC-FIMH CHAPERONE ADHESIN COMPLEX FROM UROPATHOGENIC E.COLI Deposited 1999-07-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 10 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 37–241（205 aa） Chain G 37–241（205 aa） Chain K 37–241（205 aa） Chain O 37–241（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；289 K；Ammonium Sulphate, Tris, pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.268
1QUN X-RAY STRUCTURE OF THE FIMC-FIMH CHAPERONE ADHESIN COMPLEX FROM UROPATHOGENIC E.COLI Deposited 1999-07-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 11 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 37–241（205 aa） Chain I 37–241（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；289 K；Ammonium Sulphate, Tris, pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.268
1QUN X-RAY STRUCTURE OF THE FIMC-FIMH CHAPERONE ADHESIN COMPLEX FROM UROPATHOGENIC E.COLI Deposited 1999-07-01	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 37–241（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；289 K；Ammonium Sulphate, Tris, pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.268
1QUN X-RAY STRUCTURE OF THE FIMC-FIMH CHAPERONE ADHESIN COMPLEX FROM UROPATHOGENIC E.COLI Deposited 1999-07-01	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 37–241（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；289 K；Ammonium Sulphate, Tris, pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.268
1QUN X-RAY STRUCTURE OF THE FIMC-FIMH CHAPERONE ADHESIN COMPLEX FROM UROPATHOGENIC E.COLI Deposited 1999-07-01	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 37–241（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；289 K；Ammonium Sulphate, Tris, pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.268
1QUN X-RAY STRUCTURE OF THE FIMC-FIMH CHAPERONE ADHESIN COMPLEX FROM UROPATHOGENIC E.COLI Deposited 1999-07-01	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 37–241（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；289 K；Ammonium Sulphate, Tris, pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.268
1QUN X-RAY STRUCTURE OF THE FIMC-FIMH CHAPERONE ADHESIN COMPLEX FROM UROPATHOGENIC E.COLI Deposited 1999-07-01	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 37–241（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；289 K；Ammonium Sulphate, Tris, pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.268
1QUN X-RAY STRUCTURE OF THE FIMC-FIMH CHAPERONE ADHESIN COMPLEX FROM UROPATHOGENIC E.COLI Deposited 1999-07-01	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 37–241（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；289 K；Ammonium Sulphate, Tris, pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.268
1QUN X-RAY STRUCTURE OF THE FIMC-FIMH CHAPERONE ADHESIN COMPLEX FROM UROPATHOGENIC E.COLI Deposited 1999-07-01	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain O 37–241（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；289 K；Ammonium Sulphate, Tris, pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.268
1QUN X-RAY STRUCTURE OF THE FIMC-FIMH CHAPERONE ADHESIN COMPLEX FROM UROPATHOGENIC E.COLI Deposited 1999-07-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 9 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain E 37–241（205 aa） Chain M 37–241（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.4；289 K；Ammonium Sulphate, Tris, pH 8.4, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.80 Å R-free 0.268
1ZE3 Crystal Structure of the Ternary Complex of FIMD (N-Terminal Domain) with FIMC and the Pilin Domain of FIMH Deposited 2005-04-17	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 37–241（205 aa） Fragment：FimC	Not recorded	EDO 1,2-ETHANEDIOL × 12	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；PEG 6000, MES buffer, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.84 Å R-free 0.217
3BWU Crystal structure of the ternary complex of FimD (N-Terminal Domain, FimDN) with FimC and the N-terminally truncated pilus subunit FimF (FimFt) Deposited 2008-01-10	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 37–241（205 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 13 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；20 mM Tris/HCl pH 8.0, 20% PEG 8000, 50 mM succinic acid pH 4.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.76 Å R-free 0.212
3SQB Structure of the major type 1 pilus subunit FimA bound to the FimC chaperone Deposited 2011-07-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 37–241（205 aa） Fragment：UNP residues 37-241	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；0.1 M sodium acetate, 0.2 M magnesium chloride, 13% PEG 4000, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.20 Å R-free 0.300
3SQB Structure of the major type 1 pilus subunit FimA bound to the FimC chaperone Deposited 2011-07-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 37–241（205 aa） Fragment：UNP residues 37-241	Not recorded	EDO 1,2-ETHANEDIOL × 2 TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；0.1 M sodium acetate, 0.2 M magnesium chloride, 13% PEG 4000, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.20 Å R-free 0.300
3SQB Structure of the major type 1 pilus subunit FimA bound to the FimC chaperone Deposited 2011-07-05	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 37–241（205 aa） Fragment：UNP residues 37-241	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；0.1 M sodium acetate, 0.2 M magnesium chloride, 13% PEG 4000, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.20 Å R-free 0.300
3SQB Structure of the major type 1 pilus subunit FimA bound to the FimC chaperone Deposited 2011-07-05	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 37–241（205 aa） Fragment：UNP residues 37-241	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；0.1 M sodium acetate, 0.2 M magnesium chloride, 13% PEG 4000, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.20 Å R-free 0.300
4DWH Structure of the major type 1 pilus subunit FIMA bound to the FIMC (2.5 A resolution) Deposited 2012-02-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 37–241（205 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 7 PG4 TETRAETHYLENE GLYCOL × 1 PO4 PHOSPHATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；40% (v/v) PEG 400 0.1 M phosphate/citrate pH 4.2 , VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.50 Å R-free 0.294
4DWH Structure of the major type 1 pilus subunit FIMA bound to the FIMC (2.5 A resolution) Deposited 2012-02-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 37–241（205 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 3 PG4 TETRAETHYLENE GLYCOL × 1 PGE TRIETHYLENE GLYCOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；40% (v/v) PEG 400 0.1 M phosphate/citrate pH 4.2 , VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.50 Å R-free 0.294
4J3O Crystal structure of the FimD usher traversed by the pilus tip complex assembly composed of FimC:FimF:FimG:FimH Deposited 2013-02-06	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 37–241（205 aa） Fragment：UNP residues 37-241	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；1.6-2.0M sodium formate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.80 Å R-free 0.299
6E14 Handover mechanism of the growing pilus by the bacterial outer membrane usher FimD Deposited 2018-07-09	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–241（241 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
6E15 Handover mechanism of the growing pilus by the bacterial outer membrane usher FimD Deposited 2018-07-09	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 1–241（241 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.10 Å
6SWH Crystal structure of the ternary complex between the type 1 pilus proteins FimC, FimI and FimA from E. coli Deposited 2019-09-20	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 37–241（205 aa）	Not recorded	PEG DI(HYDROXYETHYL)ETHER × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.8 M sodium formate, 100 mM Tris/acetic acid pH 8.5, 16% PEG 4000 (w/v)	Resolution 2.80 Å R-free 0.207
6SWH Crystal structure of the ternary complex between the type 1 pilus proteins FimC, FimI and FimA from E. coli Deposited 2019-09-20	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 37–241（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.8 M sodium formate, 100 mM Tris/acetic acid pH 8.5, 16% PEG 4000 (w/v)	Resolution 2.80 Å R-free 0.207
7B0W Crystal structure of the E. coli type 1 pilus assembly inhibitor FimI bound to FimC Deposited 2020-11-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 37–241（205 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 FMT FORMIC ACID × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；4.5 M sodium formate, 0.1 M sodium cacodylate pH 6.5	Resolution 1.75 Å R-free 0.187
7B0X Crystal structure of the ternary complex of the E. coli type 1 pilus proteins FimC, FimI and the N-terminal domain of FimD Deposited 2020-11-23	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 37–241（205 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.1 M Hepes pH 8.4, 15 % PEG 4000	Resolution 1.70 Å R-free 0.252
7SZO Structure of a bacterial fimbrial tip containing FocH Deposited 2021-11-29	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 37–241（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.6 M POTASSIUM CHLORIDE, 0.1 M REMARK 280 SODIUM CITRATE, PH 4.1	Resolution 2.80 Å R-free 0.274
7SZO Structure of a bacterial fimbrial tip containing FocH Deposited 2021-11-29	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain I 37–241（205 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；1.6 M POTASSIUM CHLORIDE, 0.1 M REMARK 280 SODIUM CITRATE, PH 4.1	Resolution 2.80 Å R-free 0.274
9FW9 Cryo-EM structure of the type 1 pilus assembly platform as part of the FimA-bound chaperone-usher pilus complex (FimDHGFAnC - body 2) Deposited 2024-06-28	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 37–241（205 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.90 Å
9FWB Cryo-EM structure of the type 1 pilus assembly platform as part of the FimA-bound chaperone-usher pilus complex (Local refinement including FimD, FimC, FimAn and FimAn-1) Deposited 2024-06-28	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 37–241（205 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.50 Å
9FWZ Cryo-EM structure of the type 1 pilus assembly platform as part of the FimA-bound chaperone-usher pilus complex (Local refinement including FimD, FimC, FimAn, FimAn-1 and FimAn-2) Deposited 2024-07-01	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 37–241（205 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.60 Å
9FX8 Cryo-EM structure of the FimI-bound type 1 pilus assembly platform complex - Local refinement Deposited 2024-07-01	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 37–241（205 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.60 Å
9FXB Cryo-EM structure of the type 1 pilus assembly platform as part of the FimI-bound chaperone-usher pilus complex (FimDHGFAnIC - body 2) Deposited 2024-07-01	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 37–241（205 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 4.30 Å
9FXS Cryo-EM structure of the type 1 pilus complex including pilus rod and FimI-bound assembly platform after incorporation of two FimI subunits - Local refinement Deposited 2024-07-02	Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 37–241（205 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 4.20 Å
9FY9 Cryo-EM structure of the type 1 chaperone-usher pilus FimD-tip complex (FimDHGFC) - Conformer 1 Deposited 2024-07-03	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 37–241（205 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.30 Å

22 other PDB entries and 55 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FIMC_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–205； UniProt 37–241 Author chain I； PDBConstruct 1–205； UniProt 37–241

Protein fimF

Escherichia coli

UniProt P08189

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain E； UniProt 23–176 Chain F； UniProt 23–176	Fragment：UNP residues 23-176	Chaperone protein fimC × 1 （P31697） Protein fimG × 1 （P08190） FimH protein × 1 （Q0T8Y8）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.1；293 K；1.6 M potassium chloride, 0.1 M sodium citrate, pH 4.1, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.69 Å R-free 0.272
2	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain K； UniProt 23–176 Chain L； UniProt 23–176	Fragment：UNP residues 23-176	Chaperone protein fimC × 1 （P31697） Protein fimG × 1 （P08190） FimH protein × 1 （Q0T8Y8） GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.1；293 K；1.6 M potassium chloride, 0.1 M sodium citrate, pH 4.1, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.69 Å R-free 0.272

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 3JWN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2JMR NMR structure of the E. coli type 1 pilus subunit FimF Deposited 2006-11-29	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 23–176（154 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.8；310.1 K NMR sample composition 1.4 mM [U-99% 13C; U-99% 15N] FimF, 25 mM sodium phosphate, 100 mM sodium chloride, 0.05 % sodium azide, 5 % D2O, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
3BFQ Crystal structure of truncated FimG (FimGt) in complex with the donor strand peptide of FimF (DSF) Deposited 2007-11-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 23–37（15 aa） Fragment：sequence database residues 23-37	Not recorded	CO COBALT (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20 mM Tris/HCl, pH 8.0, 80 mM NaCl, 27.5% PEG 1500, 20 mM cobalt chloride, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.34 Å R-free 0.179
3BFW Crystal structure of truncated FimG (FimGt) in complex with the donor strand peptide of FimF (DSF) Deposited 2007-11-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–37（15 aa） Fragment：sequence database residues 23-37	Not recorded	YT3 YTTRIUM (III) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20 mM Tris/HCl, pH 8.0, 80 mM NaCl, 27.5% PEG 1500, 20 mM yttrium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.80 Å R-free 0.238
3BFW Crystal structure of truncated FimG (FimGt) in complex with the donor strand peptide of FimF (DSF) Deposited 2007-11-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 23–37（15 aa） Fragment：sequence database residues 23-37	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20 mM Tris/HCl, pH 8.0, 80 mM NaCl, 27.5% PEG 1500, 20 mM yttrium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.80 Å R-free 0.238
3BWU Crystal structure of the ternary complex of FimD (N-Terminal Domain, FimDN) with FimC and the N-terminally truncated pilus subunit FimF (FimFt) Deposited 2008-01-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 35–176（142 aa） Fragment：N-terminal truncation construct of pilus subunit fimF, Residues 13-154	Not recorded	EDO 1,2-ETHANEDIOL × 13 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；20 mM Tris/HCl pH 8.0, 20% PEG 8000, 50 mM succinic acid pH 4.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 1.76 Å R-free 0.212
4J3O Crystal structure of the FimD usher traversed by the pilus tip complex assembly composed of FimC:FimF:FimG:FimH Deposited 2013-02-06	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 23–176（154 aa） Fragment：UNP residues 21-176	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；1.6-2.0M sodium formate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.80 Å R-free 0.299
5IQM Crystal structure of the E. coli type 1 pilus subunit FimG (engineered variant with substitution Q134E; N-terminal FimG residues 1-12 truncated) in complex with the donor strand peptide DsF_T4R-T6R-D13N Deposited 2016-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 23–37（15 aa） Fragment：UNP residues 23-37	Not recorded	CO COBALT (II) ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；MOPS-NaOH pH 7.0 (RT), PEG-1500, NaCl, CoCl2	Resolution 1.50 Å R-free 0.185
5IQM Crystal structure of the E. coli type 1 pilus subunit FimG (engineered variant with substitution Q134E; N-terminal FimG residues 1-12 truncated) in complex with the donor strand peptide DsF_T4R-T6R-D13N Deposited 2016-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–37（15 aa） Fragment：UNP residues 23-37	Not recorded	CO COBALT (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；MOPS-NaOH pH 7.0 (RT), PEG-1500, NaCl, CoCl2	Resolution 1.50 Å R-free 0.185
5IQN Crystal structure of the E. coli type 1 pilus subunit FimG (engineered variant with substitution Q134E; N-terminal FimG residues 1-12 truncated) in complex with the donor strand peptide DsF_SRIRIRGYVR Deposited 2016-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 25–34（10 aa） Fragment：UNP residues 35-34	Not recorded	CO COBALT (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；MOPS-NaOH pH 6.8 (RT), PEG-1500, CoCl2, NaCl	Resolution 1.00 Å R-free 0.146
5IQN Crystal structure of the E. coli type 1 pilus subunit FimG (engineered variant with substitution Q134E; N-terminal FimG residues 1-12 truncated) in complex with the donor strand peptide DsF_SRIRIRGYVR Deposited 2016-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 25–34（10 aa） Fragment：UNP residues 35-34	Not recorded	CO COBALT (II) ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；MOPS-NaOH pH 6.8 (RT), PEG-1500, CoCl2, NaCl	Resolution 1.00 Å R-free 0.146
5IQO Crystal structure of the E. coli type 1 pilus subunit FimG (engineered variant with substitutions Q134E and S138E; N-terminal FimG residues 1-12 truncated) in complex with the donor strand peptide DsF_T4R-T6R-D13N Deposited 2016-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 23–37（15 aa） Fragment：UNP residues 23-37	Not recorded	CO COBALT (II) ION × 4 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；MOPS-NaOH pH 7.6 (RT), PEG-1500, CoCl2, NaCl	Resolution 1.30 Å R-free 0.170
5IQO Crystal structure of the E. coli type 1 pilus subunit FimG (engineered variant with substitutions Q134E and S138E; N-terminal FimG residues 1-12 truncated) in complex with the donor strand peptide DsF_T4R-T6R-D13N Deposited 2016-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 23–37（15 aa） Fragment：UNP residues 23-37	Not recorded	CO COBALT (II) ION × 1 1PE PENTAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；MOPS-NaOH pH 7.6 (RT), PEG-1500, CoCl2, NaCl	Resolution 1.30 Å R-free 0.170
6E14 Handover mechanism of the growing pilus by the bacterial outer membrane usher FimD Deposited 2018-07-09	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 22–176（155 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
6E15 Handover mechanism of the growing pilus by the bacterial outer membrane usher FimD Deposited 2018-07-09	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 22–176（155 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.10 Å
9BOG Structural basis for adhesin secretion by the outer-membrane usher in type 1 pili Deposited 2024-05-03	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 23–176（154 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.99 Å
9FX0 Cryo-EM structure of the type 1 pilus tip-to-rod transition Deposited 2024-07-01	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain F 23–176（154 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.10 Å
9FY9 Cryo-EM structure of the type 1 chaperone-usher pilus FimD-tip complex (FimDHGFC) - Conformer 1 Deposited 2024-07-03	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain F 23–176（154 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.30 Å

13 other PDB entries and 17 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FIMF_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain E； PDBConstruct 1–154； UniProt 23–176 Author chain F； PDBConstruct 1–154； UniProt 23–176 Author chain K； PDBConstruct 1–154； UniProt 23–176 Author chain L； PDBConstruct 1–154； UniProt 23–176

Protein fimG

Escherichia coli

UniProt P08190

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain G； UniProt 24–167	Not recorded	Chaperone protein fimC × 1 （P31697） Protein fimF × 2 （P08189） FimH protein × 1 （Q0T8Y8）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.1；293 K；1.6 M potassium chloride, 0.1 M sodium citrate, pH 4.1, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.69 Å R-free 0.272
2	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain M； UniProt 24–167	Not recorded	Chaperone protein fimC × 1 （P31697） Protein fimF × 2 （P08189） FimH protein × 1 （Q0T8Y8） GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.1；293 K；1.6 M potassium chloride, 0.1 M sodium citrate, pH 4.1, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.69 Å R-free 0.272

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 3JWN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3BFQ Crystal structure of truncated FimG (FimGt) in complex with the donor strand peptide of FimF (DSF) Deposited 2007-11-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 36–167（132 aa） Fragment：sequence database residues 36-167	Not recorded	CO COBALT (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20 mM Tris/HCl, pH 8.0, 80 mM NaCl, 27.5% PEG 1500, 20 mM cobalt chloride, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.34 Å R-free 0.179
3BFW Crystal structure of truncated FimG (FimGt) in complex with the donor strand peptide of FimF (DSF) Deposited 2007-11-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 36–167（132 aa） Fragment：sequence database residues 36-167	Not recorded	YT3 YTTRIUM (III) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20 mM Tris/HCl, pH 8.0, 80 mM NaCl, 27.5% PEG 1500, 20 mM yttrium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.80 Å R-free 0.238
3BFW Crystal structure of truncated FimG (FimGt) in complex with the donor strand peptide of FimF (DSF) Deposited 2007-11-23	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 36–167（132 aa） Fragment：sequence database residues 36-167	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20 mM Tris/HCl, pH 8.0, 80 mM NaCl, 27.5% PEG 1500, 20 mM yttrium chloride, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.80 Å R-free 0.238
4J3O Crystal structure of the FimD usher traversed by the pilus tip complex assembly composed of FimC:FimF:FimG:FimH Deposited 2013-02-06	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 24–167（144 aa） Fragment：UNP residues 24-167	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；298 K；1.6-2.0M sodium formate, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.80 Å R-free 0.299
5IQM Crystal structure of the E. coli type 1 pilus subunit FimG (engineered variant with substitution Q134E; N-terminal FimG residues 1-12 truncated) in complex with the donor strand peptide DsF_T4R-T6R-D13N Deposited 2016-03-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 36–167（132 aa） Fragment：UNP residues 36-167	Not recorded	CO COBALT (II) ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；MOPS-NaOH pH 7.0 (RT), PEG-1500, NaCl, CoCl2	Resolution 1.50 Å R-free 0.185
5IQM Crystal structure of the E. coli type 1 pilus subunit FimG (engineered variant with substitution Q134E; N-terminal FimG residues 1-12 truncated) in complex with the donor strand peptide DsF_T4R-T6R-D13N Deposited 2016-03-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 36–167（132 aa） Fragment：UNP residues 36-167	Not recorded	CO COBALT (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；MOPS-NaOH pH 7.0 (RT), PEG-1500, NaCl, CoCl2	Resolution 1.50 Å R-free 0.185
5IQN Crystal structure of the E. coli type 1 pilus subunit FimG (engineered variant with substitution Q134E; N-terminal FimG residues 1-12 truncated) in complex with the donor strand peptide DsF_SRIRIRGYVR Deposited 2016-03-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 36–167（132 aa） Fragment：UNP residues 36-167	Not recorded	CO COBALT (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；MOPS-NaOH pH 6.8 (RT), PEG-1500, CoCl2, NaCl	Resolution 1.00 Å R-free 0.146
5IQN Crystal structure of the E. coli type 1 pilus subunit FimG (engineered variant with substitution Q134E; N-terminal FimG residues 1-12 truncated) in complex with the donor strand peptide DsF_SRIRIRGYVR Deposited 2016-03-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 36–167（132 aa） Fragment：UNP residues 36-167	Not recorded	CO COBALT (II) ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；MOPS-NaOH pH 6.8 (RT), PEG-1500, CoCl2, NaCl	Resolution 1.00 Å R-free 0.146
5IQO Crystal structure of the E. coli type 1 pilus subunit FimG (engineered variant with substitutions Q134E and S138E; N-terminal FimG residues 1-12 truncated) in complex with the donor strand peptide DsF_T4R-T6R-D13N Deposited 2016-03-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 36–167（132 aa）	Not recorded	CO COBALT (II) ION × 4 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；MOPS-NaOH pH 7.6 (RT), PEG-1500, CoCl2, NaCl	Resolution 1.30 Å R-free 0.170
5IQO Crystal structure of the E. coli type 1 pilus subunit FimG (engineered variant with substitutions Q134E and S138E; N-terminal FimG residues 1-12 truncated) in complex with the donor strand peptide DsF_T4R-T6R-D13N Deposited 2016-03-11	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 36–167（132 aa）	Not recorded	CO COBALT (II) ION × 1 1PE PENTAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；MOPS-NaOH pH 7.6 (RT), PEG-1500, CoCl2, NaCl	Resolution 1.30 Å R-free 0.170
6E14 Handover mechanism of the growing pilus by the bacterial outer membrane usher FimD Deposited 2018-07-09	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 11–167（157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
6E15 Handover mechanism of the growing pilus by the bacterial outer membrane usher FimD Deposited 2018-07-09	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 11–167（157 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 5.10 Å
8V3J Structure-Based Engineering of a Highly Immunogenic, Conformationally Stabilized FimH Antigen for a Urinary Tract Infection Vaccine Deposited 2023-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 24–37（14 aa）	Mutation：N7S,G15A,G16A,V27A,N70S,N228Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1 M Sodium Acetate (pH 4.5), 25% (w/v) PEG 3350	Resolution 1.90 Å R-free 0.238
8V3J Structure-Based Engineering of a Highly Immunogenic, Conformationally Stabilized FimH Antigen for a Urinary Tract Infection Vaccine Deposited 2023-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 24–37（14 aa）	Mutation：N7S,G15A,G16A,V27A,N70S,N228Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1 M Sodium Acetate (pH 4.5), 25% (w/v) PEG 3350	Resolution 1.90 Å R-free 0.238
8V3J Structure-Based Engineering of a Highly Immunogenic, Conformationally Stabilized FimH Antigen for a Urinary Tract Infection Vaccine Deposited 2023-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 24–37（14 aa）	Mutation：N7S,G15A,G16A,V27A,N70S,N228Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1 M Sodium Acetate (pH 4.5), 25% (w/v) PEG 3350	Resolution 1.90 Å R-free 0.238
8V3J Structure-Based Engineering of a Highly Immunogenic, Conformationally Stabilized FimH Antigen for a Urinary Tract Infection Vaccine Deposited 2023-11-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain D 24–37（14 aa）	Mutation：N7S,G15A,G16A,V27A,N70S,N228Q	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.5；293 K；0.1 M Sodium Acetate (pH 4.5), 25% (w/v) PEG 3350	Resolution 1.90 Å R-free 0.238
8V93 Cryo-EM structure of E. coli FimH lectin domain bound to Fabs 329-2 and 454-3 Deposited 2023-12-07	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 24–37（14 aa）	Mutation：N7S, G15A, G16A, V27A, N70S, N228Q within FimH	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.12 Å
9D6F Cryo-EM structure of E. coli FimH lectin domain bound to Fabs 440-2 and 454-3 Deposited 2024-08-15	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 24–37（14 aa）	Mutation：N7S, G15A, G16A, V27A, N70S, N228Q within FimH	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.24 Å
9FY9 Cryo-EM structure of the type 1 chaperone-usher pilus FimD-tip complex (FimDHGFC) - Conformer 1 Deposited 2024-07-03	Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain G 24–167（144 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.30 Å
9ME4 Antibody fragments from mAb475 and mAb824 bound to the adhesin protein FimH Deposited 2024-12-06	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 6 PDB declaration: hexameric	Chain G 1–167（167 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å
9ME5 Antibody fragments from mAb824 and mAb926 bound to the adhesin protein FimH Deposited 2024-12-06	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain G 1–167（167 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å
9PTM Antibody fragment from mAb824 bound to the adhesin protein FimH. Deposited 2025-07-29	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 1–167（167 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å

15 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FIMG_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain G； PDBConstruct 1–144； UniProt 24–167 Author chain M； PDBConstruct 1–144； UniProt 24–167

FimH protein

Escherichia coli

UniProt Q0T8Y8

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain H； UniProt 25–303	Fragment：UNP residues 25-303	Chaperone protein fimC × 1 （P31697） Protein fimF × 2 （P08189） Protein fimG × 1 （P08190）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.1；293 K；1.6 M potassium chloride, 0.1 M sodium citrate, pH 4.1, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.69 Å R-free 0.272
2	Protein heterocomplex Heteromer Protein × 5 PDB declaration: pentameric（5） Consistent with protein copy count	Chain N； UniProt 25–303	Fragment：UNP residues 25-303	Chaperone protein fimC × 1 （P31697） Protein fimF × 2 （P08189） Protein fimG × 1 （P08190） GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.1；293 K；1.6 M potassium chloride, 0.1 M sodium citrate, pH 4.1, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.69 Å R-free 0.272

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 3JWN	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4XOC Crystal structure of the FimH lectin domain from E.coli F18 in complex with heptyl alpha-D-mannopyrannoside Deposited 2015-01-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–183（159 aa） Fragment：UNP residues 25-183	Not recorded	KGM heptyl alpha-D-mannopyranoside × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；17 % PEG2000MME, 0.1M Hepes pH 7.5	Resolution 1.42 Å R-free 0.174
4XOC Crystal structure of the FimH lectin domain from E.coli F18 in complex with heptyl alpha-D-mannopyrannoside Deposited 2015-01-16	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 25–183（159 aa） Fragment：UNP residues 25-183	Not recorded	KGM heptyl alpha-D-mannopyranoside × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；17 % PEG2000MME, 0.1M Hepes pH 7.5	Resolution 1.42 Å R-free 0.174
4XOD Crystal structure of a FimH*DsG complex from E.coli F18 Deposited 2015-01-16	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 25–303（279 aa） Fragment：UNP residues 25-303	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；277 K；25 % (w/v) PEG 3350, 0.2 M magnesium chloride, 0.1 M BisTris-HCl pH 5.5	Resolution 1.14 Å R-free 0.159
4XOE Crystal structure of a FimH*DsG complex from E.coli F18 with bound heptyl alpha-D-mannopyrannoside Deposited 2015-01-16	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 25–303（279 aa） Fragment：UNP residues 25-303	Not recorded	KGM heptyl alpha-D-mannopyranoside × 1 CAC CACODYLATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；30 % (v/v) 2-Methyl-2,4-pentanediol (MPD), 0.1 M sodium cacodylate, 0.2 M magnesium acetate pH 6.5	Resolution 2.40 Å R-free 0.179

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q0T8Y8_ECOL5
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain H； PDBConstruct 1–279； UniProt 25–303 Author chain N； PDBConstruct 1–279； UniProt 25–303

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

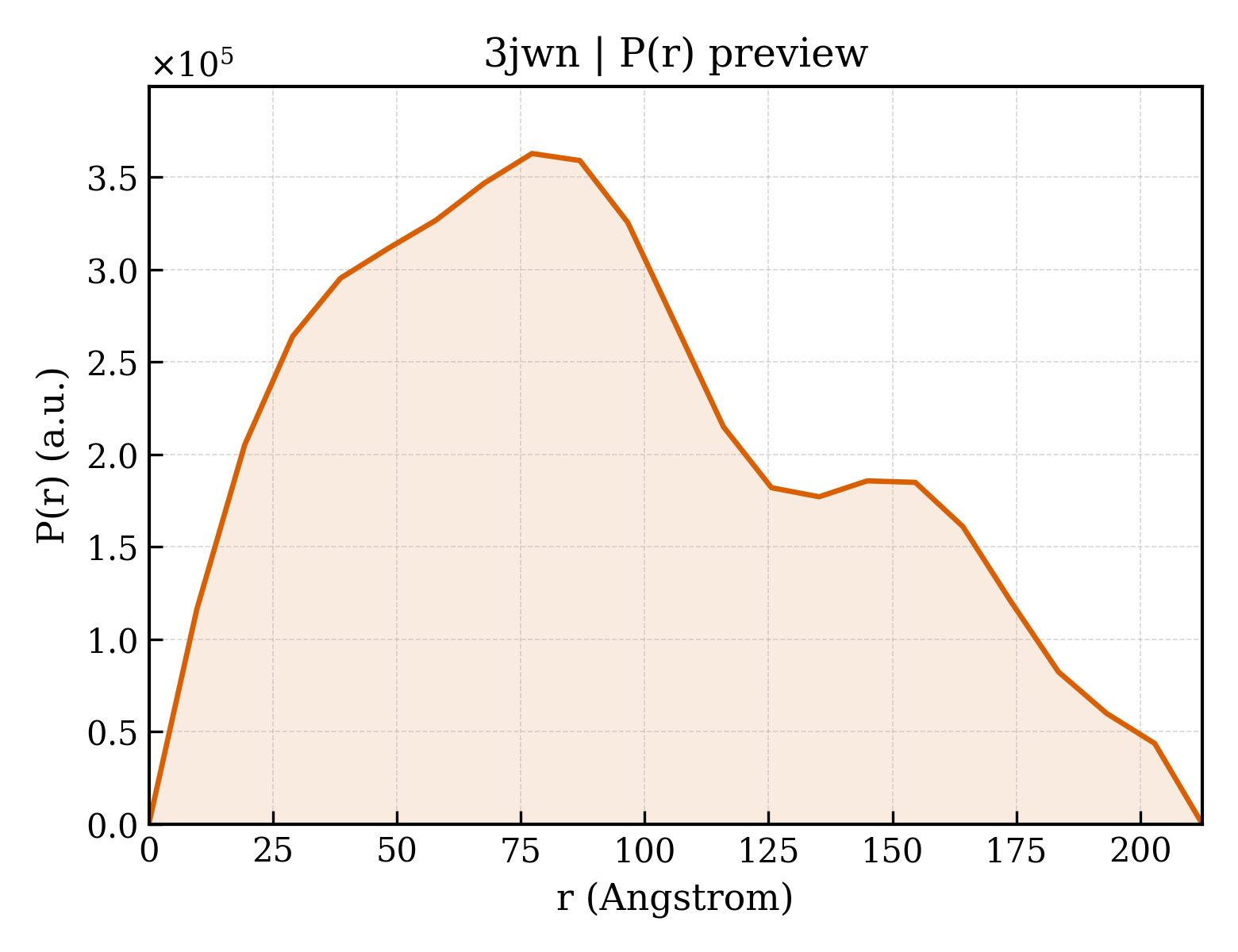

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3jwn
Deposition date deposition_date	2009-09-18
Structure title title	Complex of FimC, FimF, FimG and FimH
Keywords keywords	;fimbria, cell adhesion, fimh, fimc, fimf, fimg, chaperone, fibrium, immunoglobulin domain, Fimbrium, Periplasm, Disulfide bond, protein binding-cell adhesion COMPLEX ;; protein binding/cell adhesion
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	71.41 Å
Radius of gyration Rg (electron density) rg_electron	72.32 Å
Forward intensity I(0) i0	558137000.00
Molecular weight molecular_weight	196520.0 kDa
Excluded volume excluded_volume	245470 Å³
Envelope volume envelope_volume	429290 Å³
Hydration-shell volume shell_volume	55697 Å³
Envelope diameter envelope_diameter	236.8 Å
Shell Rg shell_rg	57.80 Å
Envelope Rg envelope_rg	69.20 Å
Shape Rg shape_rg	72.34 Å
Total Rg total_rg	71.88 Å
Total atoms total_atoms	13834
Residues n_residues	1859
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	212.5 Å
Rg (real space) rg_real	71.69 Å
Rg uncertainty (real space) rg_real_error	1.60 Å
I(0) (real space) i0_real	5.5750e+08
I(0) uncertainty (real space) i0_real_error	1.0880e+07
Rg (reciprocal space) rg_reciprocal	69.53 Å
I(0) (reciprocal space) i0_reciprocal	555600000.0000
Solution quality estimate total_estimate	0.8056
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	77.3 Å
Skewness Skewness skewness	0.379
Kurtosis Kurtosis kurtosis	-0.705
Angular range angular_range	— – 0.1100 Å⁻¹
Current regularization parameter α current_alpha	0.0071
Highest regularization parameter α highest_alpha	15460000.0000
Real-space data points n_real_points	23
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.893; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.793; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Chaperone protein fimC
Molecular weight formula_weight	22754.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,I
Atom count atom_count	13908

GVALGATRVIYPAGQKQEQLAVTNNDENSTYLIQSWVENADGVKDGRFIVTPPLFAMKGKKENTLRILDATNNQLPQDRESLFWMNVKAIPSMDKSKLTENTLQLAIISRIKLYYRPAKLALPPDQAAEKLRFRRSANSLTLINPTPYYLTVTELNAGTRVLENALVPPMGESTVKLPSDAGSNITYRTINDYGALTPKMTGVME

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Protein fimF
Molecular weight formula_weight	16161.1 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E,F,K,L

ADSTITIRGYVRDNGCSVAAESTNFTVDLMENAAKQFNNIGATTPVVPFRILLSPCGNAVSAVKVGFTGVADSHNANLLALENTVSAAAGLGIQLLNEQQNQIPLNAPSSALSWTTLTPGKPNTLNFYARLMATQVPVTAGHINATATFTLEYQ

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Protein fimG
Molecular weight formula_weight	14864.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,M

ADVTITVNGKVVAKPCTVSTTNATVDLGDLYSFSLMSAGAASAWHDVALELTNCPVGTSRVTASFSGAADSTGYYKNQGTAQNIQLELQDDSGNTLNTGATKTVQVDDSSQSAHFPLQVRALTVNGGATQGTIQAVISITYTYS

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	83333
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	FimH protein
Molecular weight formula_weight	29053.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,N

FACKTANGTAIPIGGGSANVYVNLAPAVNVGQNLVVDLSTQIFCHNDYPETITDYVTLQRGSAYGGVLSSFSGTVKYNGSSYPFPTTSETPRVVYNSRTDKPWPVALYLTPVSSAGGVAIKAGSLIAVLILRQTNNYNSDDFQFVWNIYANNDVVVPTGGCDVSARDVTVTLPDYPGSVPIPLTVYCAKSQNLGYYLSGTTADAGNSIFTNTASFSPAQGVGVQLTRNGTIIPANNTVSLGAVGTSAVSLGLTANYARTGGQVTAGNVQSIIGVTFVYQ

来源 Source

来源生物 organism	Escherichia coli
NCBI Class编号 ncbi_taxonomy_id	488477
宿主生物 host_organism	Escherichia coli

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	28

▼

7. Fold Classification (SCOP + CATH) 26 domains

SCOP 2.08 (12 domains)

Domain ID domain_id	d3jwnc1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.11 — PapD-like
Family Family family	b.1.11.1 — Pilus chaperone

Domain ID domain_id	d3jwnc2
Class class	b — All beta proteins
Fold Fold fold	b.7 — C2 domain-like
Superfamily Superfamily superfamily	b.7.2 — Periplasmic chaperone C-domain
Family Family family	b.7.2.1 — Periplasmic chaperone C-domain

Domain ID domain_id	d3jwne_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.0 — automated matches

Domain ID domain_id	d3jwnf_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.0 — automated matches

Domain ID domain_id	d3jwnh1
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.2 — Pilus subunits

Domain ID domain_id	d3jwnh2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.2 — Pilus subunits

Domain ID domain_id	d3jwni1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.11 — PapD-like
Family Family family	b.1.11.1 — Pilus chaperone

Domain ID domain_id	d3jwni2
Class class	b — All beta proteins
Fold Fold fold	b.7 — C2 domain-like
Superfamily Superfamily superfamily	b.7.2 — Periplasmic chaperone C-domain
Family Family family	b.7.2.1 — Periplasmic chaperone C-domain

Domain ID domain_id	d3jwnk_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.0 — automated matches

Domain ID domain_id	d3jwnl_
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.0 — automated matches

Domain ID domain_id	d3jwnn1
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.2 — Pilus subunits

Domain ID domain_id	d3jwnn2
Class class	b — All beta proteins
Fold Fold fold	b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f
Superfamily Superfamily superfamily	b.2.3 — Bacterial adhesins
Family Family family	b.2.3.2 — Pilus subunits

CATH v4.4 (14 domains)

Domain ID domain_id	3jwnC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3jwnC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3jwnE00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1090 — Fimbrial-type adhesion domain

Domain ID domain_id	3jwnF00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1090 — Fimbrial-type adhesion domain

Domain ID domain_id	3jwnG00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1090 — Fimbrial-type adhesion domain

Domain ID domain_id	3jwnH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1090 — Fimbrial-type adhesion domain

Domain ID domain_id	3jwnH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1090 — Fimbrial-type adhesion domain

Domain ID domain_id	3jwnI01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3jwnI02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3jwnK00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1090 — Fimbrial-type adhesion domain

Domain ID domain_id	3jwnL00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1090 — Fimbrial-type adhesion domain

Domain ID domain_id	3jwnM00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1090 — Fimbrial-type adhesion domain

Domain ID domain_id	3jwnN01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1090 — Fimbrial-type adhesion domain

Domain ID domain_id	3jwnN02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1090 — Fimbrial-type adhesion domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	216.025 Å
Unit-cell length b length_b	216.025 Å
Unit-cell length c length_c	532.072 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	72

Space group space_group	H 3 2
Space-group number int_tables_number	155
Crystal system crystal_system	—

Resolution resolution	2.690 Å
Low-resolution limit resolution_low	48.340 Å
R factor r_factor	0.2451
R_work r_work	0.2436
R_free r_free	0.2721

fit	/app/data/saxs_computation/jw/3jwn/3jwn.fit
pddf	/app/data/pr_computation/jw/3jwn/3jwn.pr.out
profile	/app/data/saxs_computation/jw/3jwn/3jwn.dat

Complex of FimC, FimF, FimG and FimH

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chaperone protein fimC

State in the Current Structure

Other States of the Same Protein in the Database

Protein fimF

State in the Current Structure

Other States of the Same Protein in the Database

Protein fimG

State in the Current Structure

Other States of the Same Protein in the Database

FimH protein

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 non-polymer

Entity 6 Entity 6 water

7. Fold Classification (SCOP + CATH) 26 domains

SCOP 2.08 (12 domains)

CATH v4.4 (14 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
