SAXSdb — 9fwz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Outer membrane usher protein FimD

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Chaperone protein FimC × 1 （P31697） Type-1 fimbrial protein, A chain × 3 （P04128）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIMD_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain D； PDBConstruct 1–833； UniProt 46–878

Chaperone protein FimC

Escherichia coli

UniProt P31697

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Outer membrane usher protein FimD × 1 （P30130） Type-1 fimbrial protein, A chain × 3 （P04128）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIMC_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 2–206； UniProt 37–241

Type-1 fimbrial protein, A chain

Escherichia coli

UniProt P04128

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Outer membrane usher protein FimD × 1 （P30130） Chaperone protein FimC × 1 （P31697）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIMA1_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 2–160； UniProt 24–182 Author chain B； PDBConstruct 2–160； UniProt 24–182 Author chain E； PDBConstruct 2–160； UniProt 24–182

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9fwz
Deposition date deposition_date	2024-07-01
Structure title title	Cryo-EM structure of the type 1 pilus assembly platform as part of the FimA-bound chaperone-usher pilus complex (Local refinement including FimD, FimC, FimAn, FimAn-1 and FimAn-2)
Keywords keywords	chaperone, usher, pilus, rod, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9fwz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9fwz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

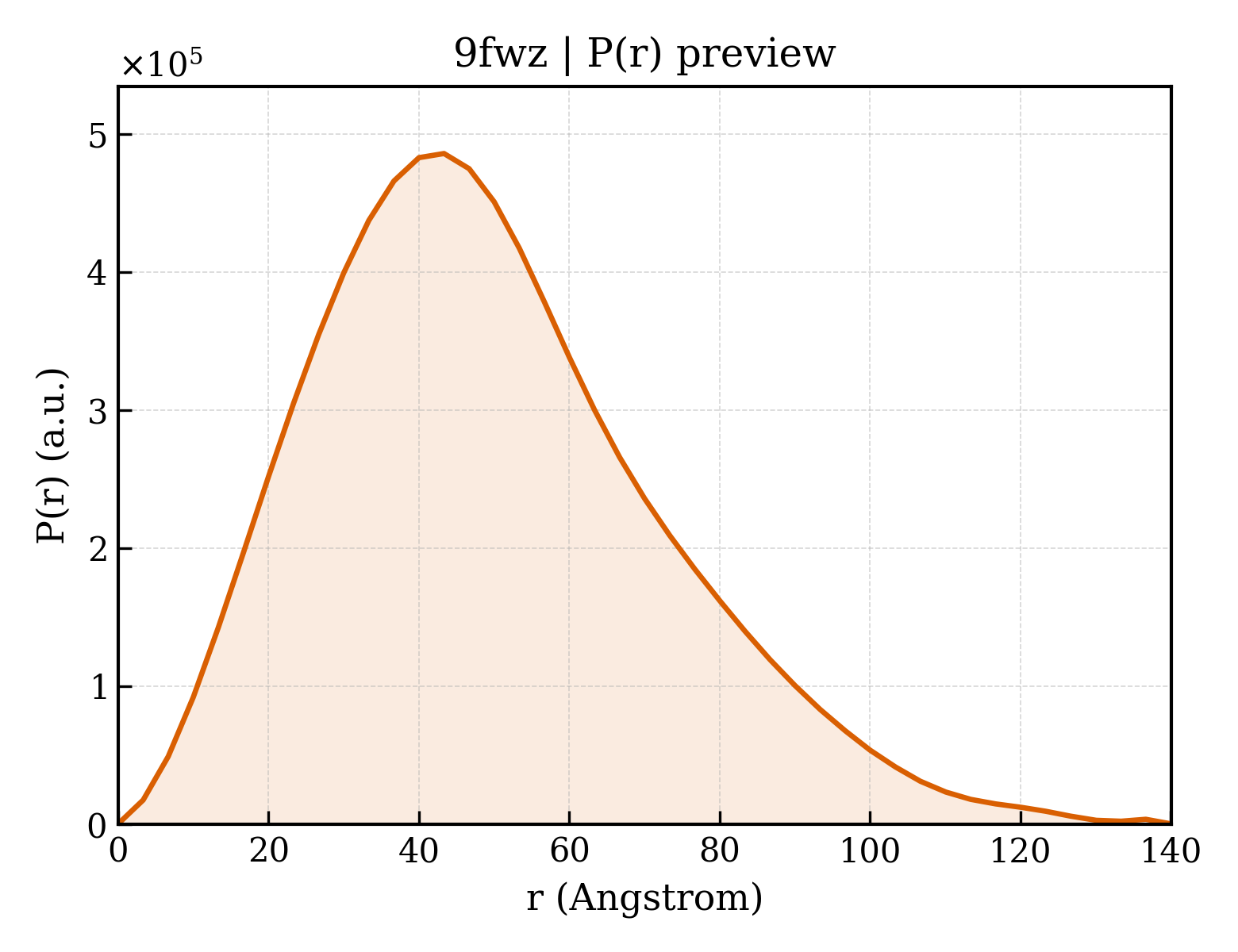

9fwz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.08 Å
Rg (electron density)	37.95 Å
Total Rg	38.32 Å
Atom count	9987
Residues	1331
Excluded volume	175280 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9fwz__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Outer membrane usher protein FimD
Molecular weight formula_weight	93092.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D
Atom count atom_count	9987

DLYFNPRFLADDPQAVADLSRFENGQELPPGTYRVDIYLNNGYMATRDVTFNTGDSEQGIVPCLTRAQLASMGLNTASVAGMNLLADDACVPLTTMVQDATAHLDVGQQRLNLTIPQAFMSNRARGYIPPELWDPGINAGLLNYNFSGNSVQNRIGGNSHYAYLNLQSGLNIGAWRLRDNTTWSYNSSDRSSGSKNKWQHINTWLERDIIPLRSRLTLGDGYTQGDIFDGINFRGAQLASDDNMLPDSQRGFAPVIHGIARGTAQVTIKQNGYDIYNSTVPPGPFTINDIYAAGNSGDLQVTIKEADGSTQIFTVPYSSVPLLQREGHTRYSITAGEYRSGNAQQEKPRFFQSTLLHGLPAGWTIYGGTQLADRYRAFNFGIGKNMGALGALSVDMTQANSTLPDDSQHDGQSVRFLYNKSLNESGTNIQLVGYRYSTSGYFNFADTTYSRMNGYNIETQDGVIQVKPKFTDYYNLAYNKRGKLQLTVTQQLGRTSTLYLSGSHQTYWGTSNVDEQFQAGLNTAFEDINWTLSYSLTKNAWQKGRDQMLALNVNIPFSHWLRSDSKSQWRHASASYSMSHDLNGRMTNLAGVYGTLLEDNNLSYSVQTGYAGGGDGNSGSTGYATLNYRGGYGNANIGYSHSDDIKQLYYGVSGGVLAHANGVTLGQPLNDTVVLVKAPGAKDAKVENQTGVRTDWRGYAVLPYATEYRENRVALDTNTLADNVDLDNAVANVVPTRGAIVRAEFKARVGIKLLMTLTHNNKPLPFGAMVTSESSQSSGIVADNGQVYLSGMPLAGKVQVKWGEEENAHCVANYQLPPESQQQLLTQLSAECRLVPRGSWSHPQFEK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Chaperone protein FimC
Molecular weight formula_weight	22885.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGVALGATRVIYPAGQKQEQLAVTNNDENSTYLIQSWVENADGVKDGRFIVTPPLFAMKGKKENTLRILDATNNQLPQDRESLFWMNVKAIPSMDKSKLTENTLQLAIISRIKLYYRPAKLALPPDQAAEKLRFRRSANSLTLINPTPYYLTVTELNAGTRVLENALVPPMGESTVKLPSDAGSNITYRTINDYGALTPKMTGVME

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Type-1 fimbrial protein, A chain
Molecular weight formula_weight	15966.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,A,E

MAATTVNGGTVHFKGEVVNAACAVDAGSVDQTVQLGQVRTASLAQEGATSSAVGFNIQLNDCDTNVASKAAVAFLGTAIDAGHTNVLALQSSAAGSATNVGVQILDRTGAALTLDGATFSSETTLNNGTNTIPFQARYFATGAATPGAANADATFKVQYQ

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21(DE3)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	3.60 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	119055

Cryo-EM structure of the type 1 pilus assembly platform as part of the FimA-bound chaperone-usher pilus complex (Local refinement including FimD, FimC, FimAn, FimAn-1 and FimAn-2)
