Escherichia coli K-12
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein monomer | Monomer | Protein 1 | SULFATE ION × 4 water × 1 | Consistent with protein count |
| UniProt name | FIMA1_ECOLI |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 1–159； UniProt 24–182 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 5nkt |
| Deposition date deposition_date | 2017-04-03 |
| Structure title title | FimA wt from E. coli |
| Keywords keywords | FimA, pilus, monomer, subunit, pili, Escherichia, coli, pathogenic, main structural subunit, high resolution, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN |
| Experimental Method method | X-RAY DIFFRACTION |

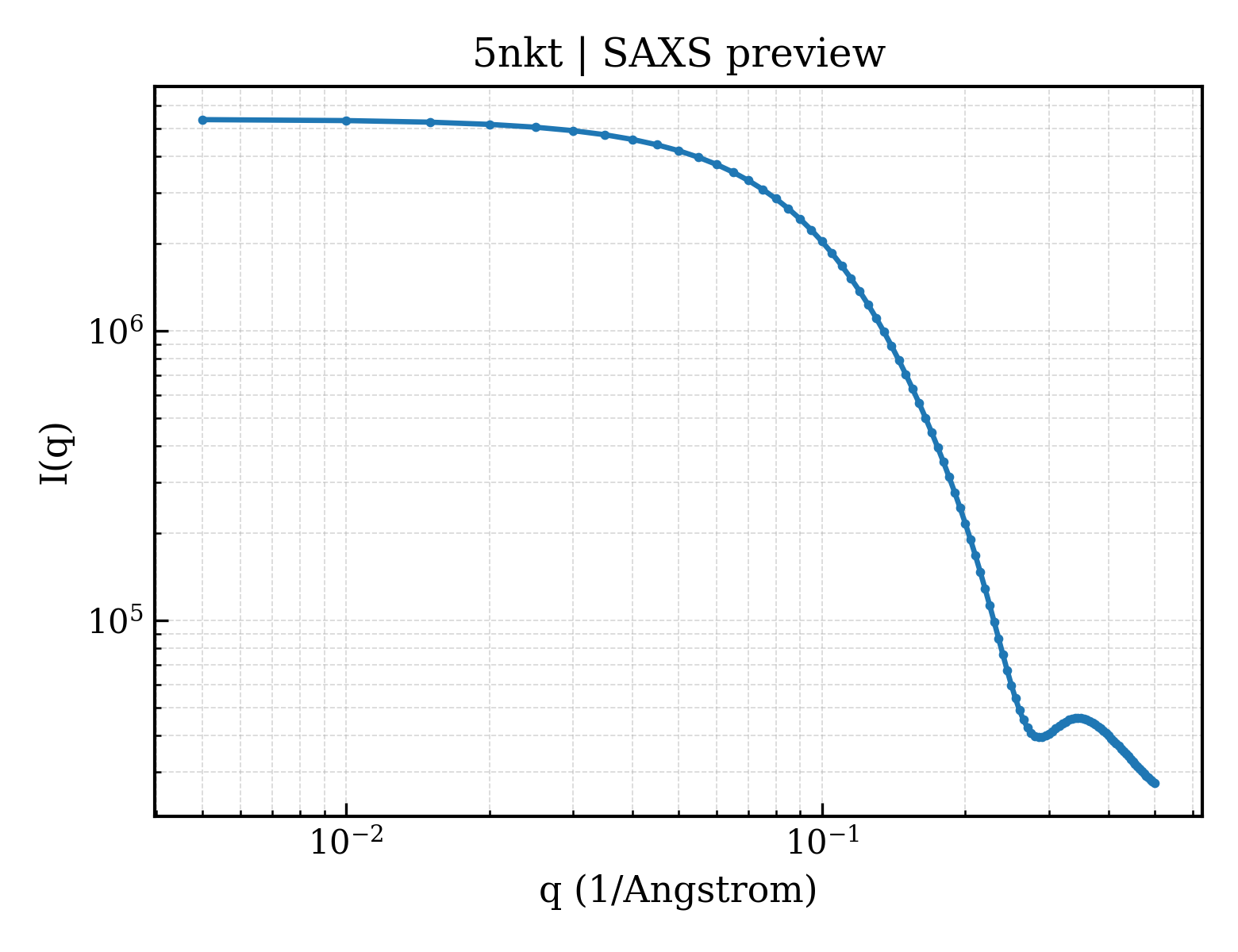

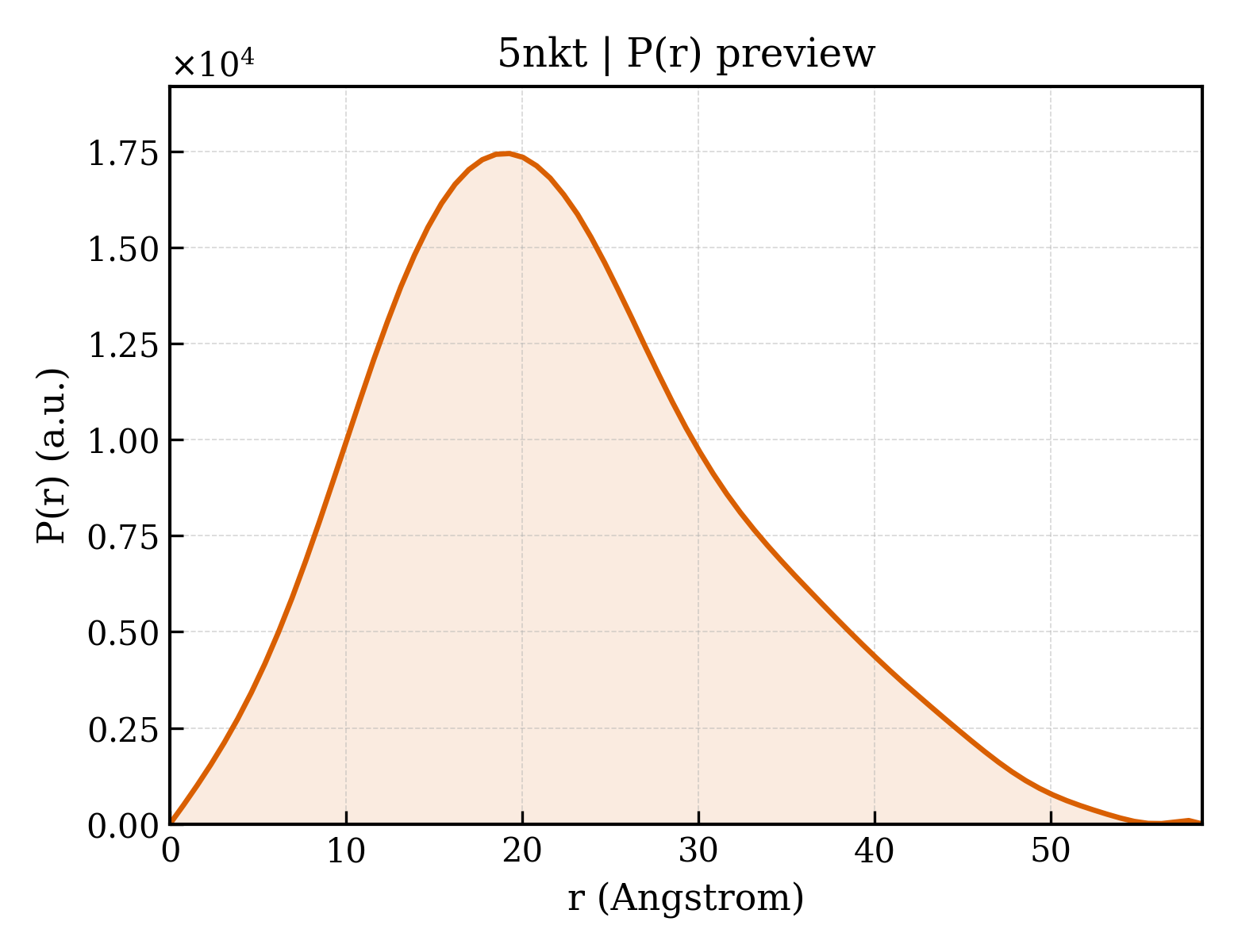

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 17.29 Å |
| Rg (electron density) | 15.98 Å |
| Total Rg | 17.00 Å |
| Atom count | 2097 |
| Residues | 151 |
| Excluded volume | 18723 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | d5nkta_ |
| Class class | b — All beta proteins |
| Fold Fold fold | b.2 — Common fold of diphtheria toxin/transcription factors/cytochrome f |
| Superfamily Superfamily superfamily | b.2.3 — Bacterial adhesins |
| Family Family family | b.2.3.0 — automated matches |
