SAXSdb — 7b0x

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Chaperone protein FimC

Escherichia coli (strain K12)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Fimbrin-like protein FimI × 1 （P39264） Outer membrane usher protein FimD × 1 （P30130） 1,2-ETHANEDIOL × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIMC_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–205； UniProt 37–241

Fimbrin-like protein FimI

Escherichia coli (strain K12)

UniProt P39264

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Chaperone protein FimC × 1 （P31697） Outer membrane usher protein FimD × 1 （P30130） 1,2-ETHANEDIOL × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIMI_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain I； PDBConstruct 1–140； UniProt 40–179

Outer membrane usher protein FimD

Escherichia coli (strain K12)

UniProt P30130

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Chaperone protein FimC × 1 （P31697） Fimbrin-like protein FimI × 1 （P39264） 1,2-ETHANEDIOL × 1 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIMD_ECOLI
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–125； UniProt 46–170

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	7b0x
Deposition date deposition_date	2020-11-23
Structure title title	Crystal structure of the ternary complex of the E. coli type 1 pilus proteins FimC, FimI and the N-terminal domain of FimD
Keywords keywords	structural protein complex, pilus assembly, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

7b0x__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

7b0x__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

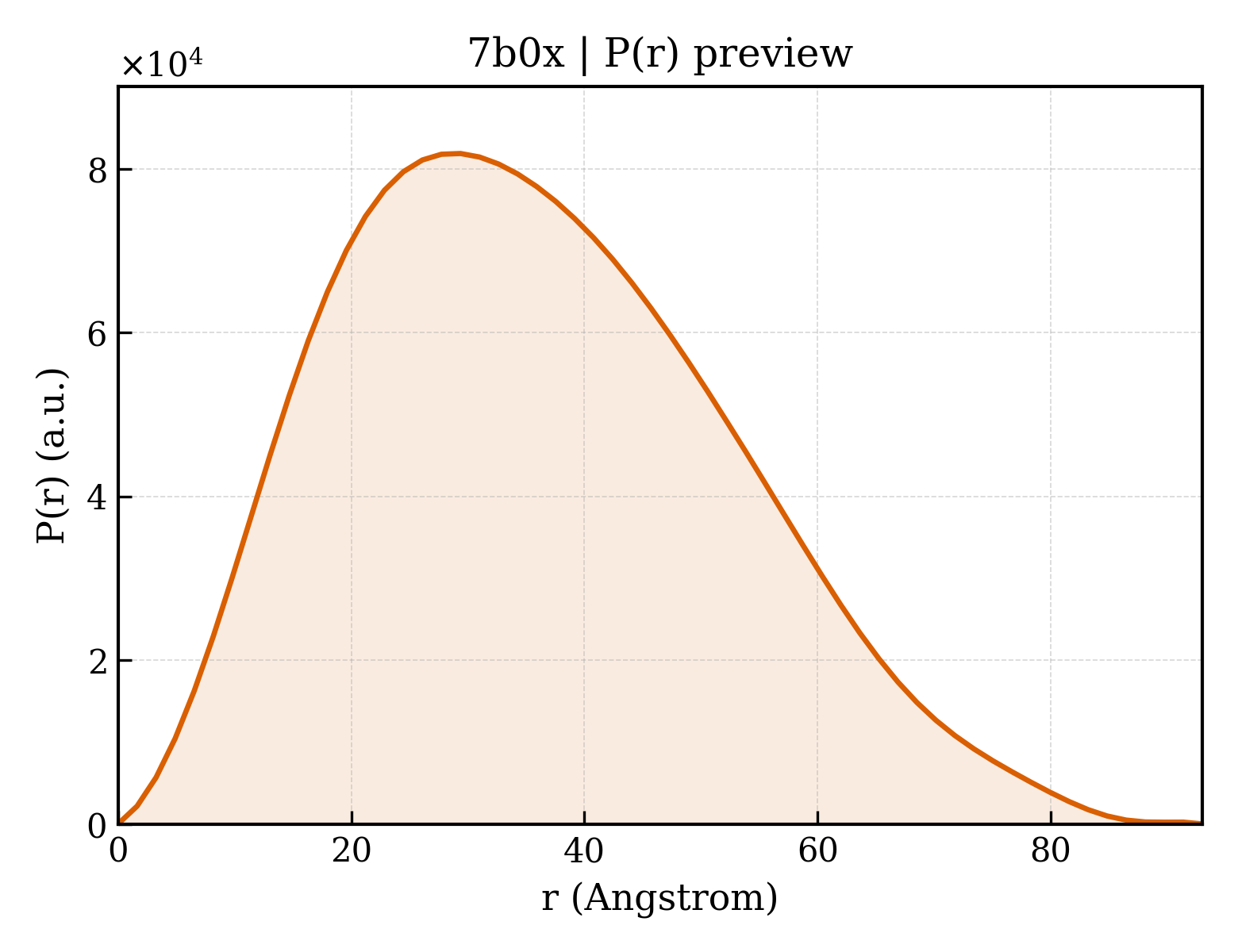

7b0x__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.75 Å
Rg (electron density)	26.70 Å
Total Rg	27.37 Å
Atom count	3600
Residues	467
Excluded volume	63786 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`7b0x__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Chaperone protein FimC
Molecular weight formula_weight	23582.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	4085

GVALGATRVIYPAGQKQEQLAVTNNDENSTYLIQSWVENADGVKDGRFIVTPPLFAMKGKKENTLRILDATNNQLPQDRESLFWMNVKAIPSMDKSKLTENTLQLAIISRIKLYYRPAKLALPPDQAAEKLRFRRSANSLTLINPTPYYLTVTELNAGTRVLENALVPPMGESTVKLPSDAGSNITYRTINDYGALTPKMTGVMEHHHHHH

Source Source

Source organism organism	Escherichia coli (strain K12)
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Fimbrin-like protein FimI
Molecular weight formula_weight	15030.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I

AETCRIEAGDKQMTVNMGQISSNRFHAVGEDSAPVPFVIHLRECSTVVSERVGVAFHGVADGKNPDVLSVGEGPGIATNIGVALFDDEGNLVPINRPPANWKRLYSGSTSLHFIAKYRATGRRVTGGIANAQAWFSLTYQ

Source Source

Source organism organism	Escherichia coli (strain K12)
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Outer membrane usher protein FimD
Molecular weight formula_weight	13664.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

DLYFNPRFLADDPQAVADLSRFENGQELPPGTYRVDIYLNNGYMATRDVTFNTGDSEQGIVPCLTRAQLASMGLNTASVAGMNLLADDACVPLTTMVQDATAHLDVGQQRLNLTIPQAFMSNRAR

Source Source

Source organism organism	Escherichia coli (strain K12)
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	418

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	7b0xI01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	1090 — Fimbrial-type adhesion domain

▶

Unit-cell length a length_a	35.240 Å
Unit-cell length b length_b	104.160 Å
Unit-cell length c length_c	132.160 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	48.454 Å
R factor r_factor	0.2054
R_work r_work	0.2045
R_free r_free	0.2524

Crystal structure of the ternary complex of the E. coli type 1 pilus proteins FimC, FimI and the N-terminal domain of FimD
