SAXSdb — 9d6f

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

;Type 1 fimbrin D-mannose specific adhesin FimH, Donor strand complemented with FimG peptide 'triple mutant' ;

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	440-2 Fab light chain × 1 440-2 Fab heavy chain × 1 445-3 Fab heavy chain × 1 445-3 Fab light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIMG_ECOLI
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain D； PDBConstruct 287–300； UniProt 24–37

;Type 1 fimbrin D-mannose specific adhesin FimH, Donor strand complemented with FimG peptide 'triple mutant' ;

Escherichia coli

UniProt P08191

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	440-2 Fab light chain × 1 440-2 Fab heavy chain × 1 445-3 Fab heavy chain × 1 445-3 Fab light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FIMH_ECOLI
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain D； PDBConstruct 1–279； UniProt 22–300

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9d6f
Deposition date deposition_date	2024-08-15
Structure title title	Cryo-EM structure of E. coli FimH lectin domain bound to Fabs 440-2 and 454-3
Keywords keywords	Antigen, complex, adhesion, STRUCTURAL PROTEIN, CELL ADHESION, SUGAR BINDING PROTEIN; CELL ADHESION,SUGAR BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9d6f__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9d6f__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

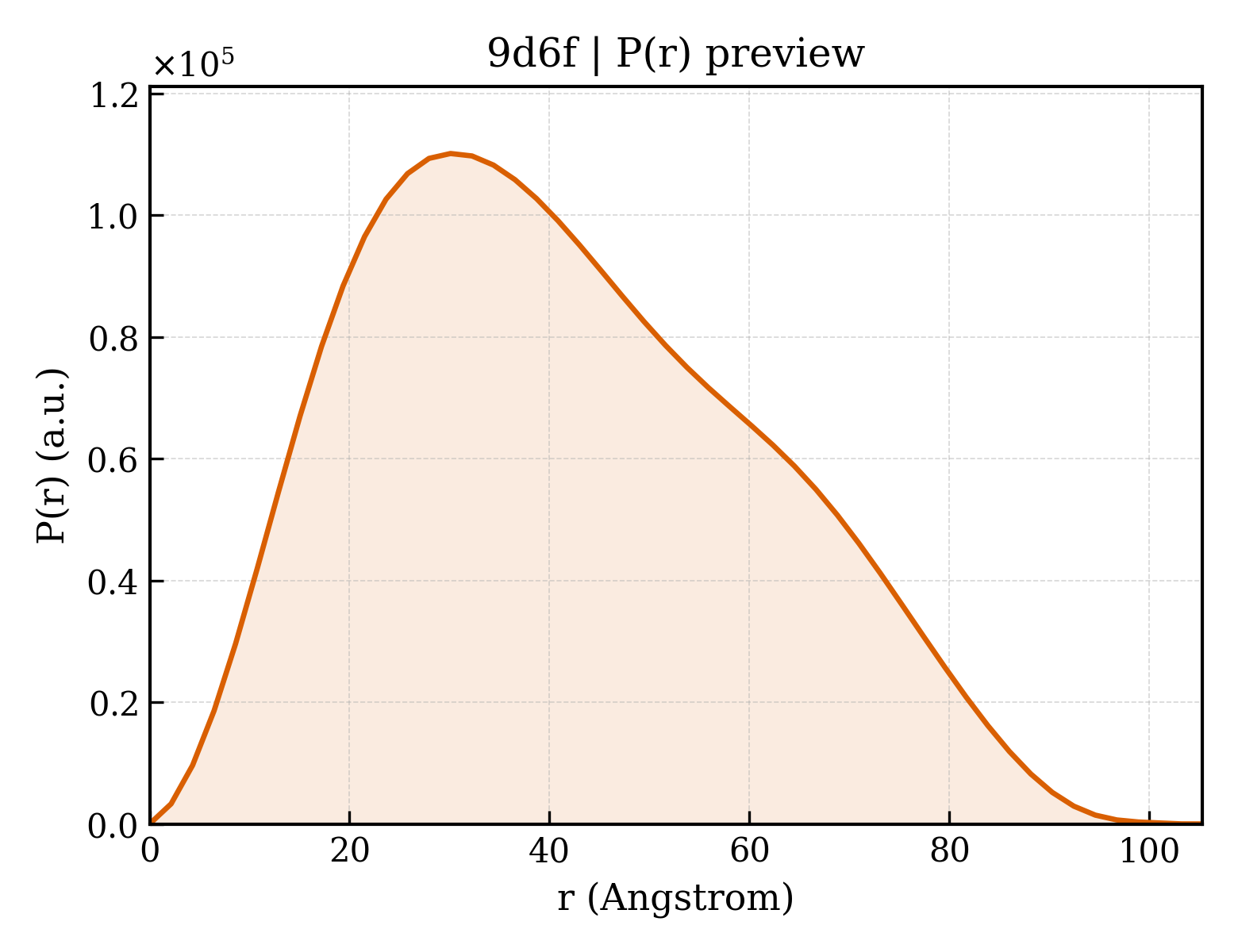

9d6f__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	32.18 Å
Rg (electron density)	31.80 Å
Total Rg	32.56 Å
Atom count	4672
Residues	610
Excluded volume	82659 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9d6f__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	440-2 Fab light chain
Molecular weight formula_weight	24367.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L
Atom count atom_count	4672

SPDIVMTQAAFSNPVTLGTSASISCSSSKSLLHSNGITYLYWYLQRPGQSPQLLIYRMSNLASGVPDRFSGSGSGTDFALRISRVETEDVGVYYCAQMLERPYTFGSGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	440-2 Fab heavy chain
Molecular weight formula_weight	24603.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

SPQVQLTQSGAELVKPGASVKISCKASGYTFTDYYINWVKQRPGQGLEWIGKIGPGNNSTYYKENFEGKATLTADKSFSTAYMQLSSLTSEDSAVYFCARWGYLWSTGGGFDYWGHGTTLTVSSAKTTAPSVYPLAPVCGDTTGSSVTLGCLVKGYFPEPVTLTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDKKIGGGHHHHHH

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	445-3 Fab heavy chain
Molecular weight formula_weight	24124.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

SPQVQLQQSGSELAKPGASVKLSCKASGYTFTRYWMHWVKQRPGQGLEWIGYSNPSSGYTNFNQKFKDKAALTADTSSNTAYIQLNGLTFEDSAVYFCARDGDPPFVYWGQGTLVTVSAAKTTAPSVYPLAPVCGDTTGSSVTLGCLVKGYFPEPVTLTWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDKKIGGGHHHHHH

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	445-3 Fab light chain
Molecular weight formula_weight	23697.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

SPDIQMTQSPASLSASVGETVTITCRASENIYSNLAWYQQKQGKSPQLLVDGATNLADGVPSRFSGSGSGTQFSLKINSVQSEDFGNYYCQHFYGTPFTFGTGTKLEMKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	;Type 1 fimbrin D-mannose specific adhesin FimH, Donor strand complemented with FimG peptide 'triple mutant' ;
Molecular weight formula_weight	32118.6 kDa
Mutation mutation	N7S, G15A, G16A, V27A, N70S, N228Q within FimH
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

FACKTASGTAIPIGAASANVYVNLAPAVNVGQNLVVDLSTQIFCHNDYPETITDYVTLQRGSAYGGVLSSFSGTVKYSGSSYPFPTTSETPRVVYNSRTDKPWPVALYLTPVSSAGGVAIKAGSLIAVLILRQTNNYNSDDFQFVWNIYANNDVVVPTGGCDVSARDVTVTLPDYPGSVPIPLTVYCAKSQNLGYYLSGTTADAGNSIFTNTASFSPAQGVGVQLTRQGTIIPANNTVSLGAVGTSAVSLGLTANYARTGGQVTAGNVQSIIGVTFVYQGGSSGGGADVTITVNGKVVAKGGHHHHHHHH

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Cricetulus griseus

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.24 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	185595

Cryo-EM structure of E. coli FimH lectin domain bound to Fabs 440-2 and 454-3
