SAXSdb — 8vy2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cadherin EGF LAG seven-pass G-type receptor 1

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Monomer	Protein 1 其他Polymer 4	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 2-acetamido-2-deoxy-beta-D-glucopyranose × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CELR1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–2224； UniProt 255–2477

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8vy2
Deposition date deposition_date	2024-02-06
Structure title title	Structure of mCELSR1 extracellular region containing CADH9-GAIN domains
Keywords keywords	CELSR, adhesion, GPCR, planar cell polarity, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8vy2__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8vy2__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

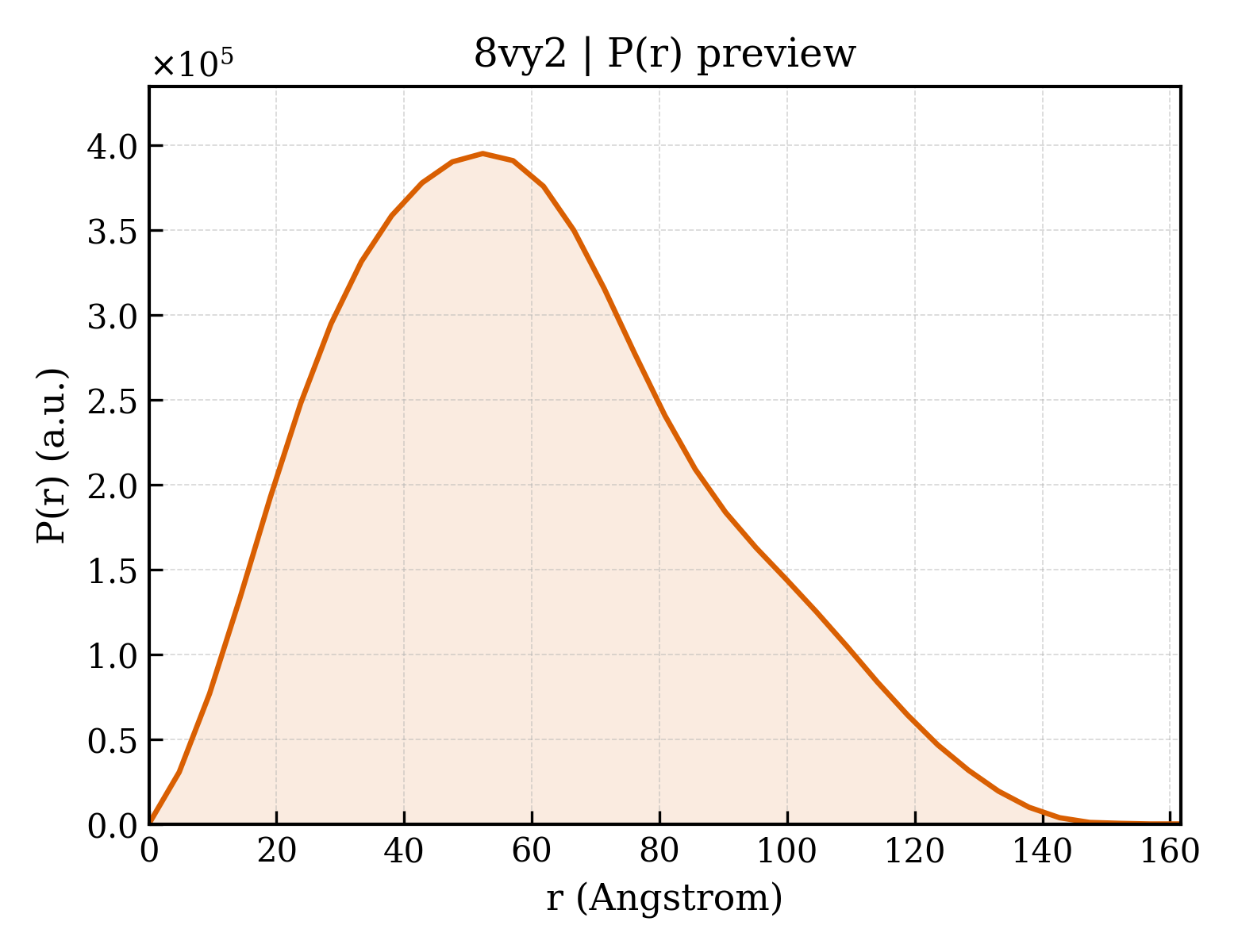

8vy2__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	46.00 Å
Rg (electron density)	46.08 Å
Total Rg	46.18 Å
Atom count	10374
Residues	1319
Excluded volume	182840 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8vy2__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Cadherin EGF LAG seven-pass G-type receptor 1
Molecular weight formula_weight	245638.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10374

ASTSPQFPLPSYQVSVPENEPAGTAVIELRAHDPDEGDAGRLSYQMEALFDERSNGYFLIDAATGAVTTARSLDRETKDTHVLKVSAVDHGSPRRSAATYLTVTVSDTNDHSPVFEQSEYRERIRENLEVGYEVLTIRATDGDAPSNANMRYRLLEGAGGVFEIDARSGVVRTRAVVDREEAAEYQLLVEANDQGRNPGPLSASATVHIVVEDENDNYPQFSEKRYVVQVPEDVAVNTAVLRVQATDRDQGQNAAIHYSIVSGNLKGQFYLHSLSGSLDVINPLDFEAIREYTLRIKAQDGGRPPLINSSGLVSVQVLDVNDNAPIFVSSPFQAAVLENVPLGHSVLHIQAVDADAGENARLQYRLVDTASTIVGGSSVDSENPASAPDFPFQIHNSSGWITVCAELDREEVEHYSFGVEAVDHGSPAMSSSASVSITVLDVNDNDPMFTQPVYELRLNEDAAVGSSVLTLRARDRDANSVITYQLTGGNTRNRFALSSQSGGGLITLALPLDYKQERQYVLAVTASDGTRSHTAQVFINVTDANTHRPVFQSSHYTVSVSEDRPVGTSIATISATDEDTGENARITYVLEDPVPQFRIDPDTGTIYTMTELDYEDQAAYTLAITAQDNGIPQKSDTTSLEILILDANDNAPRFLRDFYQGSVFEDAPPSTSVLQVSATDRDSGPNGRLLYTFQGGDDGDGDFYIEPTSGVIRTQRRLDRENVAVYNLWALAVDRGSPNPLSASVGIQVSVLDINDNPPVFEKDELELFVEENSPVGSVVARIRANDPDEGPNAQIMYQIVEGNVPEVFQLDLLSGDLRALVELDFEVRRDYMLVVQATSAPLVSRATVHIRLLDQNDNPPELPDFQILFNNYVTNKSNSFPSGVIGRIPAHDPDLSDSLNYTFLQGNELSLLLLDPATGELQLSRDLDNNRPLEALMEVSVSDGIHSVTALCTLRVTIITDDMLTNSITVRLENMSQEKFLSPLLSLFVEGVATVLSTTKDDIFVFNIQNDTDVSSNILNVTFSALLPGGTRGRFFPSEDLQEQIYLNRTLLTTISAQRVLPFDDNICLREPCENYMKCVSVLRFDSSAPFISSTTVLFRPIHPITGLRCRCPPGFTGDYCETEIDLCYSNPCGANGRCRSREGGYTCECFEDFTGEHCQVNVRSGRCASGVCKNGGTCVNLLIGGFHCVCPPGEYEHPYCEVSTRSFPPQSFVTFRGLRQRFHFTVSLAFATQDRNALLLYNGRFNEKHDFIALEIVEEQLQLTFSAGETTTTVTPQVPGGVSDGRWHSVLVQYYNKPNIGHLGLPHGPSGEKVAVVTVDDCDAAVAVHFGSYVGNYSCAAQGTQSGSKKSLDLTGPLLLGGVPNLPEDFPVHSRQFVGCMRNLSIDGRIVDMAAFIANNGTRAGCASQRNFCDGTSCQNGGTCVNRWNTYLCECPLRFGGKNCEQAMPHPQRFTGESVVLWSDLDITISVPWYLGLMFRTRKEDGVLMEATAGTSSRLHLQILNSYIRFEVSYGPSDVASMQLSKSRITDGGWHHLLIELRSAKEGKDIKYLAVMTLDYGMDQSTVQIGNQLPGLKMRTIVIGGVTEDKVSVRHGFRGCMQGVRMGETSTNIATLNMNDALKVRVKDGCDVEDPCASSPCPPHSHCRDTWDSYSCICDRGYFGKKCVDACLLNPCKHVAACVRSPNTPRGYSCECGPGHYGQYCENKVDLPCPKGWWGNPVCGPCHCAVSQGFDPDCNKTNGQCQCKENYYKPPAQDACLPCDCFPHGSHSRACDMDTGQCACKPGVIGRQCNRCDNPFAEVTSLGCEVIYNGCPRAFEAGIWWPQTKFGQPAAVPCPKGSVGNAVRHCSGEKGWLPPELFNCTSGSFVDLKALNEKLNRNETRMDGNRSLRLAKALRNATQGNSTLFGNDVRTAYQLLARILQHESRQQGFDLAATREANFHEDVVHTGSALLAPATEASWEQIQRSEAGAAQLLRHFEAYFSNVARNVKRTYLRPFVIVTANMILAVDIFDKLNFTGAQVPRFEDIQEELPRELESSVSFPADTFKPPEKKEGPVVRLTNRRTTPLTAQPEPRAERETSSSRRRRHPDEPGQFAVALVVIYRTLGQLLPEHYDPDHRSLRLPNRPVINTPVVSAMVYSEGTPLPSSLQRPILVEFSLLETEERSKPVCVFWNHSLDTGGTGGWSAKGCELLSRNRTHVTCQCSHSASCAVLMDISRREHHHHHHHHH

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	3

Entity 3 Entity 3 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	6

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.30 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	171416

Structure of mCELSR1 extracellular region containing CADH9-GAIN domains
