8wf4

The Crystal Structure of RSK1 from Biortus.

Method: X-RAY DIFFRACTION Dmax: 96.0 Å Quality: REASONABLE
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ribosomal protein S6 kinase alpha-1

Homo sapiens

UniProt Q15418

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain A； UniProt 411–735 Not recorded EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.1M Hepes pH7.0, 15% PEG 20000 Resolution 2.65 Å R-free 0.309
2 Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count Chain B； UniProt 411–735 Not recorded EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；293 K；0.1M Hepes pH7.0, 15% PEG 20000 Resolution 2.65 Å R-free 0.309

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 8WF4 Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
2WNT Crystal Structure of the Human Ribosomal protein S6 kinase Deposited 2009-07-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 413–719（307 aa） Fragment：RESIDUES 413-719
Chain B 413–719（307 aa） Fragment：RESIDUES 413-719
Not recorded NA SODIUM ION × 3 CL CHLORIDE ION × 1 PEG DI(HYDROXYETHYL)ETHER × 2 X-RAY DIFFRACTION
X-ray crystallization conditions 20% PEG 3350, 0.20M NA(FORM)
Resolution 2.40 Å R-free 0.240
2Z7Q Crystal structure of the N-terminal kinase domain of human RSK-1 bound to AMP-PCP Deposited 2007-08-28 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 33–353（321 aa） Fragment：Residues 33-353
Not recorded MG MAGNESIUM ION × 1 ACP PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；12-16% PEG MME 2000, 150mM DL-malic acid, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.00 Å R-free 0.283
2Z7R Crystal Structure of the N-terminal Kinase Domain of Human RSK1 bound to Staurosporine Deposited 2007-08-28 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 33–353（321 aa） Fragment：Residues 33-353
Not recorded STU STAUROSPORINE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；12-16% PEG MME 2000, 150mM DL-malic acid, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.00 Å R-free 0.286
2Z7S Crystal Structure of the N-terminal Kinase Domain of Human RSK1 bound to Purvalnol A Deposited 2007-08-28 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 33–353（321 aa） Fragment：Residues 33-353
Not recorded P01 2-({6-[(3-CHLOROPHENYL)AMINO]-9-ISOPROPYL-9H-PURIN-2-YL}AMINO)-3-METHYLBUTAN-1-OL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；12-16% PEG MME 2000, 150mM DL-malic acid , pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.10 Å
3RNY Crystal structure of human RSK1 C-terminal kinase domain Deposited 2011-04-24 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 411–735（325 aa） Fragment：UNP residues 411-735
Not recorded NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；290 K；0.1 M HEPES pH 7.5, 17.1%(w/v) PEG 3350, 4%(v/v) acetonitrile or 18%(w/v) PEG 3350, 100 mM ammonium formate, 4%(v/v) acetonitrile, vapor diffusion, sitting drop, temperature 290K
Resolution 2.70 Å R-free 0.238
3RNY Crystal structure of human RSK1 C-terminal kinase domain Deposited 2011-04-24 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain B 411–735（325 aa） Fragment：UNP residues 411-735
Not recorded NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；290 K；0.1 M HEPES pH 7.5, 17.1%(w/v) PEG 3350, 4%(v/v) acetonitrile or 18%(w/v) PEG 3350, 100 mM ammonium formate, 4%(v/v) acetonitrile, vapor diffusion, sitting drop, temperature 290K
Resolution 2.70 Å R-free 0.238
3RNY Crystal structure of human RSK1 C-terminal kinase domain Deposited 2011-04-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 411–735（325 aa） Fragment：UNP residues 411-735
Chain B 411–735（325 aa） Fragment：UNP residues 411-735
Not recorded NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；290 K；0.1 M HEPES pH 7.5, 17.1%(w/v) PEG 3350, 4%(v/v) acetonitrile or 18%(w/v) PEG 3350, 100 mM ammonium formate, 4%(v/v) acetonitrile, vapor diffusion, sitting drop, temperature 290K
Resolution 2.70 Å R-free 0.238
3TEI Crystal structure of human ERK2 complexed with a MAPK docking peptide Deposited 2011-08-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 712–735（24 aa） Fragment：C-TERMINAL DOCKING PEPTIDE, RESIDUES 712-735
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 6.5；296 K；27-29% PEG 6000, 0.1M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 296K
Resolution 2.40 Å R-free 0.235
4H3P Crystal structure of human ERK2 complexed with a MAPK docking peptide Deposited 2012-09-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 712–735（24 aa） Fragment：C-TERMINAL DOCKING PEPTIDE, UNP residues 712-735
Mutation：S719A, Q724A ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；296 K；25-30% PEG6000, 0.1M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 296K
Resolution 2.30 Å R-free 0.224
4H3P Crystal structure of human ERK2 complexed with a MAPK docking peptide Deposited 2012-09-14 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 712–735（24 aa） Fragment：C-TERMINAL DOCKING PEPTIDE, UNP residues 712-735
Mutation：S719A, Q724A ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；296 K；25-30% PEG6000, 0.1M MES, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 296K
Resolution 2.30 Å R-free 0.224
4NIF Heterodimeric structure of ERK2 and RSK1 Deposited 2013-11-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 411–735（325 aa） Fragment：C-terminal kinase domain, UNP residues 411-735
Chain D 411–735（325 aa） Fragment：C-terminal kinase domain, UNP residues 411-735
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 2 SO4 SULFATE ION × 3 NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.25；296 K；0.1M MES, 15% PEG4000, 0.125M (NH4)2SO4, 2% Benzamidine, pH 6.25, VAPOR DIFFUSION, SITTING DROP, temperature 296K
Resolution 2.15 Å R-free 0.208
5CSF S100B-RSK1 crystal structure A Deposited 2015-07-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 683–735（53 aa） Fragment：UNP residues 683-735
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；296 K；0.1 M Hepes 7, 150 mM NaCl, 20% PEG6000
Resolution 2.40 Å R-free 0.291
5CSI S100B-RSK1 crystal structure A' Deposited 2015-07-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 689–735（47 aa） Fragment：UNP residues 689-735
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；296 K；0.1 M Hepes 7, 150 mM NaCl, 20% PEG6000
Resolution 2.13 Å R-free 0.250
5CSJ S100B-RSK1 crystal structure B Deposited 2015-07-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 696–735（40 aa） Fragment：UNP residues 696-735
Not recorded CA CALCIUM ION × 4 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；296 K；0.1 M Hepes 7, 150 mM NaCl, 20% PEG6000
Resolution 2.70 Å R-free 0.276
5CSN S100B-RSK1 crystal structure C Deposited 2015-07-23 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 683–720（38 aa） Fragment：UNP residues 683-720
Not recorded CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；296 K；0.1 M Hepes 7, 150 mM NaCl, 20% PEG6000
Resolution 2.95 Å R-free 0.279
5N7D MAGI-1 complexed with a RSK1 peptide Deposited 2017-02-20 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 697–744（48 aa）
Not recorded GOL GLYCEROL × 3 CA CALCIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；296 K；8% PEG 400, 100 mM acetate buffer
Resolution 2.30 Å R-free 0.227
5N7F MAGI-1 complexed with a pRSK1 peptide Deposited 2017-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 688–735（48 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 3 CA CALCIUM ION × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；296 K；14% PEG 8000, 200 mM MgCl2, 100 mM TRIS
Resolution 2.30 Å R-free 0.240
5N7G MAGI-1 complexed with a synthetic pRSK1 peptide Deposited 2017-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 729–735（7 aa） Fragment：UNP residues 88-94
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 3 CA CALCIUM ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；296 K；14% PEG 8000, 200 mM MgCl2, 100 mM TRIS
Resolution 2.95 Å R-free 0.264
5V61 Phospho-ERK2 bound to bivalent inhibitor SBP2 Deposited 2017-03-15 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 713–729（17 aa） Fragment：UNP Q15418 residues 713-729, UNP P04608 residues 730-738
Not recorded GOL GLYCEROL × 3 FRZ 5-(2-PHENYLPYRAZOLO[1,5-A]PYRIDIN-3-YL)-1H-PYRAZOLO[3,4-C]PYRIDAZIN-3-AMINE × 1 90A 2-oxo-6,9,12,15-tetraoxa-3-azaoctadecan-18-oic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；0.1 M Bis-Tris pH 6.5, 45% v/v polypropylene glycol P400
Resolution 2.20 Å R-free 0.212
5V62 Phospho-ERK2 bound to bivalent inhibitor SBP3 Deposited 2017-03-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain I 713–729（17 aa） Fragment：UNP residues 713-729
Non-standard monomer：Yes (specific site not provided by mmCIF) GOL GLYCEROL × 5 FRZ 5-(2-PHENYLPYRAZOLO[1,5-A]PYRIDIN-3-YL)-1H-PYRAZOLO[3,4-C]PYRIDAZIN-3-AMINE × 1 AKS N-(hex-5-yn-1-yl)hexanamide × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；277 K；0.1 M Tris-Bicine pH 8.5, 0.02 M each of 1,6-Hexanediol, 1-Butanol, 1,2-Propanediol, 2-Propanol, 1,4-Butanediol, 1,3-Propanediol, 20% v/v PEG550MME, 10% w/v PEG20,000
Resolution 1.90 Å R-free 0.203
7P74 The PDZ domain of SYNJ2BP complexed with the phosphorylated PDZ-binding motif of RSK1 Deposited 2021-07-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 725–735（11 aa）
Mutation：N-terminal biotin-ttds label Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 4 GOL GLYCEROL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；100mM ammonium sulfate, 100mM sodium formate, 25% PEG smear broad
Resolution 1.90 Å R-free 0.211
7PC8 The PDZ domain of SNTG1 complexed with the phosphomimetic mutant PDZ-binding motif of RSK1 Deposited 2021-08-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 726–735（10 aa）
Not recorded CA CALCIUM ION × 5 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.15 M Lithium sulfate, 0.05 M Magnesium chloride hexahydrate ,0.1 M HEPES 7.8, 20 % v/v PEG Smear High
Resolution 2.50 Å R-free 0.232
7PC8 The PDZ domain of SNTG1 complexed with the phosphomimetic mutant PDZ-binding motif of RSK1 Deposited 2021-08-03 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 726–735（10 aa）
Not recorded CA CALCIUM ION × 4 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.15 M Lithium sulfate, 0.05 M Magnesium chloride hexahydrate ,0.1 M HEPES 7.8, 20 % v/v PEG Smear High
Resolution 2.50 Å R-free 0.232
7QQL The PDZ domain of SNTG2 complexed with the phosphorylated PDZ-binding motif of RSK1 Deposited 2022-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 725–735（11 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 5 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M Succinic acid pH 7.0 15% w/v PEG 3350
Resolution 2.44 Å R-free 0.230
7QQL The PDZ domain of SNTG2 complexed with the phosphorylated PDZ-binding motif of RSK1 Deposited 2022-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain E 725–735（11 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 4 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M Succinic acid pH 7.0 15% w/v PEG 3350
Resolution 2.44 Å R-free 0.230
7QQL The PDZ domain of SNTG2 complexed with the phosphorylated PDZ-binding motif of RSK1 Deposited 2022-01-10 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 725–735（11 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) CA CALCIUM ION × 5 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；298 K；0.1 M Succinic acid pH 7.0 15% w/v PEG 3350
Resolution 2.44 Å R-free 0.230
8XOV The Crystal Structure of N-terminal kinase domain of human RSK-1 from Biortus. Deposited 2024-01-02 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 33–353（321 aa）
Not recorded ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 EDO 1,2-ETHANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M MgAC2, 0.1M Nacacodylate pH6.5, 15% PEG 6000
Resolution 2.55 Å R-free 0.252

21 other PDB entries and 27 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name KS6A1_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 1–325； UniProt 411–735 Author chain B； PDBConstruct 1–325； UniProt 411–735

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

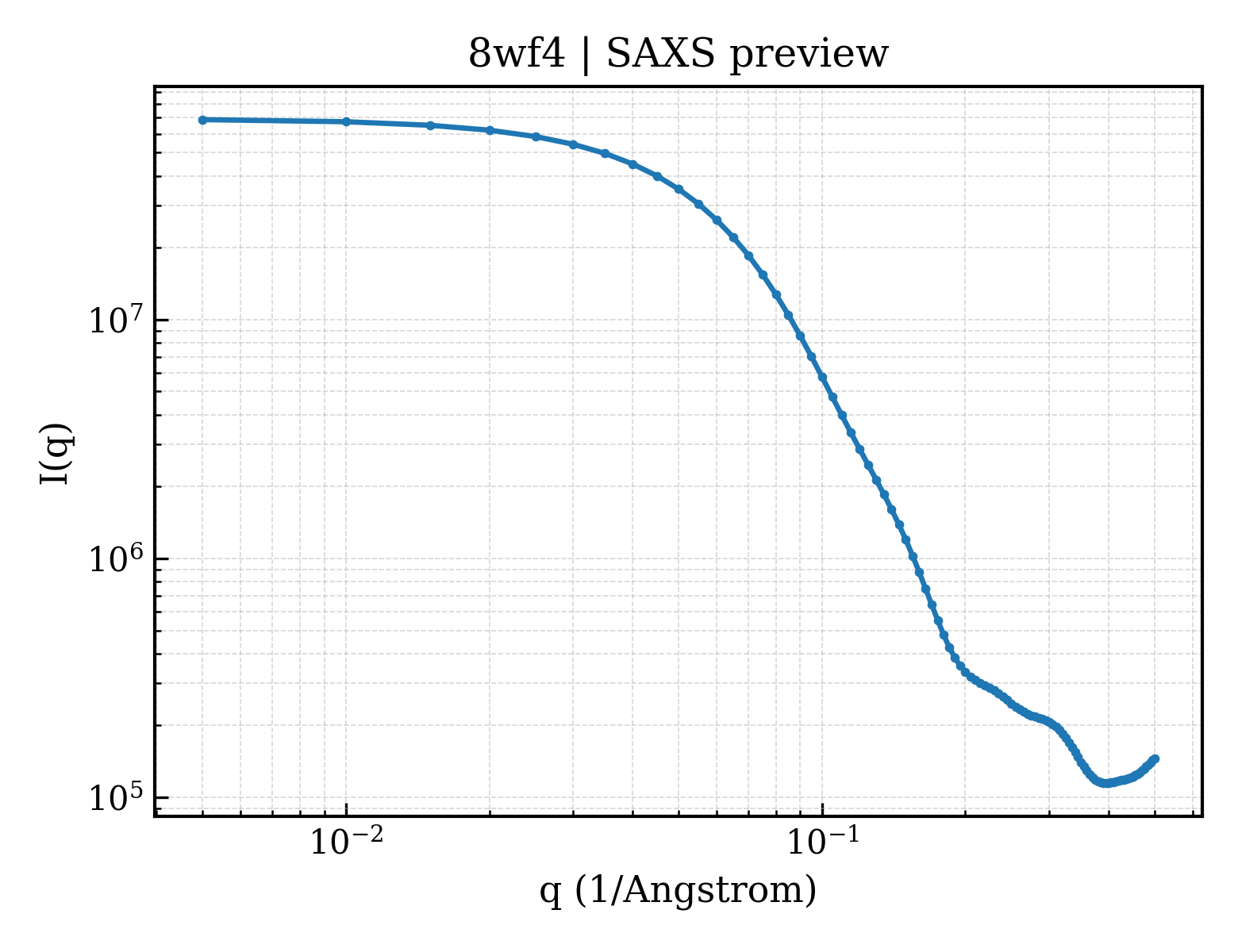

SAXS scattering curve SAXS Profile

SAXS profile for 8wf4

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 8wf4
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id8wf4
Deposition date deposition_date2023-09-19
最后修订 last_revision2023-11-22
Structure title titleThe Crystal Structure of RSK1 from Biortus.
Keywords keywords;Kinase, Serine, threonine-protein kinase, Transferase, Cell cycle, Host-virus interaction, Stress response, ATP-binding, Magnesium, Metal-binding, Nucleotide-binding ;; TRANSFERASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier28.52 Å
Radius of gyration Rg (electron density) rg_electron27.78 Å
Forward intensity I(0) i069221200.00
Molecular weight molecular_weight65100.0 kDa
Excluded volume excluded_volume81578 ų
Envelope volume envelope_volume103740 ų
Hydration-shell volume shell_volume31324 ų
Envelope diameter envelope_diameter100.6 Å
Shell Rg shell_rg34.72 Å
Envelope Rg envelope_rg27.59 Å
Shape Rg shape_rg27.78 Å
Total Rg total_rg28.48 Å
Total atoms total_atoms4575
Residues n_residues578
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax96.0 Å
Rg (real space) rg_real28.51 Å
Rg uncertainty (real space) rg_real_error0.58 Å
I(0) (real space) i0_real6.9220e+07
I(0) uncertainty (real space) i0_real_error1.0060e+06
Rg (reciprocal space) rg_reciprocal28.51 Å
I(0) (reciprocal space) i0_reciprocal69220000.0000
Solution quality estimate total_estimate0.7127
Solution quality rating solution_quality REASONABLE a REASONABLE solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary30.9 Å
Skewness Skewness skewness0.313
Kurtosis Kurtosis kurtosis-0.430
Angular range angular_range— – 0.2800 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha13590000.0000
Real-space data points n_real_points57
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.860; Stabil: 1.000; Sysdev: 0.242; Positv: 1.000; Valcen: 0.972; Smooth: 0.979
▶
