SAXSdb — 8whm

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

ERC protein 2

Rattus norvegicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Pleckstrin homology-like domain family B member 2 × 2 （Q86SQ0） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ERC2_RAT
Isoform	Q8K3M6-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 10–66； UniProt 261–317

Pleckstrin homology-like domain family B member 2

Homo sapiens

UniProt Q86SQ0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	ERC protein 2 × 2 （Q8K3M6） water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHLB2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 5–82； UniProt 413–490

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8whm
Deposition date deposition_date	2023-09-23
Last revision last_revision	2024-08-28
Structure title title	Crystal structure of the ELKS2/LL5beta complex
Keywords keywords	Complex, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8whm__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

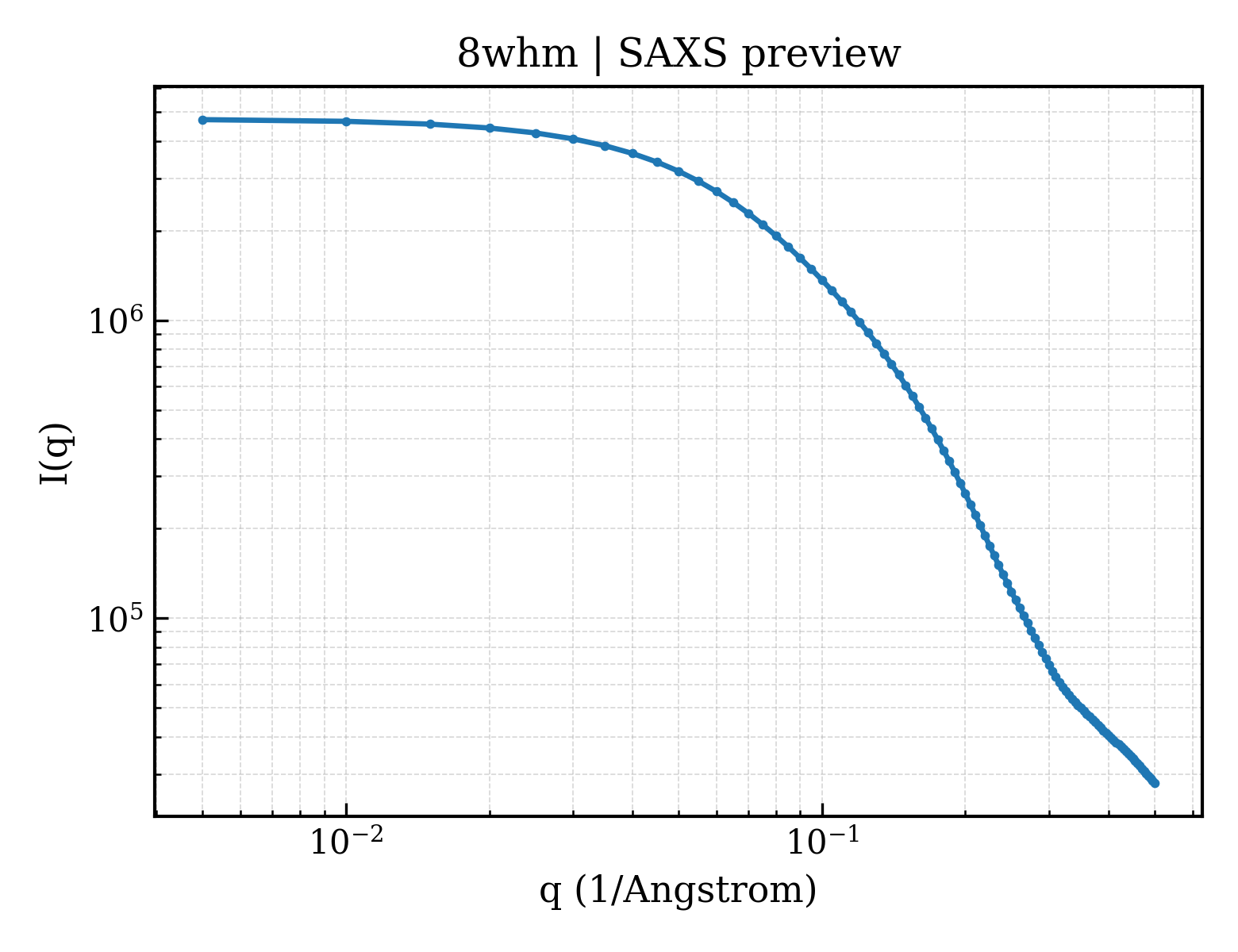

8whm__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

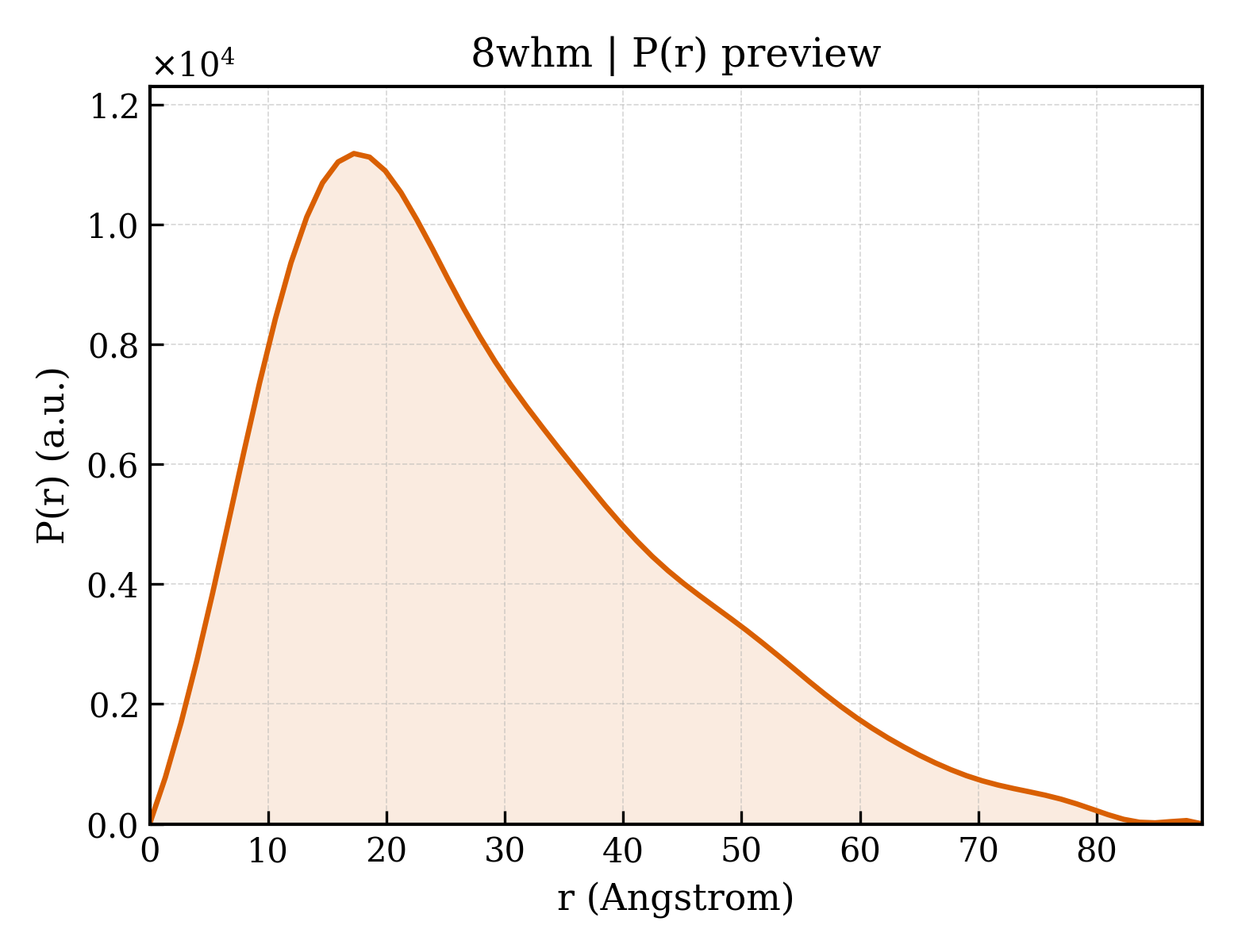

8whm__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	23.67 Å
Rg (electron density)	23.44 Å
Total Rg	23.86 Å
Atom count	2116
Residues	256
Excluded volume	37406 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8whm__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	ERC protein 2
Molecular weight formula_weight	7829.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1079

GPGSEFLTEENFRRLQAEHDRQAKELFLLRKTLEEMELRIETQKQTLNARDESIKKLLEMLQSKGL

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Pleckstrin homology-like domain family B member 2
Molecular weight formula_weight	9583.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GPGSKSSISSISGRDDLMDYHRRQREERLREQEMERLERQRLETILSLCAEYTKPDSRLSTGTTVEDVQKINKELEKLQLSD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	21

▶

Unit-cell length a length_a	57.743 Å
Unit-cell length b length_b	90.716 Å
Unit-cell length c length_c	59.063 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	37.580 Å
R factor r_factor	0.2586
R_work r_work	0.2573
R_free r_free	0.2819
