SAXSdb — 8wsu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Glycoprotein C

SFTS phlebovirus (isolate SFTSV/Human/China/HB29/2010)

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Ab-H × 2 Ab-L × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GP_SFTSV
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–433； UniProt 563–995 Author chain D； PDBConstruct 1–433； UniProt 563–995

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8wsu
Deposition date deposition_date	2023-10-17
Structure title title	Crystal structure of SFTSV Gc and antibody
Keywords keywords	Virus, Antibody, VIRAL PROTEIN/IMMUNE SYSTEM, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8wsu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8wsu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

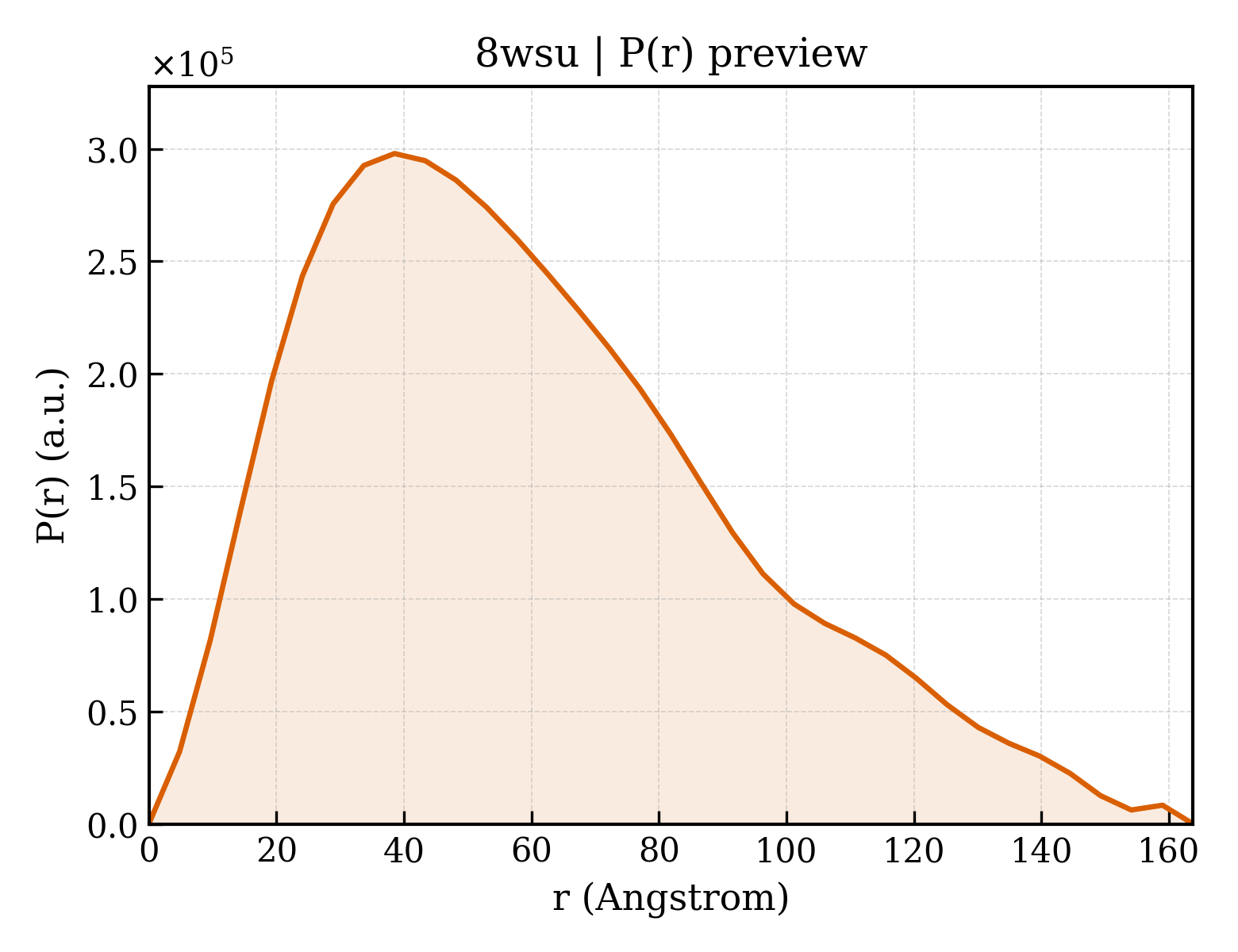

8wsu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	46.95 Å
Rg (electron density)	47.85 Å
Total Rg	47.84 Å
Atom count	9442
Residues	1252
Excluded volume	166680 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8wsu__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Glycoprotein C
Molecular weight formula_weight	47204.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	9442

CDEMVHADSKLVSCRQGSGNMKECVTTGRALLPAVNPGQEACLHFTAPGSPDSKCLKIKVKRINLKCKKSSSYFVPDARSRCTSVRRCRWAGDCQSGCPPHFTSNSFSDDWAGKMDRAGLGFSGCSDGCGGAACGCFNAAPSCIFWRKWVENPHGIIWKVSPCVAWVPSAVIELTMPSGEVRTFHPMSGIPTQVFKGVSVTYLGSDMEVSGLTDLCEIEELKSKKLALAPCNQAGMGVVGKVGEIQCSSEESARTIKKDGCIWNADLVGIELRVDDAVCYSKITSVEAVANYSAIPTTIGGLRFERSHDSQGKISGSPLDITAIRGSFSVNYRGLRLSLSEITATCTGEVTNVSGCYSCMTGAKVSIKLHSSKNSTAHVRCKGDETAFSVLEGVHSYTVSLSFDHAVVDEQCQLNCGGHESQVTLKGNLIFLDHHHHHH

Source Source

Source organism organism	SFTS phlebovirus (isolate SFTSV/Human/China/HB29/2010)
Common name common_name	Severe fever with thrombocytopenia virus
NCBI taxonomy ID ncbi_taxonomy_id	992212
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Ab-H
Molecular weight formula_weight	23968.8 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

QVQLVQSGGGVVKTGRSQRVSCATSGFTFSSYAIHWVRQAPGKGLEWVAVISYDGSNKYYADSVKGRFTISRDSSKNTVYLQMNSLRTEDTAVYYCARSQASWQAFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Ab-L
Molecular weight formula_weight	23144.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

DIQMTQSPSSLSASVGDRVTITCRASQGVGTDLAWYQQKPGKAPNRLIFAASNLQSGVPSRFSGSGSGTEFTLTISSLQPEDFATYYCLHHNSFPLAFGGGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

▶

Unit-cell length a length_a	229.515 Å
Unit-cell length b length_b	72.053 Å
Unit-cell length c length_c	112.360 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	111.47 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	monoclinic

Resolution resolution	3.300 Å
Low-resolution limit resolution_low	36.030 Å
R factor r_factor	0.2101
R_work r_work	0.2070
R_free r_free	0.2674
