SAXSdb — 8xa6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase subunit alpha

Bacillus

UniProt P20429

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 1–314 Chain B； UniProt 1–314	Not recorded	DNA-directed RNA polymerase subunit beta × 1 （P37870） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P37871） DNA-directed RNA polymerase subunit omega × 1 （O35011） DNA-directed RNA polymerase subunit delta × 1 （P12464） DNA-directed RNA polymerase subunit epsilon × 1 （O31718） Gene 33 protein × 1 （P06226）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.02 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8XA6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1Z3E Crystal Structure of Spx in Complex with the C-terminal Domain of the RNA Polymerase Alpha Subunit Deposited 2005-03-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 245–314（70 aa） Fragment：c-terminal domain of RNA polymerase alpha subunit	Not recorded	SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5.6；273 K；lithium sulfate, ammonium sulfate, sodium citrate, pH 5.6, VAPOR DIFFUSION, temperature 273K	Resolution 1.50 Å R-free 0.220
3GFK Crystal structure of Bacillus subtilis Spx/RNA polymerase alpha subunit C-terminal domain complex Deposited 2009-02-27	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 240–314（75 aa） Fragment：Alpha C-terminal domain (alpha-CTD)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 5；295 K；vapor diffusion against 6% (w/v) PEG 6000, 100 mM sodium acetate, pH 5.0, 10 micromolar CuCl2, protein concentration 11.5 mg/mL, temperature 295K	Resolution 2.30 Å R-free 0.282
3IHQ Crystal Structure of Reduced C10S Spx in Complex with the Alpha C-terminal Domain of RNA Polymeras Deposited 2009-07-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 245–314（70 aa） Fragment：UNP residues 245-314	Not recorded	IMD IMIDAZOLE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.3；273 K；25-30% PEG 4000, 0.1 M sodium citrate, 0.1 M magnesium chloride, pH 5.3, VAPOR DIFFUSION, HANGING DROP, temperature 273K	Resolution 1.90 Å R-free 0.278
6WVJ Cryo-EM structure of Bacillus subtilis RNA Polymerase elongation complex Deposited 2020-05-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: octameric	Chain A 1–314（314 aa） Chain B 1–314（314 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE；Sample loading volume ranged between 2 and 3 microlitres. Samples were blotted for 5 seconds prior to vitrification.	Resolution 3.36 Å
6WVK Cryo-EM structure of Bacillus subtilis RNA Polymerase in complex with HelD Deposited 2020-05-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain A 1–314（314 aa） Chain B 1–314（314 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE；Sample loading volume ranged between 2 and 3 microlitres. Samples were blotted for 5 seconds prior to vitrification.	Resolution 3.36 Å
7CKQ The cryo-EM structure of B. subtilis BmrR transcription activation complex Deposited 2020-07-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain A 1–314（314 aa） Chain B 1–314（314 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2 P4P TETRAPHENYLPHOSPHONIUM × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
7F75 Cryo-EM structure of Spx-dependent transcription activation complex Deposited 2021-06-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain A 1–314（314 aa） Chain B 1–314（314 aa） Chain I 1–314（314 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8XA7 Cryo-EM structure of Bacillus subtilis RNAP,sigA and SPO1 gp33 complex Deposited 2023-12-02	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain A 1–314（314 aa） Chain B 1–314（314 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.94 Å
8XA8 Cryo-EM structure of Bacillus RNAP and HelD complex Deposited 2023-12-02	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–314（314 aa） Chain B 1–314（314 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RPOA_BACSU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–314； UniProt 1–314 Author chain B； PDBConstruct 1–314； UniProt 1–314

DNA-directed RNA polymerase subunit beta

Bacillus

UniProt P37870

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain C； UniProt 1–1193	Not recorded	DNA-directed RNA polymerase subunit alpha × 2 （P20429） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P37871） DNA-directed RNA polymerase subunit omega × 1 （O35011） DNA-directed RNA polymerase subunit delta × 1 （P12464） DNA-directed RNA polymerase subunit epsilon × 1 （O31718） Gene 33 protein × 1 （P06226）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.02 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8XA6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2LY7 B-flap domain of RNA polymerase (B. subtilis) Deposited 2012-09-12	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 784–923（140 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Pressure ambient NMR sample composition 500 uM [U-100% 13C; U-100% 15N] b-flap, 20 mM potassium phosphate, 150 mM sodium chloride, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
6WVK Cryo-EM structure of Bacillus subtilis RNA Polymerase in complex with HelD Deposited 2020-05-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain C 1–1193（1193 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE；Sample loading volume ranged between 2 and 3 microlitres. Samples were blotted for 5 seconds prior to vitrification.	Resolution 3.36 Å
7CKQ The cryo-EM structure of B. subtilis BmrR transcription activation complex Deposited 2020-07-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain C 1–1193（1193 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2 P4P TETRAPHENYLPHOSPHONIUM × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
7F75 Cryo-EM structure of Spx-dependent transcription activation complex Deposited 2021-06-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain C 1–1193（1193 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8XA7 Cryo-EM structure of Bacillus subtilis RNAP,sigA and SPO1 gp33 complex Deposited 2023-12-02	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain C 1–1193（1193 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.94 Å
8XA8 Cryo-EM structure of Bacillus RNAP and HelD complex Deposited 2023-12-02	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain C 1–1193（1193 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å

6 other PDB entries and 6 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RPOB_BACSU
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–1193； UniProt 1–1193

;DNA-directed RNA polymerase subunit beta' ;

Bacillus

UniProt P37871

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain D； UniProt 1–1199	Not recorded	DNA-directed RNA polymerase subunit alpha × 2 （P20429） DNA-directed RNA polymerase subunit beta × 1 （P37870） DNA-directed RNA polymerase subunit omega × 1 （O35011） DNA-directed RNA polymerase subunit delta × 1 （P12464） DNA-directed RNA polymerase subunit epsilon × 1 （O31718） Gene 33 protein × 1 （P06226）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.02 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8XA6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6WVK Cryo-EM structure of Bacillus subtilis RNA Polymerase in complex with HelD Deposited 2020-05-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain D 1–1199（1199 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE；Sample loading volume ranged between 2 and 3 microlitres. Samples were blotted for 5 seconds prior to vitrification.	Resolution 3.36 Å
7CKQ The cryo-EM structure of B. subtilis BmrR transcription activation complex Deposited 2020-07-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain D 1–1199（1199 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2 P4P TETRAPHENYLPHOSPHONIUM × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
7F75 Cryo-EM structure of Spx-dependent transcription activation complex Deposited 2021-06-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain D 1–1199（1199 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8XA7 Cryo-EM structure of Bacillus subtilis RNAP,sigA and SPO1 gp33 complex Deposited 2023-12-02	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain D 1–1199（1199 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.94 Å
8XA8 Cryo-EM structure of Bacillus RNAP and HelD complex Deposited 2023-12-02	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain D 1–1199（1199 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RPOC_BACSU
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–1199； UniProt 1–1199

DNA-directed RNA polymerase subunit omega

Bacillus

UniProt O35011

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain F； UniProt 1–67	Not recorded	DNA-directed RNA polymerase subunit alpha × 2 （P20429） DNA-directed RNA polymerase subunit beta × 1 （P37870） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P37871） DNA-directed RNA polymerase subunit delta × 1 （P12464） DNA-directed RNA polymerase subunit epsilon × 1 （O31718） Gene 33 protein × 1 （P06226）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.02 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8XA6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6WVK Cryo-EM structure of Bacillus subtilis RNA Polymerase in complex with HelD Deposited 2020-05-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain F 1–67（67 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE；Sample loading volume ranged between 2 and 3 microlitres. Samples were blotted for 5 seconds prior to vitrification.	Resolution 3.36 Å
7CKQ The cryo-EM structure of B. subtilis BmrR transcription activation complex Deposited 2020-07-18	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain E 1–67（67 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2 P4P TETRAPHENYLPHOSPHONIUM × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
7F75 Cryo-EM structure of Spx-dependent transcription activation complex Deposited 2021-06-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain E 1–67（67 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8XA7 Cryo-EM structure of Bacillus subtilis RNAP,sigA and SPO1 gp33 complex Deposited 2023-12-02	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain F 1–67（67 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.94 Å
8XA8 Cryo-EM structure of Bacillus RNAP and HelD complex Deposited 2023-12-02	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain F 1–67（67 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å

5 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RPOZ_BACSU
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain F； PDBConstruct 1–67； UniProt 1–67

DNA-directed RNA polymerase subunit delta

Bacillus

UniProt P12464

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain L； UniProt 1–173	Not recorded	DNA-directed RNA polymerase subunit alpha × 2 （P20429） DNA-directed RNA polymerase subunit beta × 1 （P37870） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P37871） DNA-directed RNA polymerase subunit omega × 1 （O35011） DNA-directed RNA polymerase subunit epsilon × 1 （O31718） Gene 33 protein × 1 （P06226）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.02 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8XA6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2KRC Solution structure of the N-terminal domain of Bacillus subtilis delta subunit of RNA polymerase Deposited 2009-12-16	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–92（91 aa） Fragment：residues 2-92	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.6；301 K；Ionic strength (raw mmCIF value) 10；Pressure 1 NMR sample composition 10 mM sodium chloride-1, 50 uM sodium azide-2, 20 mM phosphate buffer-3, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 10 mM sodium chloride-4, 50 uM sodium azide-5, 20 mM phosphate buffer-6, 14.29 mg/mL filamentous Pf1 bacteriophage-7, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 10 mM sodium chloride-8, 50 uM sodium azide-9, 20 mM phosphate buffer-10, 5 % polyacrylamide gel-11, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2M4K Solution structure of the delta subunit of RNA polymerase from Bacillus subtilis Deposited 2013-02-07	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–173（172 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6.6；300 K；Ionic strength (raw mmCIF value) 10；Pressure ambient NMR sample composition 10 % [U-100% 2H] D2O, 10 mM sodium chloride, 50 uM sodium azide, 20 mM sodium phosphate, 90 % H2O, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
4NC7 N-terminal domain of delta-subunit of RNA polymerase complexed with I3C and nickel ions Deposited 2013-10-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–92（91 aa） Fragment：UNP residues 2-92 Chain B 2–92（91 aa） Fragment：UNP residues 2-92	Not recorded	I3C 5-amino-2,4,6-triiodobenzene-1,3-dicarboxylic acid × 1 NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；290.15 K；2M sodium/potassium phosphate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 290.15K X-ray crystallization conditions VAPOR DIFFUSION；pH 8.2；290.15 K；1.8M sodium/potassium phosphate, pH 8.2, VAPOR DIFFUSION, temperature 290.15K	Resolution 2.00 Å R-free 0.259
4NC7 N-terminal domain of delta-subunit of RNA polymerase complexed with I3C and nickel ions Deposited 2013-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–92（91 aa） Fragment：UNP residues 2-92	Not recorded	I3C 5-amino-2,4,6-triiodobenzene-1,3-dicarboxylic acid × 2 NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；290.15 K；2M sodium/potassium phosphate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 290.15K X-ray crystallization conditions VAPOR DIFFUSION；pH 8.2；290.15 K；1.8M sodium/potassium phosphate, pH 8.2, VAPOR DIFFUSION, temperature 290.15K	Resolution 2.00 Å R-free 0.259
4NC7 N-terminal domain of delta-subunit of RNA polymerase complexed with I3C and nickel ions Deposited 2013-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 2–92（91 aa） Fragment：UNP residues 2-92	Not recorded	NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；290.15 K；2M sodium/potassium phosphate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 290.15K X-ray crystallization conditions VAPOR DIFFUSION；pH 8.2；290.15 K；1.8M sodium/potassium phosphate, pH 8.2, VAPOR DIFFUSION, temperature 290.15K	Resolution 2.00 Å R-free 0.259
4NC7 N-terminal domain of delta-subunit of RNA polymerase complexed with I3C and nickel ions Deposited 2013-10-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–92（91 aa） Fragment：UNP residues 2-92 Chain B 2–92（91 aa） Fragment：UNP residues 2-92	Not recorded	I3C 5-amino-2,4,6-triiodobenzene-1,3-dicarboxylic acid × 2 NI NICKEL (II) ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；290.15 K；2M sodium/potassium phosphate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 290.15K X-ray crystallization conditions VAPOR DIFFUSION；pH 8.2；290.15 K；1.8M sodium/potassium phosphate, pH 8.2, VAPOR DIFFUSION, temperature 290.15K	Resolution 2.00 Å R-free 0.259
4NC8 N-terminal domain of delta-subunit of RNA polymerase complexed with nickel ions Deposited 2013-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–92（91 aa） Fragment：UNP residues 2-92	Not recorded	NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；290.15 K；2M sodium/potassium phosphate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 290.15K X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；290.15 K；1.8M sodium/potassium phosphate, pH 8.2, VAPOR DIFFUSION, HANGING DROP, temperature 290.15K	Resolution 2.17 Å R-free 0.283
4NC8 N-terminal domain of delta-subunit of RNA polymerase complexed with nickel ions Deposited 2013-10-24	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 2–92（91 aa） Fragment：UNP residues 2-92	Not recorded	NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；290.15 K；2M sodium/potassium phosphate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 290.15K X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；290.15 K；1.8M sodium/potassium phosphate, pH 8.2, VAPOR DIFFUSION, HANGING DROP, temperature 290.15K	Resolution 2.17 Å R-free 0.283
4NC8 N-terminal domain of delta-subunit of RNA polymerase complexed with nickel ions Deposited 2013-10-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–92（91 aa） Fragment：UNP residues 2-92 Chain B 2–92（91 aa） Fragment：UNP residues 2-92	Not recorded	NI NICKEL (II) ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；290.15 K；2M sodium/potassium phosphate, pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 290.15K X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；290.15 K；1.8M sodium/potassium phosphate, pH 8.2, VAPOR DIFFUSION, HANGING DROP, temperature 290.15K	Resolution 2.17 Å R-free 0.283
7F75 Cryo-EM structure of Spx-dependent transcription activation complex Deposited 2021-06-28	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain L 1–173（173 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8XA7 Cryo-EM structure of Bacillus subtilis RNAP,sigA and SPO1 gp33 complex Deposited 2023-12-02	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain L 1–173（173 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.94 Å
8XA8 Cryo-EM structure of Bacillus RNAP and HelD complex Deposited 2023-12-02	Different ligand/ion Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain I 1–173（173 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.19 Å

7 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RPOE_BACSU
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain L； PDBConstruct 1–173； UniProt 1–173

DNA-directed RNA polymerase subunit epsilon

Bacillus

UniProt O31718

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain E； UniProt 1–69	Mutation：V33I	DNA-directed RNA polymerase subunit alpha × 2 （P20429） DNA-directed RNA polymerase subunit beta × 1 （P37870） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P37871） DNA-directed RNA polymerase subunit omega × 1 （O35011） DNA-directed RNA polymerase subunit delta × 1 （P12464） Gene 33 protein × 1 （P06226）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.02 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8XA6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
6WVK Cryo-EM structure of Bacillus subtilis RNA Polymerase in complex with HelD Deposited 2020-05-06	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric	Chain E 1–69（69 aa）	Not recorded	ZN ZINC ION × 2 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.8 cryo-EM vitrification conditions Cryogen ETHANE；Sample loading volume ranged between 2 and 3 microlitres. Samples were blotted for 5 seconds prior to vitrification.	Resolution 3.36 Å
7CKQ The cryo-EM structure of B. subtilis BmrR transcription activation complex Deposited 2020-07-18	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric	Chain H 1–69（69 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2 P4P TETRAPHENYLPHOSPHONIUM × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.40 Å
7F75 Cryo-EM structure of Spx-dependent transcription activation complex Deposited 2021-06-28	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric	Chain H 1–69（69 aa）	Not recorded	MG MAGNESIUM ION × 1 ZN ZINC ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.20 Å
8XA7 Cryo-EM structure of Bacillus subtilis RNAP,sigA and SPO1 gp33 complex Deposited 2023-12-02	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain E 1–69（69 aa）	Mutation：V33I	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.94 Å

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RPOY_BACSU
Isoform	—
PDB entities	6
Chains and sequence ranges	Author chain E； PDBConstruct 1–69； UniProt 1–69

Gene 33 protein

Bacillus phage SPO1

UniProt P06226

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain H； UniProt 1–101	Not recorded	DNA-directed RNA polymerase subunit alpha × 2 （P20429） DNA-directed RNA polymerase subunit beta × 1 （P37870） ;DNA-directed RNA polymerase subunit beta' ; × 1 （P37871） DNA-directed RNA polymerase subunit omega × 1 （O35011） DNA-directed RNA polymerase subunit delta × 1 （P12464） DNA-directed RNA polymerase subunit epsilon × 1 （O31718）	ELECTRON MICROSCOPY cryo-EM buffer：pH 8 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.02 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 8XA6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8XA7 Cryo-EM structure of Bacillus subtilis RNAP,sigA and SPO1 gp33 complex Deposited 2023-12-02	Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric	Chain H 1–101（101 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.94 Å

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GP33_BPSP1
Isoform	—
PDB entities	7
Chains and sequence ranges	Author chain H； PDBConstruct 1–101； UniProt 1–101

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8xa6
Deposition date deposition_date	2023-12-02
Structure title title	Cryo-EM structure of Bacillus RNAP and SPO1 gp33 complex
Keywords keywords	bacterial, phage, complex, TRANSCRIPTION; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

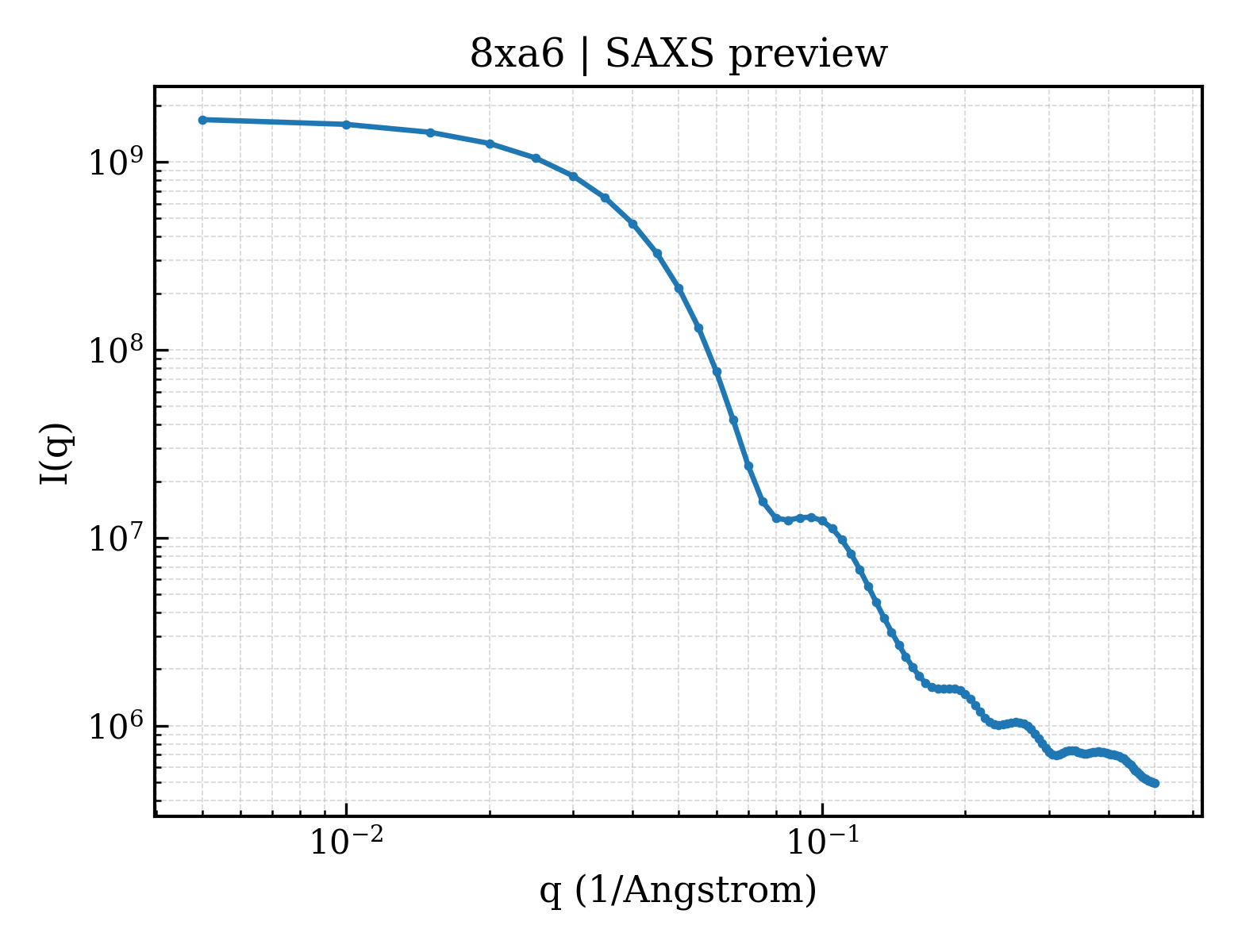

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	48.23 Å
Radius of gyration Rg (electron density) rg_electron	47.66 Å
Forward intensity I(0) i0	1710920000.00
Molecular weight molecular_weight	345040.0 kDa
Excluded volume excluded_volume	432940 Å³
Envelope volume envelope_volume	688840 Å³
Hydration-shell volume shell_volume	113190 Å³
Envelope diameter envelope_diameter	168.6 Å
Shell Rg shell_rg	56.69 Å
Envelope Rg envelope_rg	47.43 Å
Shape Rg shape_rg	47.68 Å
Total Rg total_rg	47.92 Å
Total atoms total_atoms	48778
Residues n_residues	3079
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	155.6 Å
Rg (real space) rg_real	47.94 Å
Rg uncertainty (real space) rg_real_error	1.11 Å
I(0) (real space) i0_real	1.7110e+09
I(0) uncertainty (real space) i0_real_error	3.0820e+07
Rg (reciprocal space) rg_reciprocal	48.23 Å
I(0) (reciprocal space) i0_reciprocal	1712000000.0000
Solution quality estimate total_estimate	0.8765
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	61.3 Å
Skewness Skewness skewness	0.202
Kurtosis Kurtosis kurtosis	-0.334
Angular range angular_range	— – 0.1650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	788400000.0000
Real-space data points n_real_points	34
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.851; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.962; Smooth: 0.876

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	DNA-directed RNA polymerase subunit alpha
Molecular weight formula_weight	34842.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	48778

MIEIEKPKIETVEISDDAKFGKFVVEPLERGYGTTLGNSLRRILLSSLPGAAVTSIQIDGVLHEFSTIEGVVEDVTTIILHIKKLALKIYSDEEKTLEIDVQGEGTVTAADITHDSDVEILNPDLHIATLGENASFRVRLTAQRGRGYTPADANKRDDQPIGVIPIDSIYTPVSRVSYQVENTRVGQVANYDKLTLDVWTDGSTGPKEAIALGSKILTEHLNIFVGLTDEAQHAEIMVEKEEDQKEKVLEMTIEELDLSVRSYNCLKRAGINTVQELANKTEEDMMKVRNLGRKSLEEVKAKLEELGLGLRKDD

来源 Source

来源生物 organism	Bacillus
NCBI Class编号 ncbi_taxonomy_id	1386
宿主生物 host_organism	Bacillus subtilis

Entity 2 Entity 2 polymer

Description description	DNA-directed RNA polymerase subunit beta
Molecular weight formula_weight	133847.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MTGQLVQYGRHRQRRSYARISEVLELPNLIEIQTSSYQWFLDEGLREMFQDISPIEDFTGNLSLEFIDYSLGEPKYPVEESKERDVTYSAPLRVKVRLINKETGEVKDQDVFMGDFPIMTDTGTFIINGAERVIVSQLVRSPSVYFSGKVDKNGKKGFTATVIPNRGAWLEYETDAKDVVYVRIDRTRKLPVTVLLRALGFGSDQEILDLIGENEYLRNTLDKDNTENSDKALLEIYERLRPGEPPTVENAKSLLDSRFFDPKRYDLANVGRYKINKKLHIKNRLFNQRLAETLVDPETGEILAEKGQILDRRTLDKVLPYLENGIGFRKLYPNGGVVEDEVTLQSIKIFAPTDQEGEQVINVIGNAYIEEEIKNITPADIISSISYFFNLLHGVGDTDDIDHLGNRRLRSVGELLQNQFRIGLSRMERVVRERMSIQDTNTITPQQLINIRPVIASIKEFFGSSQLSQFMDQTNPLAELTHKRRLSALGPGGLTRERAGMEVRDVHYSHYGRMCPIETPEGPNIGLINSLSSYAKVNRFGFIETPYRRVDPETGKVTGRIDYLTADEEDNYVVAQANARLDDEGAFIDDSIVARFRGENTVVSRNRVDYMDVSPKQVVSAATACIPFLENDDSNRALMGANMQRQAVPLMQPEAPFVGTGMEYVSGKDSGAAVICKHPGIVERVEAKNVWVRRYEEVDGQKVKGNLDKYSLLKFVRSNQGTCYNQRPIVSVGDEVVKGEILADGPSMELGELALGRNVMVGFMTWDGYNYEDAIIMSERLVKDDVYTSIHIEEYESEARDTKLGPEEITRDIPNVGEDALRNLDDRGIIRIGAEVKDGDLLVGKVTPKGVTELTAEERLLHAIFGEKAREVRDTSLRVPHGGGGIIHDVKVFNREDGDELPPGVNQLVRVYIVQKRKISEGDKMAGRHGNKGVISKILPEEDMPYLPDGTPIDIMLNPLGVPSRMNIGQVLELHMGMAARYLGIHIASPVFDGAREEDVWETLEEAGMSRDAKTVLYDGRTGEPFDNRVSVGIMYMIKLAHMVDDKLHARSTGPYSLVTQQPLGGKAQFGGQRFGEMEVWALEAYGAAYTLQEILTVKSDDVVGRVKTYEAIVKGDNVPEPGVPESFKVLIKELQSLGMDVKILSGDEEEIEMRDLEDEEDAKQADGLALSGDEEPEETASADVERDVVTKE

来源 Source

来源生物 organism	Bacillus
NCBI Class编号 ncbi_taxonomy_id	1386
宿主生物 host_organism	Bacillus subtilis

Entity 3 Entity 3 polymer

Description description	;DNA-directed RNA polymerase subunit beta' ;
Molecular weight formula_weight	134445.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MLDVNNFEYMNIGLASPDKIRSWSFGEVKKPETINYRTLKPEKDGLFCERIFGPTKDWECHCGKYKRVRYKGVVCDRCGVEVTRAKVRRERMGHIELAAPVSHIWYFKGIPSRMGLVLDMSPRALEEVIYFASYVVTDPANTPLEKKQLLSEKEYRAYLDKYGNKFQASMGAEAIHKLLQDIDLVKEVDMLKEELKTSQGQRRTRAIKRLEVLEAFRNSGNKPSWMILDVLPVIPPELRPMVQLDGGRFATSDLNDLYRRVINRNNRLKRLLDLGAPSIIVQNEKRMLQEAVDALIDNGRRGRPVTGPGNRPLKSLSHMLKGKQGRFRQNLLGKRVDYSGRSVIVVGPHLKMYQCGLPKEMALELFKPFVMKELVEKGLAHNIKSAKRKIERVQPEVWDVLESVIKEHPVLLNRAPTLHRLGIQAFEPTLVEGRAIRLHPLVCTAYNADFDGDQMAVHVPLSAEAQAEARILMLAAQNILNPKDGKPVVTPSQDMVLGNYYLTLERAGAVGEGMVFKNTDEALLAYQNGYVHLHTRVAVAANSLKNVTFTEEQRSKLLITTVGKLVFNEILPESFPYMNEPTKSNIEEKTPDRFFLEKGADVKAVIAQQPINAPFKKGILGKIIAEIFKRFHITETSKMLDRMKNLGFKYSTKAGITVGVSDIVVLDDKQEILEEAQSKVDNVMKQFRRGLITEEERYERVISIWSAAKDVIQGKLMKSLDELNPIYMMSDSGARGNASNFTQLAGMRGLMANPAGRIIELPIKSSFREGLTVLEYFISTHGARKGLADTALKTADSGYLTRRLVDVAQDVIIRETDCGTDRGILAKPLKEGTETIERLEERLIGRFARKQVKHPETGEVLVNENELIDEDKALEIVEAGIEEVWIRSAFTCNTPHGVCKRCYGRNLATGSDVEVGEAVGIIAAQSIGEPGTQLTMRTFHTGGVAGDDITQGLPRIQELFEARNPKGQATITEIDGTVVEINEVRDKQQEIVVQGAVETRSYTAPYNSRLKVAEGDKITRGQVLTEGSIDPKELLKVTDLTTVQEYLLHEVQKVYRMQGVEIGDKHVEVMVRQMLRKVRVIDAGDTDVLPGTLLDIHQFTEANKKVLLEGNRPATGRPVLLGITKASLETDSFLSAASFQETTRVLTDAAIKGKRDELLGLKENVIIGKLVPAGTGMMKYRKVKPVSNVQPTDDMVPVE

来源 Source

来源生物 organism	Bacillus
NCBI Class编号 ncbi_taxonomy_id	1386
宿主生物 host_organism	Bacillus subtilis

Entity 4 Entity 4 polymer

Description description	DNA-directed RNA polymerase subunit omega
Molecular weight formula_weight	7766.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	F

MLDPSIDSLMNKLDSKYTLVTVSARRAREMQIKKDQMIEHTISHKYVGKALEEIDAGLLSFEKEDRE

来源 Source

来源生物 organism	Bacillus
NCBI Class编号 ncbi_taxonomy_id	1386
宿主生物 host_organism	Bacillus subtilis

Entity 5 Entity 5 polymer

Description description	DNA-directed RNA polymerase subunit delta
Molecular weight formula_weight	20417.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MGIKQYSQEELKEMALVEIAHELFEEHKKPVPFQELLNEIASLLGVKKEELGDRIAQFYTDLNIDGRFLALSDQTWGLRSWYPYDQLDEETQPTVKAKKKKAKKAVEEDLDLDEFEEIDEDDLDLDEVEEELDLEADDFDEEDLDEDDDDLEIEEDIIDEDDEDYDDEEEEIK

来源 Source

来源生物 organism	Bacillus
NCBI Class编号 ncbi_taxonomy_id	1386
宿主生物 host_organism	Bacillus subtilis

Entity 6 Entity 6 polymer

Description description	DNA-directed RNA polymerase subunit epsilon
Molecular weight formula_weight	8277.4 kDa
Mutation mutation	V33I
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MIYKVFYQEKADEVPVREKTDSLYIEGVSERDIRTKLKEKKFNIEFITPVDGAFLEYEQQSENFKVLEL

来源 Source

来源生物 organism	Bacillus
NCBI Class编号 ncbi_taxonomy_id	1386
宿主生物 host_organism	Bacillus subtilis

Entity 7 Entity 7 polymer

Description description	Gene 33 protein
Molecular weight formula_weight	11920.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

MQKFLDELEKVRNHTEDYDVYNSEAERTFRGLKAKFQKLIGKRALYICKSTKESRVVTIEAAYDRYIVLSYKYYGMDYEGSTKMSVTYQALLSGEDRLDVE

来源 Source

来源生物 organism	Bacillus phage SPO1
NCBI Class编号 ncbi_taxonomy_id	2884427
宿主生物 host_organism	Bacillus subtilis

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.02 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	501632

fit	/app/data/saxs_computation/xa/8xa6/8xa6.fit
pddf	/app/data/pr_computation/xa/8xa6/8xa6.pr.out
profile	/app/data/saxs_computation/xa/8xa6/8xa6.dat

Cryo-EM structure of Bacillus RNAP and SPO1 gp33 complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA-directed RNA polymerase subunit alpha

State in the Current Structure

Other States of the Same Protein in the Database

DNA-directed RNA polymerase subunit beta

State in the Current Structure

Other States of the Same Protein in the Database

;DNA-directed RNA polymerase subunit beta' ;

State in the Current Structure

Other States of the Same Protein in the Database

DNA-directed RNA polymerase subunit omega

State in the Current Structure

Other States of the Same Protein in the Database

DNA-directed RNA polymerase subunit delta

State in the Current Structure

Other States of the Same Protein in the Database

DNA-directed RNA polymerase subunit epsilon

State in the Current Structure

Other States of the Same Protein in the Database

Gene 33 protein

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

冷冻电镜 EM 3D

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 polymer

Polymer Polymer

来源 Source

Entity 4 Entity 4 polymer

Polymer Polymer

来源 Source

Entity 5 Entity 5 polymer

Polymer Polymer

来源 Source

Entity 6 Entity 6 polymer

Polymer Polymer

来源 Source

Entity 7 Entity 7 polymer

Polymer Polymer

来源 Source

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
