Crystal Structure of Spx in Complex with the C-terminal Domain of the RNA Polymerase Alpha Subunit

Method: X-RAY DIFFRACTION Dmax: 63.7 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Regulatory protein spx

Bacillus subtilis

UniProt O31602

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 1–131 Fragment：transcription regulator DNA-directed RNA polymerase alpha chain × 1 （P20429） SO4 SULFATE ION × 4 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 5.6；273 K；lithium sulfate, ammonium sulfate, sodium citrate, pH 5.6, VAPOR DIFFUSION, temperature 273K Resolution 1.50 Å R-free 0.220

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1Z3E Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3GFK Crystal structure of Bacillus subtilis Spx/RNA polymerase alpha subunit C-terminal domain complex Deposited 2009-02-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–131（131 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5；295 K；vapor diffusion against 6% (w/v) PEG 6000, 100 mM sodium acetate, pH 5.0, 10 micromolar CuCl2, protein concentration 11.5 mg/mL, temperature 295K
Resolution 2.30 Å R-free 0.282
3IHQ Crystal Structure of Reduced C10S Spx in Complex with the Alpha C-terminal Domain of RNA Polymeras Deposited 2009-07-30 Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–131（131 aa）
Mutation：C10S IMD IMIDAZOLE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.3；273 K；25-30% PEG 4000, 0.1 M sodium citrate, 0.1 M magnesium chloride, pH 5.3, VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.90 Å R-free 0.278
6GHB Crystal structure of Spx in complex with YjbH (oxidized) Deposited 2018-05-06 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–131（131 aa）
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；Na-HEPES pH 7.5, MgCl2 and PEG400
Resolution 3.10 Å R-free 0.266
6GHB Crystal structure of Spx in complex with YjbH (oxidized) Deposited 2018-05-06 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 1–131（131 aa）
Not recorded MG MAGNESIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；Na-HEPES pH 7.5, MgCl2 and PEG400
Resolution 3.10 Å R-free 0.266
6GHO Crystal structure of Spx in complex with YjbH Deposited 2018-05-08 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 1–131（131 aa）
Not recorded CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；PEG 3350, MgCl2 and Bis-Tris pH 6.0
Resolution 1.79 Å R-free 0.221

4 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name SPX_BACSU
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 2–132； UniProt 1–131

DNA-directed RNA polymerase alpha chain

Bacillus subtilis

UniProt P20429

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 245–314 Fragment：c-terminal domain of RNA polymerase alpha subunit Regulatory protein spx × 1 （O31602） SO4 SULFATE ION × 4 X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION；pH 5.6；273 K；lithium sulfate, ammonium sulfate, sodium citrate, pH 5.6, VAPOR DIFFUSION, temperature 273K Resolution 1.50 Å R-free 0.220

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 1Z3E Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
3GFK Crystal structure of Bacillus subtilis Spx/RNA polymerase alpha subunit C-terminal domain complex Deposited 2009-02-27 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 240–314（75 aa） Fragment：Alpha C-terminal domain (alpha-CTD)
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 5；295 K；vapor diffusion against 6% (w/v) PEG 6000, 100 mM sodium acetate, pH 5.0, 10 micromolar CuCl2, protein concentration 11.5 mg/mL, temperature 295K
Resolution 2.30 Å R-free 0.282
3IHQ Crystal Structure of Reduced C10S Spx in Complex with the Alpha C-terminal Domain of RNA Polymeras Deposited 2009-07-30 Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 245–314（70 aa） Fragment：UNP residues 245-314
Not recorded IMD IMIDAZOLE × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.3；273 K；25-30% PEG 4000, 0.1 M sodium citrate, 0.1 M magnesium chloride, pH 5.3, VAPOR DIFFUSION, HANGING DROP, temperature 273K
Resolution 1.90 Å R-free 0.278
6WVJ Cryo-EM structure of Bacillus subtilis RNA Polymerase elongation complex Deposited 2020-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: octameric
Chain A 1–314（314 aa）
Chain B 1–314（314 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE；Sample loading volume ranged between 2 and 3 microlitres. Samples were blotted for 5 seconds prior to vitrification.
Resolution 3.36 Å
6WVK Cryo-EM structure of Bacillus subtilis RNA Polymerase in complex with HelD Deposited 2020-05-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 7 PDB declaration: heptameric
Chain A 1–314（314 aa）
Chain B 1–314（314 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
cryo-EM vitrification conditions Cryogen ETHANE；Sample loading volume ranged between 2 and 3 microlitres. Samples were blotted for 5 seconds prior to vitrification.
Resolution 3.36 Å
7CKQ The cryo-EM structure of B. subtilis BmrR transcription activation complex Deposited 2020-07-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 9 PDB declaration: undecameric
Chain A 1–314（314 aa）
Chain B 1–314（314 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 P4P TETRAPHENYLPHOSPHONIUM × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.40 Å
7F75 Cryo-EM structure of Spx-dependent transcription activation complex Deposited 2021-06-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 10 PDB declaration: dodecameric
Chain A 1–314（314 aa）
Chain B 1–314（314 aa）
Chain I 1–314（314 aa）
Not recorded MG MAGNESIUM ION × 1 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8XA6 Cryo-EM structure of Bacillus RNAP and SPO1 gp33 complex Deposited 2023-12-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–314（314 aa）
Chain B 1–314（314 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.02 Å
8XA7 Cryo-EM structure of Bacillus subtilis RNAP,sigA and SPO1 gp33 complex Deposited 2023-12-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 9 PDB declaration: nonameric
Chain A 1–314（314 aa）
Chain B 1–314（314 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.94 Å
8XA8 Cryo-EM structure of Bacillus RNAP and HelD complex Deposited 2023-12-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain A 1–314（314 aa）
Chain B 1–314（314 aa）
Not recorded ZN ZINC ION × 2 MG MAGNESIUM ION × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.19 Å

9 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name RPOA_BACSU
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 3–72； UniProt 245–314

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

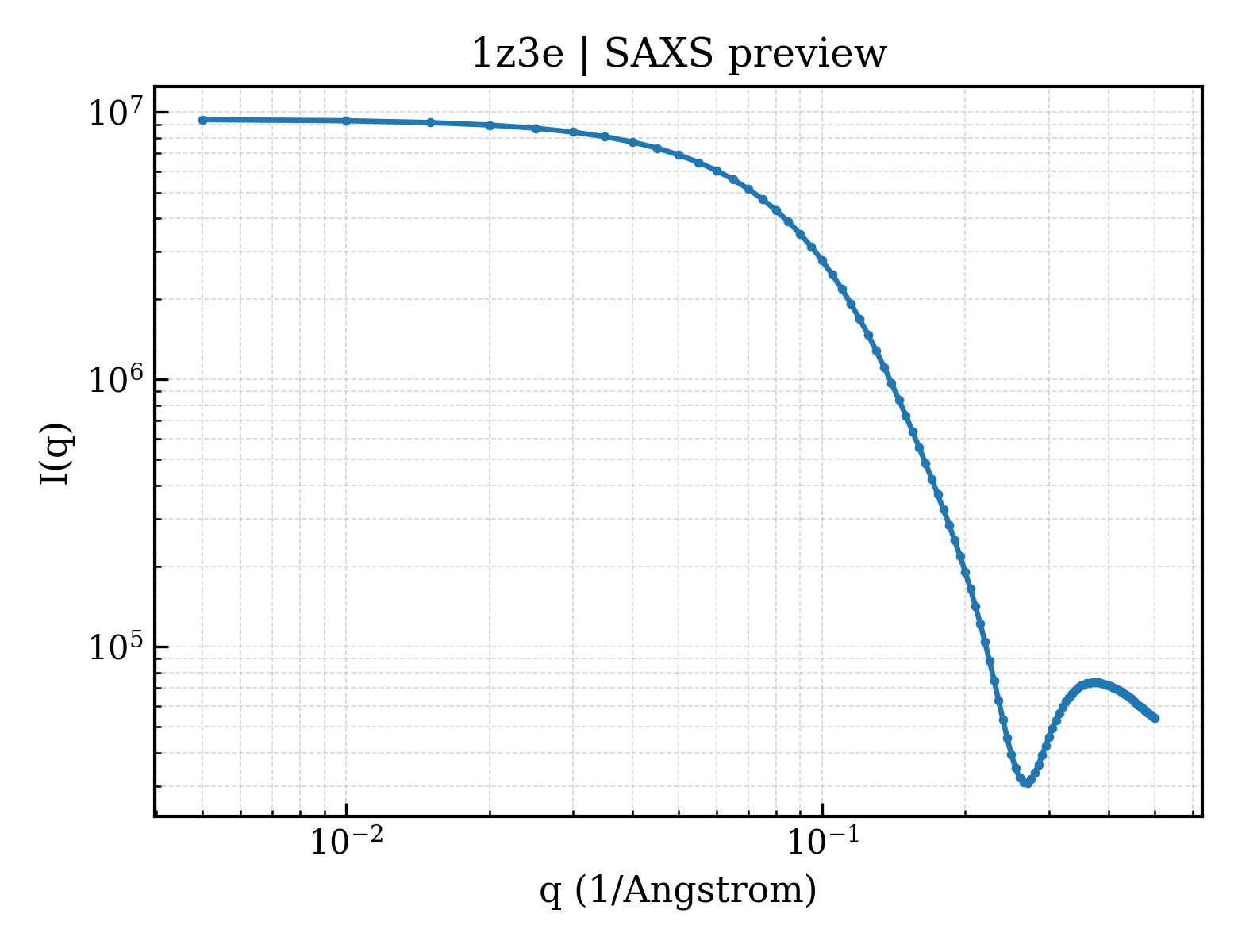

SAXS scattering curve SAXS Profile

SAXS profile for 1z3e

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 1z3e
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id1z3e
Deposition date deposition_date2005-03-11
Structure title titleCrystal Structure of Spx in Complex with the C-terminal Domain of the RNA Polymerase Alpha Subunit
Keywords keywordsbacterial transcription regulation, disulfide stress, TRANSCRIPTION; TRANSCRIPTION
Experimental Method methodX-RAY DIFFRACTION
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier19.17 Å
Radius of gyration Rg (electron density) rg_electron18.21 Å
Forward intensity I(0) i09387130.00
Molecular weight molecular_weight21931.0 kDa
Excluded volume excluded_volume27219 ų
Envelope volume envelope_volume32823 ų
Hydration-shell volume shell_volume15615 ų
Envelope diameter envelope_diameter62.7 Å
Shell Rg shell_rg23.90 Å
Envelope Rg envelope_rg18.69 Å
Shape Rg shape_rg18.20 Å
Total Rg total_rg19.16 Å
Total atoms total_atoms1529
Residues n_residues186
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax63.7 Å
Rg (real space) rg_real19.16 Å
Rg uncertainty (real space) rg_real_error0.30 Å
I(0) (real space) i0_real9.3870e+06
I(0) uncertainty (real space) i0_real_error1.0320e+05
Rg (reciprocal space) rg_reciprocal19.16 Å
I(0) (reciprocal space) i0_reciprocal9387000.0000
Solution quality estimate total_estimate0.8773
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary20.3 Å
Skewness Skewness skewness0.333
Kurtosis Kurtosis kurtosis-0.391
Angular range angular_range— – 0.4150 Å−1
Current regularization parameter α current_alpha0.0001
Highest regularization parameter α highest_alpha2873000.0000
Real-space data points n_real_points73
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.807; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.985; Smooth: 0.997
▶
