1. Protein Identity and Related Structures Protein Identity & Related Structures

Tyrosine-protein kinase SYK

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	;cyclopropyl-[5-[[4-[4-[[(3~{R},4~{S})-3-methoxy-4-oxidanyl-pyrrolidin-1-yl]methyl]-3-methyl-pyrazol-1-yl]pyrimidin-2-yl]amino]-1-methyl-pyrrolo[2,3-b]pyridin-3-yl]methanone ; × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KSYK_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–280； UniProt 356–635 Author chain B； PDBConstruct 1–280； UniProt 356–635

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8xq1
Deposition date deposition_date	2024-01-04
Last revision last_revision	2025-01-15
Structure title title	Crystal structure of spleen tyrosine kinase(SYK) in complex with SKI-G-1673
Keywords keywords	SIGNALING PROTEIN-INHIBITOR COMPLEX, SIGNALING PROTEIN-INHIBITOR; SIGNALING PROTEIN-INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8xq1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8xq1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

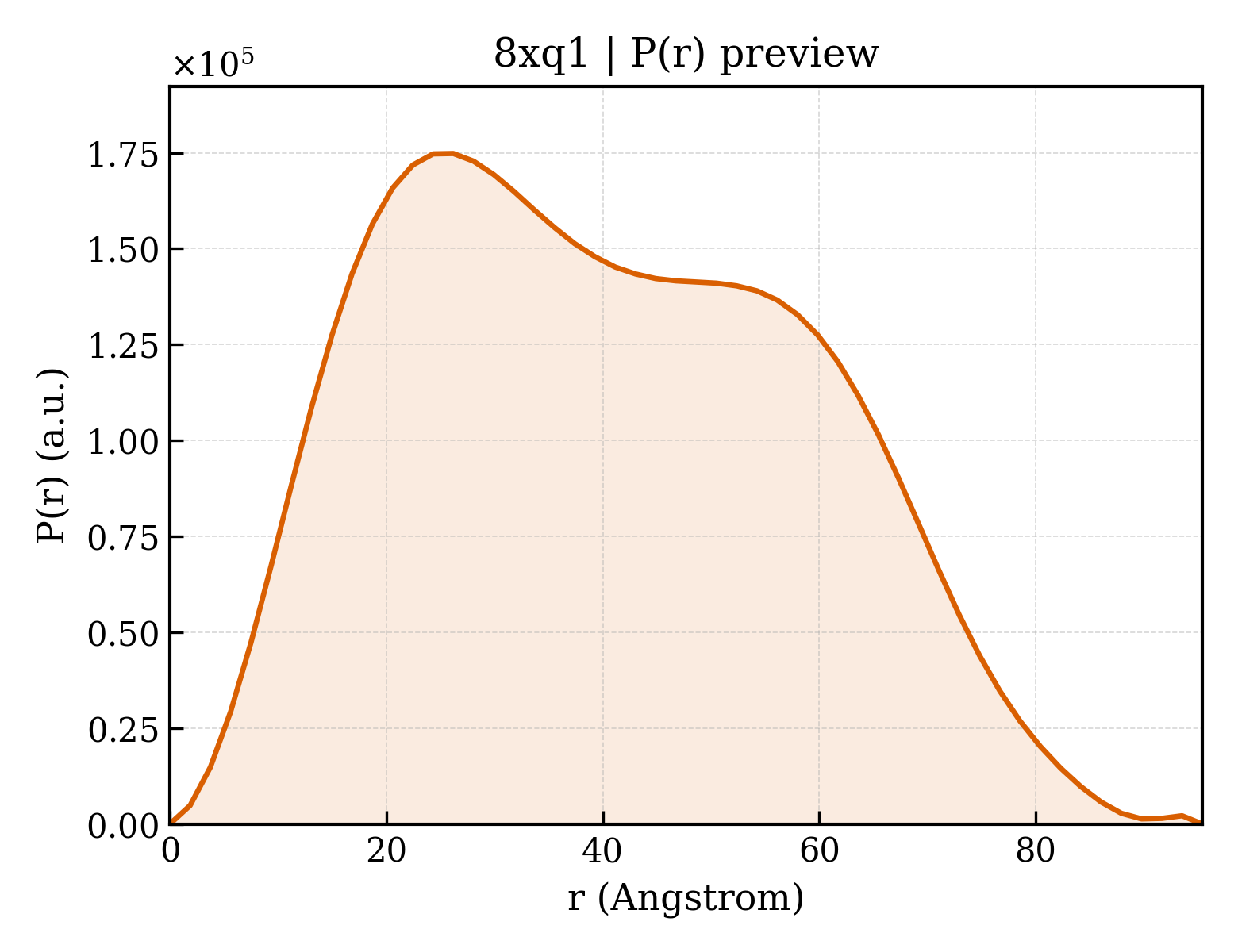

8xq1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.14 Å
Rg (electron density)	30.64 Å
Total Rg	31.39 Å
Atom count	4364
Residues	526
Excluded volume	78101 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8xq1__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Tyrosine-protein kinase SYK
Molecular weight formula_weight	33901.0 kDa
EC 编号 ec_number	2.7.10.2
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4659

EEIRPKEVYLDRKLLTLEDKELGSGNFGTVKKGYYQMKKVVKTVAVKILKNEANDPALKDELLAEANVMQQLDNPYIVRMIGICEAESWMLVMEMAELGPLNKYLQQNRHVKDKNIIELVHQVSMGMKYLEESNFVHRDLAARNVLLVTQHYAKISDFGLSKALRADENYYKAQTHGKWPVKWYAPECINYYKFSSKSDVWSFGVLMWEAFSYGQKPYRGMKGSEVTAMLEKGERMGCPAGCPREMYDLMNLCWTYDVENRPGFAAVELRLRNYYYDVVNLEHHHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	;cyclopropyl-[5-[[4-[4-[[(3~{R},4~{S})-3-methoxy-4-oxidanyl-pyrrolidin-1-yl]methyl]-3-methyl-pyrazol-1-yl]pyrimidin-2-yl]amino]-1-methyl-pyrrolo[2,3-b]pyridin-3-yl]methanone ;
Molecular weight formula_weight	502.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	295

▶

Unit-cell length a length_a	39.632 Å
Unit-cell length b length_b	85.152 Å
Unit-cell length c length_c	89.506 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.02 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	monoclinic

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	42.580 Å
R factor r_factor	0.1876
R_work r_work	0.1864
R_free r_free	0.2091

Crystal structure of spleen tyrosine kinase(SYK) in complex with SKI-G-1673
